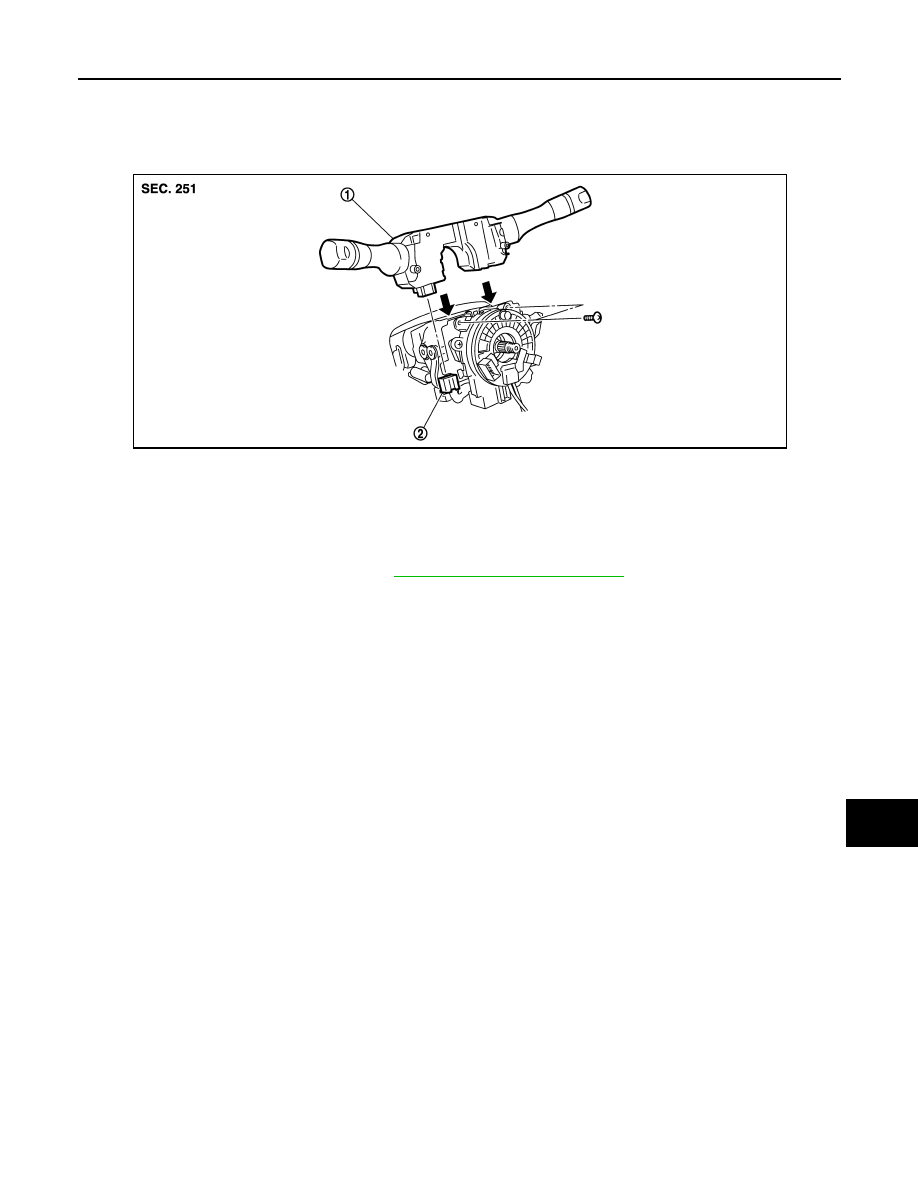

BCS COMBINATION SWITCH BCS-99 < REMOVAL AND INSTALLATION > C D E F G H I J K L B A O P N COMBINATION SWITCH Exploded View INFOID:0000000009651738 Removal and Installation INFOID:0000000009651739 REMOVAL 1. Remove steering column cover. Refer to IP-14, "Removal and Installation" 2. Remove screws. 3. Disconnect the connector. 4. Pull up the combination switch to remove it. INSTALLATION Install in the reverse order of removal. 1. Combination switch 2. Combination switch connector JMMIA0383ZZ |
