DTC Index

INFOID:0000000009651713

NOTE:
The details of time display are as follows.
• CRNT: A malfunction is detected now.
• PAST: A malfunction was detected in the past.

Priority

DTC

1

B2562: LOW VOLTAGE

2

• U1000: CAN COMM
• U1010: CONTROL UNIT (CAN)

3

• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2195: ANTI-SCANNING
• B2196: DONGLE NG
• B2198: NATS ANTENNA AMP

4

• B2555: STOP LAMP
• B2556: PUSH-BTN IGN SW
• B2557: VEHICLE SPEED
• B2601: SHIFT POSITION
• B2602: SHIFT POSITION
• B2603: SHIFT POSI STATUS
• B2604: PNP/CLUTCH SW
• B2605: PNP/CLUTCH SW
• B2608: STARTER RELAY
• B260F: ENG STATE SIG LOST
• B2614: BCM
• B2615: BCM
• B2616: BCM
• B2618: BCM
• B261A: PUSH-BTN IGN SW
• B26F1: IGN RELAY OFF
• B26F2: IGN RELAY ON
• B26F3: START CONT RLY ON
• B26F4: START CONT RLY OFF
• B26F6:  BCM
• B26F7:  BCM
• B26F8:  BCM
• B26F9: CRANK REQ CIR SHORT
• B26FA: CRANK REQ CIR OPEN
• B26FC: KEY REGISTRATION
• C1729: VHCL SPEED SIG ERR
• U0415: VEHICLE SPEED

5

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL

5

• B2621: INSIDE ANTENNA
• B2622: INSIDE ANTENNA
• B2623: INSIDE ANTENNA

6

• B2626: OUTSIDE ANTENNA
• B2627: OUTSIDE ANTENNA
• B2628: OUTSIDE ANTENNA

BCS-64

< ECU DIAGNOSIS INFORMATION >

BCM

IGN counter is displayed on Freeze Frame Data. For details of Freeze Frame Data, refer to

BCS-16, "COM-

MON ITEM : CONSULT Function (BCM - COMMON ITEM)"

.

CONSULT display

Fail-safe

Freeze Frame

Data

•Vehicle Speed

•Odo/Trip Meter

•Vehicle Condi-

tion

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference

page

No DTC is detected.
further testing
may be required.

—

—

—

—

—

U1000: CAN COMM

—

—

—

—

BCS-87

U1010: CONTROL UNIT (CAN)

—

—

—

—

BCS-88

U0415: VEHICLE SPEED

—

—

×

—

BCS-89

B2192: ID DISCORD BCM-ECM

×

—

—

—

SEC-63

B2193: CHAIN OF BCM-ECM

×

—

—

—

SEC-64

B2195: ANTI-SCANNING

×

—

—

—

SEC-65

B2196: DONGLE NG

×

—

—

—

SEC-66

B2198: NATS ANTENNA AMP

×

—

—

—

SEC-68

B2555: STOP LAMP

—

×

×

—

SEC-71

B2556: PUSH-BTN IGN SW

—

×

×

—

SEC-74

B2557: VEHICLE SPEED

—

×

×

—

SEC-76

B2562: LOW VOLTAGE

—

×

—

—

BCS-90

B2601: SHIFT POSITION

—

×

×

—

SEC-77

B2602: SHIFT POSITION

—

×

×

—

SEC-79

B2603: SHIFT POSI STATUS

—

×

×

—

SEC-82

B2604: PNP/CLUTCH SW

—

×

×

—

SEC-86

B2605: PNP/CLUTCH SW

—

×

×

—

SEC-88

B2608: STARTER RELAY

×

×

×

—

SEC-90

B260F: ENG STATE SIG LOST

×

×

×

—

SEC-92

B2614: BCM

—

×

×

—

PCS-57

B2615: BCM

—

×

×

—

PCS-59

B2616: BCM

—

×

×

—

PCS-61

B2618: BCM

—

×

×

—

PCS-63

B261A: PUSH-BTN IGN SW

—

×

×

—

PCS-65

B2621: INSIDE ANTENNA

—

×

—

—

DLK-226

B2622: INSIDE ANTENNA

—

×

—

—

DLK-228

B2623: INSIDE ANTENNA

—

×

—

—

DLK-230

B2626: OUTSIDE ANTENNA

—

×

—

—

DLK-234

B2627: OUTSIDE ANTENNA

—

×

—

—

DLK-232

B2628: OUTSIDE ANTENNA

—

×

—

—

DLK-236

B26F1: IGN RELAY OFF

×

×

×

—

PCS-67

B26F2: IGN RELAY ON

×

×

×

—

PCS-68

B26F3: START CONT RLY ON

×

×

×

—

SEC-95

B26F4: START CONT RLY OFF

×

×

×

—

SEC-96

B26F6: BCM

—

×

×

—

PCS-70

B26F7: BCM

×

×

×

—

SEC-97

BCS

BCM

BCS-65

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B26F8: BCM

—

×

×

—

SEC-98

B26F9: CRANK REQ CIR SHORT

—

×

×

—

SEC-99

B26FA: CRANK REQ CIR OPEN

—

×

×

—

SEC-101

B26FC: KEY REGISTRATION

—

×

×

—

SEC-103

C1704: LOW PRESSURE FL

—

—

—

×

WT-25

C1705: LOW PRESSURE FR

—

—

—

×

C1706: LOW PRESSURE RR

—

—

—

×

C1707: LOW PRESSURE RL

—

—

—

×

C1708: [NO DATA] FL

—

—

—

×

WT-27

C1709: [NO DATA] FR

—

—

—

×

C1710: [NO DATA] RR

—

—

—

×

C1711: [NO DATA] RL

—

—

—

×

C1716: [PRESSDATA ERR] FL

—

—

—

×

WT-29

C1717: [PRESSDATA ERR] FR

—

—

—

×

C1718: [PRESSDATA ERR] RR

—

—

—

×

C1719: [PRESSDATA ERR] RL

—

—

—

×

C1729: VHCL SPEED SIG ERR

—

—

—

×

WT-31

CONSULT display

Fail-safe

Freeze Frame

Data

•Vehicle Speed

•Odo/Trip Meter

•Vehicle Condi-

tion

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference

page

BCS-66

< WIRING DIAGRAM >

BCM

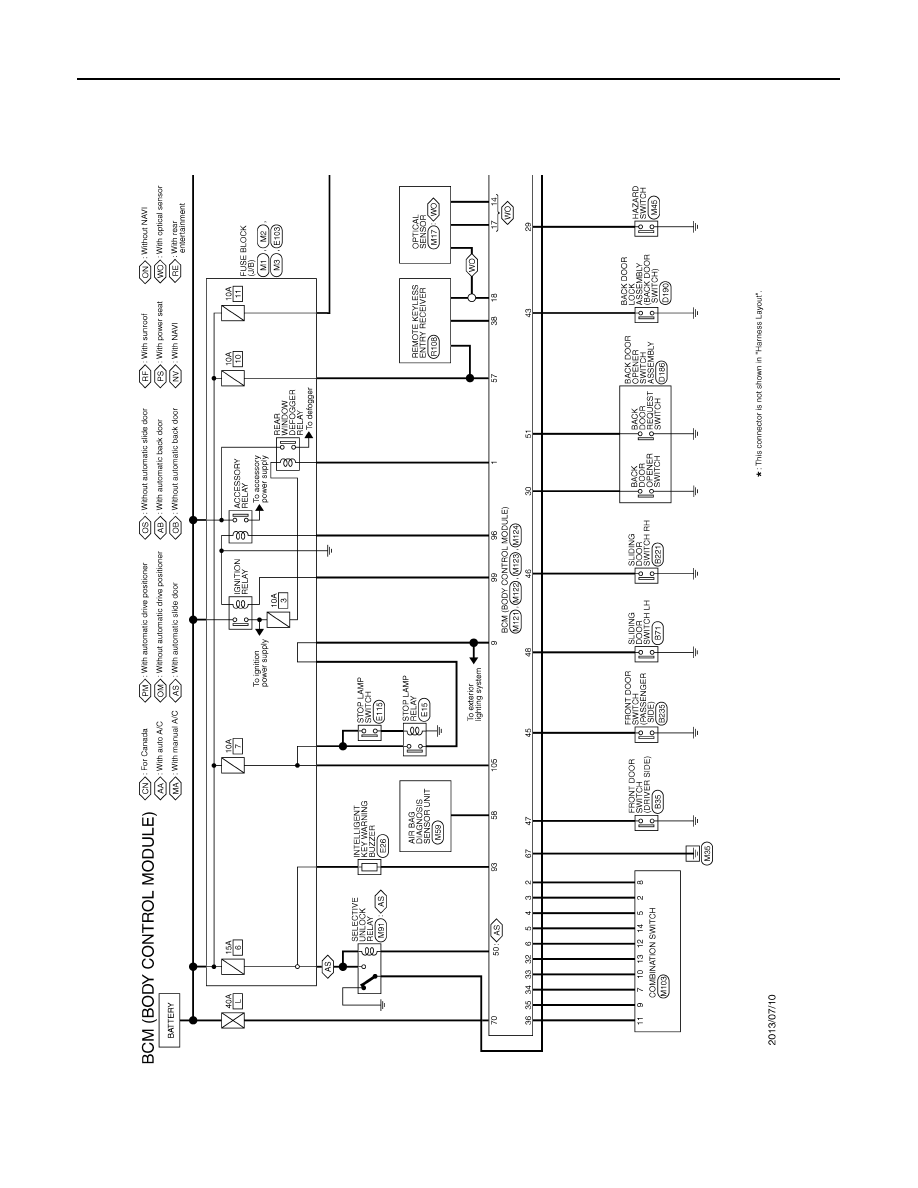

WIRING DIAGRAM

BCM

Wiring Diagram

INFOID:0000000009651714

JRMWE3313GB
