Nissan Quest E52. Manual - part 204





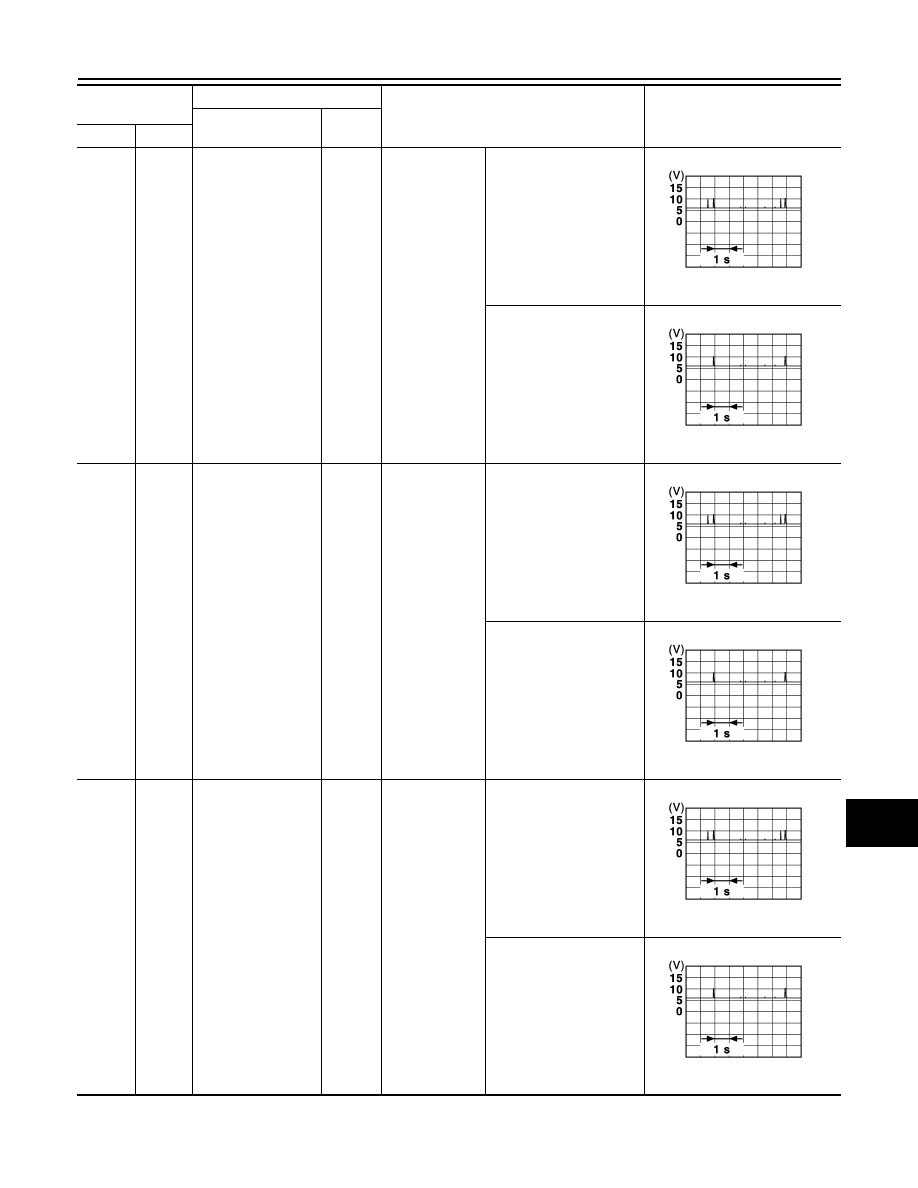

BCS

BCM

BCS-59

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

84

(Y)

Ground

Room antenna 1 (+)
(Instrument center)

Output

Ignition switch
ON

When Intelligent Key is
not in the antenna detec-
tion area

When Intelligent Key is in
the antenna detection
area

85

(BR)

Ground

Room antenna 1 (-)
(Instrument center)

Output

Ignition switch
ON

When Intelligent Key is
not in the antenna detec-
tion area

When Intelligent Key is in
the antenna detection
area

86

(LG)

Ground

Room antenna 2 (+)
(Console)

Output

Ignition switch
ON

When Intelligent Key is
not in the antenna detec-
tion area

When Intelligent Key is in
the antenna detection
area

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA5951GB

JMKIA3839GB

JMKIA5951GB

JMKIA3839GB

JMKIA5951GB

JMKIA3839GB

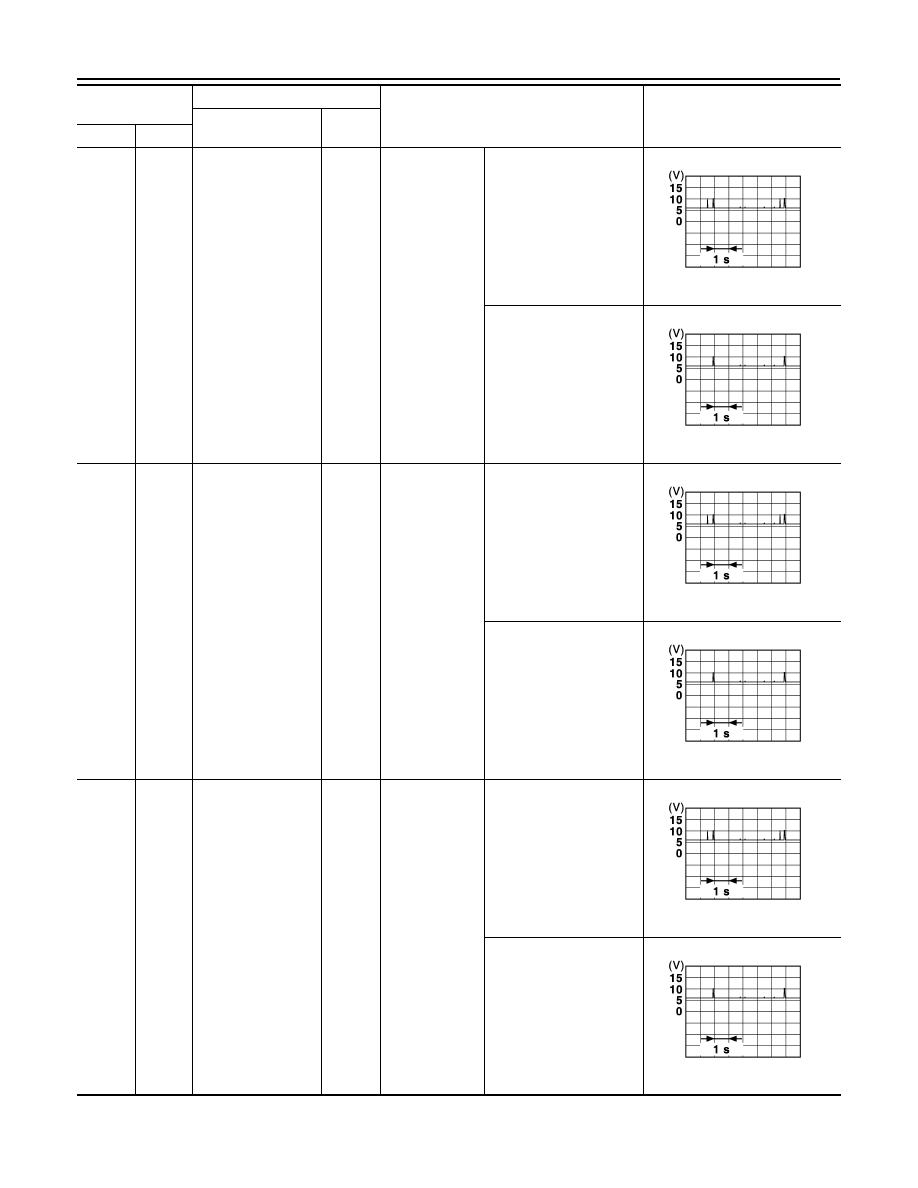

BCS-60

< ECU DIAGNOSIS INFORMATION >

BCM

87

(V)

Ground

Room antenna 2 (

(Console)

Output

Ignition switch
ON

When Intelligent Key is
not in the antenna detec-
tion area

When Intelligent Key is in
the antenna detection
area

88

(W)

Ground

Luggage room an-
tenna (+)

Output

Ignition switch
ON

When Intelligent Key is
not in the antenna detec-
tion area

When Intelligent Key is in
the antenna detection
area

89

(B)

Ground

Luggage room an-
tenna (-)

Output

Ignition switch
ON

When Intelligent Key is
not in the antenna detec-
tion area

When Intelligent Key is in
the antenna detection
area

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA5951GB

JMKIA3839GB

JMKIA5951GB

JMKIA3839GB

JMKIA5951GB

JMKIA3839GB

BCS

BCM

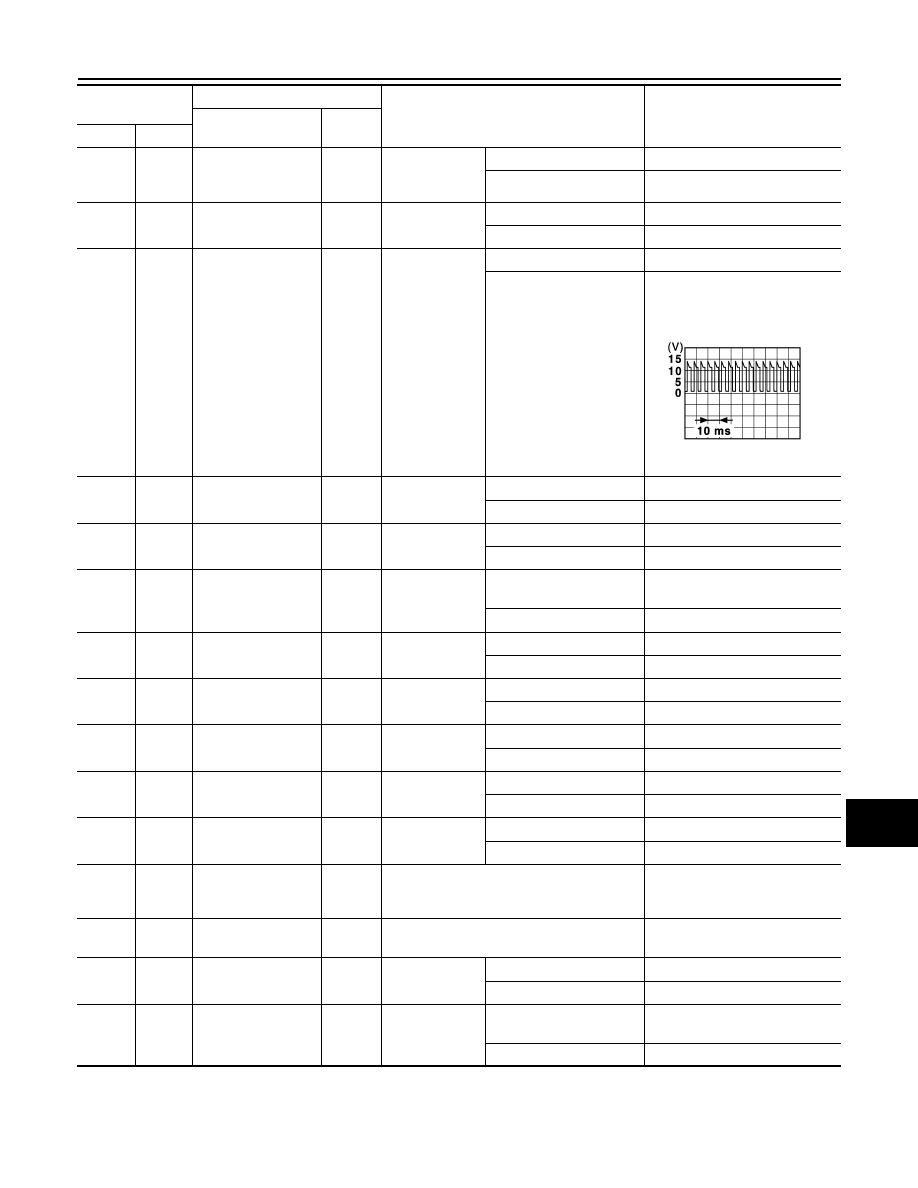

BCS-61

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

• *1: Without automatic sliding door system

• *2: With automatic sliding door system

• *3: With rear entertainment

• *4: For Canada

90

(P)

Ground

Push-button ignition
switch illumination

Output

Push-button ig-
nition switch illu-
mination

ON

9 – 16 V

OFF

0 – 1.5 V

91

(SB)

Ground

LOCK indicator lamp

Output

LOCK indicator
lamp

OFF (Ignition switch OFF)

9 – 16 V

ON

0 – 1.5 V

92

(G)

Ground

Push-button ignition
switch illumination
ground

Output

Tail lamp

OFF

0 V

ON

NOTE:

When the illumination brighten-

ing/dimming level is in the neutral

position

6.0 - 7.0 V

93

(R)

Ground

Intelligent Key warn-
ing buzzer

Output

Intelligent Key
warning buzzer

Sounding

0 – 1.5 V

Not sounding

9 – 16 V

96

(BR)

Ground

ACC relay control

Output

Ignition switch

OFF

0 – 0.5 V

ACC or ON

9 – 16 V

97

(W)

Ground

Starter relay control

Output

Ignition switch
ON

Other than engine crank-
ing

9 – 16 V

Engine cranking

0 – 0.5 V

98

(LG)

Ground

Ignition relay (IPDM
E/R) control

Output

Ignition switch

OFF or ACC

9 – 16 V

ON

0 – 0.5 V

99

(GR)

Ground

Ignition relay control

Output

Ignition switch

OFF or ACC

0 – 0.5 V

ON

9 – 16 V

100

(GR)

Ground

Passenger door re-
quest switch

Input

Passenger door
request switch

ON (Pressed)

0 – 1.5 V

OFF (Not pressed)

9 – 16 V

101

(BR)

Ground

Ignition power sup-
ply No. 2

Output

Ignition switch

OFF or ACC

0 V

ON

9 – 16 V

102

(Y)

Ground

P/N position

Input

Selector lever

P or N position

9 – 16 V

Except P and N positions

0 – 1.5 V

104

(L)

Ground

CVT shift selector
(detention switch)
power supply

Output

Ignition switch ON

9 – 16 V

105

(GR)

Ground

Stop lamp switch 2

Input

Ignition switch OFF

9 – 16 V

106

(O)

Ground

Blower fan motor re-
lay control

Output

Ignition switch

OFF or ACC

0 – 0.5 V

ON

9 – 16 V

109

(GR)

Ground

ACC indicator lamp

Output

Ignition switch

OFF (LOCK indicator is
not illuminated)

9 – 16 V

ACC

0 – 1.5 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JPMIA1554GB

BCS-62

< ECU DIAGNOSIS INFORMATION >

BCM

• *5: Without automatic back door system

Fail-safe

INFOID:0000000009651711

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC are detected.

REAR WIPER MOTOR PROTECTION

BCM detects the rear wiper stopping position according to the rear wiper stop position signal.
When the rear wiper stop position signal does not change for more than 5 seconds while driving the rear
wiper, BCM stops power supply to protect the rear wiper motor.

Condition of cancellation

1.

More than 1 minute is passed after the rear wiper stop.

2.

Turn rear wiper switch OFF.

3.

Operate the rear wiper switch or rear washer switch.

FAIL-SAFE CONTROL OF COMBINATION SWITCH READING FUNCTION CAUSED BY LOW
POWER SUPPLY VOLTAGE

If voltage of battery power supply lower, BCM maintains combination switch reading to the status when input
voltage is less than approximately 9 V.
NOTE:
When voltage of battery power supply is approximately 9 V or more, combination switch reading function
returns to normal operation.

DTC Inspection Priority Chart

INFOID:0000000009651712

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

Display contents of CONSULT

Fail-safe

Cancellation

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2195: ANTI-SCANNING

Inhibit engine cranking

Ignition switch ON

 OFF

B2196: DONGLE NG

Inhibit engine cranking

Erase DTC

B2198: NATS ANTENNA AMP

Inhibit engine cranking

Erase DTC

B2608: STARTER RELAY

Inhibit engine cranking

500 ms after the following signal communication status becomes con-
sistent
• Starter motor relay control signal
• Starter relay status signal (CAN)

B260F: ENG STATE SIG LOST

Inhibit engine cranking

When any of the following conditions are fulfilled
• Ignition switch changes to ACC
• Receives engine status signal (CAN)

B26F1: IGN RELAY OFF

Inhibit engine cranking

When the following conditions are fulfilled
• Ignition switch ON signal (CAN: Transmitted from BCM): ON
• Ignition switch ON signal (CAN: Transmitted from IPDM E/R): ON

B26F2: IGN RELAY ON

Inhibit engine cranking

When the following conditions are fulfilled
• Ignition switch ON signal (CAN: Transmitted from BCM): OFF
• Ignition switch ON signal (CAN: Transmitted from IPDM E/R): OFF

B26F3: START CONT RLY ON

Inhibit engine cranking

When the following conditions are fulfilled
• Starter control relay signal (CAN: Transmitted from BCM): OFF
• Starter control relay signal (CAN: Transmitted from IPDM E/R): OFF

B26F4: START CONT RLY OFF

Inhibit engine cranking

When the following conditions are fulfilled
• Starter control relay signal (CAN: Transmitted from BCM): ON
• Starter control relay signal (CAN: Transmitted from IPDM E/R): ON

B26F7: BCM

Inhibit engine cranking
by Intelligent Key sys-
tem

When room antenna and luggage room antenna functions normally
