BODY CONTROL SYSTEM : Fail-safe

INFOID:0000000009651684

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC are detected.

Interior room lamp control system

INL-6, "INTERIOR ROOM LAMP CONTROL SYSTEM : System
Description"

Interior room lamp battery saver system

INL-11, "INTERIOR ROOM LAMP BATTERY SAVER SYSTEM :
System Description"

Front wiper and washer system

WW-8, "FRONT WIPER AND WASHER SYSTEM : System De-
scription"

Rear wiper and washer system

WW-12, "REAR WIPER AND WASHER SYSTEM : System De-
scription"

Rear window defogger system

DEF-7, "System Description"

Warning chime system

WCS-5, "WARNING CHIME SYSTEM : System Description"

Air conditioning control system

HAC-16, "FRONT AUTOMATIC AIR CONDITIONING SYS-
TEM : System Description"

 (Automatic air conditioning)

HAC-162, "FRONT MANUAL AIR CONDITIONING SYSTEM :
System Description"

 (Manual air cinditionimg)

Power door lock system

DLK-33, "System Description"

Intelligent Key system/engine start system

DLK-36, "INTELLIGENT KEY SYSTEM : System Description"

Nissan Vehicle Immobilizer System (NVIS) - NATS

SEC-16, "NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS :
System Description"

Vehicle security system

Theft warning alarm

SEC-21, "VEHICLE SECURITY SYSTEM : System Diagram"

Panic alarm

Power window system

PWC-9, "System Description"

Retained accessory power (RAP) system

PWC-9, "System Description"

TPMS (Tire Pressure Monitoring System)

WT-8, "System Description"

System

Reference

Display contents of CONSULT

Fail-safe

Cancellation

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2195: ANTI-SCANNING

Inhibit engine cranking

Ignition switch ON

 OFF

B2196: DONGLE NG

Inhibit engine cranking

Erase DTC

B2198: NATS ANTENNA AMP

Inhibit engine cranking

Erase DTC

B2608: STARTER RELAY

Inhibit engine cranking

500 ms after the following signal communication status becomes con-
sistent
• Starter motor relay control signal
• Starter relay status signal (CAN)

B260F: ENG STATE SIG LOST

Inhibit engine cranking

When any of the following conditions are fulfilled
• Ignition switch changes to ACC
• Receives engine status signal (CAN)

B26F1: IGN RELAY OFF

Inhibit engine cranking

When the following conditions are fulfilled
• Ignition switch ON signal (CAN: Transmitted from BCM): ON
• Ignition switch ON signal (CAN: Transmitted from IPDM E/R): ON

B26F2: IGN RELAY ON

Inhibit engine cranking

When the following conditions are fulfilled
• Ignition switch ON signal (CAN: Transmitted from BCM): OFF
• Ignition switch ON signal (CAN: Transmitted from IPDM E/R): OFF

B26F3: START CONT RLY ON

Inhibit engine cranking

When the following conditions are fulfilled
• Starter control relay signal (CAN: Transmitted from BCM): OFF
• Starter control relay signal (CAN: Transmitted from IPDM E/R): OFF

BCS-8

< SYSTEM DESCRIPTION >

SYSTEM

REAR WIPER MOTOR PROTECTION

BCM detects the rear wiper stopping position according to the rear wiper stop position signal.
When the rear wiper stop position signal does not change for more than 5 seconds while driving the rear
wiper, BCM stops power supply to protect the rear wiper motor.

Condition of cancellation

1.

More than 1 minute is passed after the rear wiper stop.

2.

Turn rear wiper switch OFF.

3.

Operate the rear wiper switch or rear washer switch.

FAIL-SAFE CONTROL OF COMBINATION SWITCH READING FUNCTION CAUSED BY LOW
POWER SUPPLY VOLTAGE

If voltage of battery power supply lower, BCM maintains combination switch reading to the status when input
voltage is less than approximately 9 V.
NOTE:
When voltage of battery power supply is approximately 9 V or more, combination switch reading function
returns to normal operation.

COMBINATION SWITCH READING SYSTEM

COMBINATION SWITCH READING SYSTEM : System Description

INFOID:0000000009651685

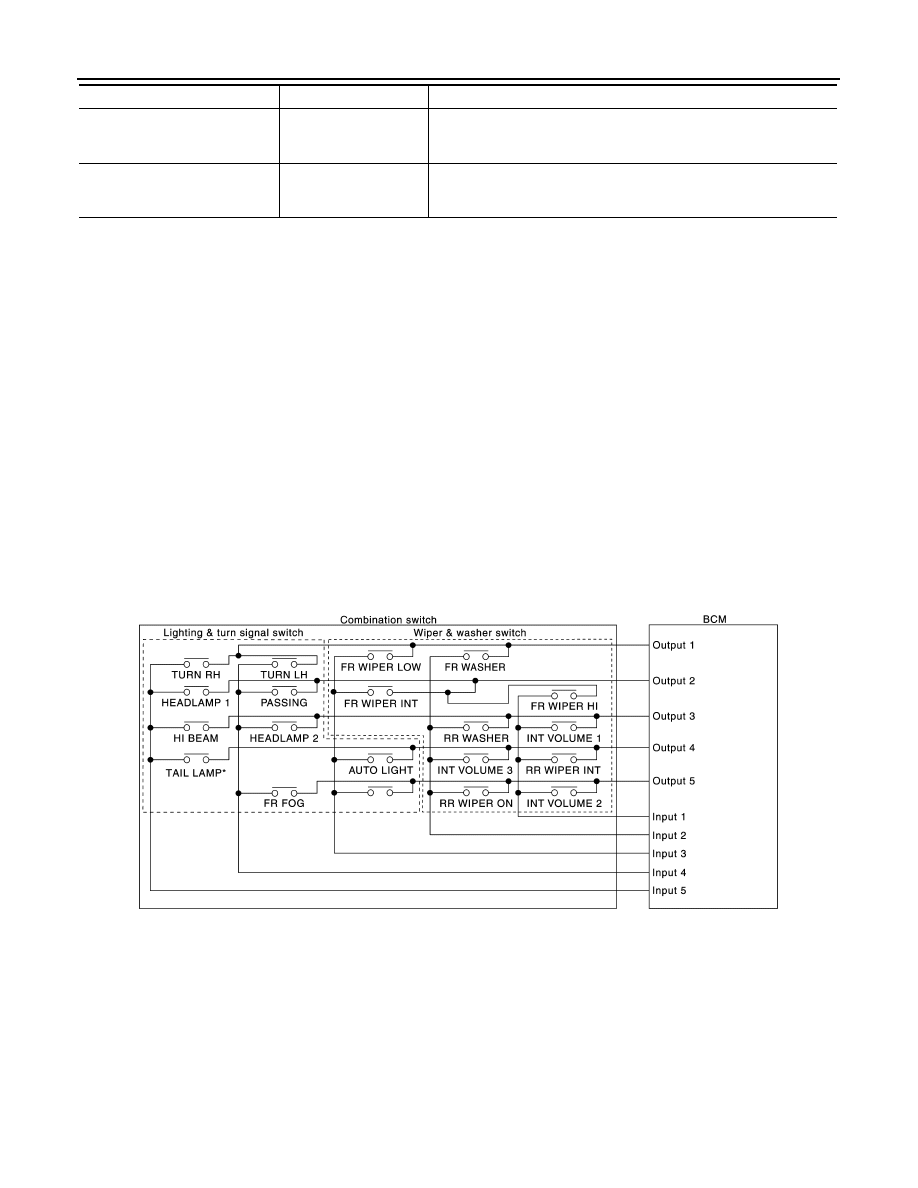

SYSTEM DIAGRAM

NOTE:
*: TAIL LAMP switch links lighting switch 1ST and 2ND positions.

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a

maximum of 20 switch status.

COMBINATION SWITCH MATRIX

B26F4: START CONT RLY OFF

Inhibit engine cranking

When the following conditions are fulfilled
• Starter control relay signal (CAN: Transmitted from BCM): ON
• Starter control relay signal (CAN: Transmitted from IPDM E/R): ON

B26F7: BCM

Inhibit engine cranking
by Intelligent Key sys-
tem

When room antenna and luggage room antenna functions normally

Display contents of CONSULT

Fail-safe

Cancellation

JMMIA0636GB

BCS

SYSTEM

BCS-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

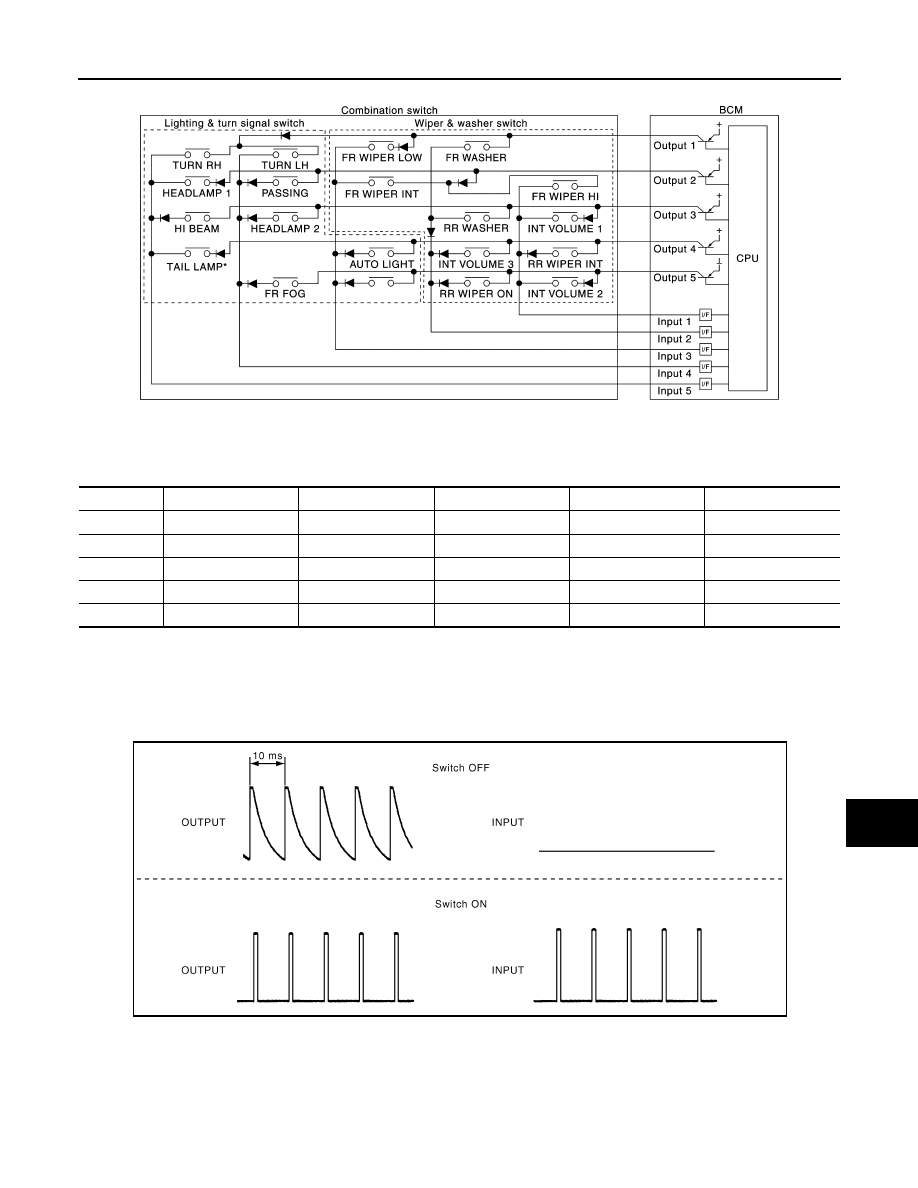

Combination switch circuit

NOTE:
*: TAIL LAMP switch links lighting switch 1ST and 2ND positions.

Combination switch INPUT-OUTPUT system list

NOTE:

Headlamp has a dual system switch.

COMBINATION SWITCH READING FUNCTION

Description

• BCM reads the status of the combination switch at 10 ms interval normally.

NOTE:
BCM reads the status of the combination switch at 60 ms interval when BCM is controlled at low power con-
sumption control mode.

• BCM operates as follows and judges the status of the combination switch.
- It operates the transistor on OUTPUT side in the following order: OUTPUT 1

 2

 3

 4

 5, and outputs

voltage waveform.

JMMIA0637GB

System

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

OUTPUT 1

FR WASHER

FR WIPER LOW

TURN LH

TURN RH

OUTPUT 2

FR WIPER HI

FR WIPER INT

PASSING

HEADLAMP 1

OUTPUT 3

INT VOLUME 1

RR WASHER

HEADLAMP 2

HI BEAM

OUTPUT 4

RR WIPER INT

INT VOLUME 3

AUTO LIGHT

TAIL LAMP

OUTPUT 5

INT VOLUME 2

RR WIPER ON

FR FOG

JPMIA0609GB

BCS-10

< SYSTEM DESCRIPTION >

SYSTEM

- The voltage waveform of OUTPUT corresponding to the formed circuit is input into the interface on INPUT

side if any (1 or more) switches are ON.

- It reads this change of the voltage as the status signal of the combination switch.

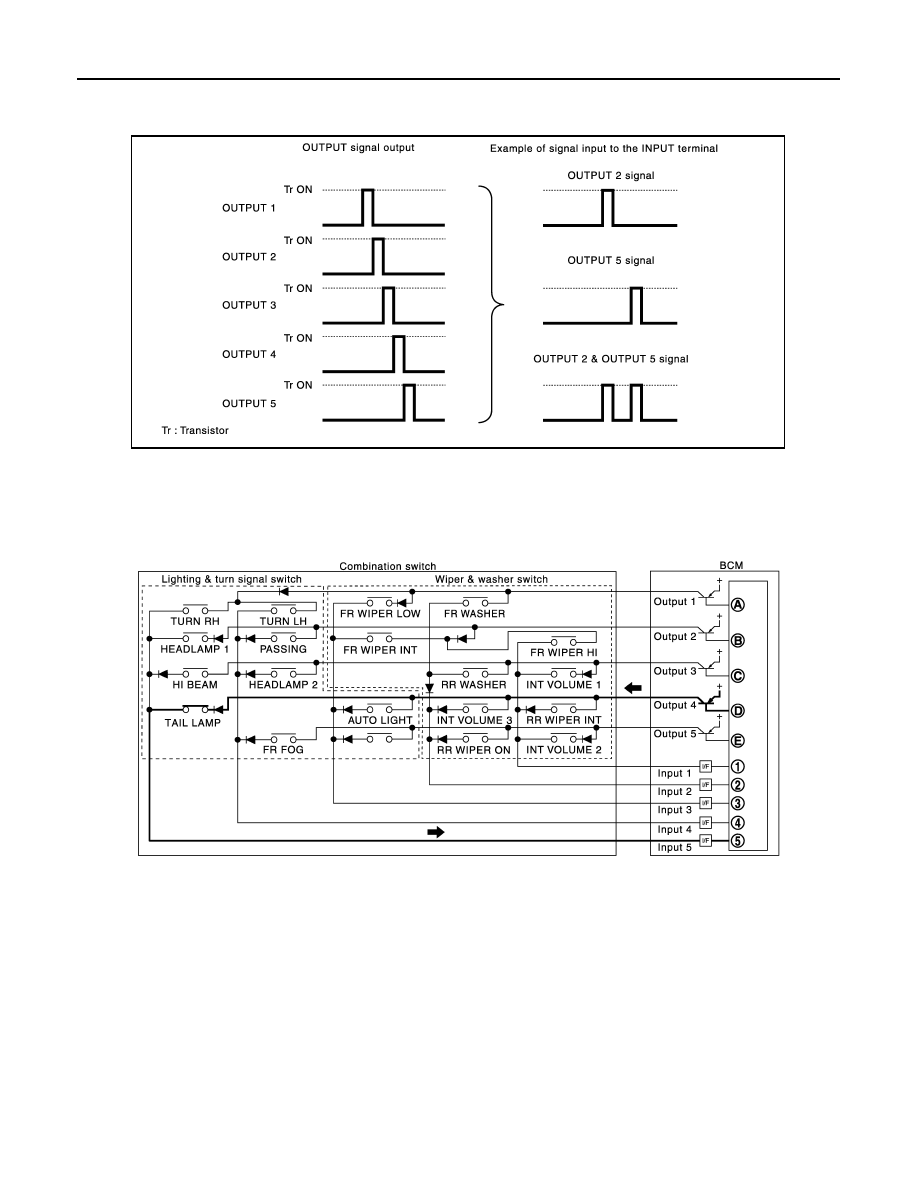

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced
as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.

Example 1: When a switch (TAIL LAMP switch) is turned ON

• The circuit between OUTPUT 4 and INPUT 5 is formed when the TAIL LAMP switch is turned ON.

• BCM detects the combination switch status signal “5D” when the signal of OUTPUT 4 is input to INPUT 5.
• BCM judges that the TAIL LAMP switch is ON when the signal “5D” is detected.

Example 2: When some switches (TURN RH switch, TAIL LAMP switch) are turned ON

JMMIA0326GB

JPMIA1545GB
