VTL-14

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

2.

Remove fixing clips (A), and then remove rear foot duct 1.

INSTALLATION

Install in the reverse order of removal.

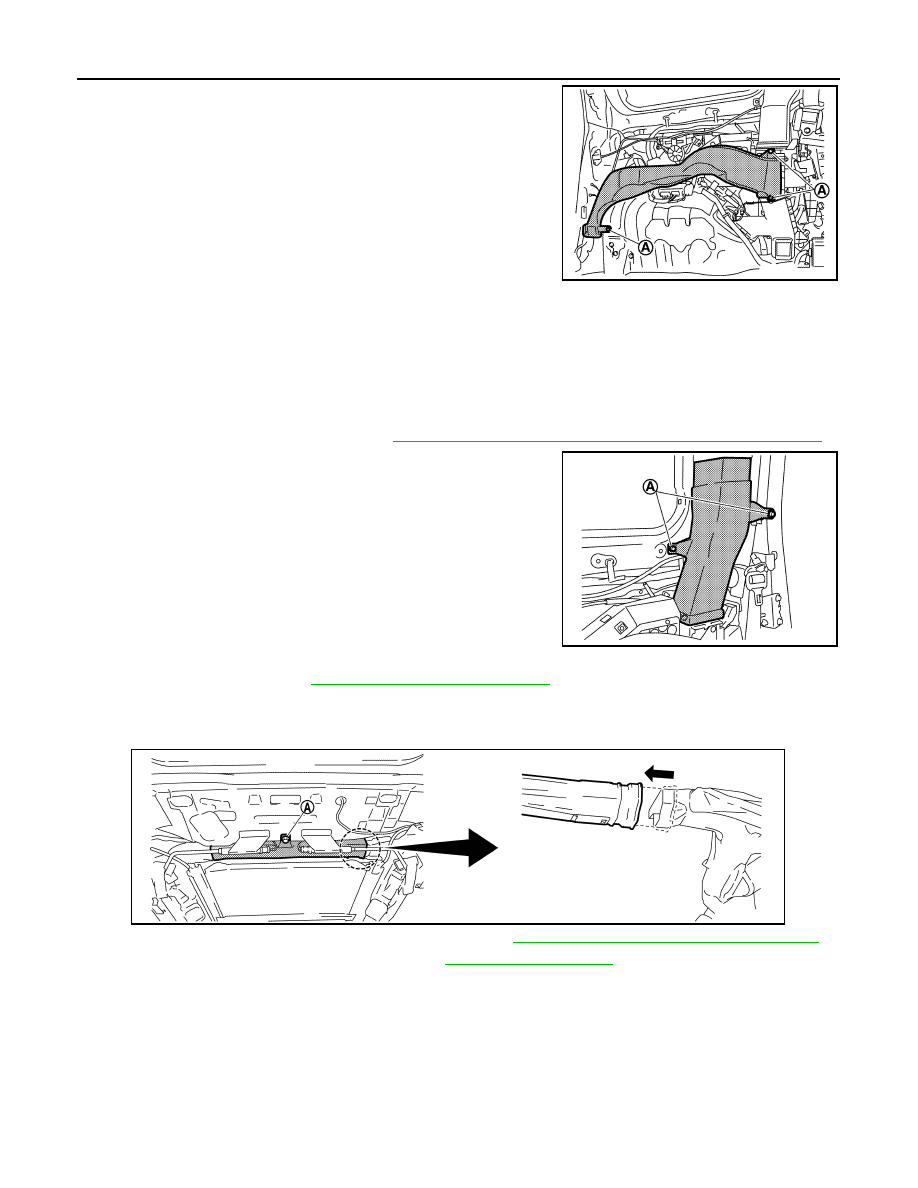

REAR VENTILATOR DUCT

REAR VENTILATOR DUCT : Removal and Installation

INFOID:0000000009650648

REMOVAL

1.

Remove back pillar garnish RH. Refer to

INT-27, "BACK PILLAR GARNISH : Removal and Installation"

.

2.

Remove mounting bolts (A), and then remove rear ventilator pil-
lar duct.

3.

Remove headlining. Refer to

INT-35, "Removal and Installation"

.

4.

Remove mounting bolt (A).

5.

Slide the right side of rear upper ventilator duct 2 as shown in the figure, disengage rear upper ventilator
duct 3, and then remove rear upper ventilator duct 2.

6.

Remove rear sunroof stay (sunroof models only). Refer to

RF-59, "REAR SUNROOF : Exploded View"

.

7.

Remove curtain air bag mounting bolts. Refer to

SR-21, "Exploded View"

.

JMIIA1861ZZ

JMIIA1807ZZ

JMIIA1167ZZ

DUCT AND GRILLE

VTL-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

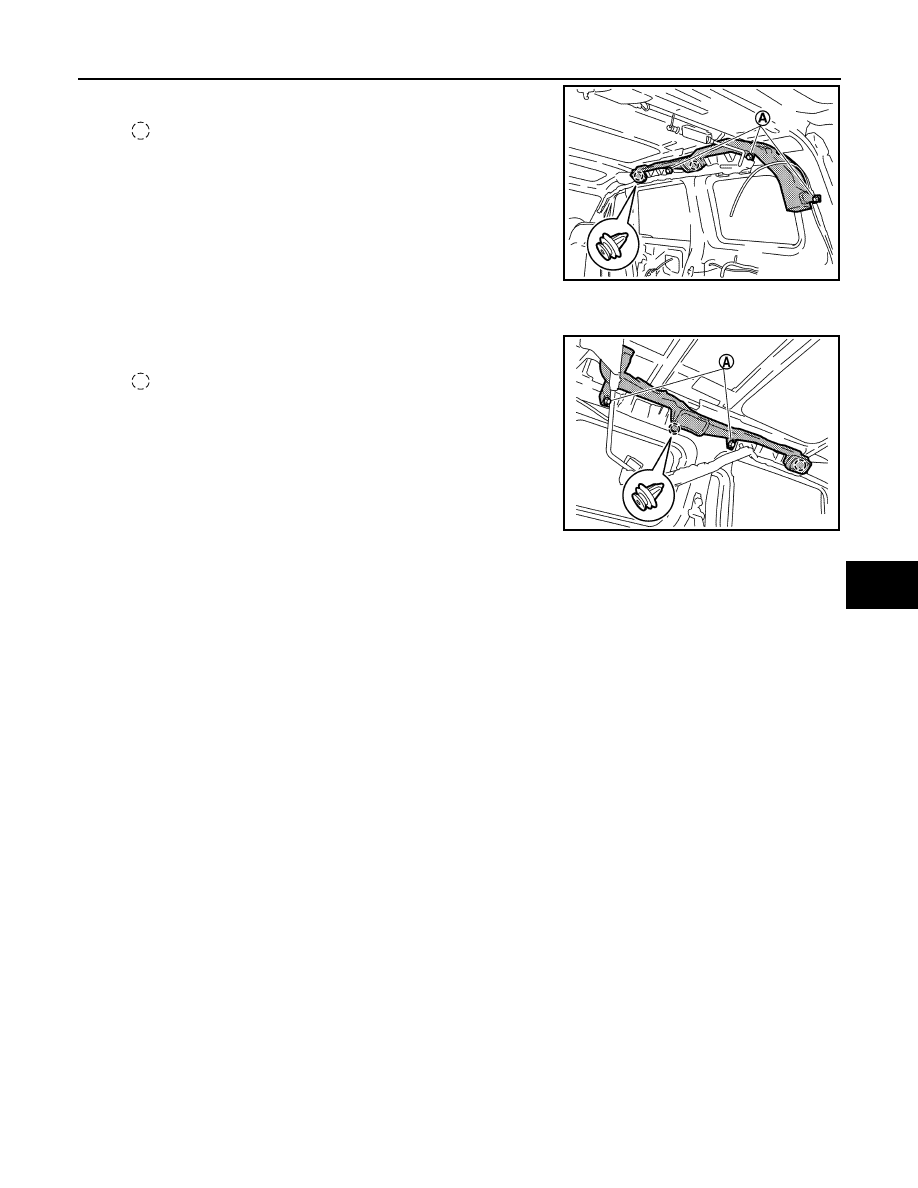

8.

Remove mounting bolts (A), and then remove fixing clips.

9.

Remove rear upper ventilator duct 3.

10. Remove mounting bolts (A), and then remove fixing clips.

11. Remove rear upper ventilator duct 1.

INSTALLATION

Install in the reverse order of removal.

: Clip

JMIIA1168ZZ

: Clip

JMIIA1169ZZ

VTL-16

< REMOVAL AND INSTALLATION >

BLOWER UNIT

BLOWER UNIT

Exploded View

INFOID:0000000009650649

REMOVAL

DISASSEMBLY

1.

Steering member

2.

Knee protector

3.

Instrument stay LH

4.

Instrument stay RH

5.

Drain hose

6.

Blower unit assembly

7.

Heater & cooling unit assembly

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JSIIA1814GB

BLOWER UNIT

VTL-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Removal and Installation

INFOID:0000000009650650

REMOVAL

1.

Remove front A/C unit assembly. Refer to

HA-49, "HEATER & COOLING UNIT ASSEMBLY : Removal

and Installation"

.

2.

Remove fixing screw, and then separate blower unit assembly and heater & cooling unit assembly.

INSTALLATION

Install in the reverse order of removal.

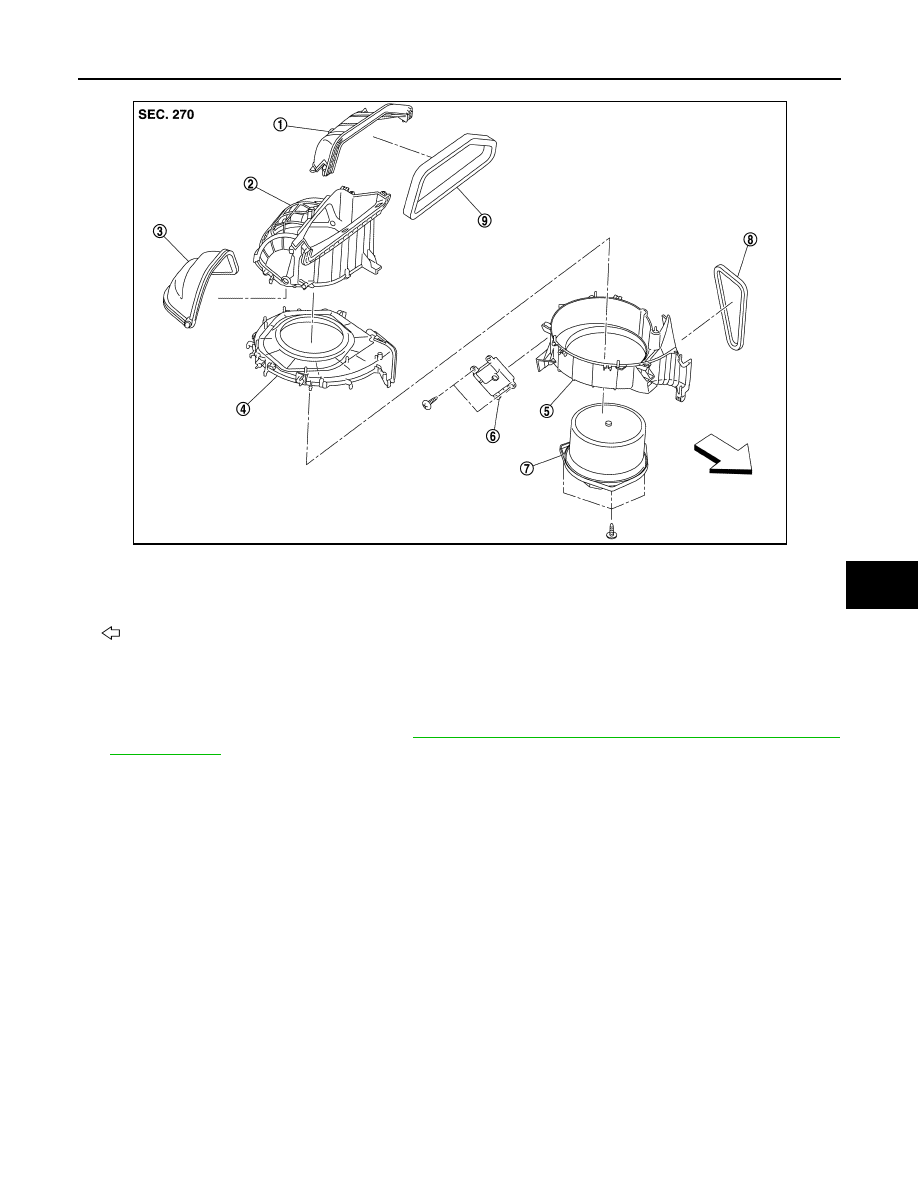

1.

Intake duct case

2.

Intake shutter case

3.

Intake door

4.

Intake upper case

5.

Intake lower case

6.

Intake door motor

7.

Blower motor

8.

Outlet seal

9.

Intake seal

: Vehicle front

JMIIA1809ZZ
