VENTILATION SYSTEM

SYSTEM DESCRIPTION

VENTILATION SYSTEM

VENTILATION SYSTEM (FRONT AIR CONDITIONING)

VENTILATION SYSTEM (FRONT AIR CONDITIONING) : System Description

INFOID:0000000009650634

OUTLINE

Ventilation system is controlled by A/C auto amp. (AUTOMATIC AIR CONDITIONING) or A/C amp. (MANUAL
AIR CONDITIONING). For details of air conditioning system, refer to

HAC-16, "FRONT AUTOMATIC AIR

CONDITIONING SYSTEM : System Description"

 (AUTOMATIC AIR CONDITIONING) or

HAC-162, "FRONT

MANUAL AIR CONDITIONING SYSTEM : System Description"

 (MANUAL AIR CONDITIONING).

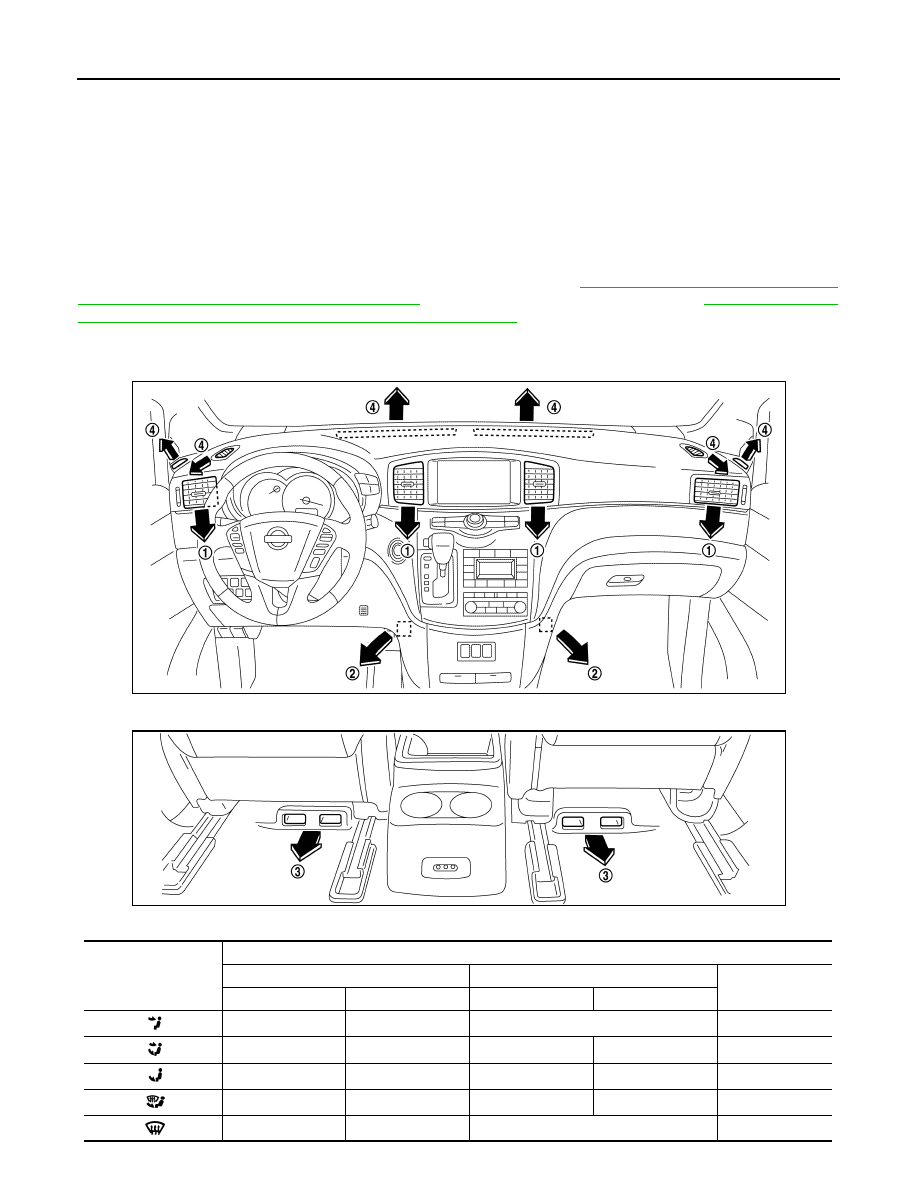

AIR FLOW

Front

Rear (Second seat underfoot portion)

×

: Applicable

JMIIA1796ZZ

JMIIA0959ZZ

MODE/DEF position

indication

Air outlet

Ventilator (1)

Foot

Defroster (4)

Center

Side

Front (2)

Rear (3)

×

×

—

—

×

×

×

×

—

—

×

×

×

×

—

×

×

×

×

—

×

—

×

VENTILATION SYSTEM

VTL-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

VENTILATION SYSTEM (REAR AIR CONDITIONING)

VENTILATION SYSTEM (REAR AIR CONDITIONING) : System Description

INFOID:0000000009650635

OUTLINE

Ventilation system is controlled by A/C auto amp. (AUTOMATIC AIR CONDITIONING) or A/C amp. (MANUAL
AIR CONDITIONING). For details of air conditioning system, refer to

HAC-26, "REAR AUTOMATIC AIR CON-

DITIONING SYSTEM : System Description"

 (AUTOMATIC AIR CONDITIONING) or

HAC-167, "REAR MAN-

UAL AIR CONDITIONING SYSTEM : System Description"

 (MANUAL AIR CONDITIONING).

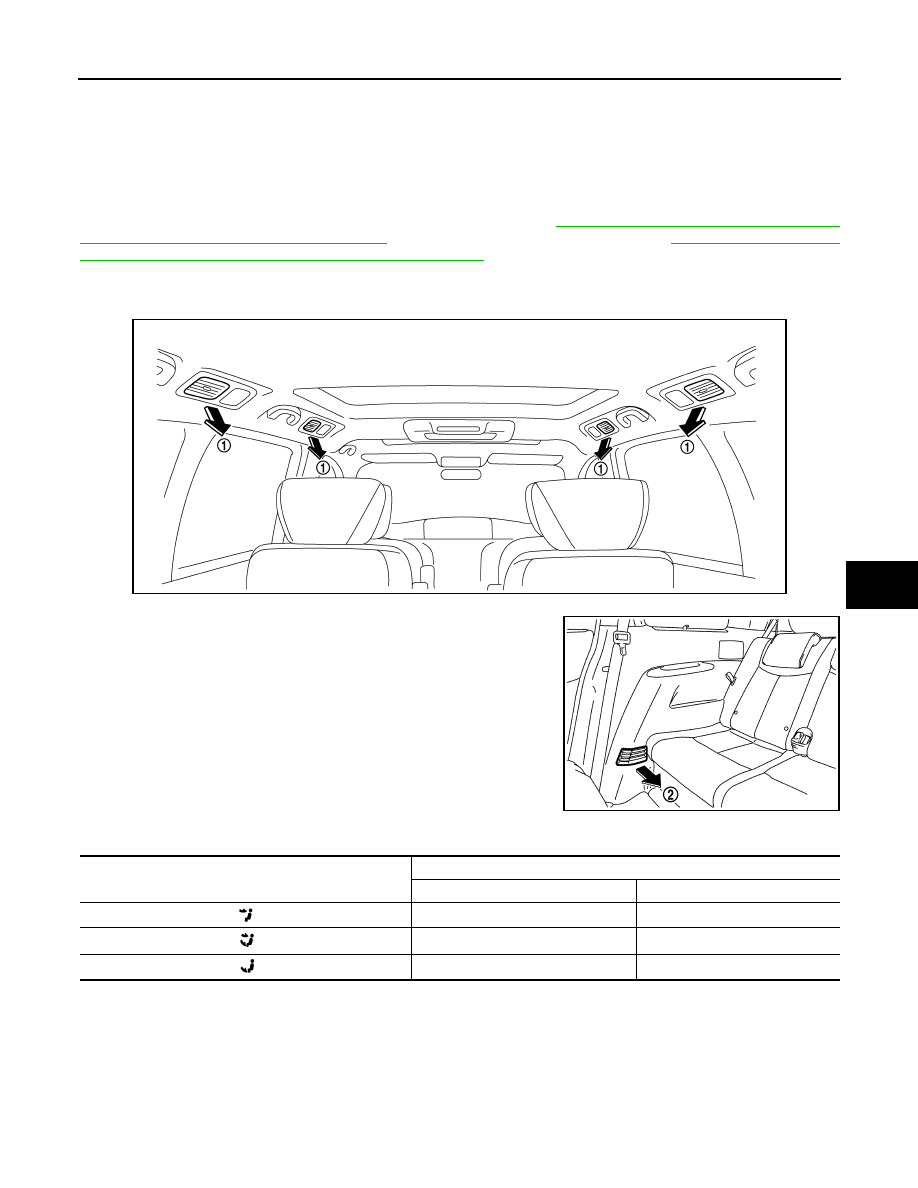

AIR FLOW

Headlining

Rear (Third seat underfoot portion)

×

: Applicable

JMIIA0960ZZ

JMIIA1797ZZ

Mode position

Air outlet

Ventilator (1)

Foot (2)

×

—

×

×

—

×

VTL-8

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

REMOVAL AND INSTALLATION

DUCT AND GRILLE

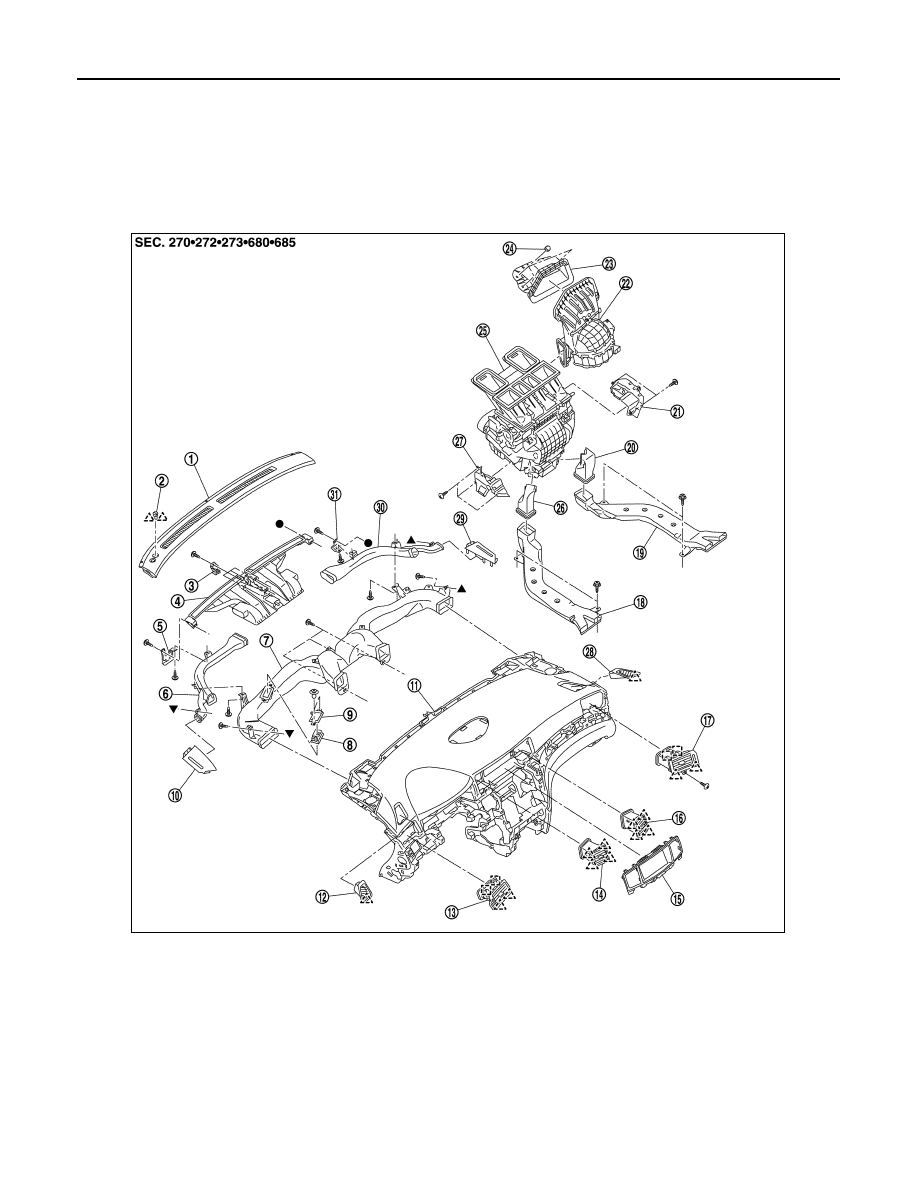

Exploded View

INFOID:0000000009650636

FRONT

1.

Instrument upper garnish

2.

Sunload sensor

3.

Instrument panel center bracket

4.

Front defroster nozzle

5.

Instrument panel bracket LH

6.

Side defroster nozzle LH

7.

Center ventilator duct

8.

Ionizer

9.

Ionizer bracket

10. Front pillar lower garnish LH

11. Instrument panel

12. Side defroster grille LH

13. Side ventilator grille LH

14. Center ventilator grille LH

15. Cluster lid D

16. Center ventilator grille RH

17. Side ventilator grille RH

18. Front floor duct 2 LH

19. Front floor duct 2 RH

20. Front floor duct 1 RH

21. Foot duct RH

22. Blower unit assembly

23. Intake duct

24. Clip

25. Heater & cooling unit assembly

26. Front floor duct 1 LH

27. Foot duct LH

JMIIA1798ZZ

DUCT AND GRILLE

VTL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REAR

CENTER VENTILATOR GRILLE

CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009650637

REMOVAL

1.

Remove cluster lid D. Refer to

IP-14, "Removal and Installation"

.

2.

Disengage fixing pawls, and then remove center ventilator grille.

INSTALLATION

28. Side defroster grille RH

29. Front pillar lower garnish RH

30. Side defroster nozzle RH

31. Instrument panel bracket RH

: Pawl

: Metal clip

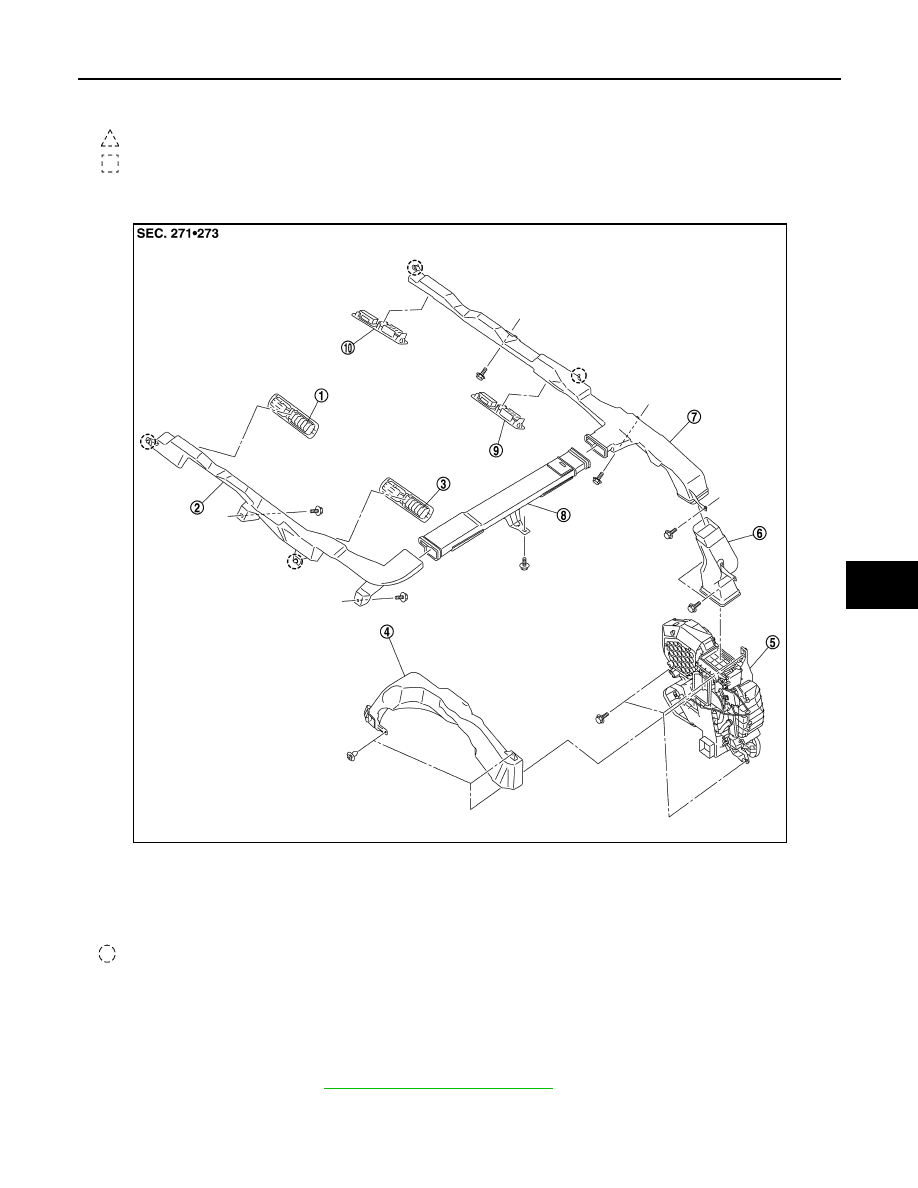

1.

Rear ventilator grille 1 LH

2.

Rear upper ventilator duct 1

3.

Rear ventilator grille 2 LH

4.

Rear foot duct 1

5.

Rear A/C unit assembly

6.

Rear ventilator pillar duct

7.

Rear upper ventilator duct 3

8.

Rear upper ventilator duct 2

9.

Rear ventilator grille 2 RH

10. Rear ventilator grille 1 RH

: Clip

JMIIA1799ZZ
