Nissan Quest E52. Manual - part 1117





DIAGNOSIS SENSOR UNIT

SR-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

DIAGNOSIS SENSOR UNIT

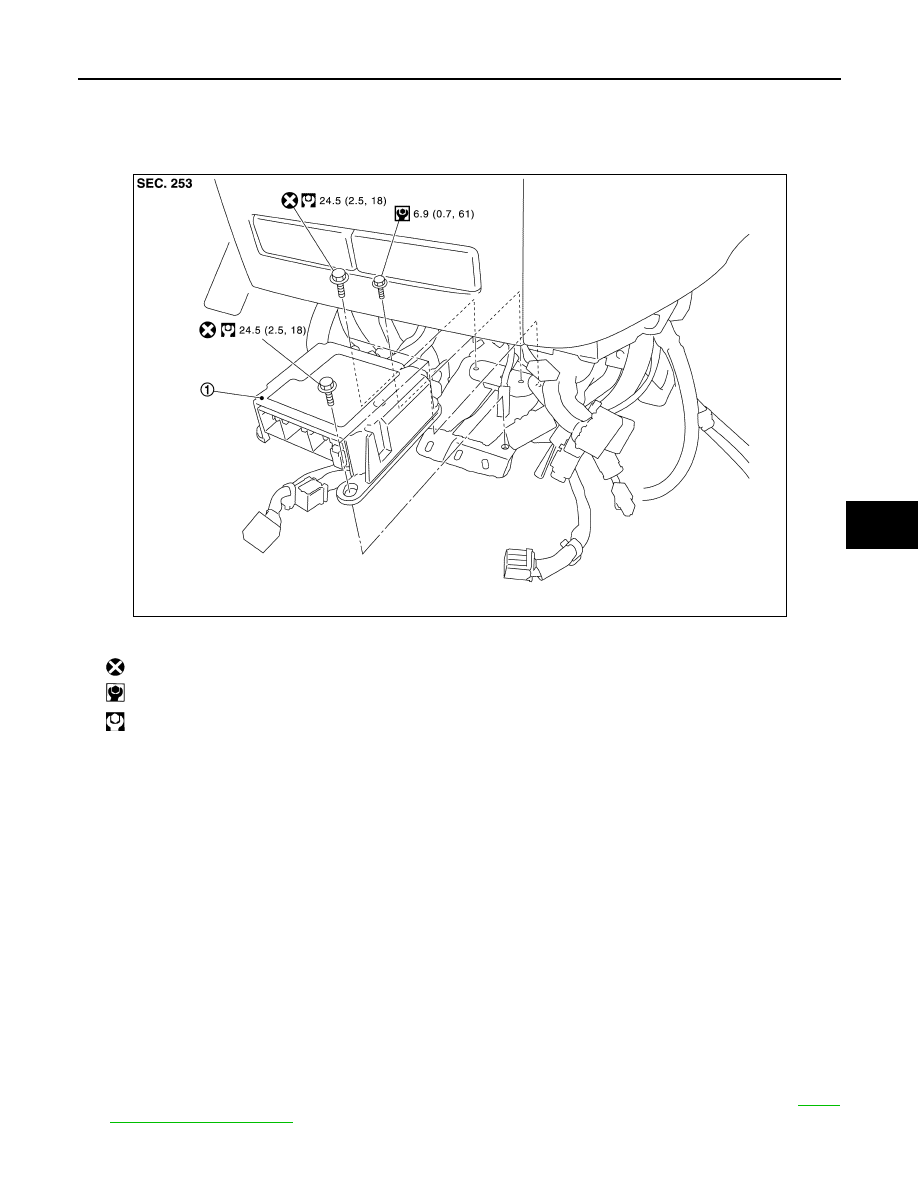

Exploded View

INFOID:0000000009650331

Removal and Installation

INFOID:0000000009650332

WARNING:

Always observe the following items for preventing accidental activation.
• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 min-

utes or more.

• Before disconnecting the air bag sensor unit harness connector, be sure to disconnect each har-

ness connector of the air bag module and pre-tensioner seat belt to prevent air bag deployment by
static electricity and pre-tensioner seat belt operation.

• Never use air tools or electric tools for servicing.
• When replacing the air bag diagnosis sensor unit, always check with the parts department for the lat-

est parts information. Installing an incorrect air bag diagnosis sensor unit may or may not cause the
air bag warning lamp to illuminate and may cause incorrect deployment of the supplemental air bags
and seat belt pre-tensioners in a collision resulting in serious personal injury or death.

REMOVAL

1.

Always check the air bag diagnosis sensor unit ECU discriminated number (identification number) using
CONSULT.

2.

Disconnect each connector of all air bag modules and pre-tensioner seat belts.

3.

Remove instrument lower cover (LH and RH) and the instrument lower center cover. Refer to

IP-14,

"Removal and Installation"

.

1.

Diagnosis sensor unit

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMHIA2047GB

SR-30

< REMOVAL AND INSTALLATION >

DIAGNOSIS SENSOR UNIT

4.

Remove disc eject switch. Refer to

AV-623, "Removal and Installation"

 (model with navigation system) or

AV-417, "Removal and Installation"

 (model without navigation).

5.

Remove AV control unit. Refer to

AV-610, "Removal and Installation"

 (model with navigation system) or

AV-404, "Removal and Installation"

 (model without navigation).

6.

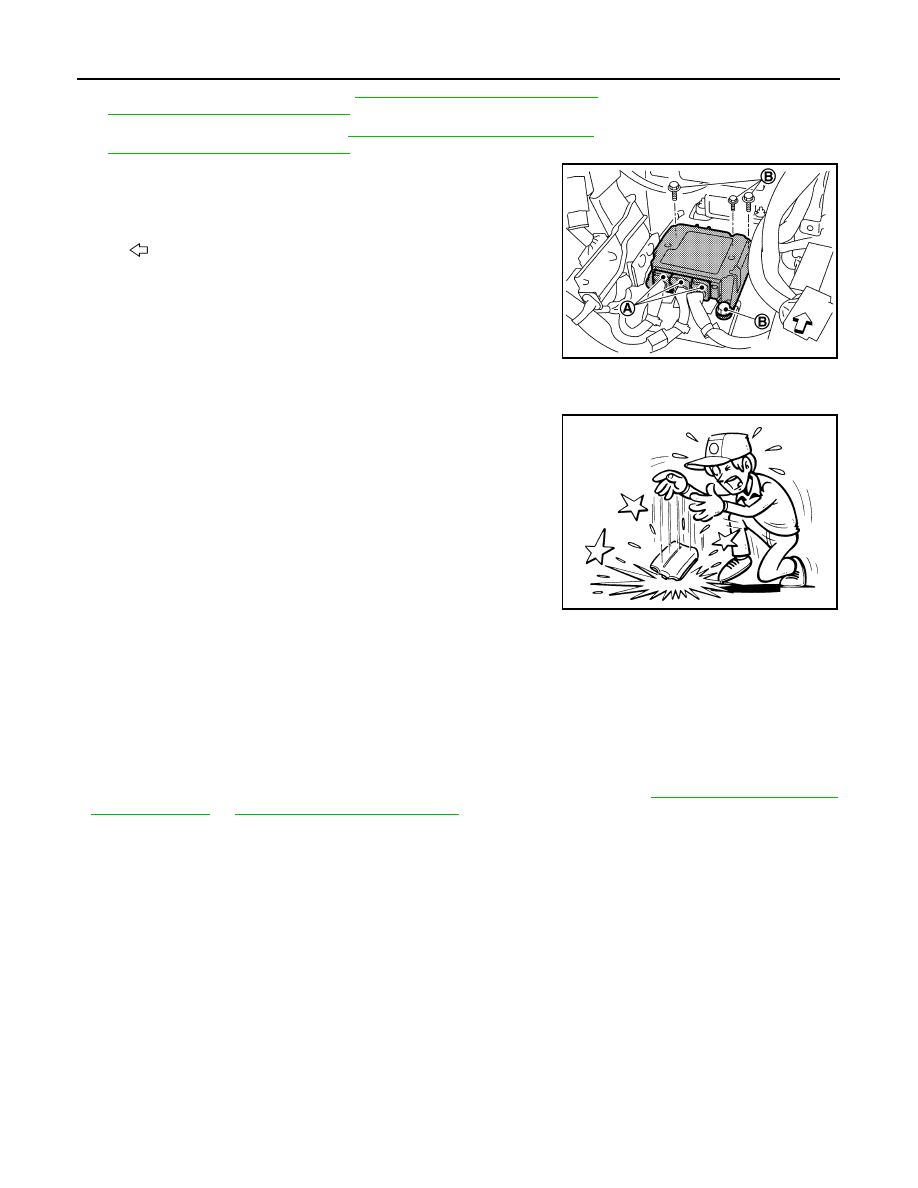

Disconnect the diagnosis sensor unit harness connectors (A).

7.

Remove the diagnosis sensor unit mounting bolts (B), and then
remove the diagnosis sensor unit.

CAUTION:

• To prevent damage to the parts, never impact the diagnosis sensor unit.
• Replace the diagnosis sensor unit if it is dropped or sustains

an impact.

• Replace the diagnosis sensor unit of deployed SRS air bag and deployed SRS front seat belt pre-ten-

sioner.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse mounting bolts after removal, replace with new bolts.
• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-15, "On Board Diag-

nosis Function"

 or

SRC-19, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
• After replacing the air bag diagnosis sensor unit, confirm using CONSULT that the ECU discrimi-

nated number (identification number) of the new replacement air bag sensor unit matches the ECU
discriminated number (identification number) of the replaced (old) air bag diagnosis sensor unit.

NOTE:
If the ECU discriminated number of the new replacement air bag diagnosis sensor unit differs from the ECU
discriminated number of the replaced air bag diagnosis sensor unit, reconfirm the parts information and verify
that the correct air bag diagnosis sensor unit was installed.

: Vehicle front

JMHIA2048ZZ

JMHIA0009ZZ

SEAT BELT PRE-TENSIONER

SR-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

SEAT BELT PRE-TENSIONER

Exploded View

INFOID:0000000009650333

Refer to

SB-4, "Exploded View"

.

Removal and Installation

INFOID:0000000009650334

For removal and installation procedures, refer to

SB-5, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

SR-32

< REMOVAL AND INSTALLATION >

OCCUPANT DETECTION SYSTEM CONTROL UNIT

OCCUPANT DETECTION SYSTEM CONTROL UNIT

Exploded View

INFOID:0000000009650335

• Manual seat: Refer to

SE-85, "Exploded View"

.

• Power seat: Refer to

SE-99, "Exploded View"

.

Removal and Installation

INFOID:0000000009650336

REMOVAL

1.

Remove passenger seat assembly. Refer to the following.
• Manual seat:

SE-88, "Removal and Installation"

.

• Power seat:

SE-102, "Removal and Installation"

.

2.

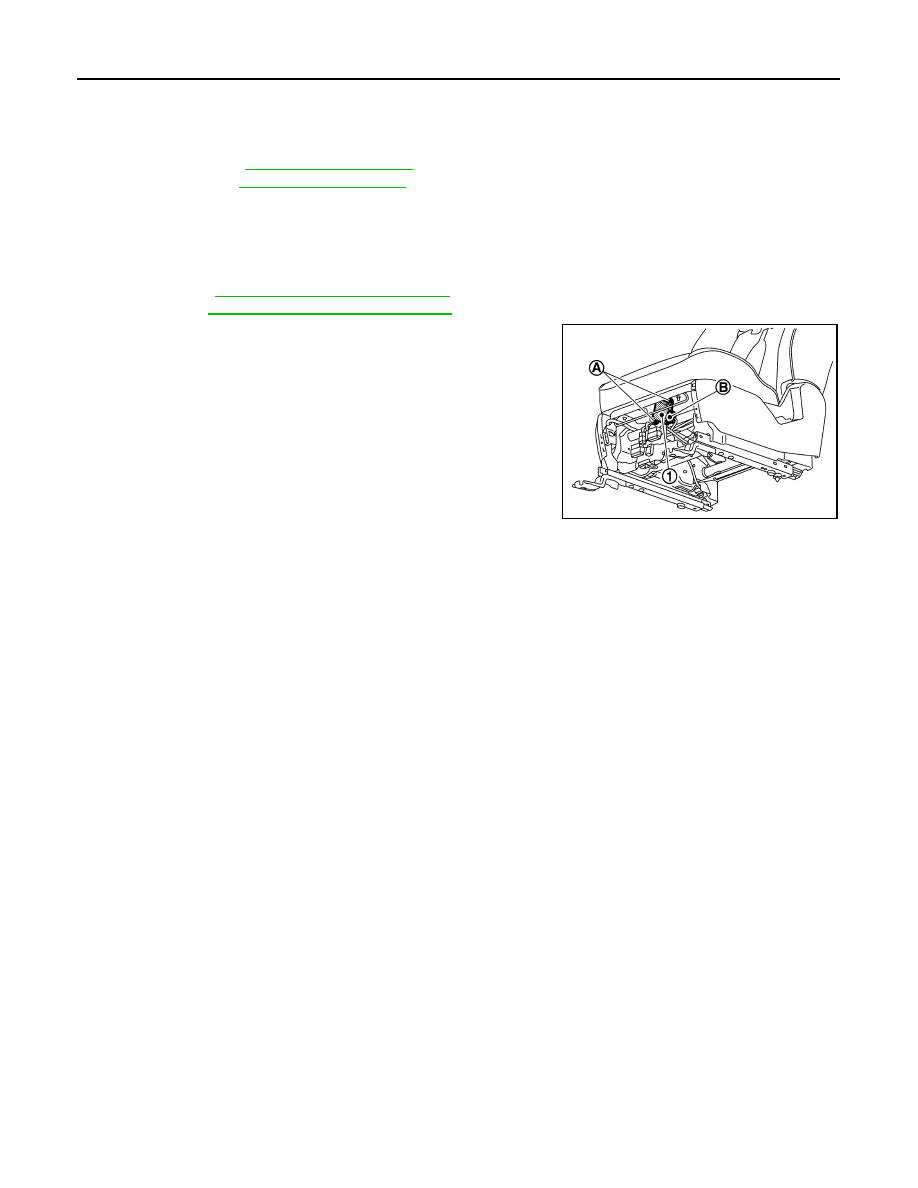

Remove occupant detection system control unit (1) fixing screws
(A).

3.

Disconnect occupant detection system control unit harness con-
nector (B), and then remove occupant detection system control
unit.

INSTALLATION

Install in the reverse order of removal.

JMHIA2827ZZ
