CURTAIN AIR BAG MODULE

SR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

CURTAIN AIR BAG MODULE

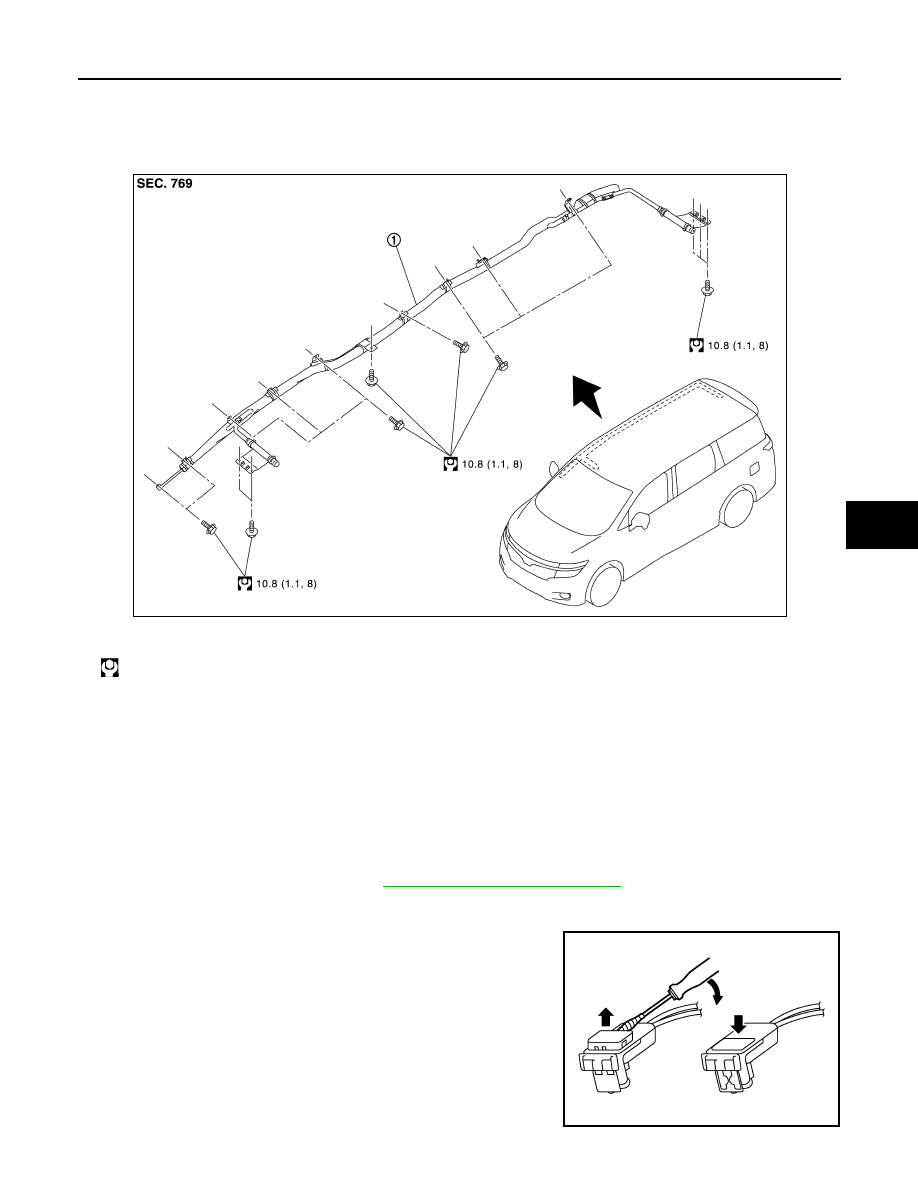

Exploded View

INFOID:0000000009650325

Removal and Installation

INFOID:0000000009650326

WARNING:

Always observe the following items for preventing accidental activation.
• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 min-

utes or more.

• Always work from the side of curtain air bag module. Never work in front of it.
• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove headlining assembly. Refer to

INT-35, "Removal and Installation"

.

2.

Disconnect the curtain air bag harness connector (front and rear).

CAUTION:

• For installing/removing the curtain air bag harness con-

nector, insert a thin screwdriver wrapped in tape into
notch, lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

1.

Curtain air bag module

: N·m (kg-m, ft-lb)

JMHIA1700GB

PHIA0953J

SR-22

< REMOVAL AND INSTALLATION >

CURTAIN AIR BAG MODULE

3.

Remove mounting bolts, and then remove the curtain air bag module.

CAUTION:

• To prevent damage to the parts, never impact the curtain air

bag module.

• Replace the curtain air bag module if it is dropped or sustains

an impact.

• To prevent accidental explosion, never insert any foreign objects (screwdriver, etc.) into the curtain

air bag module.

• To prevent accidental explosion, never disassemble the curtain air bag module.
• To prevent accidental explosion, never expose the curtain air bag module to temperatures of more

than 90

°

C (194

°

F).

• To prevent damage to the parts, never allow oil, grease, detergent, or water to come in contact with

the curtain air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check perforation of curtain air bag module to check that curtain air bag module is not twisted.
• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-15, "On Board Diag-

nosis Function"

 or

SRC-19, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0009ZZ

CRASH ZONE SENSOR

SR-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

CRASH ZONE SENSOR

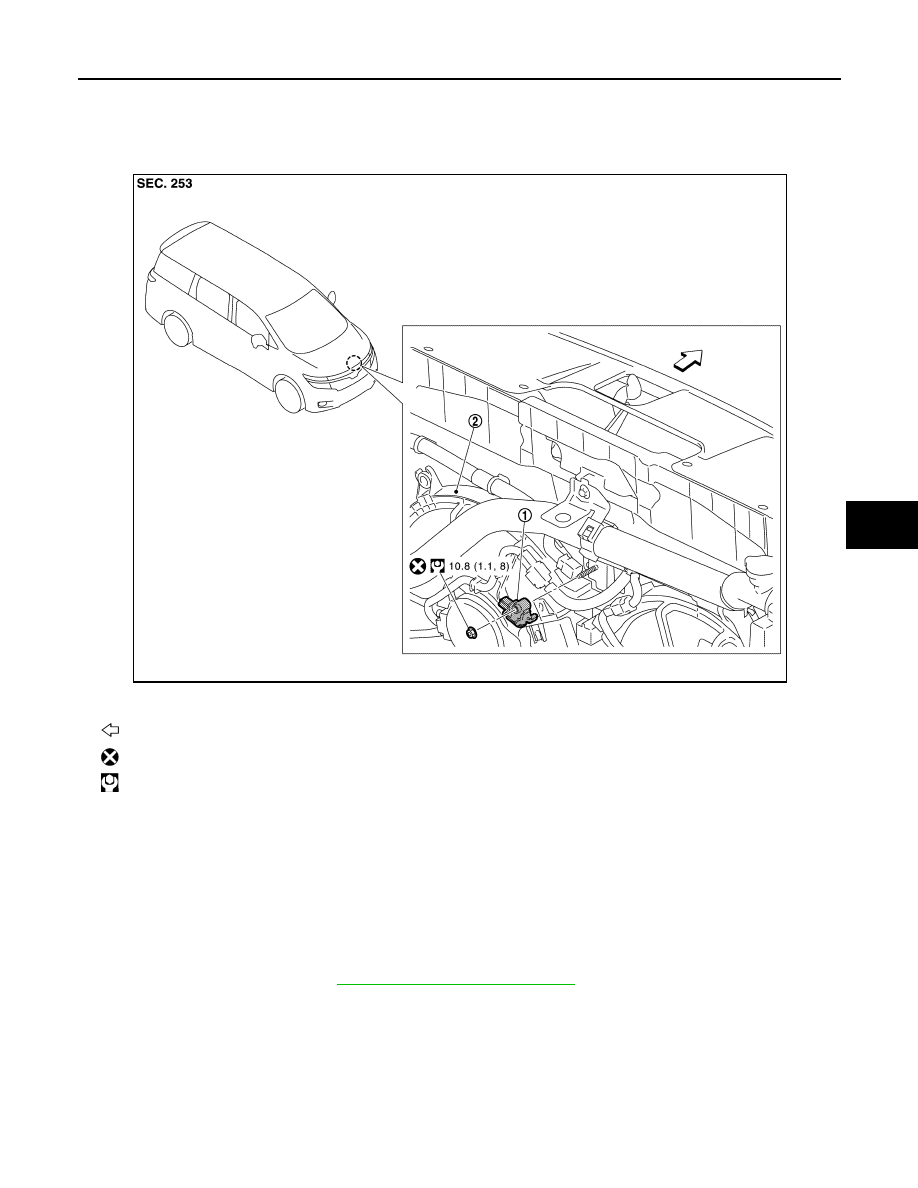

Exploded View

INFOID:0000000009650327

Removal and Installation

INFOID:0000000009650328

WARNING:

Always observe the following items for preventing accidental activation.
• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 min-

utes or more.

• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove air duct (inlet). Refer to

EM-26, "Removal and Installation"

.

1.

Crash zone sensor

2.

Cooling fan assembly

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA1701GB

SR-24

< REMOVAL AND INSTALLATION >

CRASH ZONE SENSOR

2.

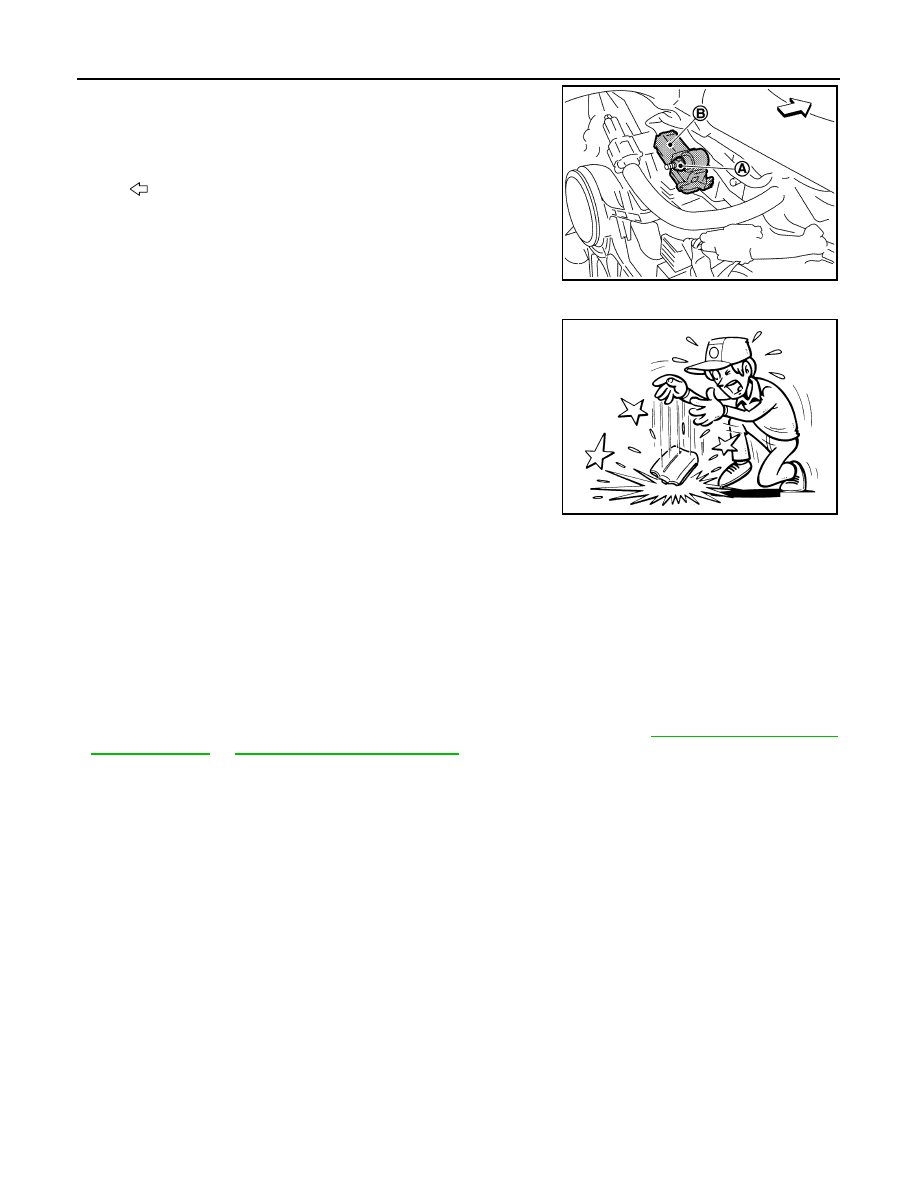

Remove mounting nut (A), and then pull out the crash zone sen-
sor.

3.

Disconnect the harness connector (B), and then remove the
crash zone sensor.

CAUTION:

• To prevent damage to the parts, never impact the crash zone

sensor.

• Replace the crash zone sensor if it is dropped or sustains an

impact.

• Replace the crash zone sensor of deployed driver air bag, deployed passenger air bag, seat belt pre-

tensioner and deployed lap pre-tensioner.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse mounting nut after removal, replace with new nut.
• Never damage the harness while installing.
• Always install normally aligning to the cutout hole, because performance of the crash zone sensor

excessively fluctuates according to the installation position.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-15, "On Board Diag-

nosis Function"

 or

SRC-19, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

: Vehicle front

JMHIA1702ZZ

JMHIA0009ZZ
