• The spiral cable may snap during steering operation if the

cable is installed in an improper position.
The neutral position is set as per the following.

• Carefully turn the spiral cable clockwise to the end position.

Then turn it counterclockwise (about 2 and a half turns) and
stop turning at the mark (B) when the stopper insertion holes
are in the same position.

• The service part is installed in the neutral position by the

stopper and can be set without adjusting after the stopper is
removed.

• Never over turn the spiral cable or go beyond the number of

turns required. (This causes the cable to snap)

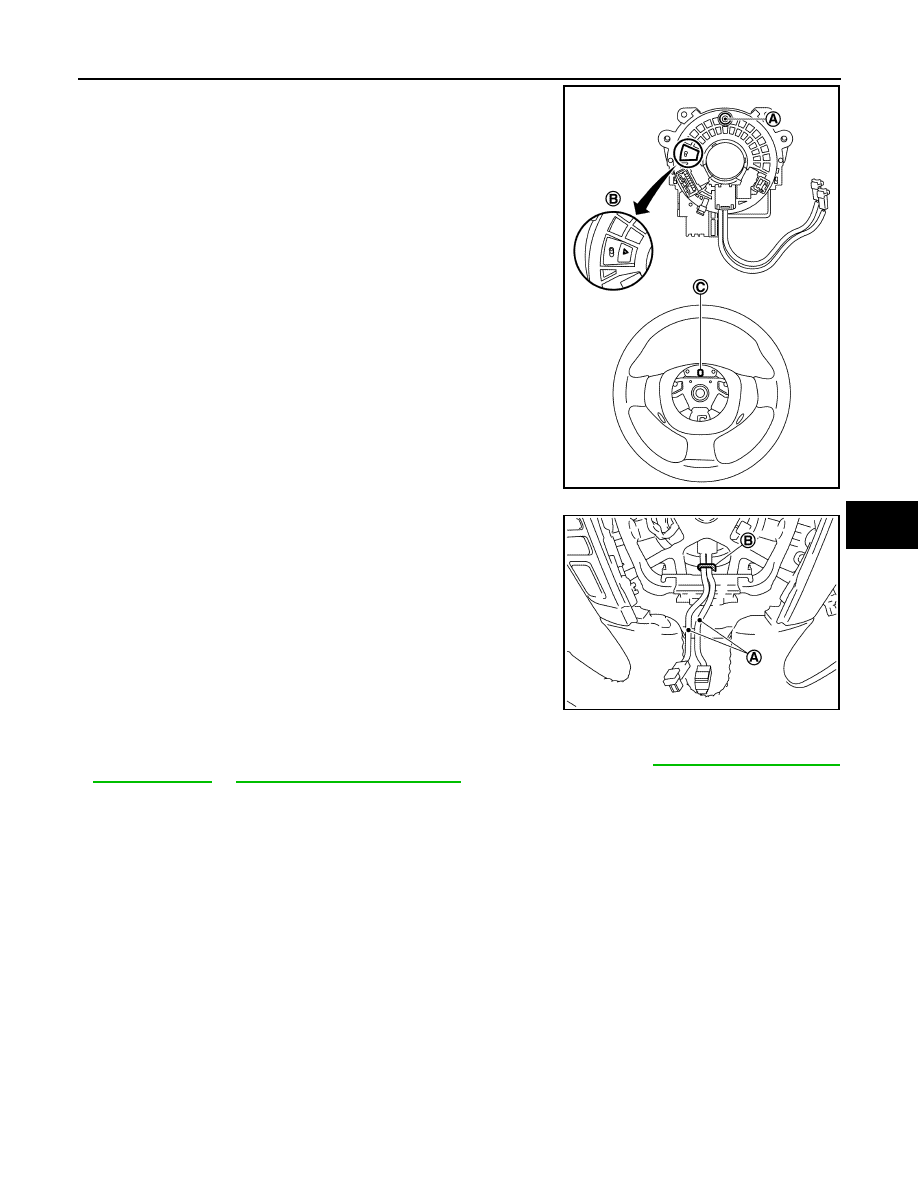

• Adjust the spiral cable locating pin (A) to the steering wheel

locating pin hole (C).

• Fix the driver air bag module harnesses (A) to the harness fix-

ing hook (B).

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-15, "On Board Diag-

nosis Function"

 or

SRC-19, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA2038ZZ

JMHIA2035ZZ

SR-18

< REMOVAL AND INSTALLATION >

PASSENGER AIR BAG MODULE

PASSENGER AIR BAG MODULE

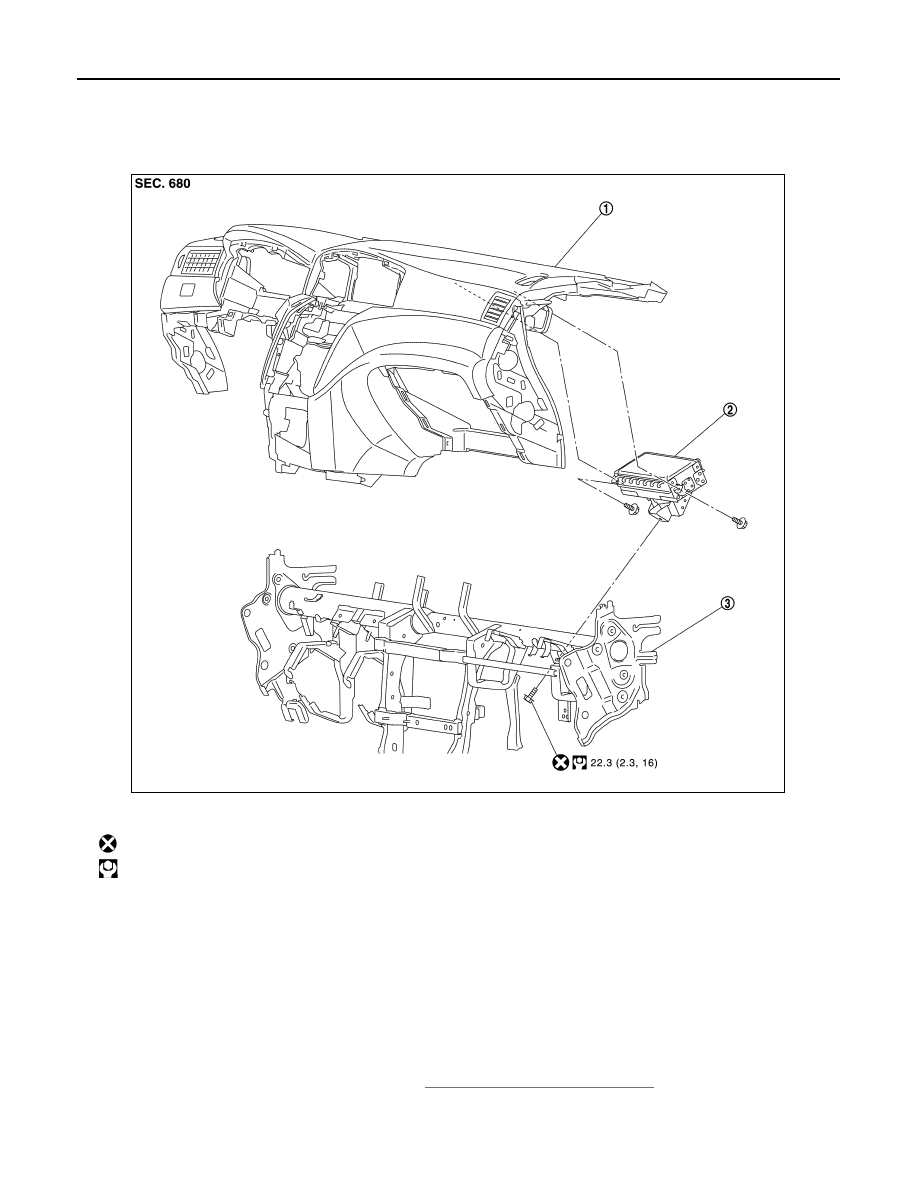

Exploded View

INFOID:0000000009650323

Removal and Installation

INFOID:0000000009650324

WARNING:

Always observe the following items for preventing accidental activation.
• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 min-

utes or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-14, "Removal and Installation"

.

1.

Instrument panel assembly

2.

Passenger air bag module

3.

Steering member assembly

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA2043GB

PASSENGER AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

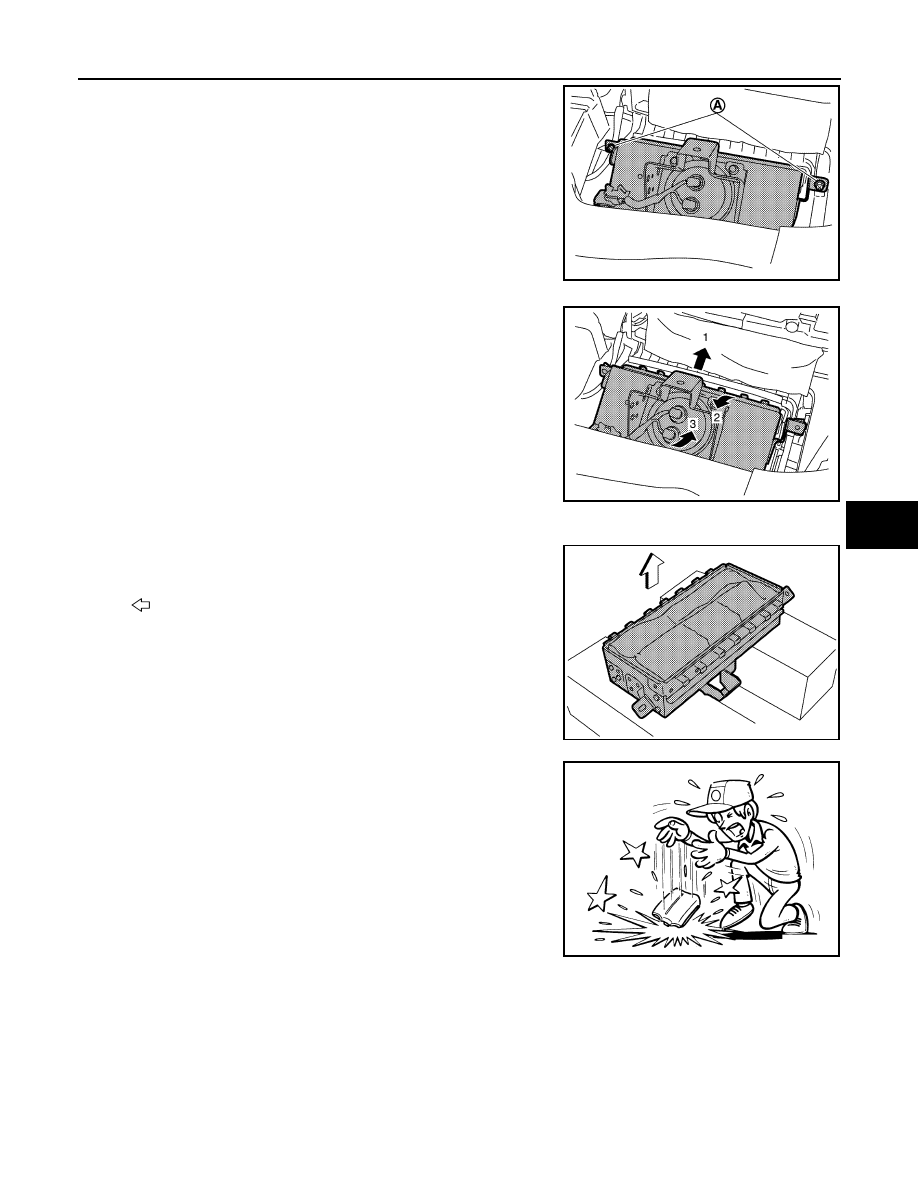

2.

Remove passenger air bag module fixing screws (A).

3.

Pull up air bag grid portion of instrument panel, and then disen-
gage the passenger air bag module.

4.

Remove passenger air bag module from instrument panel.

CAUTION:

• To prevent accidental explosion, always place the passenger

air bag module with pad side facing upward.

• To prevent damage to the parts, never impact the passenger

air bag module.

• Replace the passenger air bag module if it is dropped or sus-

tains an impact.

• To prevent accidental explosion, never insert any foreign objects (screwdriver, etc.) into the passen-

ger air bag module.

• To prevent accidental explosion, never disassemble the passenger air bag module.
• To prevent accidental explosion, never expose the passenger air bag module to temperatures of

more than 90

°

C (194

°

F).

• To prevent damage to the parts, never allow oil, grease, detergent, or water to come in contact with

the passenger air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

JMHIA2040ZZ

JMHIA2041ZZ

: Upward

JMHIA2042ZZ

JMHIA0009ZZ

SR-20

< REMOVAL AND INSTALLATION >

PASSENGER AIR BAG MODULE

CAUTION:

• Never reuse mounting bolts after removal, replace with new bolts.
• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-15, "On Board Diag-

nosis Function"

 or

SRC-19, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
