Nissan Quest E52. Manual - part 1109





SEC-126

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM CANNOT BE SET

NO

>> GO TO 1.

DOOR KEY CYLINDER

DOOR KEY CYLINDER : Description

INFOID:0000000009650801

ARMED phase is not activated when all doors are locked using mechanical key.
NOTE:
Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and check
each symptom.

CONDITION OF VEHICLE (OPERATING CONDITION)

• SECURITY ALARM SET: ON

Check the setting of “SECURITY ALARM SET” in “Work Support” mode of “THEFT ALM” of “BCM” using
CONSULT.

DOOR KEY CYLINDER : Diagnosis Procedure

INFOID:0000000009650802

1.

CHECK POWER DOOR LOCK SYSTEM

Lock or unlock doors using mechanical key.
Refer to

DLK-33, "System Description"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check power door lock system. Refer to

DLK-371, "Diagnosis Procedure"

.

2.

CONFIRM THE OPERATION

Confirm the operation again.
Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> GO TO 1.

DOOR LOCK AND UNLOCK SWITCH

DOOR LOCK AND UNLOCK SWITCH : Description

INFOID:0000000009650803

Armed phase is not activated when all doors are locked by door lock and unlock switch.
NOTE:
Check that vehicle is under the condition shown in “CONDITIONS OF VEHICLE (OPERATING CONDI-
TIONS)” before starting diagnosis, and check each symptom.

CONDITION OF VEHICLE (OPERATING CONDITIONS)

“SECURITY ALARM SET”: ON
Check the setting of “SECURITY ALARM SET” in “Work Support” mode of “THEFT ALM” of “BCM” using
CONSULT.

DOOR LOCK AND UNLOCK SWITCH : Diagnosis Procedure

INFOID:0000000009650804

1.

CHECK DOOR LOCK FUNCTION

Lock/unlock door using mechanical key inserted into door key cylinder.
Refer to

DLK-33, "System Description"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check Intelligent Key system (remote keyless entry function). Refer to

DLK-368, "ALL DOOR :

Diagnosis Procedure"

.

2.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> GO TO 1.

VEHICLE SECURITY ALARM DOES NOT ACTIVATE

SEC-127

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

VEHICLE SECURITY ALARM DOES NOT ACTIVATE

Description

INFOID:0000000009650805

Alarm does not operate when alarm operating condition is satisfied.
NOTE:
Check that vehicle is under the condition shown in “CONDITIONS OF VEHICLE (OPERATING CONDI-
TIONS)” before starting diagnosis, and check each symptom.

CONDITION OF VEHICLE (OPERATING CONDITIONS)

“SECURITY ALARM SET”: ON
Check the setting of “SECURITY ALARM SET” in “Work Support” mode of “THEFT ALM” of “BCM” using
CONSULT.

Diagnosis Procedure

INFOID:0000000009650806

1.

CHECK DOOR SWITCH

Check door switch.
Refer to

DLK-241, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the malfunctioning door switch

2.

CHECK HEADLAMPS FUNCTION

Check head lamps function.
Refer to

SEC-119, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK HORN FUNCTION

Check horn function.
Refer to

SEC-120, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CONFIRM THE OPERATION

Confirm the operation again.
Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> GO TO 1.

SEC-128

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

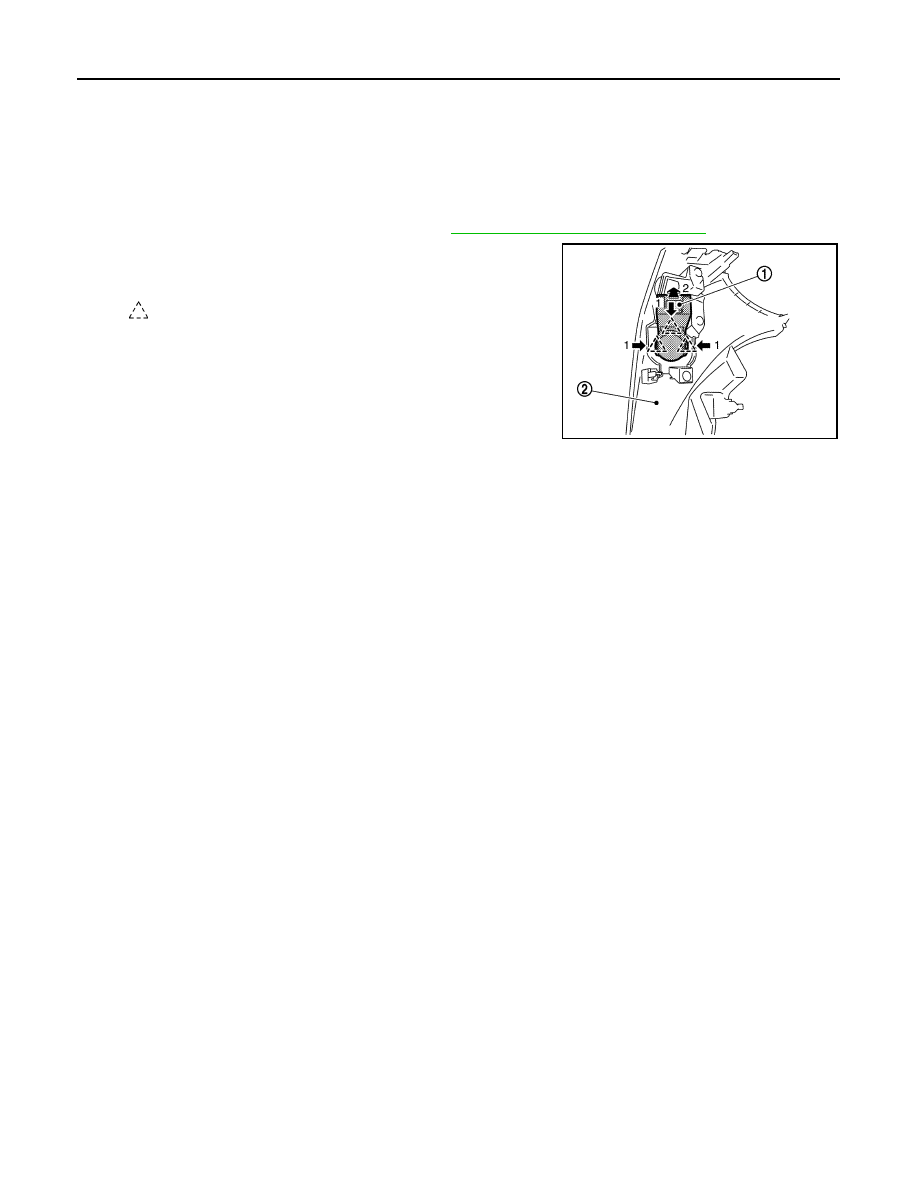

NATS ANTENNA AMP.

REMOVAL AND INSTALLATION

NATS ANTENNA AMP.

Removal and Installation

INFOID:0000000009650807

REMOVAL

1.

Remove the push-button ignition switch. Refer to

SEC-129, "Removal and Installation"

.

2.

Press the NATS antenna amp. fixing pawls in the direction of the
arrow (1), as shown in the figure, to disengage them.

3.

Push NATS antenna amp. (1) in the direction of the arrow (2), as
shown in the figure, to remove it from instrument finisher A (2).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIA8236ZZ

PUSH-BUTTON IGNITION SWITCH

SEC-129

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

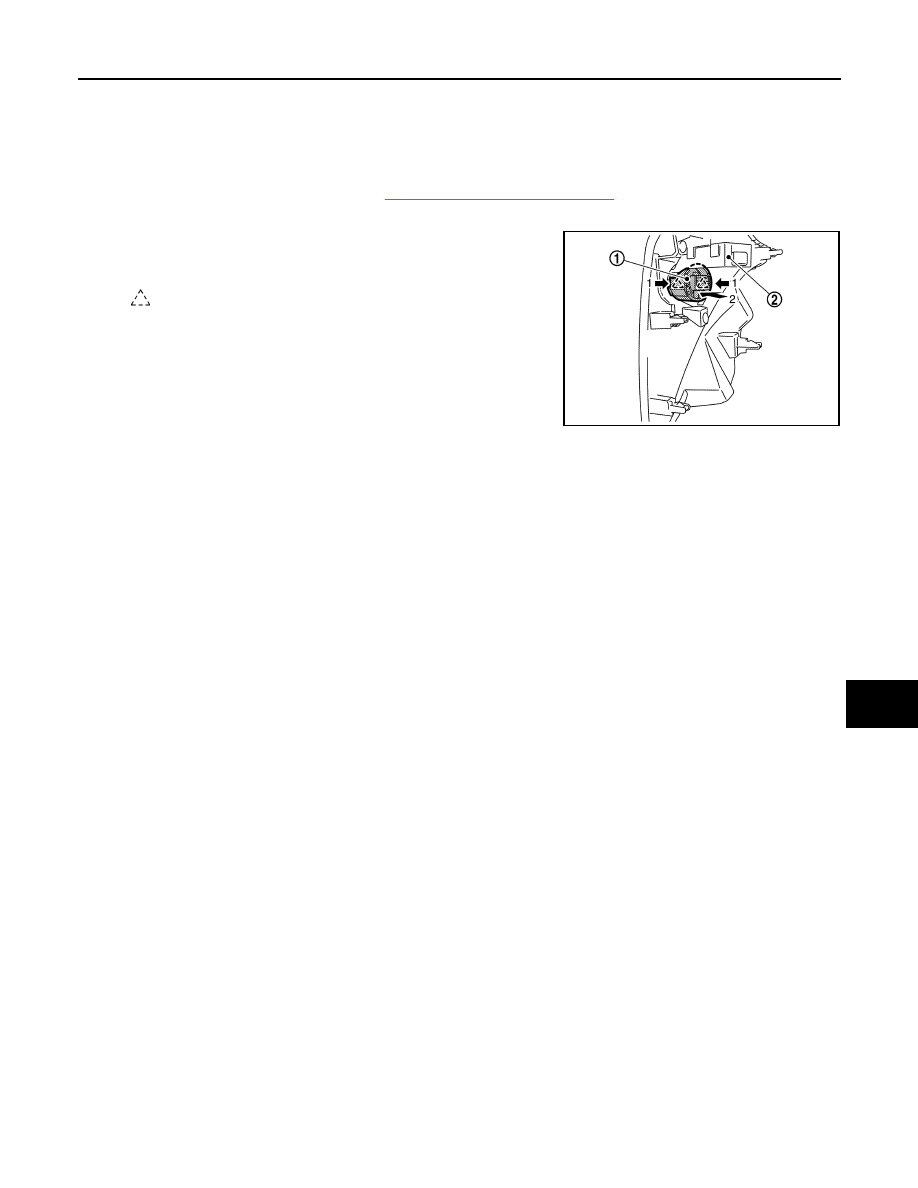

PUSH-BUTTON IGNITION SWITCH

Removal and Installation

INFOID:0000000009650808

REMOVAL

1.

Remove instrument finisher A. Refer to

IP-14, "Removal and Installation"

.

2.

Disconnect NATS antenna amp. connector and push-button ignition switch connector.

3.

Disengage the push-button ignition switch fixing pawls by push-
ing them in the direction of the arrow (1) as shown in the figure.

4.

Push push-button ignition switch (1) in the direction of the arrow
(2), as shown in the figure, and remove push-button ignition
switch from NATS antenna amp (2).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIA8237ZZ
