Nissan Quest E52. Manual - part 1110





SR-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SR

A

B

SR

N

O

P

CONTENTS

SRS AIRBAG

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precautions for Removing Battery Terminal  .............

2

Service ......................................................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tools  ........................................

4

BASIC INSPECTION  ....................................

5

COLLISION DIAGNOSIS  ....................................

5

FOR FRONTAL COLLISION  .......................................

5

FOR FRONTAL COLLISION : When SRS is acti-
vated in a collision ...................................................
..

5

FOR FRONTAL COLLISION : When SRS is not
activated in a collision  .............................................
..

6

FOR SIDE AND ROLLOVER COLLISION  ..................

7

FOR SIDE AND ROLLOVER COLLISION : When
SRS is activated in a collision  .................................
..

7

FOR SIDE AND ROLLOVER COLLISION : When
SRS is not activated in a collision  ...........................
..

8

REMOVAL AND INSTALLATION ...............

12

DRIVER AIR BAG MODULE ..............................

12

Exploded View  ........................................................

12

Removal and Installation  .........................................

12

SPIRAL CABLE  ................................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

PASSENGER AIR BAG MODULE  ...................

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

CURTAIN AIR BAG MODULE  ..........................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

CRASH ZONE SENSOR ...................................

23

Exploded View .........................................................

23

Removal and Installation  .........................................

23

SATELLITE SENSOR  .......................................

25

Exploded View .........................................................

25

Removal and Installation  .........................................

26

DIAGNOSIS SENSOR UNIT  .............................

29

Exploded View .........................................................

29

Removal and Installation  .........................................

29

SEAT BELT PRE-TENSIONER  ........................

31

Exploded View .........................................................

31

Removal and Installation  .........................................

31

OCCUPANT DETECTION SYSTEM CON-
TROL UNIT ........................................................

32

Exploded View .........................................................

32

Removal and Installation  .........................................

32

SR-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009650312

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000009931746

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

Service

INFOID:0000000009650313

• Never use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.

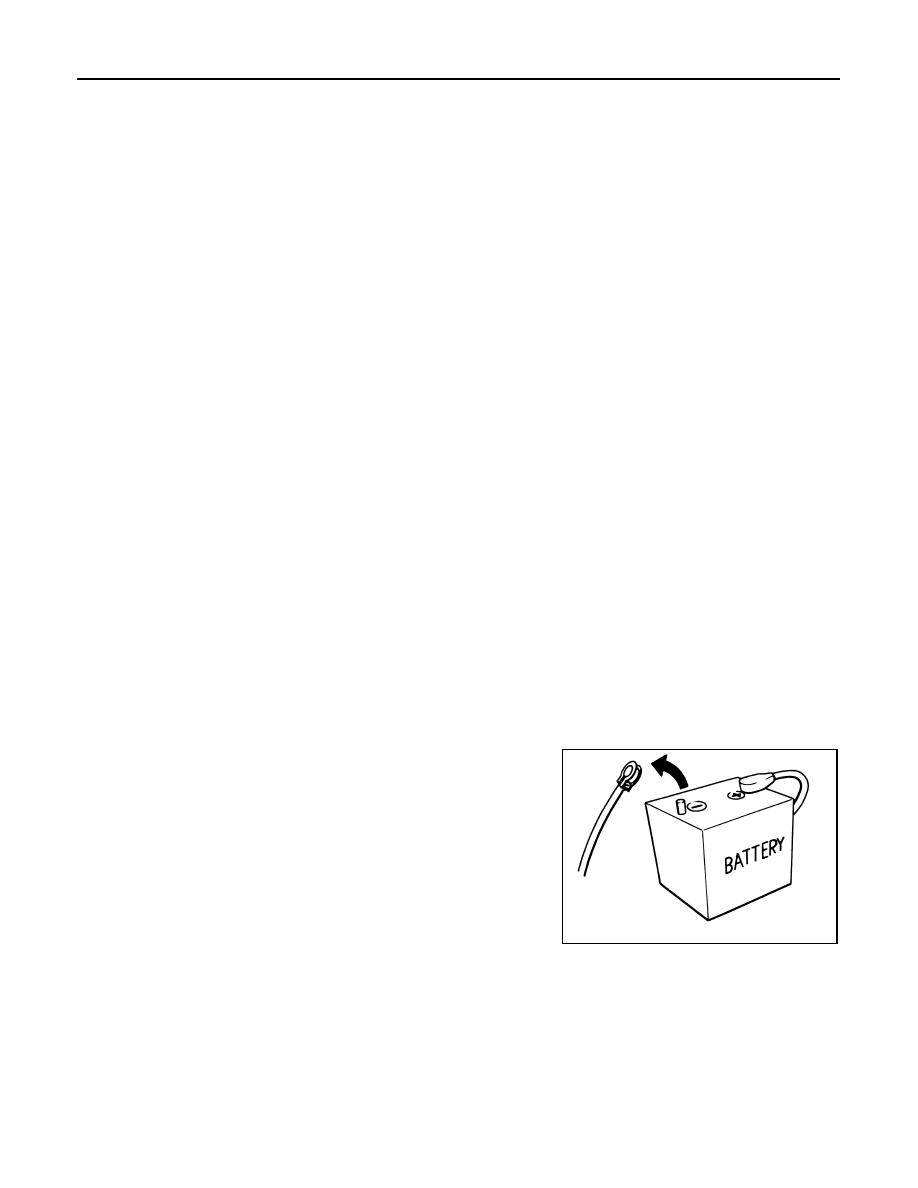

• Before servicing the SRS, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.

SEF289H

PRECAUTIONS

SR-3

< PRECAUTION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

For approximately 3 minutes after the battery negative terminal are removed, it is still possible for the air bag
and seat belt pre-tensioner to deploy. Therefore, never work on any SRS connectors or wires until at least 3
minutes have elapsed.

• Diagnosis sensor unit must always be installed with their arrow marks “

” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before installa-
tion and replace as required.

• The spiral cable must be aligned in the neutral position since its rotations are limited. Never turn steering

wheel and column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper functioning after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.
• Always replace instrument panel pad following front passenger air bag deployment.

SR-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

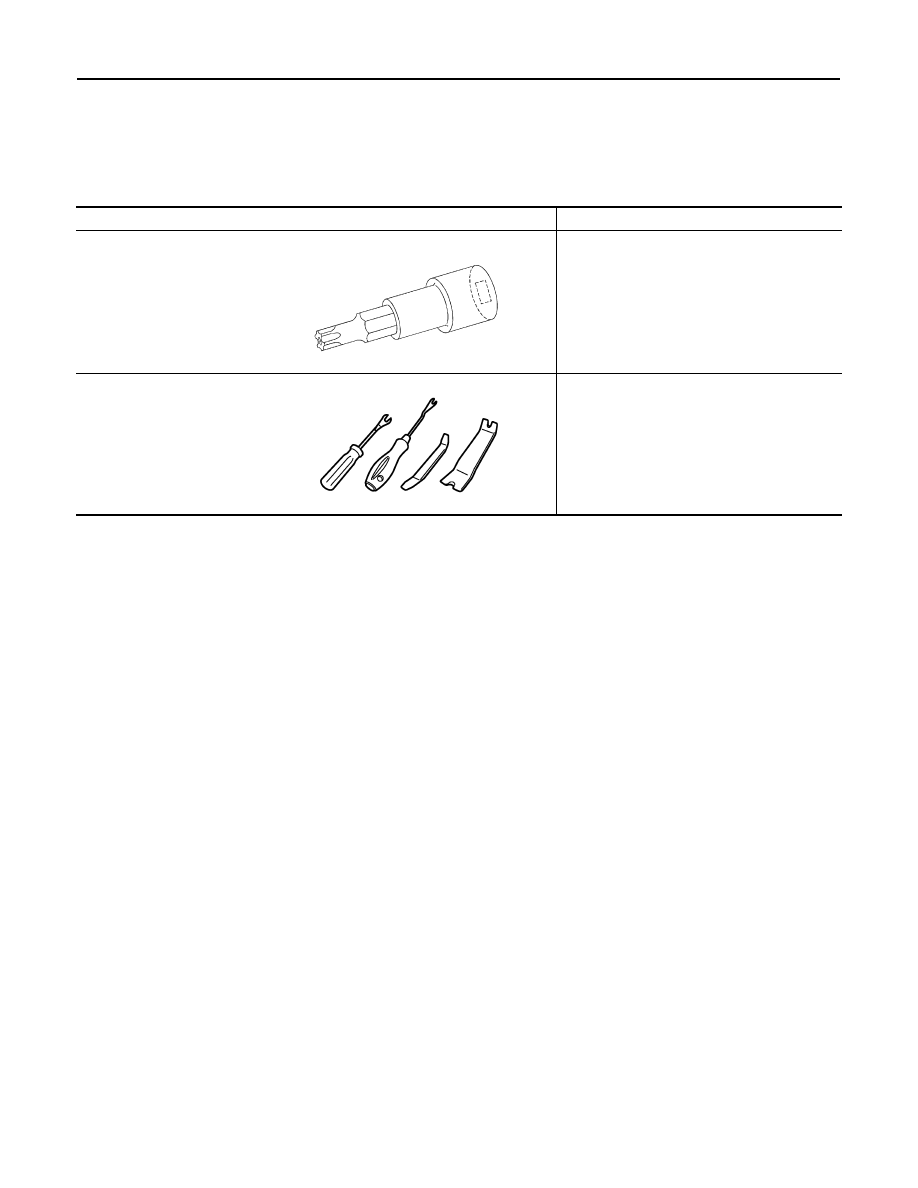

Commercial Service Tools

INFOID:0000000009650314

Tool name

Description

Tamper resistant TORX bit

Removes of driver air bag module

Remover tool

Removes clips, pawls and metal clips

S-NT757

JMKIA3050ZZ
