Nissan Quest E52. Manual - part 1079

SEC-6

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

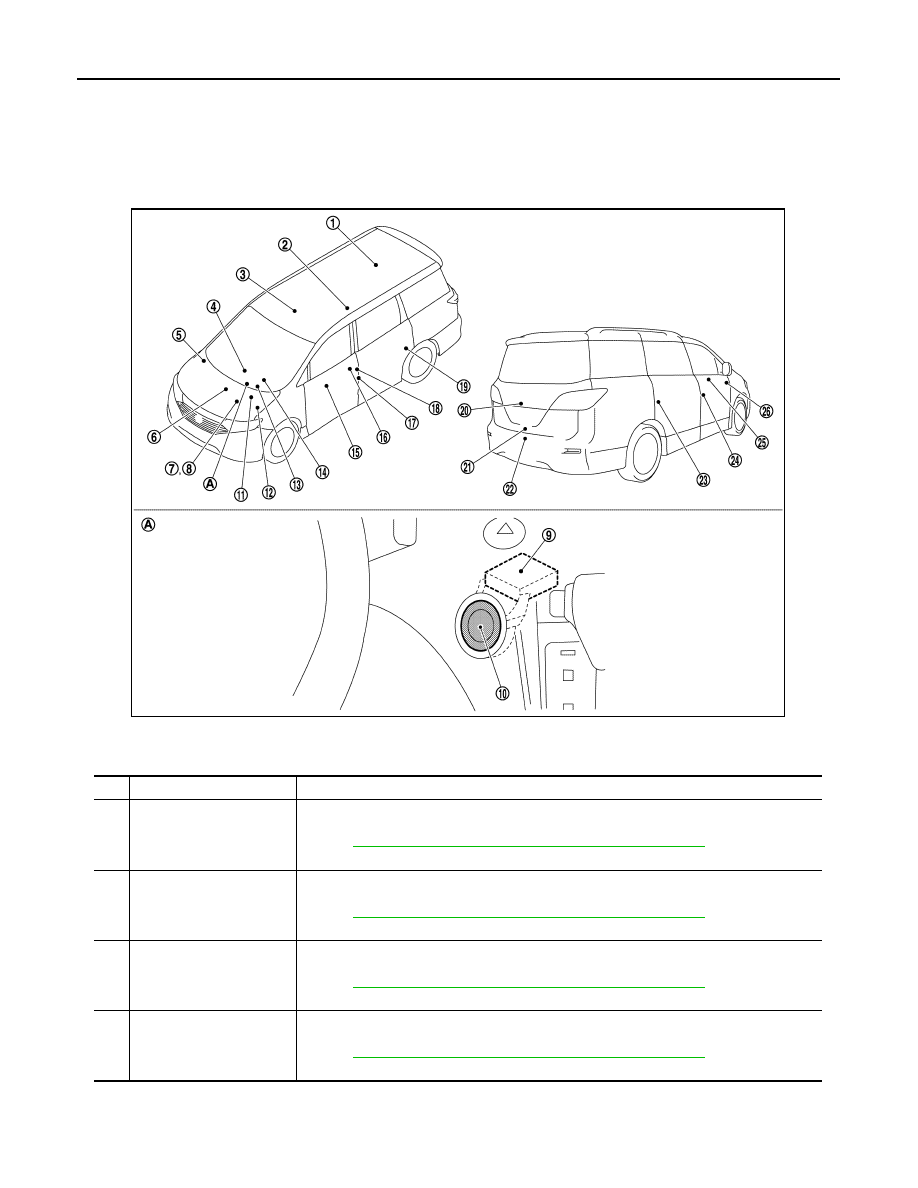

Component Parts Location

INFOID:0000000009650690

A.

Behind push-button ignition switch

No.

Component Function

1

Inside key antenna (Lug-
gage room)

Inside key antenna (Luggage room) detects whether Intelligent Key is inside the vehicle or
not, and then transmits the signal to BCM.
Refer to

DLK-18, "DOOR LOCK SYSTEM : Component Parts Location"

 for detailed installa-

tion location.

2

Remote keyless entry re-
ceiver

Remote keyless entry receiver receives each button operation signal and electronic key ID
signal from Intelligent Key, and then transmits the signal to BCM.
Refer to

DLK-18, "DOOR LOCK SYSTEM : Component Parts Location"

 for detailed installa-

tion location.

3

Inside key antenna (Con-
sole)

Inside key antenna (Console) detects whether Intelligent Key is inside the vehicle or not, and
then transmits the signal to BCM.
Refer to

DLK-18, "DOOR LOCK SYSTEM : Component Parts Location"

 for detailed installa-

tion location.

4

Inside key antenna (Instru-
ment center)

Inside key antenna (Instrument center) detects whether Intelligent Key is inside the vehicle
or not, and then transmits the signal to BCM.
Refer to

DLK-18, "DOOR LOCK SYSTEM : Component Parts Location"

 for detailed installa-

tion location.

JMKIA8233ZZ

COMPONENT PARTS

SEC-7

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

5

ABS actuator and electric
unit (control unit)

ABS actuator and electric unit (control unit) transmits the vehicle speed signal to BCM via
CAN communication.
BCM also receives the vehicle speed signal from combination meter via CAN communica-
tion. BCM compares both signals to detect the vehicle speed.
Refer to

BRC-9, "Component Parts Location"

 for detailed installation location.

6

Stop  lamp  relay

Stop lamp relay is used to send the stop lamp switch signal to BCM.
Refer to

TM-10, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed instal-

lation location.

7

TCM

TCM receives the shift position signal from transmission range switch, and then transmits the
P/N position signal to BCM via CAN communication.
BCM confirms the selector lever position with the following 5 signals.
• P position signal from CVT shift selector (detention switch)
• P/N position signal from TCM
• P position signal from IPDM E/R (CAN)
• P/N position signal from IPDM E/R (CAN)
• P/N position signal from TCM (CAN)
IPDM E/R confirms the selector lever position with the following 3 signals.
• P position signal from CVT shift selector (detention switch)
• P/N position signal from TCM
• P/N position signal from BCM (CAN)
Refer to

TM-10, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed instal-

lation location.

8

ECM

ECM controls the engine.
When ignition switch is turned ON, BCM starts communication with ECM and performs the
ID verification between BCM and ECM.
If the verification result is OK, the engine can start. If the verification result is NG, the engine
can not start.
Refer to

EC-15, "ENGINE CONTROL SYSTEM : Component Parts Location"

 for detailed in-

stallation location.

9

NATS antenna amp.

Refer to

SEC-9, "NATS Antenna Amp."

.

10

Push-button ignition switch

Push-button ignition switch has push switch inside which detects that push-button ignition
switch is pressed, and then transmits ON/OFF signal to BCM. BCM changes the ignition
switch position with the operation of push-button ignition switch. BCM maintains the ignition
switch position status while push-button ignition switch is not operated.

11

Stop lamp switch

Stop lamp switch detects that brake pedal is depressed, and then transmits ON/OFF signal
to BCM.
Refer to

TM-10, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed instal-

lation location.

12

IPDM E/R

Starter control relay and starter relay are integrated in IPDM E/R and used for the engine
starting function. Starter relay is controlled by BCM, and starter control relay is controlled by
IPDM E/R while communicating with BCM. IPDM E/R sends the starter control relay and
starter relay status signal to BCM.
Refer to

PCS-4, "IPDM E/R : Component Parts Location"

 for detailed installation location.

13

BCM

BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHI-
CLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHICLE SECURITY SYSTEM.
BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key
is carried into the detection area of inside key antenna, and push-button ignition switch is
pressed. If the ID verification result is OK, ignition switch operation is available.
Then, when the ignition switch is turned ON, BCM performs ID verification between BCM and
ECM. If the ID verification result is OK, ECM can start engine.
Refer to

BCS-4, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed in-

stallation location.

14

Combination meter

Combination meter transmits the vehicle speed signal to BCM via CAN communication.
BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit)
via CAN communication. BCM compares both signals to detect the vehicle speed.
Security indicator lamp is located on combination meter.
Security indicator lamp blinks when ignition switch is in any position other than ON to warn
that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board.
Refer to

MWI-7, "METER SYSTEM : Combination Meter"

.

No.

Component Function

SEC-8

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

CVT Shift Selector (Detention Switch)

INFOID:0000000009650691

Detention switch is integrated into CVT shift sector, and detects that selector lever is locked in the P position,
then transmits ON/OFF signal to BCM and IPDM E/R.
BCM confirms the selector lever position with the following 5 signals.
• P position signal from CVT shift selector (detention switch)
• P/N position signal from transmission range switch
• P position signal from IPDM E/R (CAN)
• P/N position signal from IPDM E/R (CAN)
• P/N position signal from TCM (CAN)
IPDM E/R confirms the selector lever position with the following 3 signals.
• P position signal from CVT shift selector (detention switch)

15

Power window main switch

Door lock and unlock switch is integrated into the power window main switch.
Door lock and unlock switch transmits door lock/unlock operation signal to BCM.
Refer to

PWC-8, "Power Window Main Switch"

 (front window anti-pinch) or

PWC-72, "Power

Window Main Switch"

 (driver side window anti-pinch).

16

Front door outside handle
assembly LH

Outside key antenna and door request switch are integrated into front door outside handle
assembly.
• Outside key antenna detects whether Intelligent Key is within the detection area or not, and

then transmits signal to BCM.

• Front door request switch transmits door lock/unlock request signal to BCM.
Refer to

DLK-27, "Front Door Outside Handle Assembly (Outside Key Antenna)"

.

17

Front door switch (Driver
side)

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
Refer to

DLK-28, "Front Door Switch"

.

18

Front door lock assembly
(Driver side)

Door key cylinder switch is integrated into front door lock assembly (driver side).
Door key cylinder switch detects door LOCK/UNLOCK operation using mechanical key, and
then transmits the operation signal to BCM.
Refer to

DLK-28, "Front Door Lock Assembly (Driver Side)"

.

19

Sliding door switch LH

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
Refer to

DLK-31, "Sliding Door Switch"

.

20

Back door opener switch
assembly

Back door opener switch and back door request switch are integrated into back door opener
switch assembly.
• Back door opener switch transmits back door opening operation signal to BCM.
• Back door request switch transmits door lock/unlock request signal to BCM.
Refer to

DLK-29, "Back Door Opener Switch"

.

21

Back door lock assembly

Back door switch is integrated into back door lock assembly.
Back door switch detects back door open/close condition, and then transmits ON/OFF signal
to BCM.
Refer to

DLK-29, "Back Door Lock Assembly (Without Automatic Back Door System)"

 or

DLK-30, "Back Door Lock Assembly (With Automatic Back Door System)"

.

22

Outside key antenna (rear
bumper)

Outside key antenna detects whether or not Intelligent Key is within the outside key antenna
detection area.
Refer to

DLK-18, "DOOR LOCK SYSTEM : Component Parts Location"

 for detailed installa-

tion location.

23

Sliding door switch RH

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
Refer to

DLK-31, "Sliding Door Switch"

.

24

Front door switch (Passen-
ger side)

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
Refer to

DLK-28, "Front Door Switch"

.

25

Front door outside handle
assembly RH

Outside key antenna and door request switch are integrated into front door outside handle
assembly.
• Outside key antenna detects whether Intelligent Key is within the detection area or not, and

then transmits signal to BCM.

• Front door request switch transmits door lock/unlock request signal to BCM.
Refer to

DLK-27, "Front Door Outside Handle Assembly (Outside Key Antenna)"

.

26

Door lock unlock switch

Door lock and unlock switch is integrated into front power window switch (Passenger side).
Door lock and unlock switch transmits door lock/unlock operation signal to BCM.
Refer to

DLK-28, "Door Lock and Unlock Switch (Driver Side)"

 or

DLK-28, "Door Lock and

Unlock Switch (Passenger Side)"

.

No.

Component Function

COMPONENT PARTS

SEC-9

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

• P/N position signal from transmission range switch
• P/N position signal from BCM (CAN)

NATS Antenna Amp.

INFOID:0000000009650692

The ID verification is performed between BCM and transponder integrated into Intelligent Key via NATS
antenna amp. when Intelligent Key backside is contacted to push-button ignition switch in case that Intelligent
Key battery is discharged. If the ID verification result is OK, the operation of ignition switch is available.
