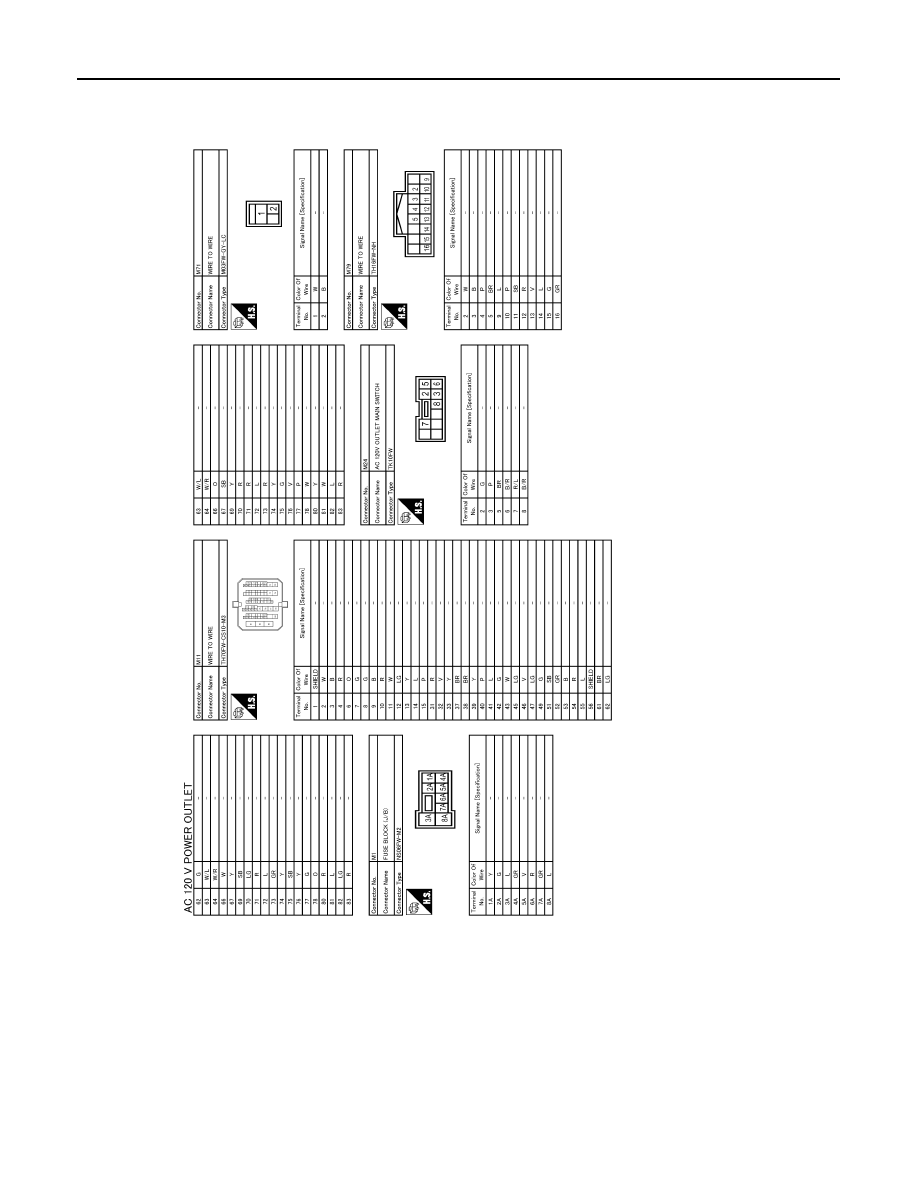

< WIRING DIAGRAM >

[AC 120 V OUTLET]

AC 120 V POWER OUTLET

JRMWE3312GB

PWO

DIAGNOSIS AND REPAIR WORK FLOW

PWO-21

< BASIC INSPECTION >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009651882

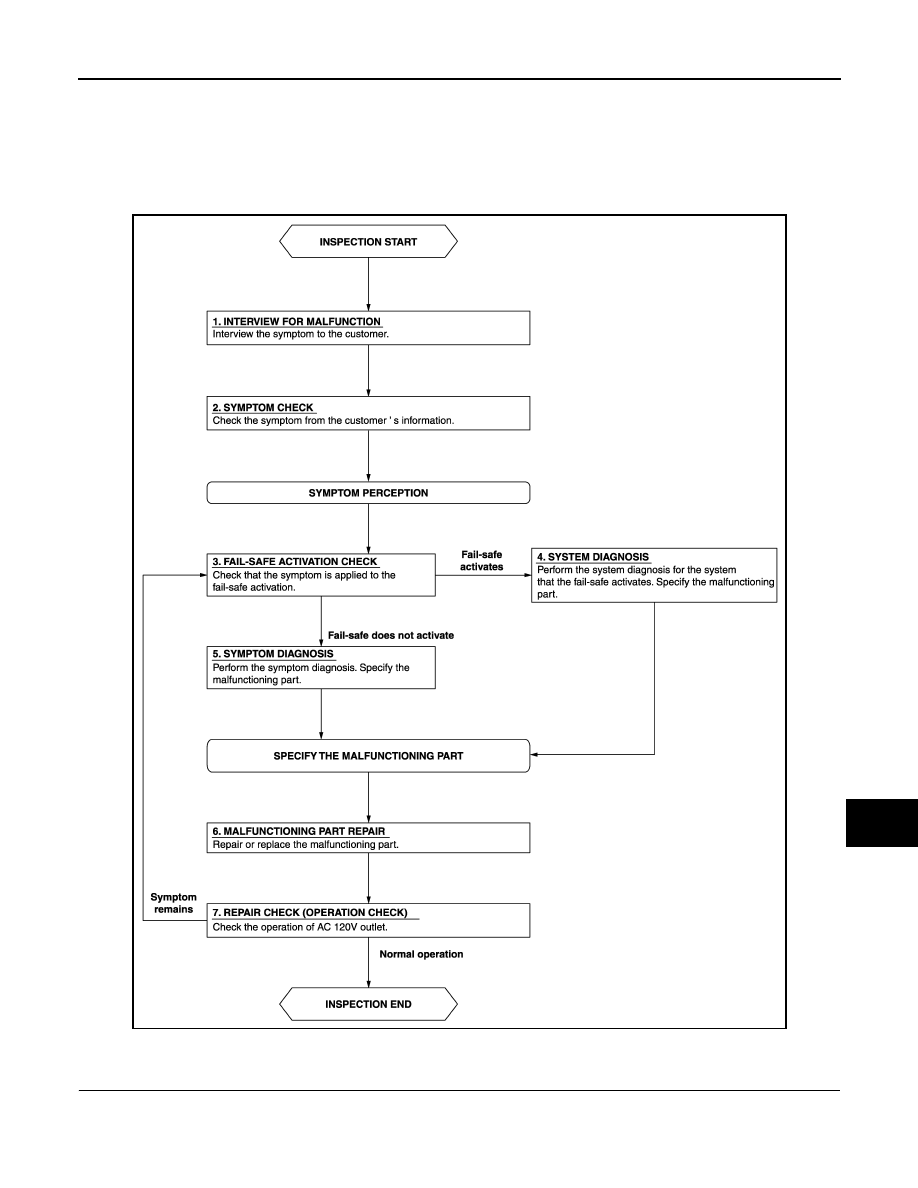

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the symptom to the customer.

JSMIA0396GB

PWO-22

< BASIC INSPECTION >

[AC 120 V OUTLET]

DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 2.

2.

SYMPTOM CHECK

Check the symptom from the customer's information.

>> GO TO 3.

3.

FAIL-SAFE ACTIVATION CHECK

Check that the symptom is applied to the fail-safe activation.

Does the fail-safe activate?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system that the fail-safe activates. Specify the malfunctioning part.

>> GO TO 6.

5.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 6.

6.

MALFUNCTIONING PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 7.

7.

REPAIR CHECK (OPERATION CHECK)

Check the operation of AC 120 V outlet.

Does it operate normally?

YES

>> INSPECTION END

NO

>> GO TO 3.

PWO

POWER SUPPLY AND GROUND CIRCUIT

PWO-23

< DTC/CIRCUIT DIAGNOSIS >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000009651883

1.

CHECK FUSE

Check that the following fuse is not blown.

Is the fuse fusing?

YES

>> Replace the blown fuse after repairing the affected circuit if a fuse is blown.

NO

>> GO TO 2.

2.

CHECK INVERTER UNIT POWER SUPPLY CIRCUIT

Check voltage between inverter unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the inverter unit power supply circuit.

3.

CHECK INVERTER UNIT GROUND CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the inverter unit connector.

3.

Check for continuity between inverter unit harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair or replace the inverter unit ground circuit.

Signal name

Fuse No.

Battery power supply

34

Terminal

Condition

Standard value

Voltage

(Approx.)

(+)

(–)

Inverter unit

Ground

Ignition switch

Connector

Terminal

B226

4

OFF

11.5 – 16 V

Battery voltage

Inverter unit

Ground

Continuity

Connector

Terminal

B226

8

Existed
