PWO-16

< ECU DIAGNOSIS INFORMATION >

[AC 120 V OUTLET]

INVERTER UNIT

ECU DIAGNOSIS INFORMATION

INVERTER UNIT

Reference Value

INFOID:0000000009651879

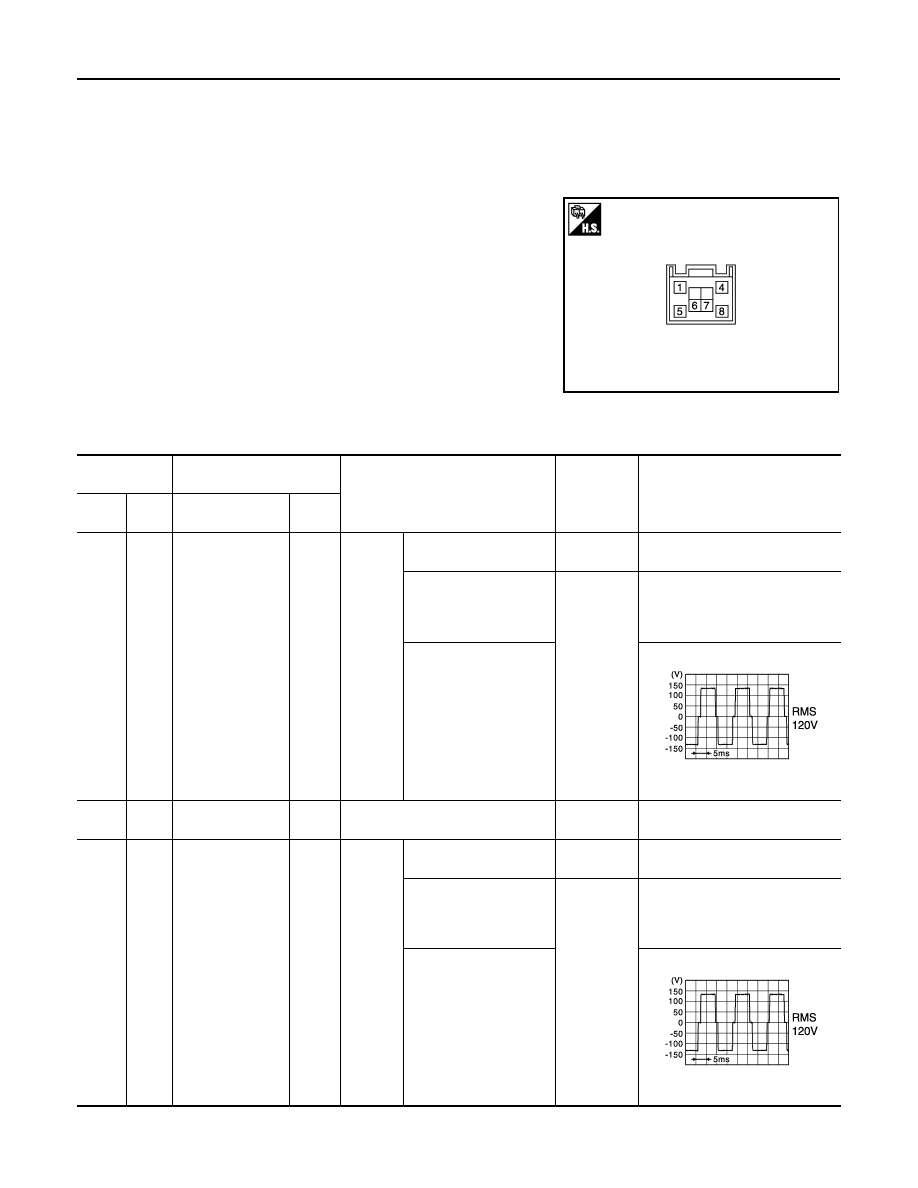

TERMINAL LAYOUT

PHYSICAL VALUES

JSMIA0395ZZ

Terminal No.

(Wire color)

Description

Condition

Standard

value

Value

(Approx.)

+

Signal name

Input/

Output

1

(Y)

5

(L)

AC 120 V output

Output

Ignition

switch

ON

When AC 120 V outlet
main switch OFF

0  V

When AC 120 V outlet
main switch ON
(When using circuit
tester)

108 – 132 V

AC 120 V

When AC 120 V outlet
main switch ON
(When using oscillo-
scope)

Reference value

AC 120 V

4

(W)

Grou

nd

Battery power
supply

Input

Ignition switch OFF

11.5 – 16 V

Battery power supply

5

(L)

1

(Y)

AC 120 V output

Output

Ignition

switch

ON

When AC 120 V outlet
main switch OFF

0  V

When AC 120 V outlet
main switch ON
(When using circuit
tester)

108 – 132 V

AC 120 V

When AC 120 V outlet
main switch ON
(When using oscillo-
scope)

Reference value

AC 120 V

JSMIA0397GB

JSMIA0397GB

PWO

INVERTER UNIT

PWO-17

< ECU DIAGNOSIS INFORMATION >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CAUTION:

• To measure AC 120 V output signal, always use the circuit tester or oscilloscope AC range.
• Never allow the probes to contact each other.
• Because of modified sine wave output of the AC 120 V output signal, voltage cannot be measured

accurately without using a circuit tester that can measure true RMS (root mean square).

Fail-safe

INFOID:0000000009651880

When a malfunction listed below occurs, the inverter unit turns OFF the AC 120 V outlet main switch indicator
and stops the output by operating the fail-safe.

6

(P)

Grou

nd

AC 120 V outlet
main switch

Input

Ignition

switch

ON

When AC 120 V outlet
main switch OFF

0  V

When AC 120 V outlet
main switch ON

12  V

7

(BR)

AC 120 V outlet
main switch indi-
cator

Output

Ignition

switch

ON

When AC 120 V outlet
main switch OFF

0  V

When AC 120 V outlet
main switch ON

5.2  V

8

(B)

Ground

Ignition switch ON

0 V

Terminal No.

(Wire color)

Description

Condition

Standard

value

Value

(Approx.)

+

Signal name

Input/

Output

Malfunction item

Fail-safe condition

Fail-safe cancellation condition

Inverter unit is overheat-
ed

When the inverter unit is overheated, the output
stops to protect the inverter unit.

After the inverter unit temperature is lowered, the
AC 120 V outlet main switch ON

 OFF

 ON op-

eration allows normal return.

Inverter unit power sup-
ply voltage is 11.5 V or
less

When inverter unit input voltage is lowered, the out-
put stops to protect the battery from running out.

Automatic normal return when inverter unit power
supply voltage reaches 11.5 V - 16 V.

Inverter unit power sup-
ply voltage is 16 V - 18 V

When inverter unit input voltage reaches 16 V - 18 V,
the output stops to protect the inverter unit.

Automatic normal return when inverter unit power
supply voltage reaches 11.5 V - 16 V.

Inverter unit power sup-
ply voltage is 18 V or
more

When inverter unit input voltage reaches 18 V or
more, the output stops to protect the inverter unit.

After the inverter unit power supply voltage reaches
11.5 V - 16 V, the AC 120V outlet main switch ON

 OFF

 ON operation allows normal return.

Inverter unit output cur-
rent is 2.8 A or more

When inverter unit output current reaches 2.8 A or
more, the output stops to prevent over current. (e.g.
connecting an electric appliance exceeding rated
output)

Automatic normal return when inverter output cur-
rent reaches 2.8 A.

Inverter unit output signal
(AC 120 V output signal)
is shorted

When inverter unit output signal is shorted, the out-
put stops.

After recovering from inverter unit output signal
short, the AC 120 V outlet main switch ON

 OFF

 ON operation allows normal return.

PWO-18

< WIRING DIAGRAM >

[AC 120 V OUTLET]

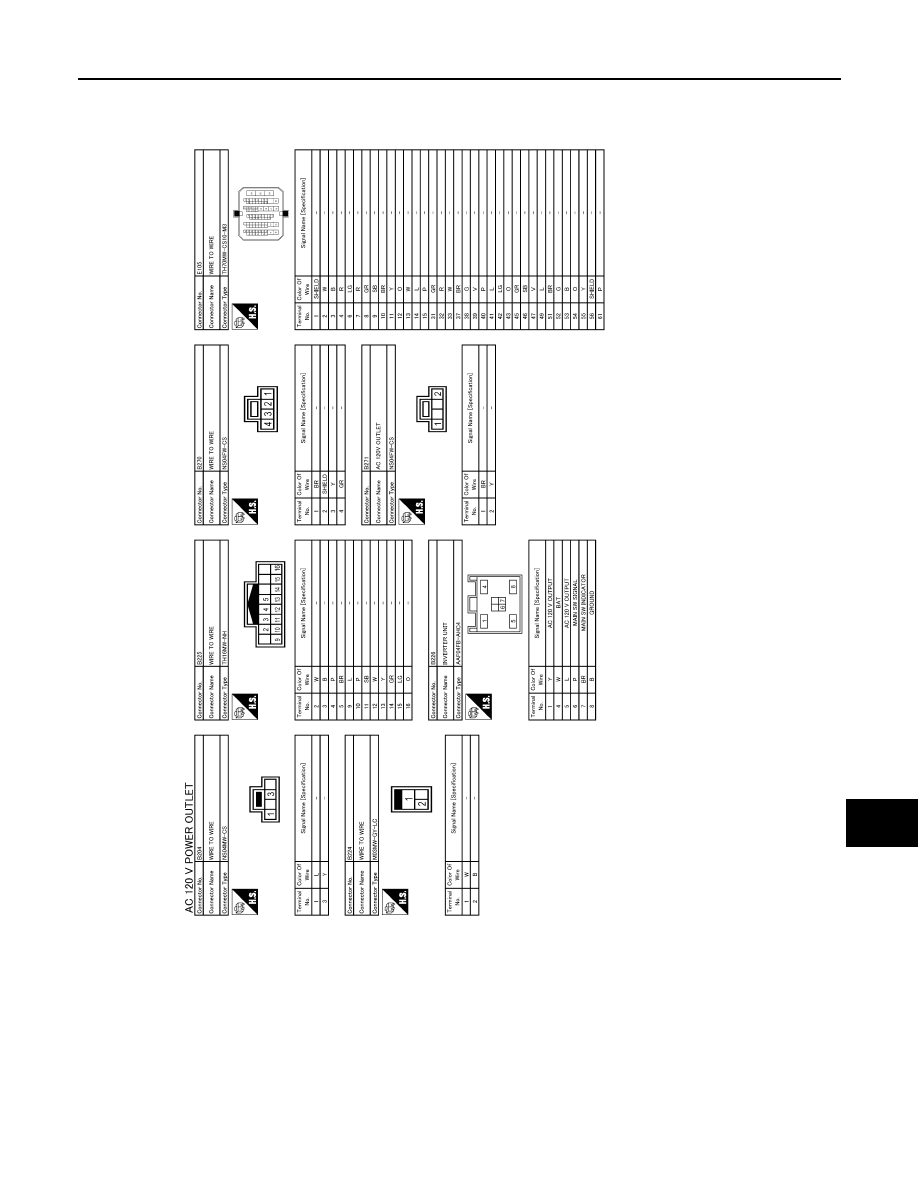

AC 120 V POWER OUTLET

WIRING DIAGRAM

AC 120 V POWER OUTLET

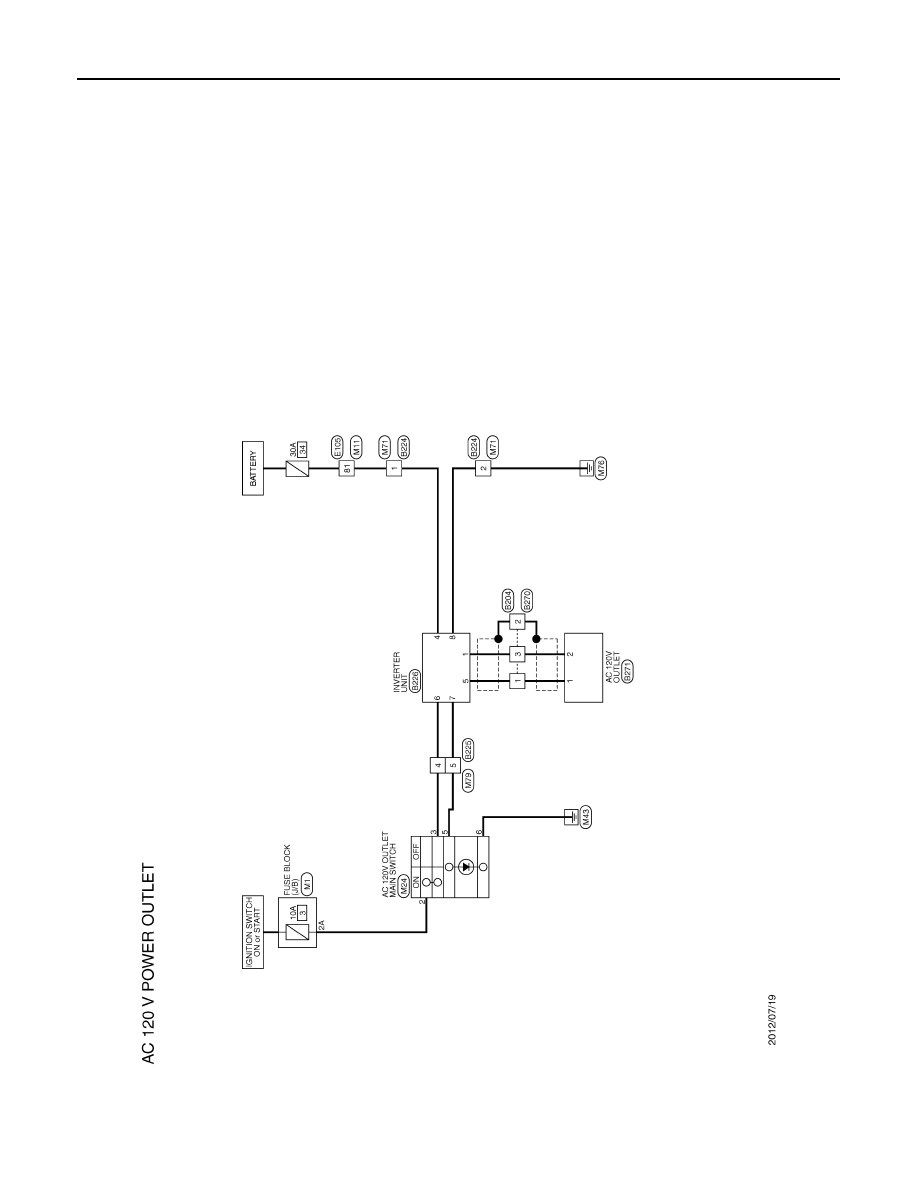

Wiring Diagram

INFOID:0000000009651881

JRMWD3561GB

PWO

AC 120 V POWER OUTLET

PWO-19

< WIRING DIAGRAM >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWE3311GB
