Nissan Quest E52. Manual - part 98

AV

PRECAUTIONS

AV-271

< PRECAUTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Be sure to turn ignition switch OFF and disconnect the battery cable from the negative terminal before

checking the circuit.

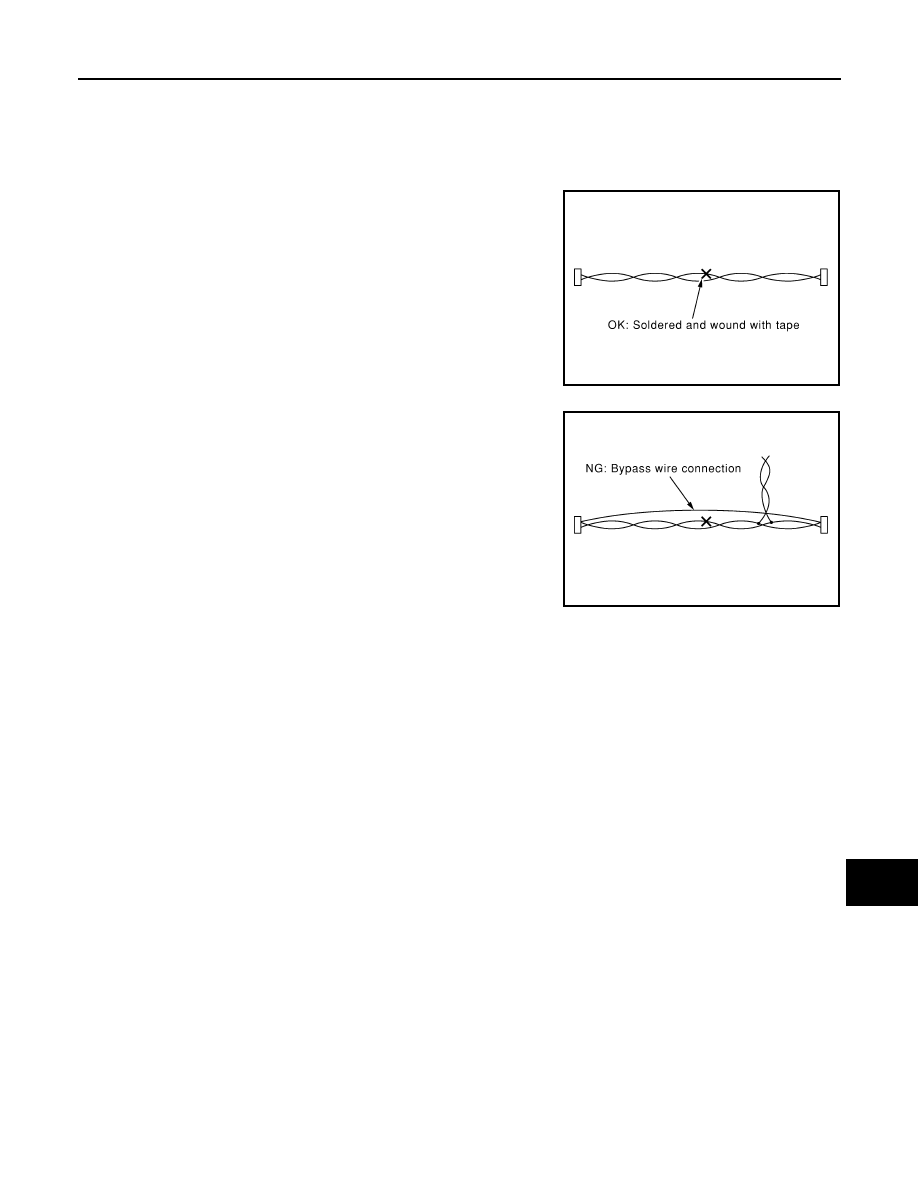

Precaution for Harness Repair

INFOID:0000000009652112

AV COMMUNICATION SYSTEM

• Solder the repaired parts, and wrap with tape. [Frays of twisted line

must be within 110 mm (4.33 in).]

• Do not perform bypass wire connections for the repair parts. (The

spliced wire will become separated and the characteristics of
twisted line will be lost.)

PKIA0306E

PKIA0307E

AV-272

< PREPARATION >

[BOSE AUDIO WITHOUT NAVIGATION]

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000009652113

Tool

Description

Power tool

Loosening screws

PBIC0191E

AV

COMPONENT PARTS

AV-273

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

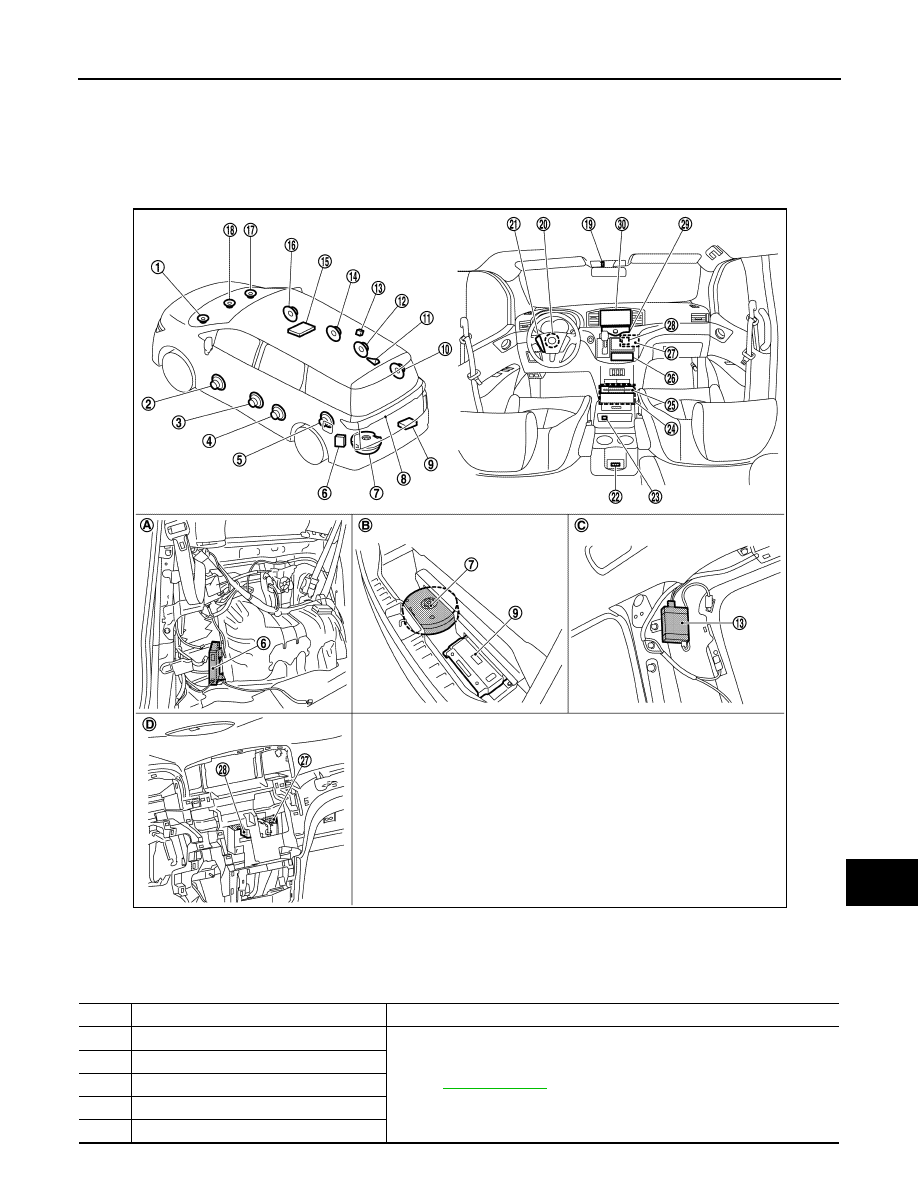

Component Parts Location

INFOID:0000000009652114

A.

Luggage side lower finisher is re-
moved.

B. Within luggage floor box

C. Rear pillar garnish (RH) is removed.

D. Cluster lid C is removed.

JSNIA4194ZZ

No.

Component

Function

1,17.

Front squawker

Refer to

AV-278, "Speaker"

.

2,16.

Front door woofer

3,14.

Slide door squawker

4,12.

Slide door speaker

5,10.

Luggage squawker

AV-274

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

COMPONENT PARTS

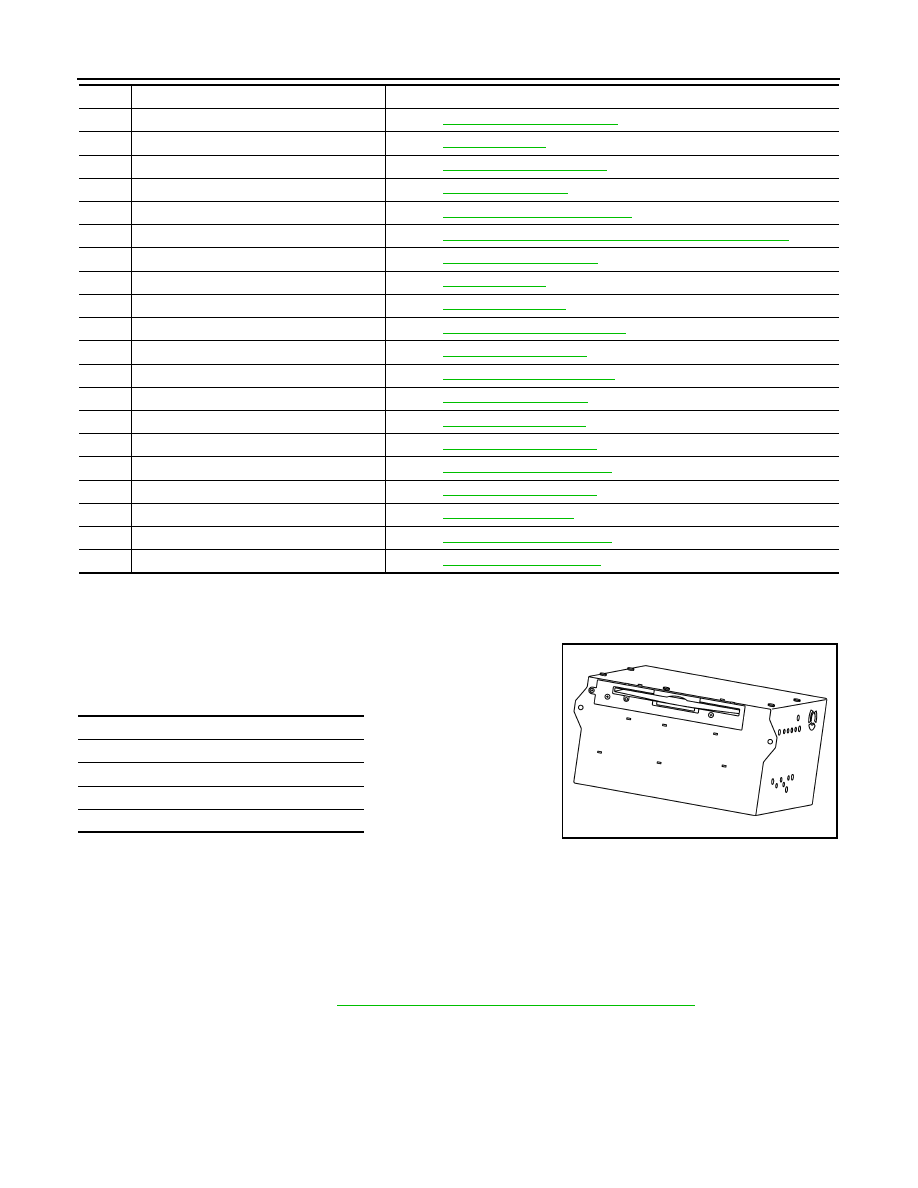

AV Control Unit

INFOID:0000000009652115

DESCRIPTION

• The AV control unit is equipped with the following parts. It is the

master unit integrated with functions and controls the multi-AV sys-
tem.

• Signals necessary for the vehicle information display function are

received from ECM and the combination meter via CAN communication.

• Signals necessary for vehicle setting functions are sent and received with BCM via CAN communication.
• It inputs the signal for driving status recognition (vehicle speed signal, reverse signal, and parking brake sig-

nal).

• A predictive course line is generated on the camera image from the rear view camera, and it is shown on the

front display.

• It inputs the signals for driving status recognition (vehicle speed, reverse and parking brake).
NOTE:
For details of each functions, refer to

AV-287, "MULTI AV SYSTEM : System Description"

.

AM/FM Electronic Tuner

The adoption of the PLL frequency synthesizer system enables the signal outputting with accurate frequen-
cies.

CD/DVD drive

• It is CD-R/CD-RW compliant and enables MP3 and WMA files to play music.

6.

Satellite radio tuner

Refer to

AV-284, "Satellite Radio Tuner"

.

7.

Woofer

Refer to

AV-278, "Speaker"

.

8.

Rear view camera

Refer to

AV-281, "Rear View Camera"

.

9.

BOSE amp.

Refer to

AV-278, "BOSE Amp."

.

11.

Satellite radio antenna

Refer to

AV-284, "Satellite Radio Antenna"

.

13.

Antenna amp.

Refer to

AV-281, "Antenna amp, Radio Antenna, and Antenna Feeder"

.

15.

Rear display unit

Refer to

AV-276, "Rear Display Unit"

.

18.

Center speaker

Refer to

AV-278, "Speaker"

.

19.

Microphone

Refer to

AV-280, "Microphone"

.

20.

Steering angle sensor

Refer to

AV-281, "Steering Angle Sensor"

.

21.

Steering switch

Refer to

AV-277, "Steering Switch"

.

22.

Auxiliary input jacks

Refer to

AV-281, "Auxiliary Input Jacks"

.

23.

USB connector

Refer to

AV-280, "USB Connector"

.

24.

AV control unit

Refer to

AV-274, "AV Control Unit"

.

25.

Disk eject switch

Refer to

AV-277, "Disk Eject Switch"

.

26.

Preset switch

Refer to

AV-277, "Multifunction Switch"

.

27.

TEL adapter unit

Refer to

AV-280, "TEL Adapter Unit"

.

28.

TEL antenna

Refer to

AV-280, "TEL Antenna"

.

29.

Multifunction switch

Refer to

AV-277, "Multifunction Switch"

.

30.

Front display unit

Refer to

AV-276, "Front Display Unit"

.

No.

Component

Function

Units equipped

AM/FM electronic tuner

CD/DVD drive

USB interface

Camera controller

JSNIA2364ZZ
