Nissan Quest E52. Manual - part 96

AV

MICROPHONE

AV-263

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH SEPARATE DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000009652098

REMOVAL

1.

Remove map lamp assembly. Refer to

INL-67, "Removal and Installation"

.

2.

Unhook pawls to remove microphone from map lamp assembly.

CAUTION:

Carefully handle the pawl fixing the microphone to prevent damage to the pawl.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing microphone, check that it is securely installed with no backlash.

AV-264

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH SEPARATE DISPLAY]

SATELLITE RADIO TUNER

SATELLITE RADIO TUNER

Removal and Installation

INFOID:0000000009652099

REMOVAL

1.

Remove luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

2.

Remove bolts to remove satellite radio tuner with brackets as a single unit from the body.

3.

Remove brackets screws to remove satellite radio tuner.

INSTALLATION

Install in the reverse order of removal.

AV

SATELLITE RADIO ANTENNA

AV-265

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH SEPARATE DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

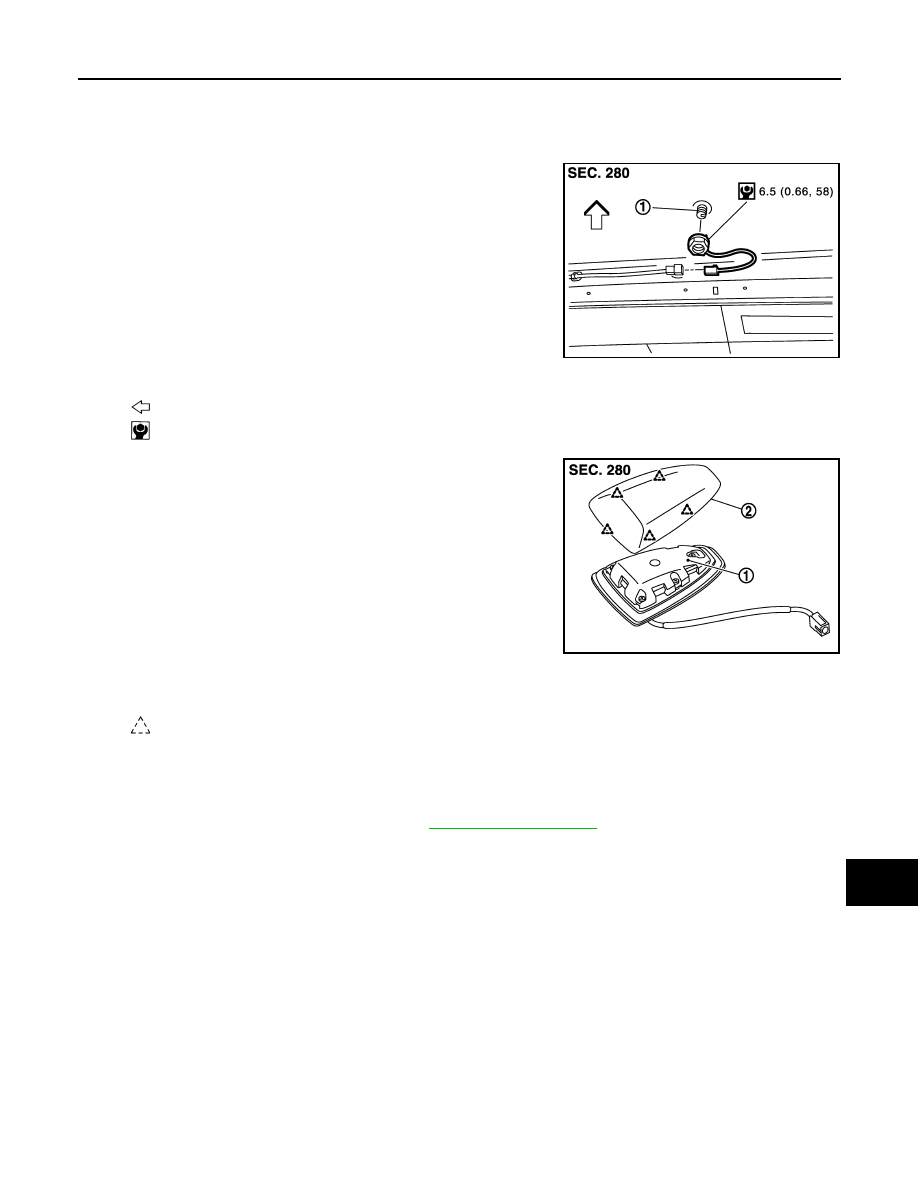

SATELLITE RADIO ANTENNA

Exploded View

INFOID:0000000009652100

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009652101

REMOVAL

1.

Remove rear upper ventilator duct 2. Refer to

HA-56, "Exploded View"

.

2.

Disconnect antenna feeder connector.

3.

Remove nut, and remove satellite radio antenna and the cover from the vehicle as a single unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the satellite radio antenna mounting nut is tightened looser than the specified torque, then this will
lower the sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified
torque, then this will deform the roof panel.

Disassembly and Assembly

INFOID:0000000009652102

DISASSEMBLY

Insert cloth-covered driver into gaps between satellite radio antenna and the cover, and remove the cover from
satellite radio antenna.

ASSEMBLY

Assemble in the reverse order of disassembly.

JSNIA3188ZZ

1.

Satellite radio antenna

 :

Vehicle front

 :

N·m (kg-m, in-fb)

JSNIA3284ZZ

1.

Satellite radio antenna

2.

Cover

 :

Pawl

AV-266

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH SEPARATE DISPLAY]

ANTENNA AMP.

ANTENNA AMP.

Removal and Installation

INFOID:0000000009652103

REMOVAL

1.

Remove rear pillar garnish RH. Refer to

INT-27, "REAR PILLAR GARNISH : Removal and Installation"

.

2.

Remove screw and disconnect connector, and remove antenna amp.

INSTALLATION

Install in the reverse order of removal.
