AV

MULTI AV SYSTEM SYMPTOMS

AV-243

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH SEPARATE DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

RELATED TO USB

NOTE:
Check that there is no malfunction of USB equipment main body before performing a diagnosis.

iPod

®

 is a trademark of Apple inc., registered in the U.S. and other countries.

RELATED TO DVD MODE

RELATED TO AUXILIARY INPUT

NOTE:
Check that there is no malfunction of AUX equipment main body before performing a diagnosis.

Satellite radio is not received.

There is malfunction in the CONSULT
self-diagnosis result.
Refer to

AV-156, "CONSULT Function"

.

• Malfunction in antenna, antenna feeder, or AV control

unit. Perform DTC diagnosis. Refer to

AV-168, "DTC In-

dex"

• Poor continuity in antenna feeder.
• Poor connector connection of antenna or antenna feed-

er.

There is no malfunction in the CONSULT
self-diagnosis result.
Refer to

AV-156, "CONSULT Function"

.

• Poor continuity in antenna feeder.
• Poor connector connection of antenna or antenna feed-

er.

• Loose satellite radio antenna mounting nut.

Refer to

AV-265, "Removal and Installation"

.

Symptoms

Check items

Probable malfunction location

Symptoms

Check items

Possible malfunction location / Action to take

iPod

®

 or USB memory can not

be recognized.

• USB harness malfunction.
• USB connector malfunction.

Symptoms

Check items

Probable malfunction location

The disk cannot be removed.

Disk eject signal circuit malfunction.
Refer to

AV-230, "Diagnosis Procedure"

.

DVD image is not displayed.

Front display unit and rear display unit are
not displayed.

Perform “Self Diagnostic Result” of “MULTI AV” with
CONSULT. Refer to

AV-156, "CONSULT Function"

.

Rear display unit is normal.

Composite image signal circuit between AV control unit
and front display unit.
Refer to

AV-225, "Diagnosis Procedure"

.

Front display unit is normal.

Composite image signal circuit between AV control unit
and rear display unit.
Refer to

AV-226, "Diagnosis Procedure"

.

DVD sound is not heard.

No sound from all speakers.

AV control unit malfunction.
Replace AV control unit. Refer to

AV-250, "Removal and

Installation"

.

Sound is heard only from specific places.

Sound signals circuit of suspect system.

Symptoms

Check items

Probable malfunction location

No voice sound is heard when
AUX mode is selected.

Voice sound is heard when other modes
are selected.

AUX sound signal circuit.

Image is not displayed when
AUX mode is selected.

Front display unit and rear display unit are
not displayed.

Perform “Self Diagnostic Result” of “MULTI AV” with
CONSULT. Refer to

AV-156, "CONSULT Function"

.

DVD image is displayed on front display
unit and rear display unit.

AUX image signal circuit malfunction.
Refer to

AV-227, "Diagnosis Procedure"

.

Rear display unit is normal.

Composite image signal circuit between AV control unit
and front display unit.
Refer to

AV-225, "Diagnosis Procedure"

.

Front display unit is normal.

Composite image signal circuit between AV control unit
and rear display unit.
Refer to

AV-226, "Diagnosis Procedure"

.

AV-244

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH SEPARATE DISPLAY]

MULTI AV SYSTEM SYMPTOMS

RELATED TO HEADPHONE

RELATED TO REAR DISPLAY

Perform the diagnosis of the following items before starting diagnosis by symptom.
• Self-diagnosis: Refer to

AV-156, "CONSULT Function"

.

• Self-diagnosis mode: Refer to

AV-147, "On Board Diagnosis Function"

.

• Power supply system: Refer to

AV-214, "REAR DISPLAY UNIT : Diagnosis Procedure"

.

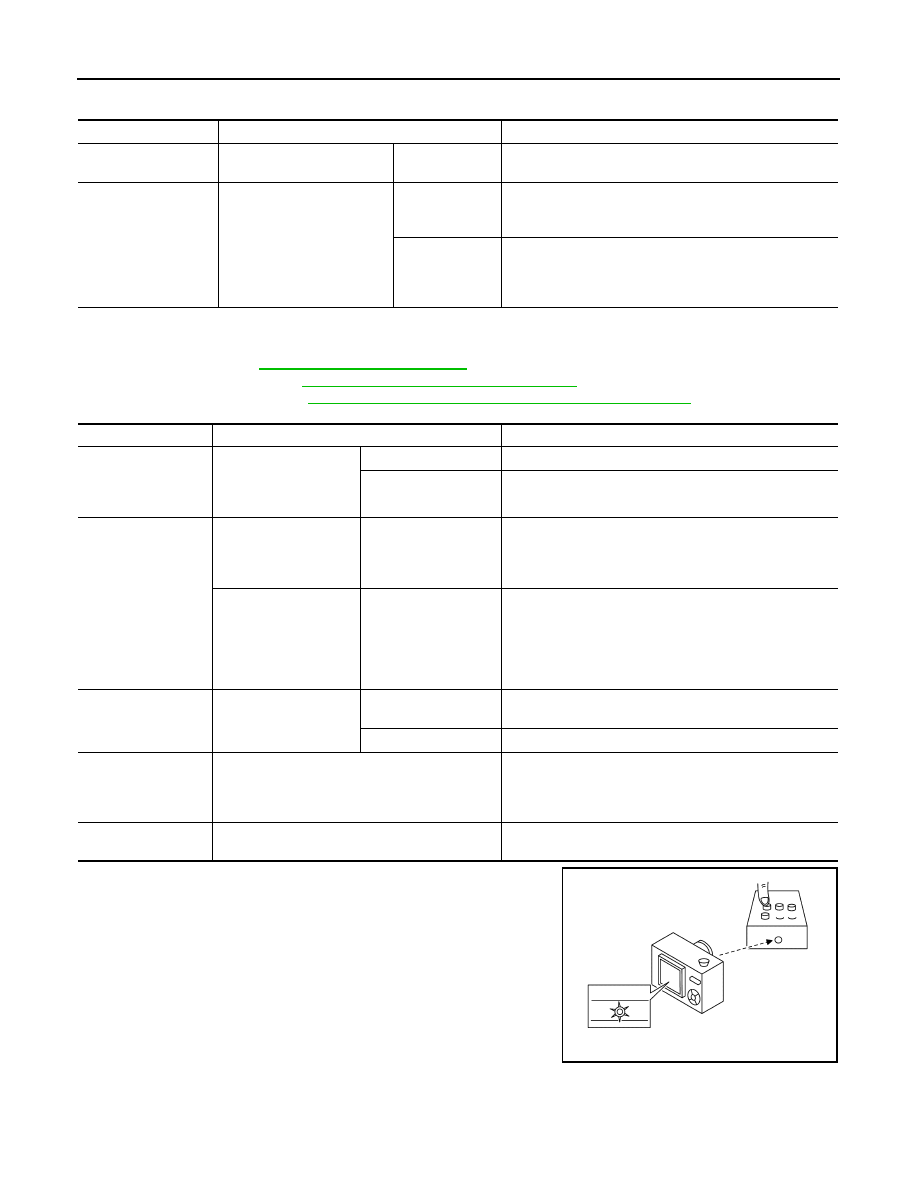

*: To check infrared, check light of the luminescent part (LED)
through the lens of digital camera when operating the remote.

RELATED TO STEERING SWITCH

Symptom

Check Item

Possible malfunction location / Action to take

Audio cannot be heard
from headphone.

 Turn ON the rear display.

Audio cannot be
heard.

Check power supply of headphone.

Headphone cannot be
turned ON.

•  Battery polarity.
•  Battery poor contact
•  Battery replacement

Power is ON.
(Power indicator
lamp: ON)

This is not a malfunction.

Power cannot be
turned ON.
(Power indicator
lamp: OFF)

Replace headphone.

Symptom

Check Item

Possible malfunction location / Action to take

Rear display cannot
be opened.

Use the touch button in
the front display to
open/close the rear dis-
play.

Operable.

Operate with the remote to see if rear display opens.

Inoperative.

Replace rear display.

Inoperative with the
remote.

All keys inoperative.

•  Check by touching

and check battery
polarity.

•  Replace battery.

•  Check with a remote from the same vehicle family.
•  Check infrared* of the luminescent part (LED) of the re-

mote.

Some keys inoperative.

•  Check with a re-

mote from the same
vehicle family.

•  Check infrared* of

the luminescent part
(LED) of the remote.

The function corresponding to the remote operation is not
included.
(This is not a malfunction.)

Rear display screen
is black.

Play a DVD.

Screen is dark.

Adjust screen for image quality.
(This is not a malfunction.)

Screen is black

Replace rear display.

Video shown on rear
display screen be-
comes distorted or
rolls up/down.

Adjust the color and image settings using the dis-
play screen menu items.

If the symptom does not change, replace rear display.

Rear display screen
is blue.

Replace rear display.

JSNIA4954ZZ

AV

MULTI AV SYSTEM SYMPTOMS

AV-245

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH SEPARATE DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Symptoms

Probable malfunction location

None of the steering switch operations work.

Steering switch ground circuit malfunction.
Refer to

AV-238, "Diagnosis Procedure"

.

Only specified switch cannot be operated.

Steering switch malfunction.
Replace steering wheel. Refer to

ST-12, "Removal and Installation"

.

“SOURCE”, “MENU UP”, “MENU DOWN”, “



” switches

are not operated.

Steering switch signal A circuit.
Refer to

AV-234, "Diagnosis Procedure"

.

”VOL UP“, “VOL DOWN”, “

” switches are not operated.

Steering switch signal B circuit.
Refer to

AV-236, "Diagnosis Procedure"

.

AV-246

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH SEPARATE DISPLAY]

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000009652084

BASIC OPERATIONS

RELATED TO VOICE RECOGNITION

Related to Telephone

The system should respond correctly to all voice commands without difficulty. If problems are encountered, try
the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is
resolved.

RELATED TO AUDIO

• The majority of the audio malfunctions are the result of outside causes (bad CD/cassette, electromagnetic

interference, etc.). Check the symptoms below to diagnose the malfunction.

• The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunctioning.

Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and oper-
ation of each piece of electrical equipment, and then determine the cause.

NOTE:
• CD-R is not guaranteed to play because they can contain compressed audio (MP3, WMA) or could be incor-

rectly mastered by the customer on a computer.

• Check if the CDs carry the Compact Disc Logo. If not, the disc is not mastered to the “red book” Compact

Disc Standard and may not play.

Symptom

Possible cause

Possible solution

No image is displayed.

The brightness is at the lowest setting.

Adjust the brightness of the display.

The systems in the video mode.

Press “DISC-AUX” to change the mode.

The display is turned off.

Press “

 OFF” to turn on the display.

Screen not clear.

Contrast setting is not appropriate.

Adjust the contrast of the display.

The screen is too dim. The move-
ment is slow.

The temperature in the interior of the vehicle is low.

Wait until the interior of the vehicle has
warmed up.

Some pixels in the display are dark-
er or brighter than others.

This condition is an inherent characteristic of liquid
crystal displays.

This is not a malfunction.

Some menu items cannot be se-
lected.

Some menu items become unavailable while the ve-
hicle is driven.

Park the vehicle in a safe location, and
then operate the multi AV system.

Symptom

Solution

System fails to interpret the com-
mand correctly.

1. Ensure that the command is valid.

2. Ensure that the command is spoken after the tone.

3. Speak clearly without pausing between words and at level appropriate to the ambient noise lev-
el in the vehicle.

4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster
on).
NOTE:
If it is too noisy to use the phone, it is likely that the voice commands will not be recognized.

5. If more than one command was said at a time, try saying the commands separately.

6. If the system consistently fails to recognize commands, the voice training procedure should be
carried out to improve the recognition response for the speaker. Refer to “Speaker adaptation
(SA) mode” in “OWNER’S MANUAL”.

The system consistently selects
the wrong voicetag

1. Ensure that the phone book entry name requested matches what was originally stored. This
can be confirmed by using the “List Names” command.

2. Replace one of the names being confused with a new name.
