STEERING SWITCH SIGNAL A CIRCUIT

AV-235

< DTC/CIRCUIT DIAGNOSIS >

[BASE AUDIO WITH SEPARATE DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Standard

Between terminals 14 and 17



switch

ON

: 708 – 737

Ω

MENU DOWN switch ON

: 314 – 327

Ω

MENU UP switch ON

: 118 – 123

Ω

SOURCE switch ON

: Less than 1

Ω

Between terminals 15 and 17

 switch ON

: 314 – 327

Ω

VOL UP switch ON

: 118 – 123

Ω

VOL DOWN switch ON

: Less than 1

Ω

JSNIA0216GB

AV-236

< DTC/CIRCUIT DIAGNOSIS >

[BASE AUDIO WITH SEPARATE DISPLAY]

STEERING SWITCH SIGNAL B CIRCUIT

STEERING SWITCH SIGNAL B CIRCUIT

Description

INFOID:0000000009652077

Transmits the steering switch signal to AV control unit.

Diagnosis Procedure

INFOID:0000000009652078

1.

CHECK STEERING SWITCH SIGNAL B CIRCUIT

1.

Disconnect AV control unit connector and spiral cable connector.

2.

Check continuity between AV control unit harness connector and spiral cable harness connector.

3.

Check continuity between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable. Refer to

SR-15, "Removal and Installation"

.

3.

CHECK AV CONTROL UNIT VOLTAGE

1.

Connect AV control unit connector and spiral cable connector.

2.

Turn ignition switch ON.

3.

Check voltage between AV control unit harness connector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace AV control unit. Refer to

AV-250, "Removal and Installation"

.

4.

CHECK STEERING SWITCH

1.

Turn ignition switch OFF.

2.

Check steering switch. Refer to

AV-236, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering wheel. Refer to

ST-12, "Removal and Installation"

.

Component Inspection

INFOID:0000000009652079

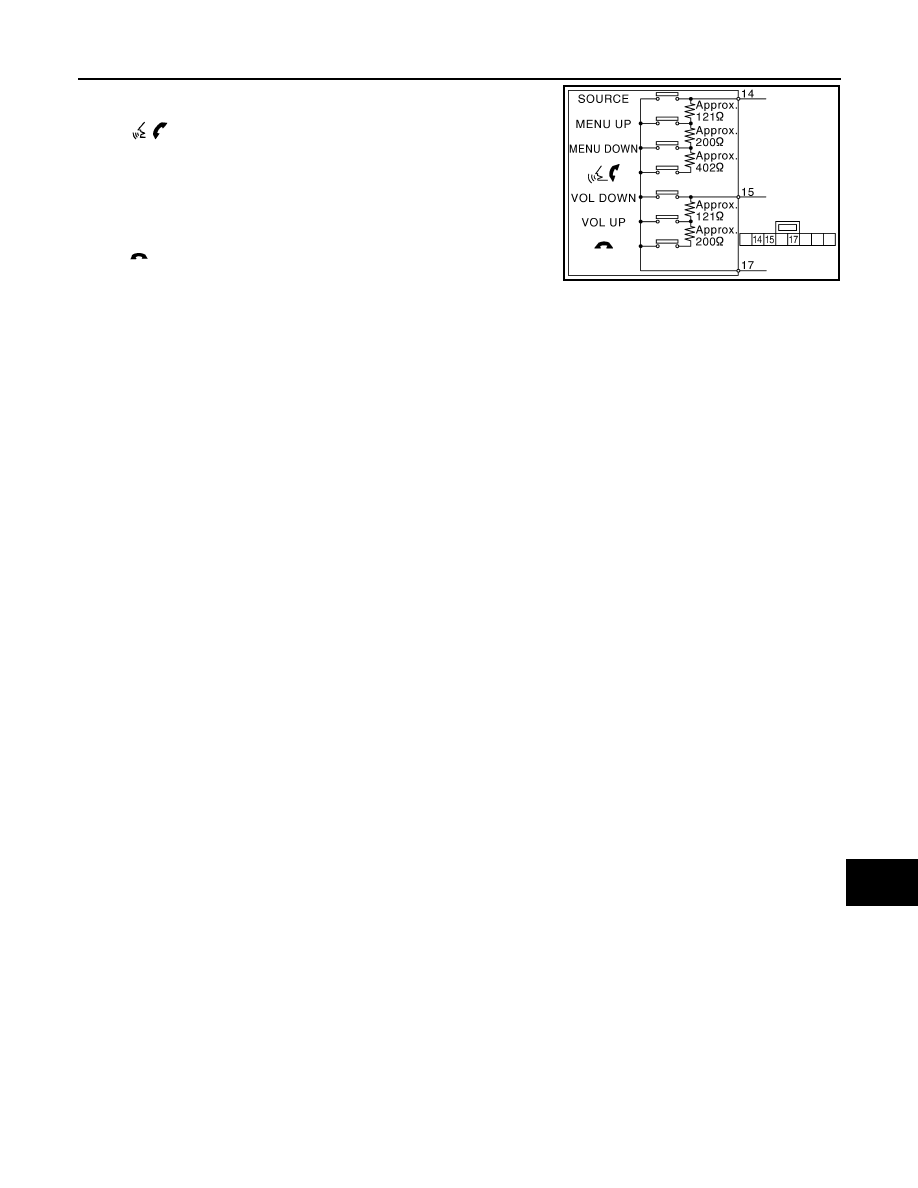

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.

AV control unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M171

16

M33

31

Existed

AV control unit

Ground

Continuity

Connector

Terminal

M171

16

Not existed

Probe

Standard

Voltage

(Approx.)

(+)

(

−

)

AV control unit

Connector

Terminal

Connector

Terminal

M171

16

M171

15

0 - 3.3 V

3.3 V

AV

STEERING SWITCH SIGNAL B CIRCUIT

AV-237

< DTC/CIRCUIT DIAGNOSIS >

[BASE AUDIO WITH SEPARATE DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Standard

Between terminals 14 and 17



switch

ON

: 708 – 737

Ω

MENU DOWN switch ON

: 314 – 327

Ω

MENU UP switch ON

: 118 – 123

Ω

SOURCE switch ON

: Less than 1

Ω

Between terminals 15 and 17

 switch ON

: 314 – 327

Ω

VOL UP switch ON

: 118 – 123

Ω

VOL DOWN switch ON

: Less than 1

Ω

JSNIA0216GB

AV-238

< DTC/CIRCUIT DIAGNOSIS >

[BASE AUDIO WITH SEPARATE DISPLAY]

STEERING SWITCH GROUND CIRCUIT

STEERING SWITCH GROUND CIRCUIT

Description

INFOID:0000000009652080

Transmits the steering switch signal to AV control unit.

Diagnosis Procedure

INFOID:0000000009652081

1.

CHECK STEERING SWITCH SIGNAL GROUND CIRCUIT

1.

Disconnect AV control unit connector and spiral cable connector.

2.

Check continuity between AV control unit harness connector and spiral cable harness connector.

3.

Connect AV control unit connector.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable. Refer to

SR-15, "Removal and Installation"

.

3.

CHECK GROUND CIRCUIT

1.

Connect AV control unit connector.

2.

Check continuity between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace AV control unit. Refer to

AV-250, "Removal and Installation"

.

4.

CHECK STEERING SWITCH

1.

Turn ignition switch OFF.

2.

Check steering switch. Refer to

AV-238, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering wheel. Refer to

ST-12, "Removal and Installation"

.

Component Inspection

INFOID:0000000009652082

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.

AV control unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M171

15

M33

33

Existed

AV control unit

Ground

Continuity

Connector

Terminal

M171

15

Existed
