Nissan Quest E52. Manual - part 62

AV

COMPONENT PARTS

AV-127

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH SEPARATE DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

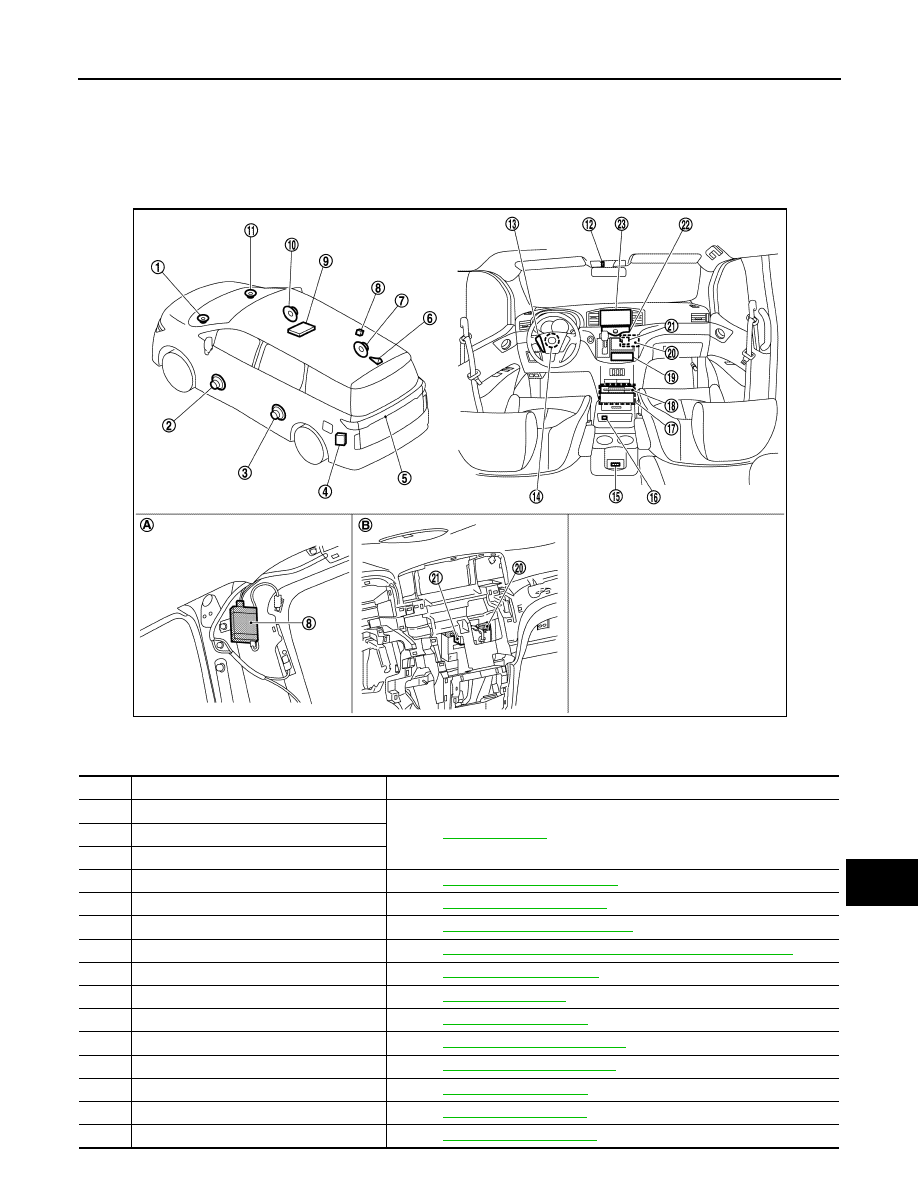

Component Parts Location

INFOID:0000000009651987

A. Rear pillar garnish (RH) is removed.

B. Cluster lid C is removed.

JSNIA4710ZZ

No.

Component

Function

1,11.

Front squawker

Refer to

AV-130, "Speaker"

.

2,10.

Front door woofer

3,7.

Slide door speaker

4.

Satellite radio tuner

Refer to

AV-136, "Satellite Radio Tuner"

.

5.

Rear view camera

Refer to

AV-133, "Rear View Camera"

.

6.

Satellite radio antenna

Refer to

AV-136, "Satellite Radio Antenna"

.

8.

Antenna amp.

Refer to

AV-134, "Antenna amp., Radio Antenna, and Antenna Feeder"

.

9.

Rear display unit

Refer to

AV-130, "Rear Display Unit"

12.

Microphone

Refer to

AV-133, "Microphone"

.

13.

Steering switch

Refer to

AV-132, "Steering Switch"

.

14.

Steering angle sensor

Refer to

AV-134, "Steering Angle Sensor"

.

15.

Auxiliary input jacks

Refer to

AV-133, "Auxiliary Input Jacks"

.

16.

USB connector

Refer to

AV-133, "USB Connector"

.

17.

AV control unit

Refer to

AV-128, "AV Control Unit"

.

18.

Disk eject switch

Refer to

AV-132, "Disk Eject Switch"

.

AV-128

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH SEPARATE DISPLAY]

COMPONENT PARTS

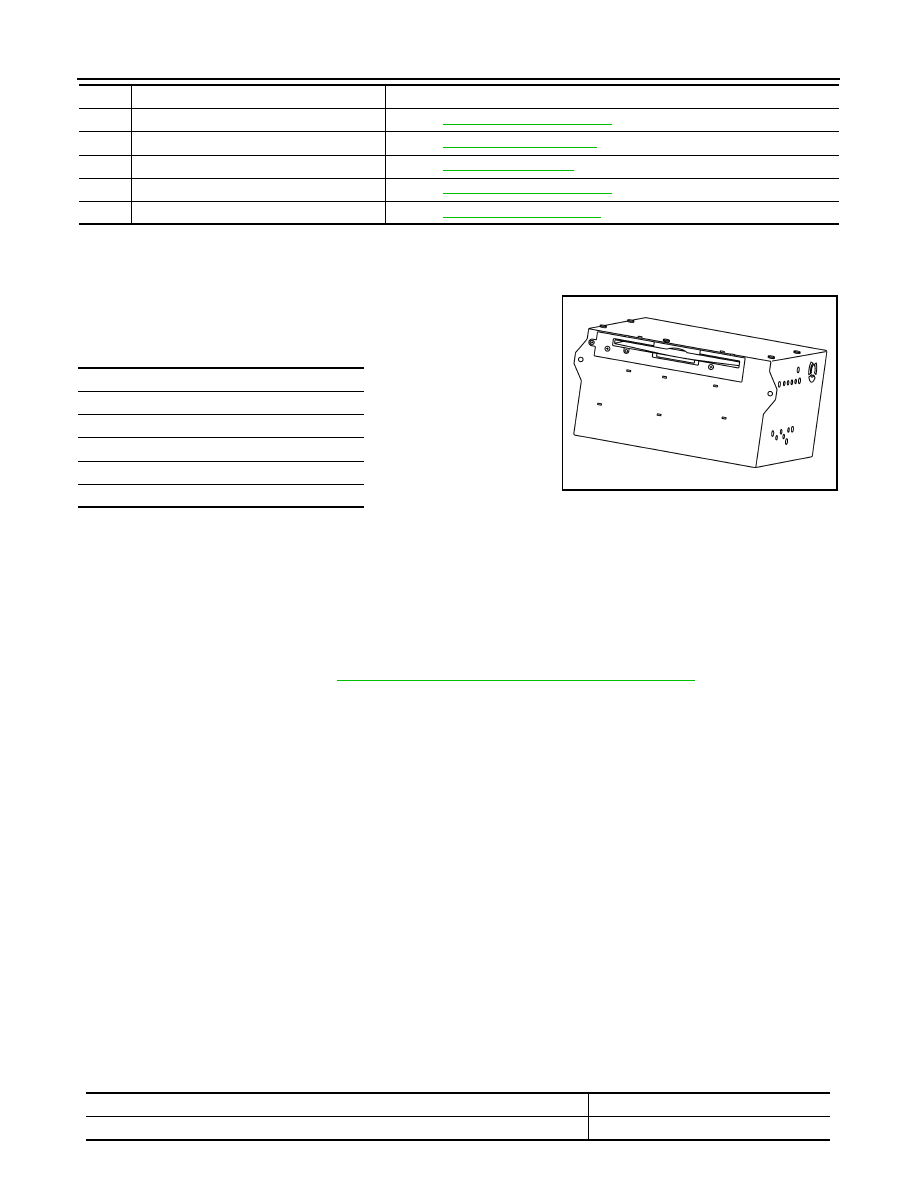

AV Control Unit

INFOID:0000000009651988

DESCRIPTION

• The AV control unit is equipped with the following parts. It is the

master unit integrated with functions and controls the multi-AV sys-
tem.

• Signals necessary for the vehicle information display function are received from ECM and the combination

meter via CAN communication.

• Signals necessary for vehicle setting functions are sent and received with BCM via CAN communication.
• It inputs the signal for driving status recognition (vehicle speed signal, reverse signal, and parking brake sig-

nal).

• A predictive course line is generated on the camera image from the rear view camera, and it is shown on the

front display.

• It inputs the signals for driving status recognition (vehicle speed, reverse and parking brake).
NOTE:
For details of each functions, refer to

AV-139, "MULTI AV SYSTEM : System Description"

.

Audio Amplifier

• 50 W x 4ch amplifiers are installed.
• Audio sound, TEL voice and guiding voice are output to each speaker.

AM/FM Electronic Tuner

The adoption of the PLL frequency synthesizer system enables the signal outputting with accurate frequen-
cies.

CD/DVD drive

• It is CD-R/CD-RW compliant and enables MP3 and WMA files to play music.
• It displays the artist name, album title or song title recorded to the file by the ID3 tag/WMA tag display func-

tion.

• DVD playback function is equipped.

USB Interface

• Music can be played by connecting an iPod

®

 or USB memory.

Camera Controller

• Warning message, width/distance guiding line and predictive course line are generated on the image from

the rear view camera.

• The predictive course line is drawn based on the steering signal received from the steering sensor via CAN

communication.

Specification

19.

Preset switch

Refer to

AV-131, "Multifunction Switch"

.

20.

TEL adapter unit

Refer to

AV-132, "TEL Adapter Unit"

.

21.

TEL antenna

Refer to

AV-132, "TEL Antenna"

.

22.

Multifunction switch

Refer to

AV-131, "Multifunction Switch"

.

23.

Front display unit

Refer to

AV-130, "Front Display Unit"

.

No.

Component

Function

Units equipped

Audio amplifier

AM/FM electronic tuner

CD/DVD drive

USB interface

Camera controller

JSNIA2364ZZ

Manufacturer name

Panasonic corporation

Audio Amplifier

50 W

×

 4 ch

AV

COMPONENT PARTS

AV-129

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH SEPARATE DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• *1: If the reflectance of the surface of the media is low, the data may not be read.
• *2: It may not be used if it is not updated to the latest firmware or partial functions may not work if it is used.

CD/DVD drive

Used disc

φ

 12 cm (4.7 in)

Playable disc

CD

CD-ROM (CD-DA)

CD-R

*1

CD-RW

*1

DVD

DVD-ROM

DVD-R

*1

DVD-RW

*1

Playable format

Music

MP3

WMA


DVD-VIDEO

VIDEO-CD

Text display function

ID3 / WMA tag

Artist name

Album title

Song title

USB

High communication standard

USB1.1

Playable format

Music

MP3

WMA

Text display function

ID3 / WMA tag

Artist name

Album title

Song title

iPod

®

Action

*2

iPod Classic

®

 1st generation

iPod Classic

®

 2nd generation

iPod nano

®

 3rd generation

iPod nano

®

 2nd generation

iPod nano

®

 1st generation

iPod

®

 5th generation

iPod touch

®

 1st generation

iPod touch

®

 2nd generation

iPhone 3rd generation

Flash memory

Total capacity

2 GB

Camera controller

Guideline display function

Width/distance display

Predictive course lines display/non-dis-

play switch

Steering angle signal input method

CAN communication

Other functions

Speed sensitive volume function

Steering switch compliant

AV-130

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH SEPARATE DISPLAY]

COMPONENT PARTS

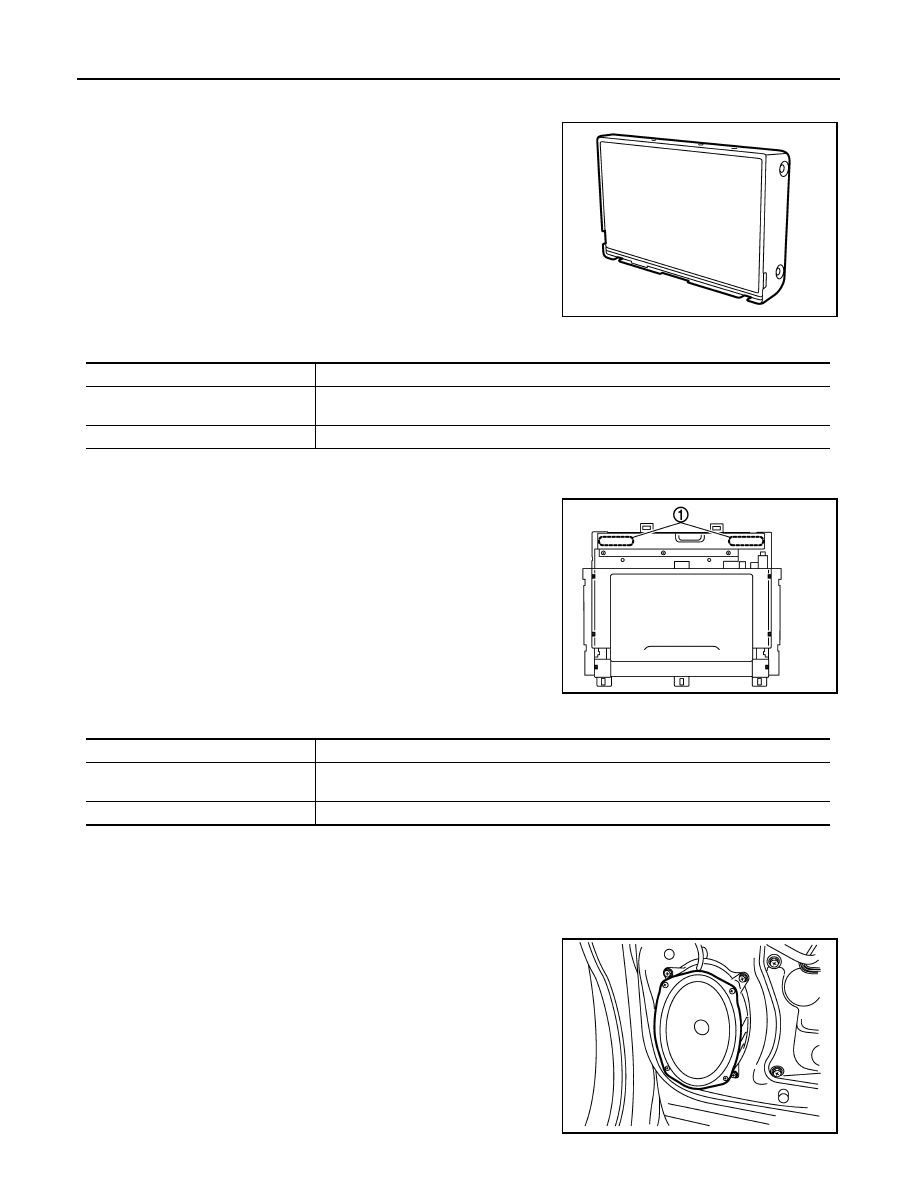

Front Display Unit

INFOID:0000000009651989

• The front display unit has an 7-inch QVGA liquid-crystal display.
• It receives the power (signal VCC and inverter VCC) from the AV

control unit and operates.

• Composite image signals (DVD, USB memory-stored video data,

auxiliary input, and camera) are input from AV control unit.

• RGB image signal is input from AV control unit (RGB, RGB area

and RGB synchronizing).

• Synchronizing signal (HP, VP) is output to AV control unit.
• This unit is connected to the AV control unit via serial communica-

tion. Images shown on the front display unit are controlled by the
AV control unit.

Specification

Rear Display Unit

INFOID:0000000009651990

• The rear display unit has an 11-inch WVGA

*

 liquid-crystal display

and a remote-control automatic folding function.

• Composite image signal [USB (video data), DVD and auxiliary

input] and headphone sound signal are input from AV control unit.

• A remote control operation signal is received through the built-in

light-receptive spot (1).

• The display brightness is adjusted automatically, according to

ambient brightness.

*: WVGA (Wide VGA) is a standard of the resolution of the display. It
extended width of VGA.

Specification

Speaker

INFOID:0000000009651991

6 speakers system is adopted.

FRONT DOOR WOOFER

•

φ

 15.0

×

 23.0 cm (6

×

 9 in) speaker is installed to the bottom of the front door.

• Sound signal is input from the AV control unit to output low range

sounds.

JPNIA1481ZZ

Manufacturer name

Panasonic corporation

Screen size

7-inch QVGA

[154.08

×

 86.58 mm (6.1

×

 3.4 in) ]

Number of pixels

480

×

 234 pixels

JSNIA3449ZZ

Manufacturer name

Clarion Co., Ltd.

Screen size

11-inch WVGA

[ 243.6 mm

×

137.52mm (9.6 in

×

 5.4 in) ]

Number of pixels

800

×

 480 pixels

Rated input

: 20 W

Maximum
input

: 40 W

Impedance

: 2

Ω

JSNIA3401ZZ
