Nissan Quest E52. Manual - part 60

AV

TEL ANTENNA

AV-119

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TEL ANTENNA

Removal and Installation

INFOID:0000000009651975

REMOVAL

1.

Remove cluster lid C. Refer to

IP-14, "Removal and Installation"

.

2.

Remove TEL adapter unit mounting bracket screws.

3.

Disconnect connector to remove TEL adapter unit, TEL antenna, and bracket as a single unit.

4.

Disconnect connector and remove screws to TEL antenna.

INSTALLATION

Install in the reverse order of removal.

AV-120

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000009651976

REMOVAL

1.

Remove map lamp assembly. Refer to

INL-67, "Removal and Installation"

.

2.

Unhook pawls to remove microphone from map lamp assembly.

CAUTION:

Carefully handle the pawl fixing the microphone to prevent damage to the pawl.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing microphone, check that it is securely installed with no backlash.

AV

SATELLITE RADIO ANTENNA

AV-121

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

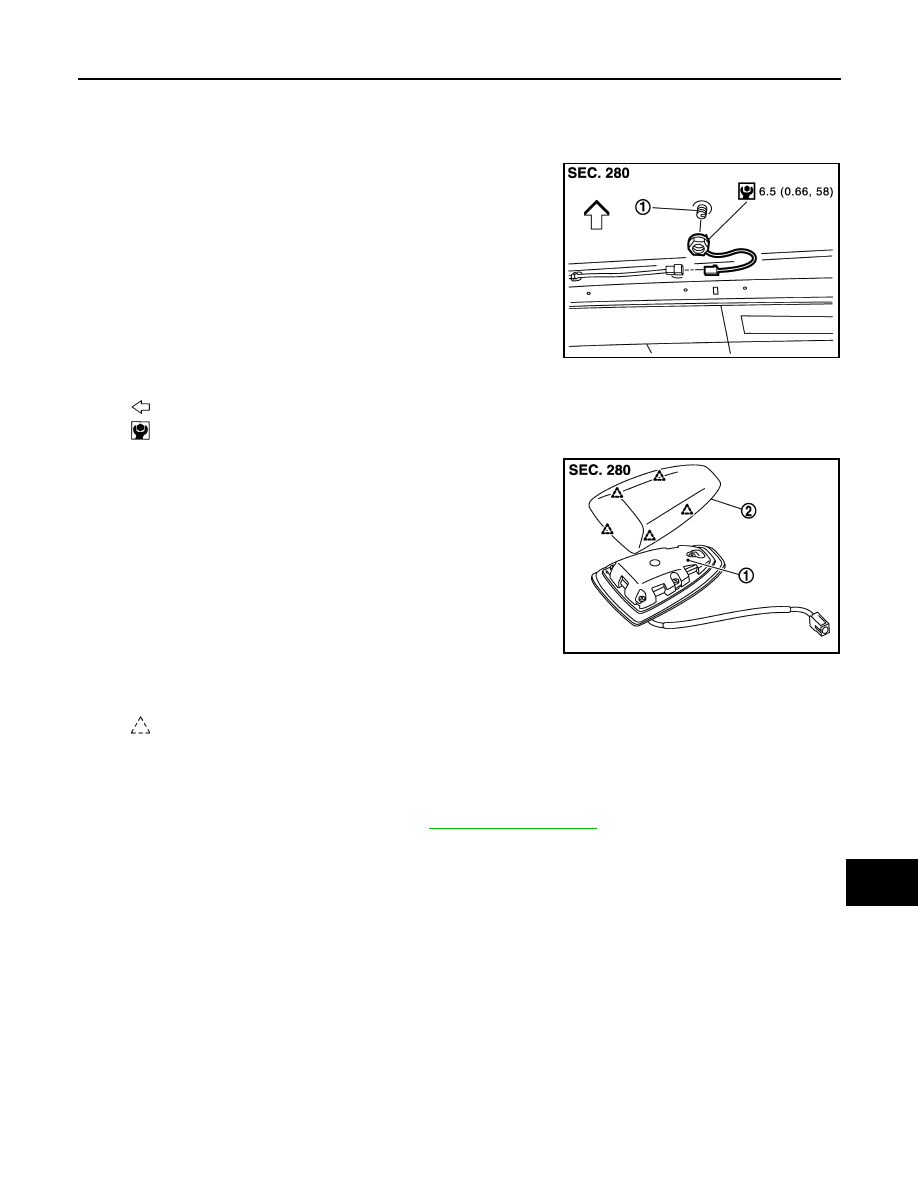

SATELLITE RADIO ANTENNA

Exploded View

INFOID:0000000009651977

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009651978

REMOVAL

1.

Remove rear upper ventilator duct 2. Refer to

HA-56, "Exploded View"

.

2.

Disconnect antenna feeder connector.

3.

Remove nut, and remove satellite radio antenna and the cover from the vehicle as a single unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the satellite radio antenna mounting nut is tightened looser than the specified torque, then this will
lower the sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified
torque, then this will deform the roof panel.

Disassembly and Assembly

INFOID:0000000009651979

DISASSEMBLY

Insert cloth-covered driver into gaps between satellite radio antenna and the cover, and remove the cover from
satellite radio antenna.

ASSEMBLY

Assemble in the reverse order of disassembly.

JSNIA3188ZZ

1.

Satellite radio antenna

 :

Vehicle front

 :

N·m (kg-m, in-fb)

JSNIA3284ZZ

1.

Satellite radio antenna

2.

Cover

 :

Pawl

AV-122

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

ANTENNA AMP.

ANTENNA AMP.

Removal and Installation

INFOID:0000000009651980

REMOVAL

1.

Remove rear pillar garnish RH. Refer to

INT-27, "REAR PILLAR GARNISH : Removal and Installation"

.

2.

Remove screw and disconnect connector, and remove antenna amp.

INSTALLATION

Install in the reverse order of removal.
