SLIDE DOOR SPEAKER

AV-115

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SLIDE DOOR SPEAKER

Removal and Installation

INFOID:0000000009651970

REMOVAL

1.

Remove slide door finisher. Refer to

INT-17, "Removal and Installation"

.

2.

Remove screws and disconnect connector, and remove slide door speaker.

INSTALLATION

Install in the reverse order of removal.

AV-116

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009943033

REMOVAL

1.

Remove back door finisher. Refer to

EXT-47, "Removal and Installation"

.

2.

Remove screws to remove rear view camera from back door finisher.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Adjust the guide line position if the guide line position is shifted after installing the rear view camera. Refer to

AV-116, "Adjustment"

.

Adjustment

INFOID:0000000009651972

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.

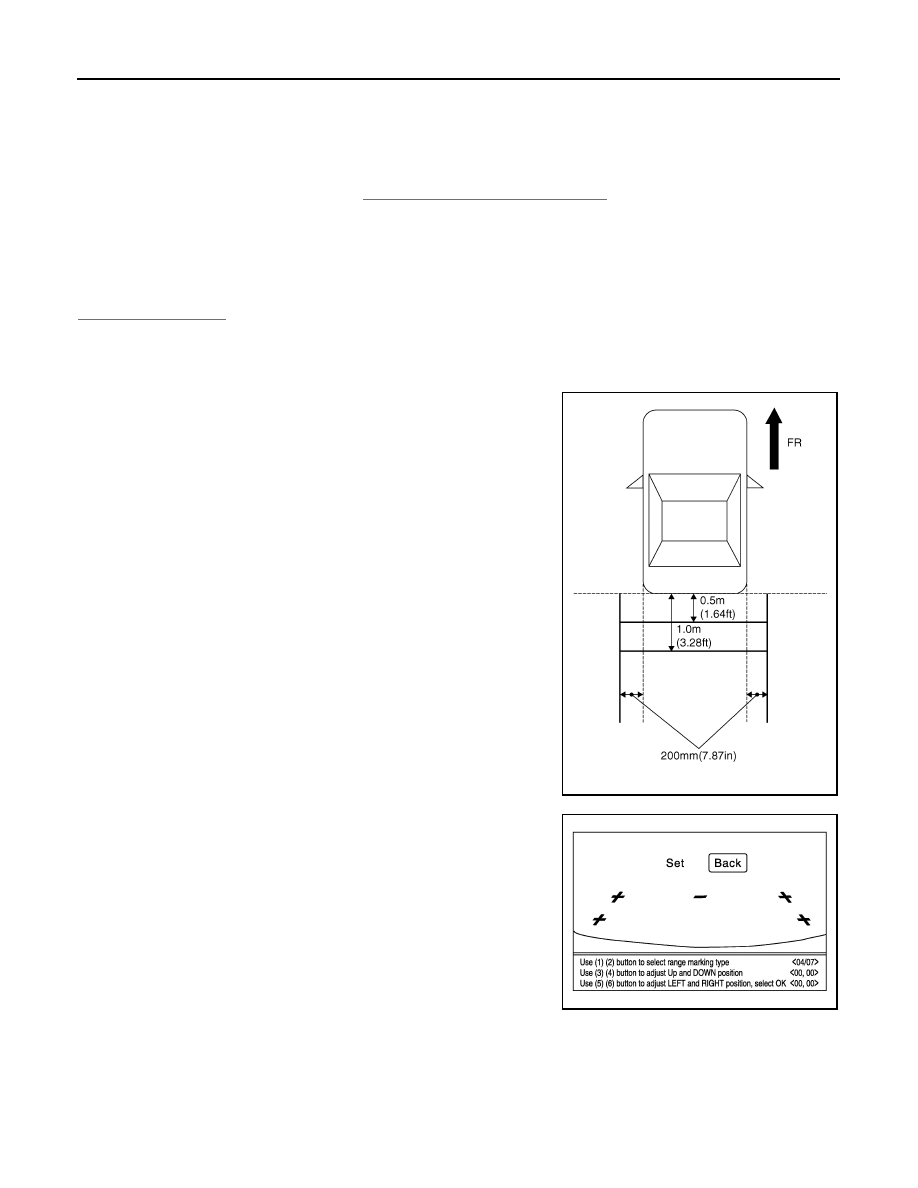

1.

Draw lines on rearward area of the vehicle passing through the
following points: 200 mm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Camera system” mode of Confirmation / Adjustment
mode.

3.

Press “1” or “2” switches, and then select the guiding line pattern
so that its angle is aligned with the correction line of the rear of
the vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with “3”, “4”, “5” or “6” switches so that its position is
aligned with the guiding line. Press “PUSH ENTER” switch and
record the adjusted guiding line position to the camera control
unit.

CAUTION:

Never operate other function such as pressing BACK while writing index data.

SKIB3691E

Selected pattern

: 7

Up/Down adjustment range

: (

20) – (20)

Left/Right adjustment range

: (

20) – (20)

JSNIA1876ZZ

AV

USB CONNECTOR

AV-117

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB CONNECTOR

Removal and Installation

INFOID:0000000009651973

REMOVAL

1.

Remove center console upper finisher. Refer to

IP-29, "Disassembly and Assembly"

.

2.

Unhook pawl to remove USB connector from center console upper finisher.

INSTALLATION

Install in the reverse order of removal.

AV-118

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

TEL ADAPTER UNIT

TEL ADAPTER UNIT

Removal and Installation

INFOID:0000000009651974

REMOVAL

1.

Remove cluster lid C. Refer to

IP-14, "Removal and Installation"

.

2.

Remove TEL adapter unit mounting bracket screws.

3.

Disconnect connector to remove TEL adapter unit, TEL antenna, and bracket as a single unit.

4.

Remove bracket screws to remove TEL adapter unit from bracket.

INSTALLATION

Install in the reverse order of removal.
