• Volume level of this system gone up and down automatically in proportion to the vehicle speed.
• The control level can be selected by the customer.
HANDS-FREE PHONE FUNCTION
• TEL adapter unit is controlled with AV communication from audio unit.
• When the cellular phone is connected to the TEL adapter unit via TEL antenna in Bluetooth
®
communica-
tion, hands-free phone communication can be performed.
• Simply operating the steering switch without releasing hands from the steering wheel allows the driver to
make a phone call or receive a phone call.
• When a Bluetooth
®
communication compliant phone is registered to the TEL adapter unit, hands-free phone
communication can be performed. Five units of Bluetooth
®
communication devices can be registered to the
TEL adapter unit.
• The content of the memory (telephone book) of the cellular phone can be recorded in the TEL adapter unit.
• TEL adapter unit has the on board self-diagnosis function. Refer to
AV-66, "On Board Diagnosis Function"
.
When A Call Is Originated
• Spoken voice sound output from the microphone (microphone signal) is input to TEL adapter unit.
• TEL adapter unit outputs to cellular phone with Bluetooth
®
communication as a TEL voice signal.
• Voice sound is then heard at the other party.
When Receiving A Call
• Voice sound is input to own cellular phone from the other party.
• TEL voice signal is input to TEL adapter unit by establishing Bluetooth
®
communication from cellular phone,
and the signal is output to front speaker.
REAR VIEW MONITOR FUNCTION
Operation Description
• When the selector lever is shifted to the reverse position, the rear view monitor image is displayed.
• When the selector lever is shifted to any position other than the reverse position, the original image (the
image displayed before the rear view monitor image) is displayed.
Camera Image Operation Principle
• The audio unit supplies power to the rear view camera when receiving a reverse signal.
• The rear view camera transmits camera images to the audio unit when power is supplied from the audio unit.
• The audio unit combines a warning message and fixed guide lines with an image received from the rear view
camera to display a rear view camera image on the screen.

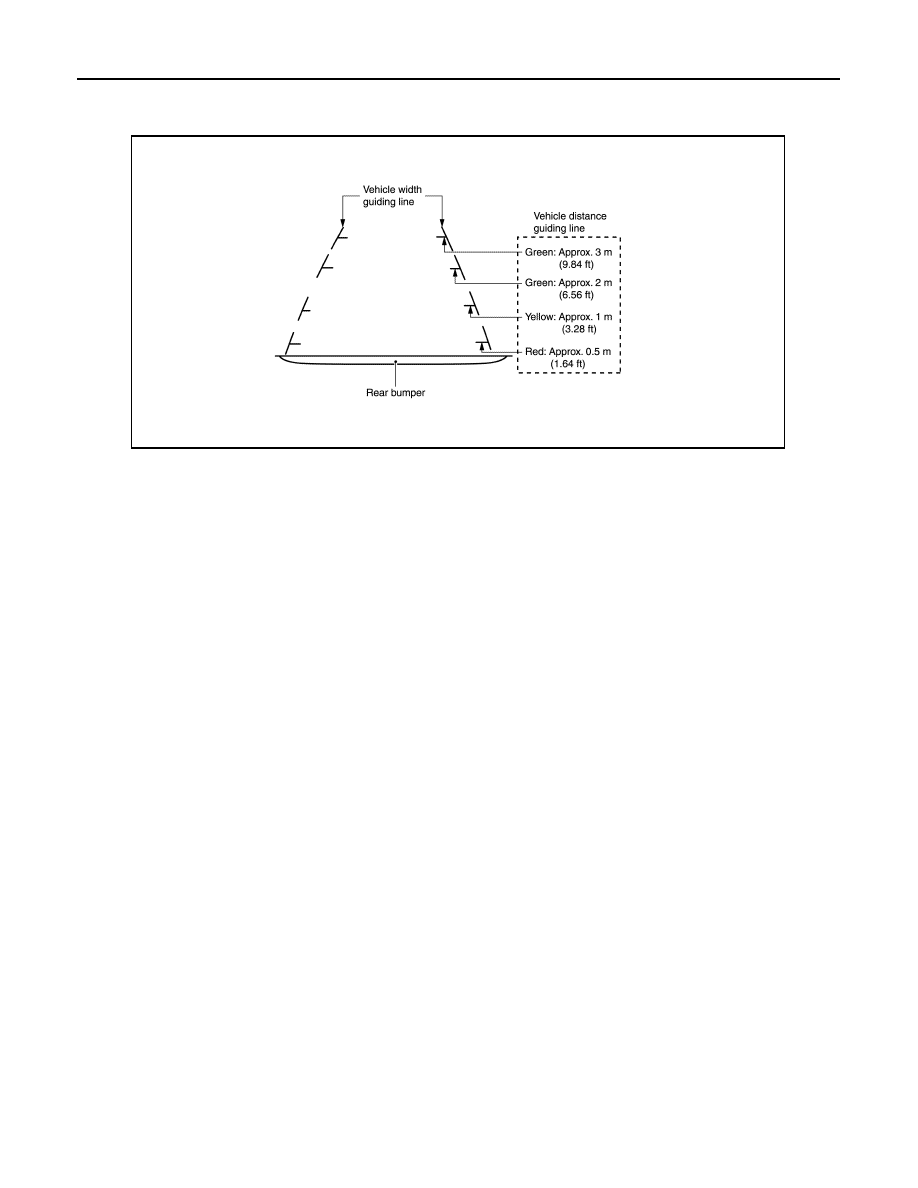

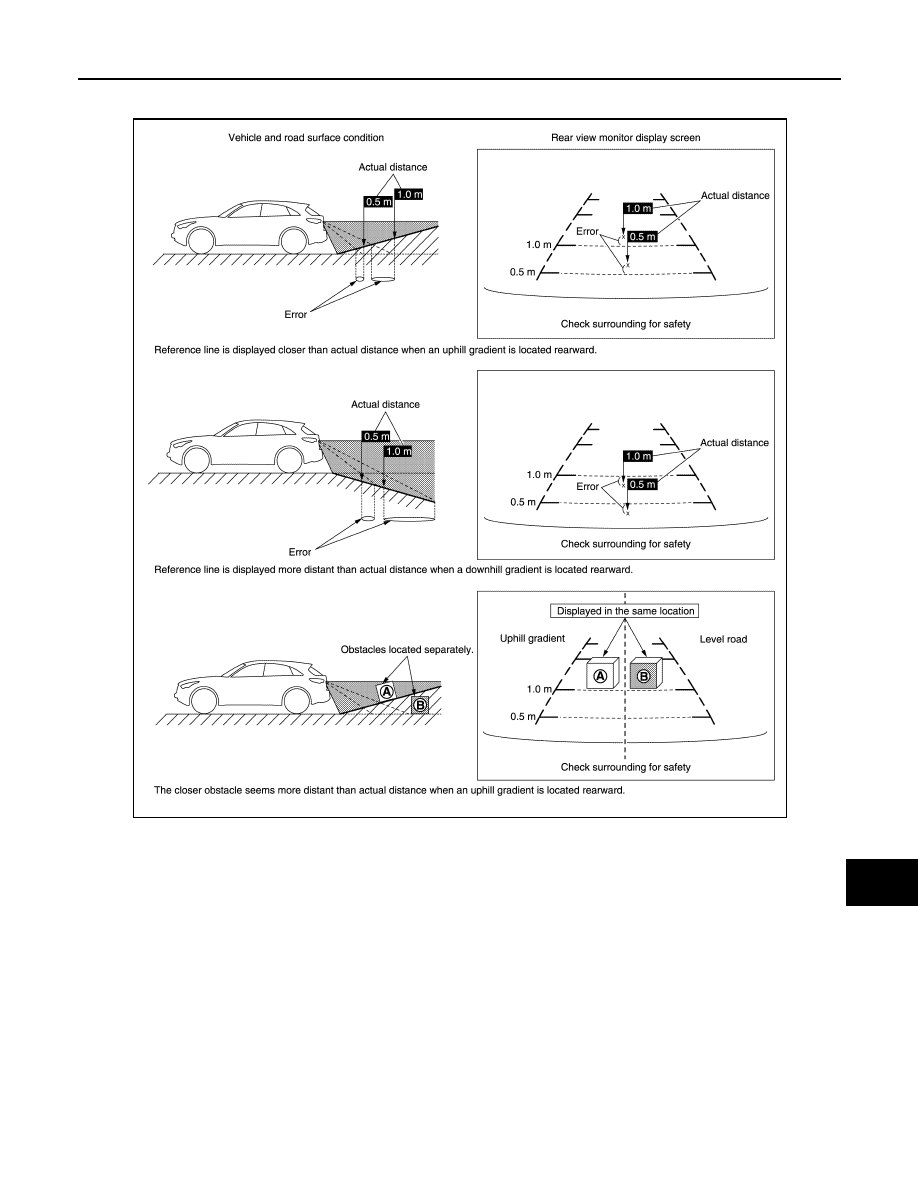

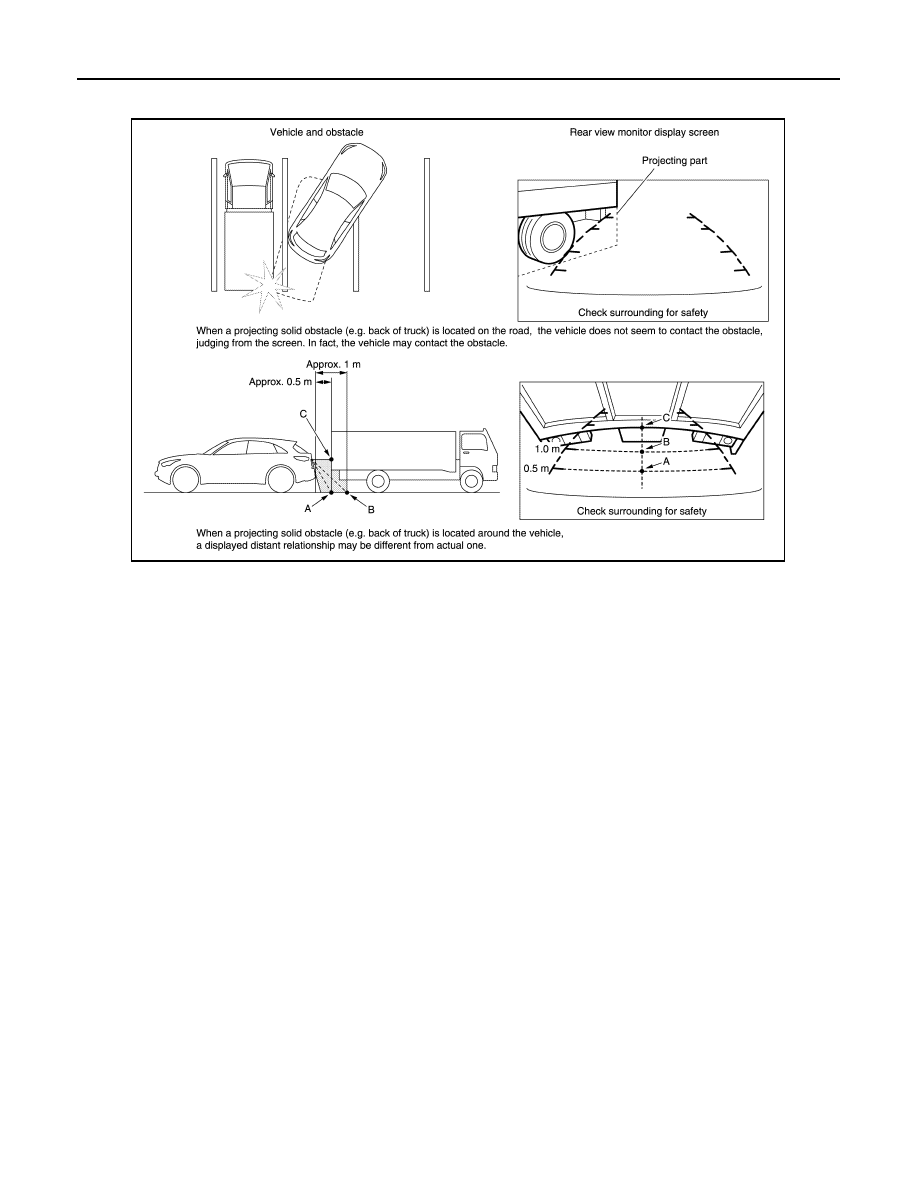

Vehicle Width and Distance Guide Lines Display Function at Rear View Monitor Display
Bluetooth
®
compliant profile
HFP1.5
Core specification 2.0 + EDR
