Nissan Quest E52. Manual - part 41

AV

PRECAUTIONS

AV-43

< PRECAUTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Be sure to turn ignition switch OFF and disconnect the battery cable from the negative terminal before

checking the circuit.

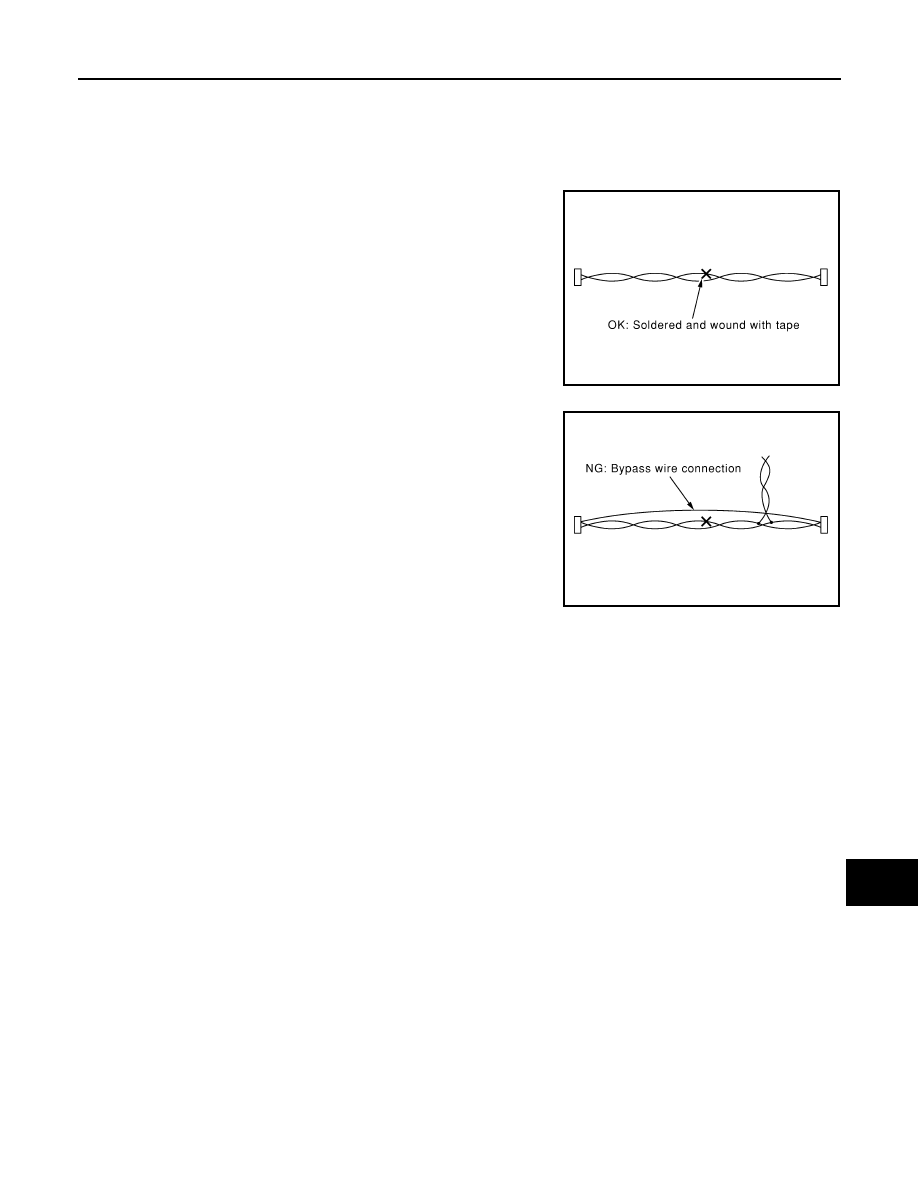

Precaution for Harness Repair

INFOID:0000000009651918

AV COMMUNICATION SYSTEM

• Solder the repaired parts, and wrap with tape. [Frays of twisted line

must be within 110 mm (4.33 in).]

• Do not perform bypass wire connections for the repair parts. (The

spliced wire will become separated and the characteristics of
twisted line will be lost.)

PKIA0306E

PKIA0307E

AV-44

< PREPARATION >

[DISPLAY AUDIO]

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000009651919

Tool

Description

Power tool

Loosening screws

PBIC0191E

AV

COMPONENT PARTS

AV-45

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

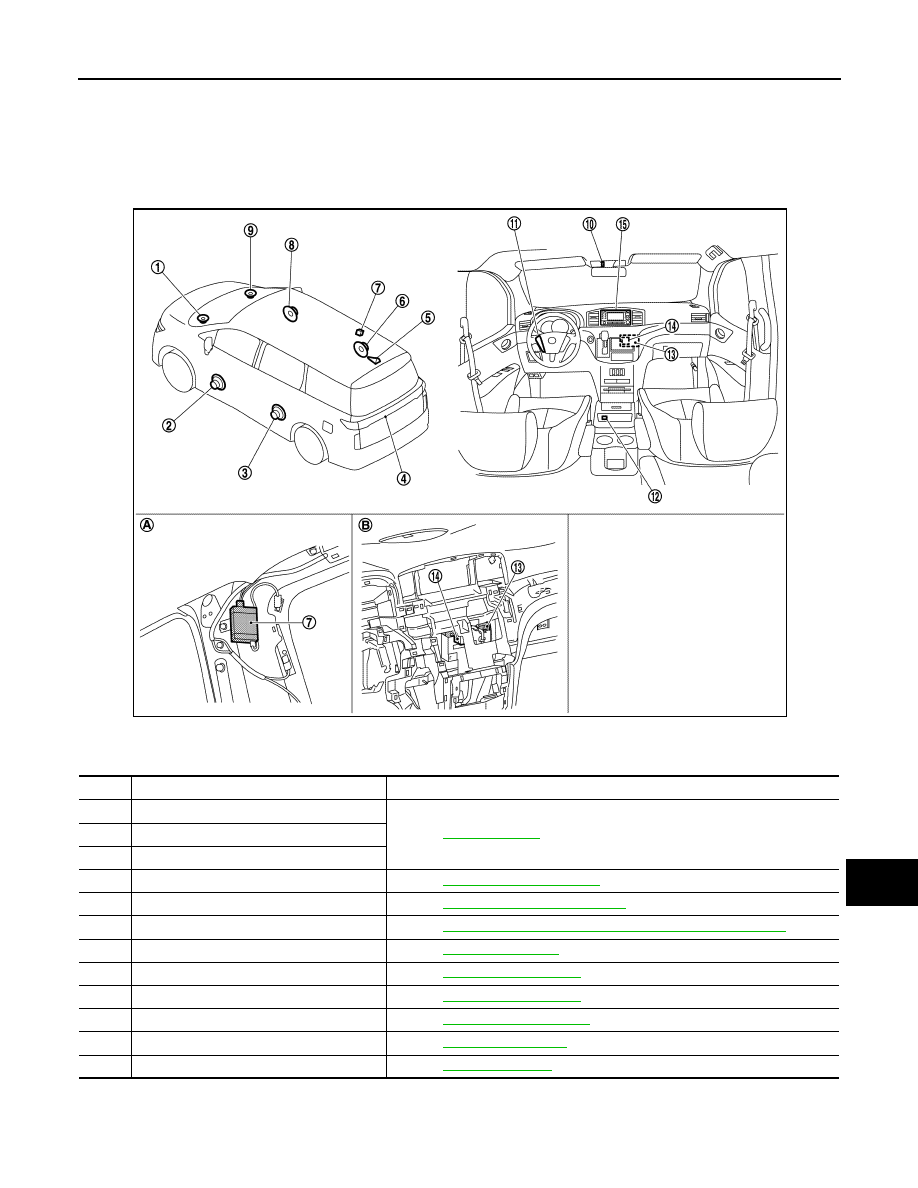

Component Parts Location

INFOID:0000000009651920

Audio Unit

INFOID:0000000009651921

Description

A. Rear pillar garnish (RH) is removed.

B. Cluster lid C is removed.

JSNIA4717ZZ

No.

Component

Function

1,9.

Front squawker

Refer to

AV-47, "Speaker"

.

2,8.

Front door woofer

3,6.

Slide door speaker

4.

Rear view camera

Refer to

AV-52, "Rear View Camera"

.

5.

Satellite radio antenna

Refer to

AV-50, "Satellite Radio Antenna"

.

7.

Antenna amp.

Refer to

AV-49, "Antenna amp., Radio Antenna, and Antenna Feeder"

.

10.

Microphone

Refer to

AV-48, "Microphone"

.

11.

Steering switch

Refer to

AV-49, "Steering Switch"

.

12.

USB connector

Refer to

AV-48, "USB Connector"

.

13.

TEL adapter unit

Refer to

AV-48, "TEL Adapter Unit"

.

14.

TEL antenna

Refer to

AV-48, "TEL Antenna"

.

15.

Audio unit

Refer to

AV-45, "Audio Unit"

.

AV-46

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

COMPONENT PARTS

• AM/FM electronic tuner radio, satellite radio tuner, CD drive, auxil-

iary input jack, and camera controller are integrated into the audio
unit.

• The display can show audio status and rear view monitor images.
• Music files stored in iPod

®*

/USB memory can be played by using

the separate USB connector.

• Audio played back by external audio equipment is outputted from

the vehicle speakers via the auxiliary input jack installed to the
audio fascia.

*:iPod

®

 is a trademark of Apple inc., registered in the U.S. and other

countries.

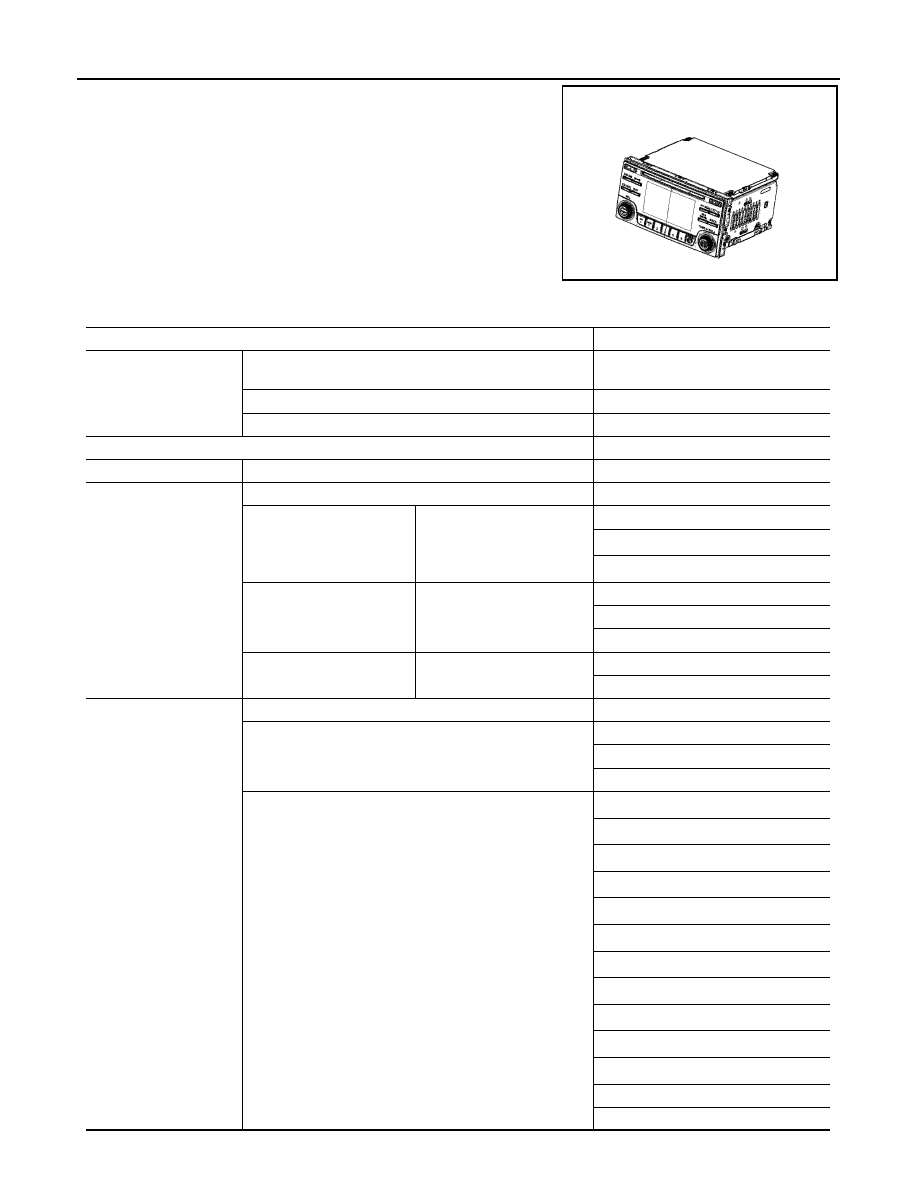

Specifications

JSNIA4722ZZ

Manufacturer name

Panasonic Corporation

Display

Screen size

4.3 inch

(95 mm

×

 54 mm)

Number of pixels

480

×

 234 pixels

Drive type

TFT active matrix method

Audio amplifier

40 W

×

 4 ch

AM/FM electric tuner

FM diversity function

With

CD drive

Used disc

φ

 12 cm (4.7 in)

Playable disc

CD

CD-ROM (CD-DA)

CD-R

*1

CD-RW

*1

Playable format

Music

MP3

WMA

AAC

Text display function

ID3 / WMA / AAC tag

Artist name

Song title

USB

High communication standard

USB2.0

Playable format

MP3

WMA

AAC

iPod

®

Action

*2

iPod nano

®

 1st generation

iPod nano

®

 2nd generation

iPod nano

®

 3rd generation

iPod nano

®

 4th generation

iPod nano

®

 5th generation

iPod touch

®

 1st generation

iPod touch

®

 2nd generation

iPod touch

®

 3rd generation

iPod Classic

®

 1st generation

iPod Classic

®

 2nd generation

iPod

®

 5th generation

iPhone 3rd generation

iPhone 4th generation
