VEHICLE SECURITY SYSTEM

SEC-23

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SEC

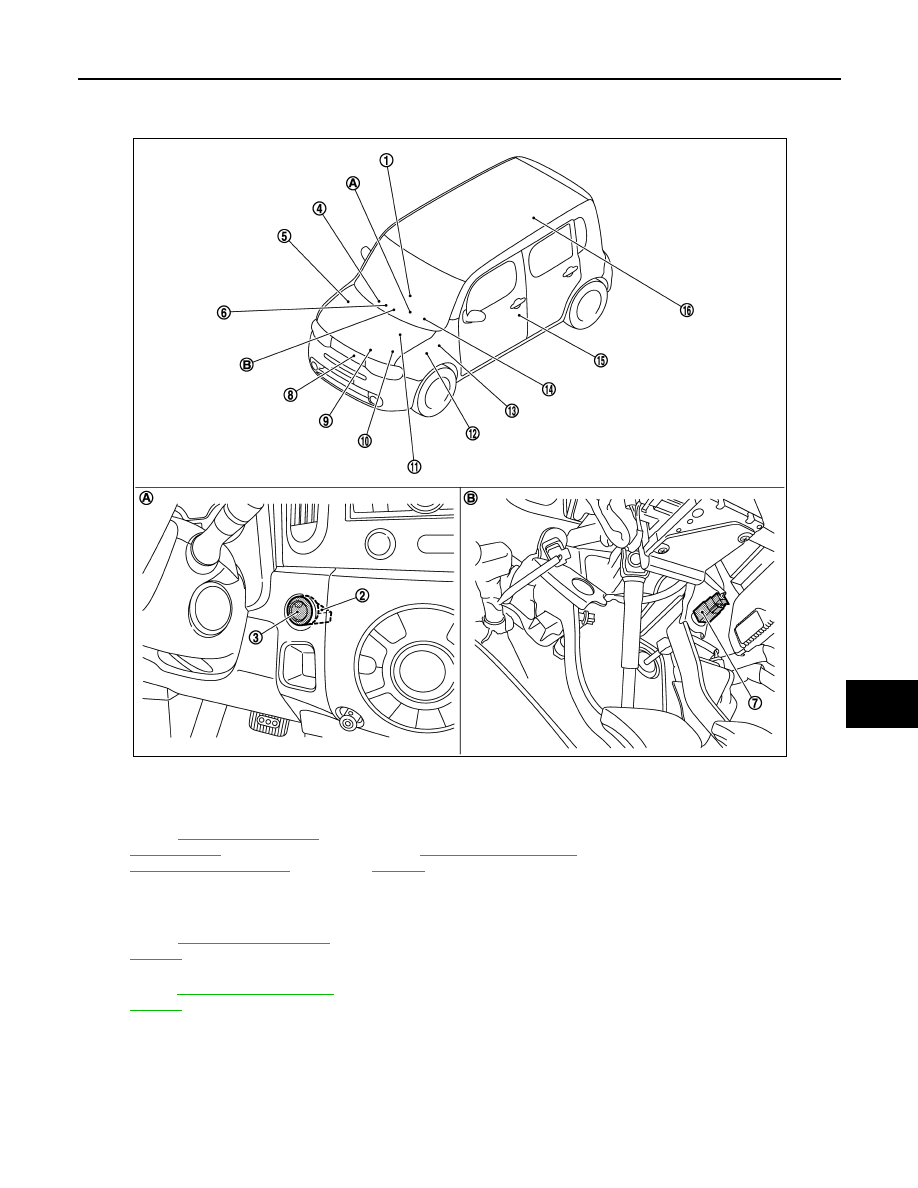

Component Parts Location

INFOID:0000000009950095

CVT shift selector (detention switch)
M58

NATS antenna amp. M26

Push-button ignition switch M101

Remote keyless entry receiver M87
Refer to

DLK-18, "INTELLIGENT

KEY SYSTEM :
Component Parts Location"

ABS actuator and electric unit (con-
trol unit) E36
Refer to

BRC-12, "Component Parts

Location"

Inside key antenna (instrument cen-
ter) M105

Stop lamp switch E115

Horn E50, E51

Transmission range switch F21

10. IPDM E/R E10, E11, E12, E13, E14,

E15, E17
Refer to

PCS-5, "Component Parts

Location"

11.

ECM E16

12. TCM E18

13. BCM M68, M69, M70, M71

Refer to

BCS-10, "Component Parts

Location"

14. Security indicator lamp

(combination meter) M34

15. Front door switch (driver side) B34

16. Inside key antenna (luggage room)

B82

Behind push-button ignition switch

Behind instrument lower cover LH

JMKIA4036ZZ

SEC-24

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

Component Description

INFOID:0000000009950096

Component Reference

BCM

SEC-73

Security indicator lamp

Door switch

Headlamp

Horn

DIAGNOSIS SYSTEM (BCM)

SEC-25

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SEC

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010246075

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

: Applicable item

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Interior room lamp timer

INT LAMP

Exterior lamp

HEAD LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps

FLASHER

Automatic air conditioner

AIR CONDITONER

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

Combination switch

COMB SW

Body control system

BCM

NVIS - NATS

IMMU

Interior room lamp battery saver

BATTERY SAVER

Back door

TRUNK

Vehicle security system

THEFT ALM

RAP system

RETAINED PWR

Signal buffer system

SIGNAL BUFFER

TPMS

TPMS (AIR PRESSURE MONITOR)

SEC-26

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

NOTE:
*: Power position shifts to “LOCK” from “OFF”, when ignition switch is in the OFF position, selector lever is in
the P position (CVT models), and any of the following conditions are met.
• Closing door
• Opening door
• Door is locked using door request switch
• Door is locked using Intelligent Key
The power position shifts to “ACC” when the push-button ignition switch (push switch) is pushed at “LOCK”.

INTELLIGENT KEY

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)

INFOID:0000000010246074

WORK SUPPORT

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power position status of
the moment a particular
DTC is detected

While turning BCM status from low power consumption mode to

normal mode (Power supply position is “LOCK”

)

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “OFF”.)

LOCK>ACC

While turning power supply position from “LOCK”

to “ACC”

ACC>ON

While turning power supply position from “ACC” to “IGN”

RUN>ACC

While turning power supply position from “RUN” to “ACC” (Vehicle
is stopping and selector lever is except P position.)

CRANK>RUN

While turning power supply position from “CRANKING” to “RUN”
(From cranking up the engine to run it)

RUN>URGENT

While turning power supply position from “RUN“ to “ACC” (Emer-
gency stop operation)

ACC>OFF

While turning power supply position from “ACC” to “OFF”

OFF>LOCK

While turning power supply position from “OFF” to “LOCK”

OFF>ACC

While turning power supply position from “OFF” to “ACC”

ON>CRANK

While turning power supply position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “OFF”.) to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power supply posi-

tion is “LOCK”

.) to low power consumption mode

LOCK

Power supply position is “LOCK”

OFF

Power supply position is “OFF” (Ignition switch OFF)

ACC

Power supply position is “ACC” (Ignition switch ACC)

Power supply position is “IGN” (Ignition switch ON with engine
stopped)

ENGINE RUN

Power supply position is “RUN” (Ignition switch ON with engine
running)

CRANKING

Power supply position is “CRANKING” (At engine cranking)

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

→

3...38

→

39 after returning to the normal condition

whenever ignition switch OFF

→

ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.
