NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

SEC-19

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

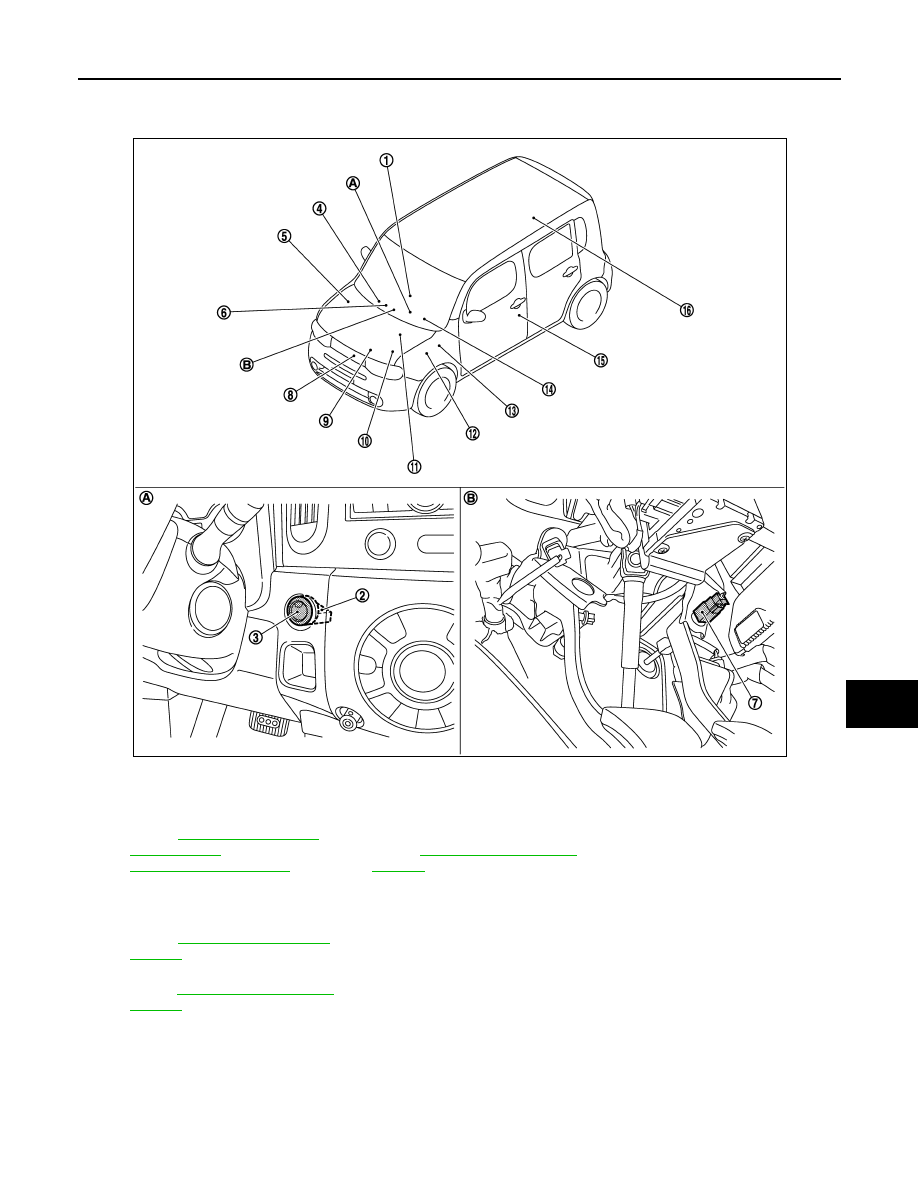

Component Parts Location

INFOID:0000000009950091

1.

CVT shift selector (detention switch)
M58

2.

 NATS antenna amp. M26

3.

Push-button ignition switch M101

4.

Remote keyless entry receiver M87
Refer to

DLK-18, "INTELLIGENT

KEY SYSTEM :
Component Parts Location"



5.

ABS actuator and electric unit (con-
trol unit) E36
Refer to

BRC-12, "Component Parts

Location"

.

6.

Inside key antenna (instrument cen-
ter) M105

7.

Stop lamp switch E115

8.

Horn E50, E51

9.

Transmission range switch F21

10. IPDM E/R E10, E11, E12, E13, E14,

E15, E17
Refer to

PCS-5, "Component Parts

Location"

.

11.

ECM E16

12. TCM E18

13. BCM M68, M69, M70, M71

Refer to

BCS-10, "Component Parts

Location"

.

14. Security indicator lamp

(combination meter) M34

15. Front door switch (driver side) B34

16. Inside key antenna (luggage room)

B82

A.

Behind push-button ignition switch

B.

Behind instrument lower cover LH

JMKIA4036ZZ

SEC-20

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS

Component Description

INFOID:0000000009950092

Component Reference

BCM

SEC-73

Push-button ignition switch

SEC-48

Door switch

DLK-55

CVT shift selector (detention switch)

SEC-81

Stop lamp switch

SEC-46

TCM

SEC-62

Starter relay

SEC-67

Starter control relay

SEC-76

Security indicator lamp

SEC-88

VEHICLE SECURITY SYSTEM

SEC-21

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

VEHICLE SECURITY SYSTEM

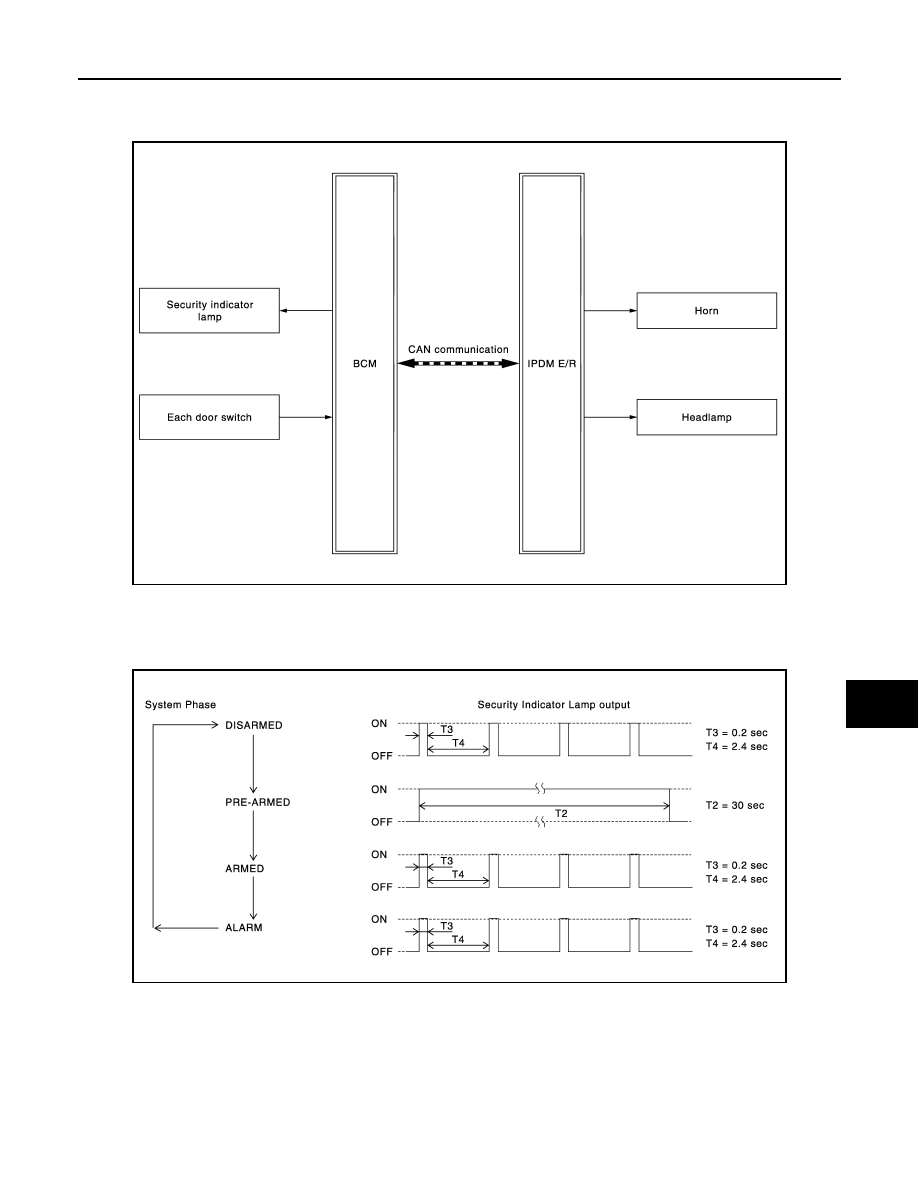

System Diagram

INFOID:0000000009950093

System Description

INFOID:0000000009950094

OPERATION FLOW

SETTING THE VEHICLE SECURITY SYSTEM

Initial Condition

• Ignition switch is in the OFF position.

Disarmed Phase

• When any door is open, the vehicle security system is set in the disarmed phase on the assumption that the

owner is inside or near the vehicle.

JMKIA4034GB

JMKIA2505GB

SEC-22

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

• When the vehicle security system is in the disarmed phase, the security indicator lamp blinks every 2.4 sec-

onds.

Pre-armed Phase and Armed Phase

When the following operation 1 or 2 is performed, the vehicle security system turns into the “pre-armed”
phase. (Security indicator lamp illuminates.)

1.

BCM receives LOCK signal from door lock and unlock switch, door key cylinder switch door request
switch or Intelligent Key, after all doors are closed.

2.

All doors are closed after all doors are locked by mechanical key or door lock and unlock switch.

CANCELING THE ARMED PHASE VEHICLE SECURITY SYSTEM

When one of the following operations is performed, the armed phase is canceled.
1.

Unlock all doors with the door lock and unlock switch, door key cylinder switch door request switch or
Intelligent Key.

2.

Turn ignition switch “ON” or “ACC” position.

CANCELING THE ALARM OPERATION OF THE VEHICLE SECURITY SYSTEM

When on of the following operations is performed, the alarm operation is canceled.

1.

Unlock all doors with the door request switch or Intelligent Key.

2.

Turn ignition switch “ON” or “ACC” position.

ACTIVATING THE ALARM OPERATION OF THE VEHICLE SECURITY SYSTEM

Check that the system is in the armed phase. (Security indicator lamp blinks every 2.4 seconds.)
When the following operations 1 or 2 is performed, the system sounds the horns and blinks the headlamps for
about 50 seconds.

1.

Any door is open during the armed phase.

2.

Disconnecting and connecting the battery connector before canceling the armed phase.

PANIC ALARM OPERATION

When BCM receives panic alarm signal from Intelligent Key, ground is supplied intermittently to both head-
lamp relay and horn relay.
When headlamp relay and horn relay are energized, then power is supplied to headlamps (HI) and horn.
The headlamp (HI) blinks and the horn sounds intermittently.
The alarm automatically turns off after 50 seconds or when BCM receives any signal from Intelligent Key or
door request switch.
