SE-16

< REMOVAL AND INSTALLATION >

FRONT SEAT

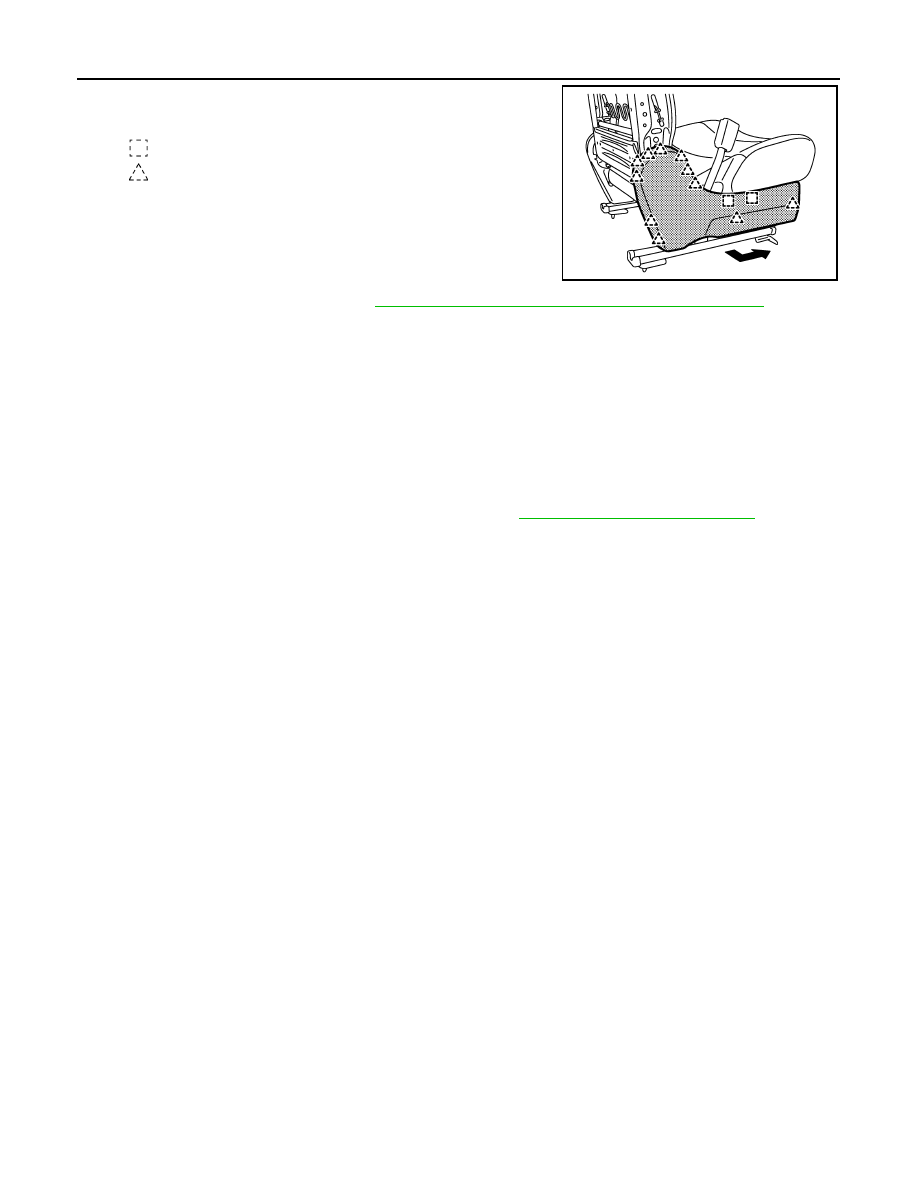

5.

Remove the metal clip and pawls, and then pull out seat cushion
inner finisher.

6.

Remove the seat belt buckle. Refer to

SB-8, "SEAT BELT BUCKLE : Removal and Installation"

.

7.

Remove the seat cushion assembly.
• Remove the seat cushion trim retainer.
• Remove the seat cushion assembly from the seat cushion frame.

8.

Remove the seat cushion silencer.

9.

Remove the reclining device cover.
• Remove the screws, and then reclining device outer cover (front, rear).
• Remove the screws, and then reclining device inner cover (front, rear).

10. Remove the mounting bolt, and then remove seatback frame.
11. Remove the following parts after removing seatback frame.

• Remove the seat cushion mat.
• Remove occupant detection system control unit. Refer to

SR-29, "Removal and Installation"

.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seat trim in position, and then securely connect the trim or trim cord with the
pad side wire.

: Metal clip

: Pawl

JMJIA2937ZZ

REAR SEAT

SE-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REAR SEAT

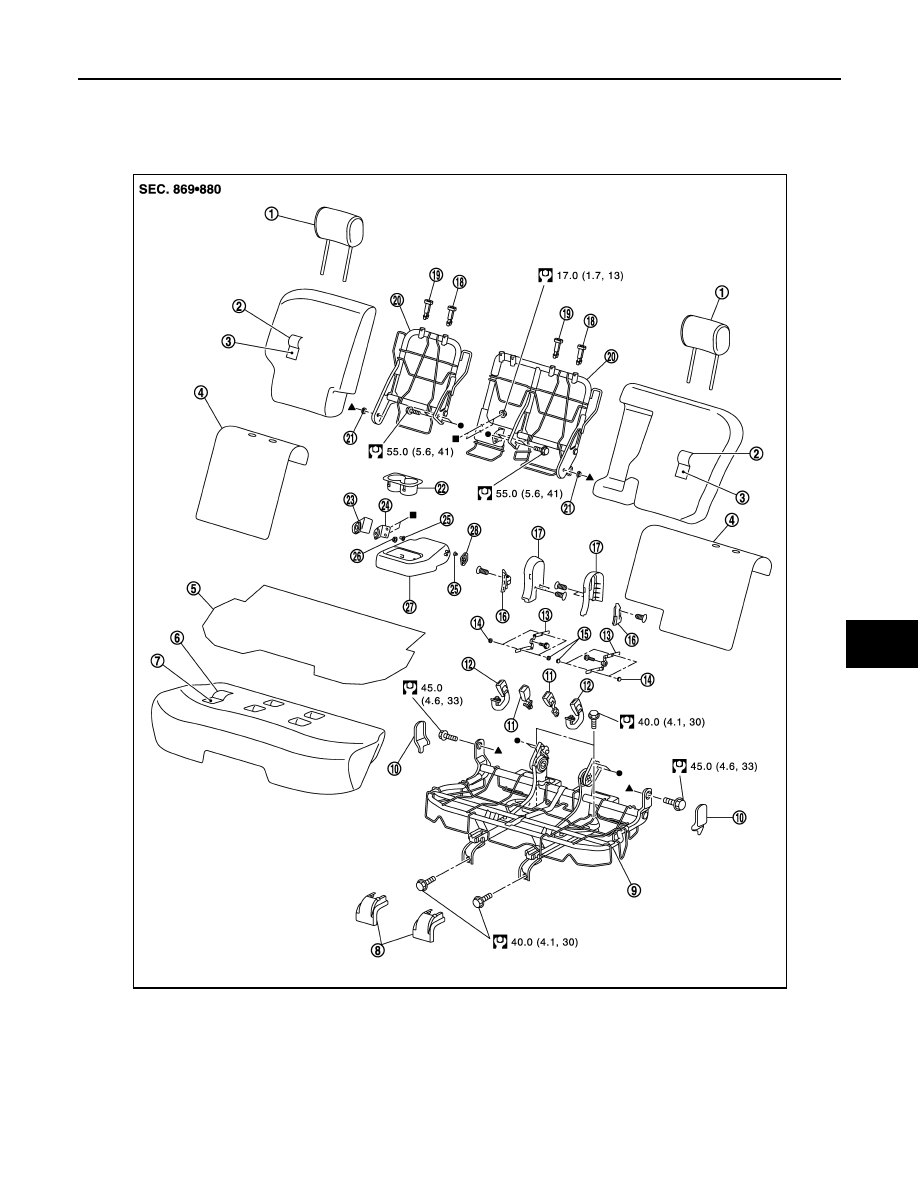

Exploded View

INFOID:0000000009950076

1.

Headrest

2.

Seatback trim

3.

Seatback pad

4.

Seatback silencer

5.

Seat cushion silencer

6.

Seat cushion trim

7.

Seat cushion pad

8.

Seat slide cover

9.

Seat cushion frame

10. Outer hinge finisher

11.

Seat belt buckle (side)

12. Seat belt buckle (center)

13. Reclining strap

14. Rivet A

15. Rivet B

16. Inner finisher

17. Reclining device cover

18. Headrest holder (locked)

19. Headrest holder (free)

20. Seatback frame

21. Seatback bush

JMJIA3103GB

SE-18

< REMOVAL AND INSTALLATION >

REAR SEAT

Removal and Installation

INFOID:0000000009950077

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the headrest.

2.

Remove the pawls, and then remove seat slide cover.

3.

Remove the rear right side mounting bolt.

4.

Remove the rear left side mounting bolt.

5.

Remove the front right side mounting bolt.

6.

Remove the front left side mounting bolt.

7.

Remove the rear seat assembly from back door.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

Disassembly and Assembly

INFOID:0000000009950078

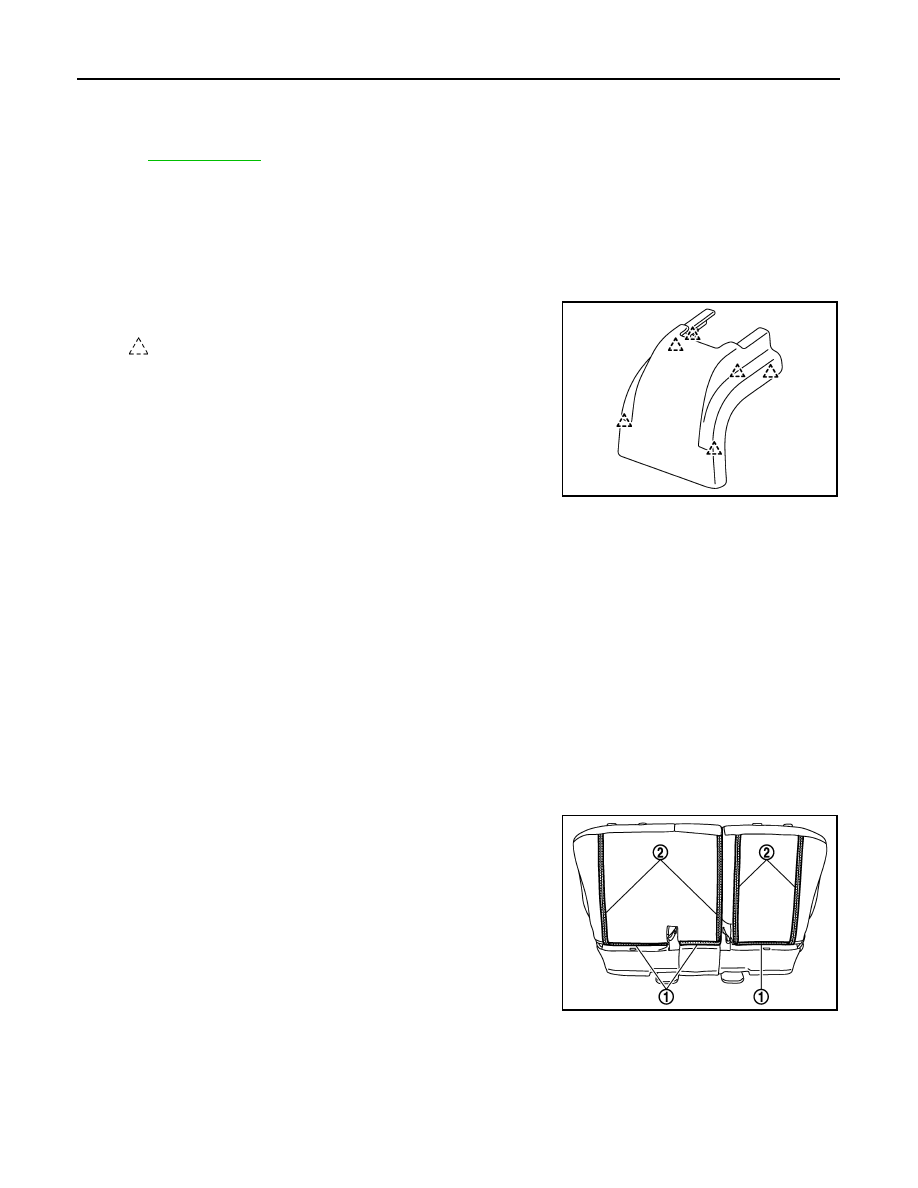

SEATBACK

Disassembly

1.

Remove the armrest assembly.
• Remove the seatback retainers (1), and then open the fasten-

ers (2).

• Remove the armrest hinge bracket mounting nuts.

22. Cup holder

23. Armrest hinge finisher

24. Armrest hinge bracket

25. Armrest hinge bush B

26. Armrest hinge bush A

27. Armrest assembly

28. Armrest hinge inner bush

Refer to

GI-4, "Components"

for symbols in the figure.

: Pawl

JMJIA2939ZZ

JMJIA2940ZZ

REAR SEAT

SE-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

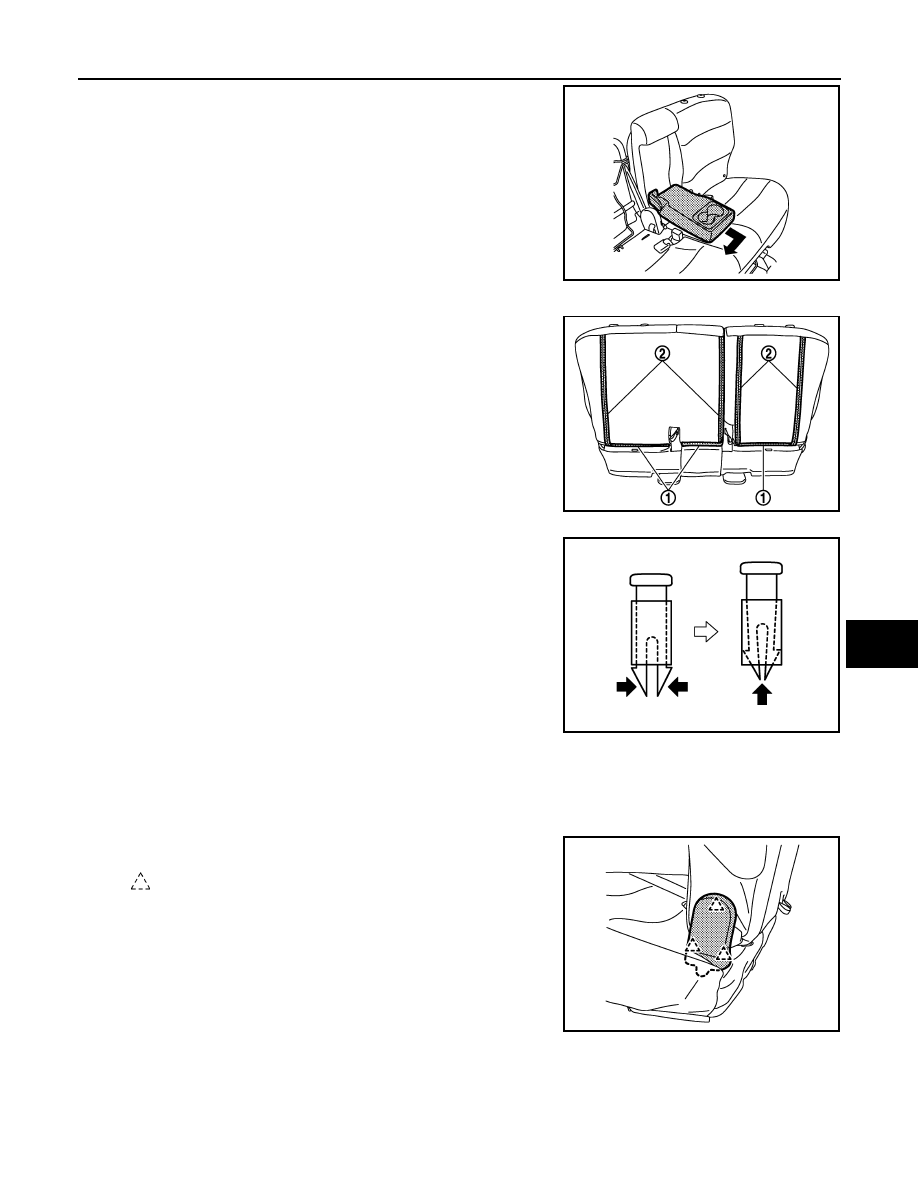

• Remove the pawl of armrest hinge inner bush, and then slide

armrest assembly.

2.

Remove the seatback trim and seatback pad.
• Remove the seatback retainers (1), and then open the fasten-

ers (2).

• Remove the headrest holder.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

• Remove the seatback trim and seatback pad from seatback frame.
• Remove the hog rings to separate the seatback trim and seatback pad.

3.

Remove the seatback silencer.

4.

Remove the seatback frame.
• Remove the pawls, and then remove outer hinge finisher.

• Remove the mounting bolts (inside, outside), and then remove seatback frame.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

JMJIA3133ZZ

JMJIA2940ZZ

PIIB4084J

: Pawl

JMJIA2942ZZ
