SE-12

< REMOVAL AND INSTALLATION >

FRONT SEAT

REMOVAL AND INSTALLATION

FRONT SEAT

Exploded View

INFOID:0000000009950073

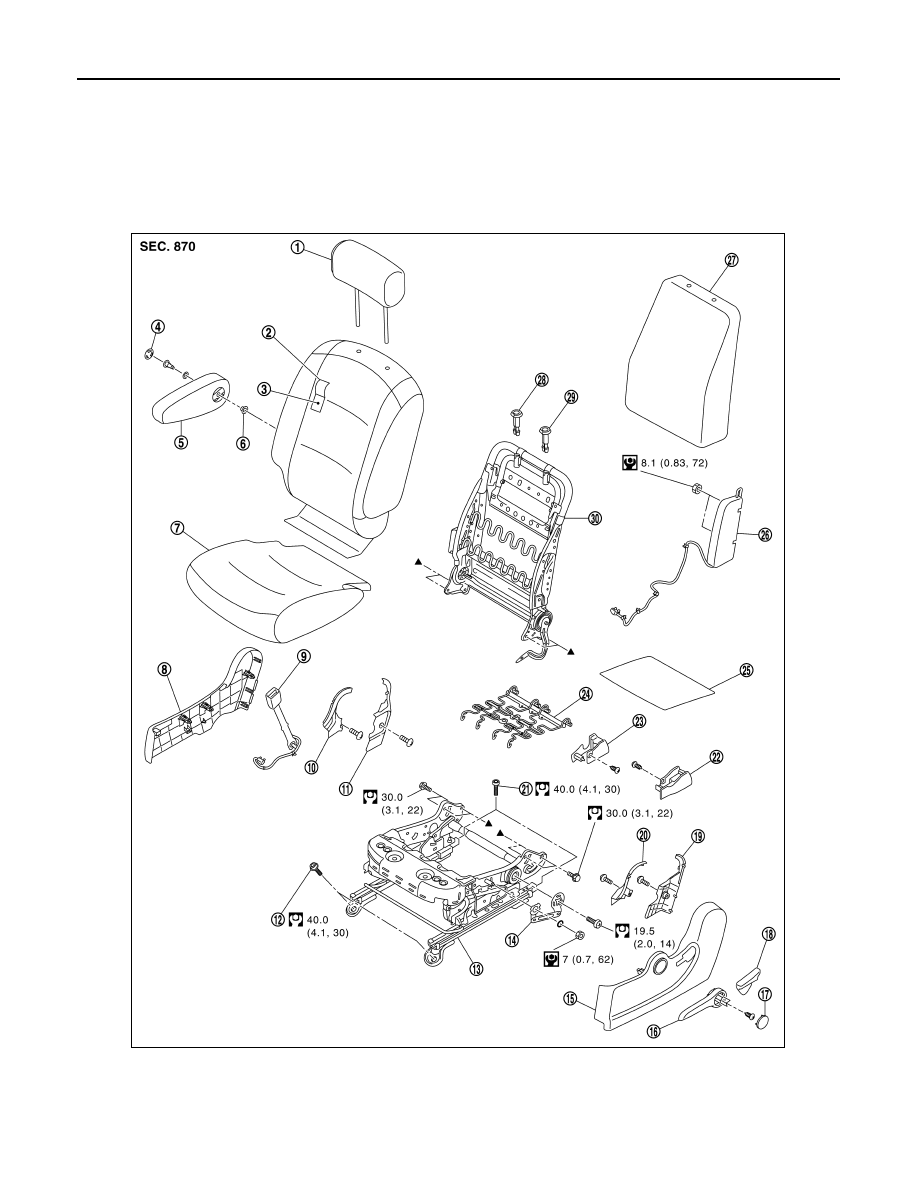

DRIVER'S SEAT

1.

Head rest

2.

Seatback trim

3.

Seatback pad

4.

Armrest cap

5.

Armrest assembly

6.

Bush

7.

Seat cushion assembly

8.

Seat cushion inner finisher

9.

Seat belt buckle

10. Reclining device inner cover (front)

11.

Reclining device inner cover (rear)

12. TORX bolt

JMJIA9531GB

FRONT SEAT

SE-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

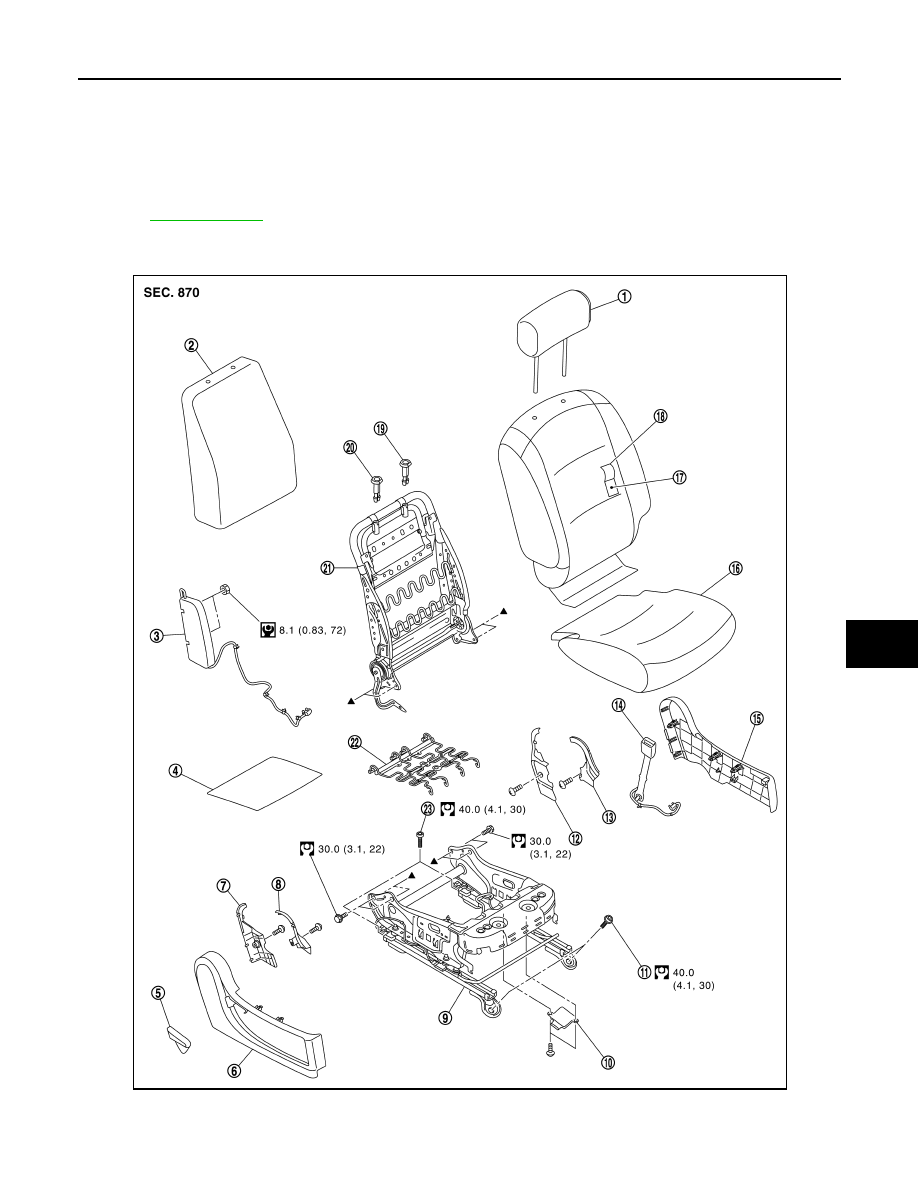

PASSENGER'S SEAT

13. Seat cushion frame

14. Lifter link

15. Seat cushion outer finisher

16. Lifter lever knob

17. Lifter lever knob cap

18. Reclining lever knob

19. Reclining device outer cover (rear)

20. Reclining device outer cover (front)

21. TORX bolt

22. Seat slid outer cover

23. Seat slid inner cover

24. Seat cushion mat

25. Seat cushion silencer

26. Side air bag module

27. Seatback silencer

28. Headrest holder (free)

29. Headrest holder (locked)

30. Seatback frame

Refer to

GI-4, "Components"

 for symbols in the figure.

1.

Headrest

2.

Seatback silencer

3.

Side air bag module

4.

Seat cushion silencer

5.

Reclining lever knob

6.

Seat cushion outer finisher

JMJIA9532GB

SE-14

< REMOVAL AND INSTALLATION >

FRONT SEAT

Removal and Installation

INFOID:0000000009950074

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the headrest.

2.

Remove the mounting bolts on the front side of the front seat.

3.

Remove the mounting bolts on the rear side of the front seat.

4.

Set seatback in a standing position.

5.

Disconnect harness connector under the seat and remove harness securing clips.

CAUTION:

Before removal, turn ignition switch OFF, disconnect battery negative terminal and then wait for at
least 3 minutes.

6.

Remove seat from the vehicle.

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• When removing and installing, 2 workers are required so as to prevent it from dropping.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Before installation, turn ignition switch OFF, disconnect battery negative terminal and then wait for

at least 3 minutes.

• Clamp the harness in position.
NOTE:
After installing the passenger seat, perform zero point reset. Refer to

SRC-9, "ZERO POINT RESET : Descrip-

tion"

.

Disassembly and Assembly

INFOID:0000000009950075

DISASSEMBLY

1.

Remove the armrest assembly.
• Remove the armrest cap.
• Remove the mounting bolt, and then remove armrest assembly.

2.

Remove the seatback trim and seatback pad.
• Remove seatback retainer installed in the lower portion of seat cushion.
• Remove harness installed in the lower portion of seat cushion

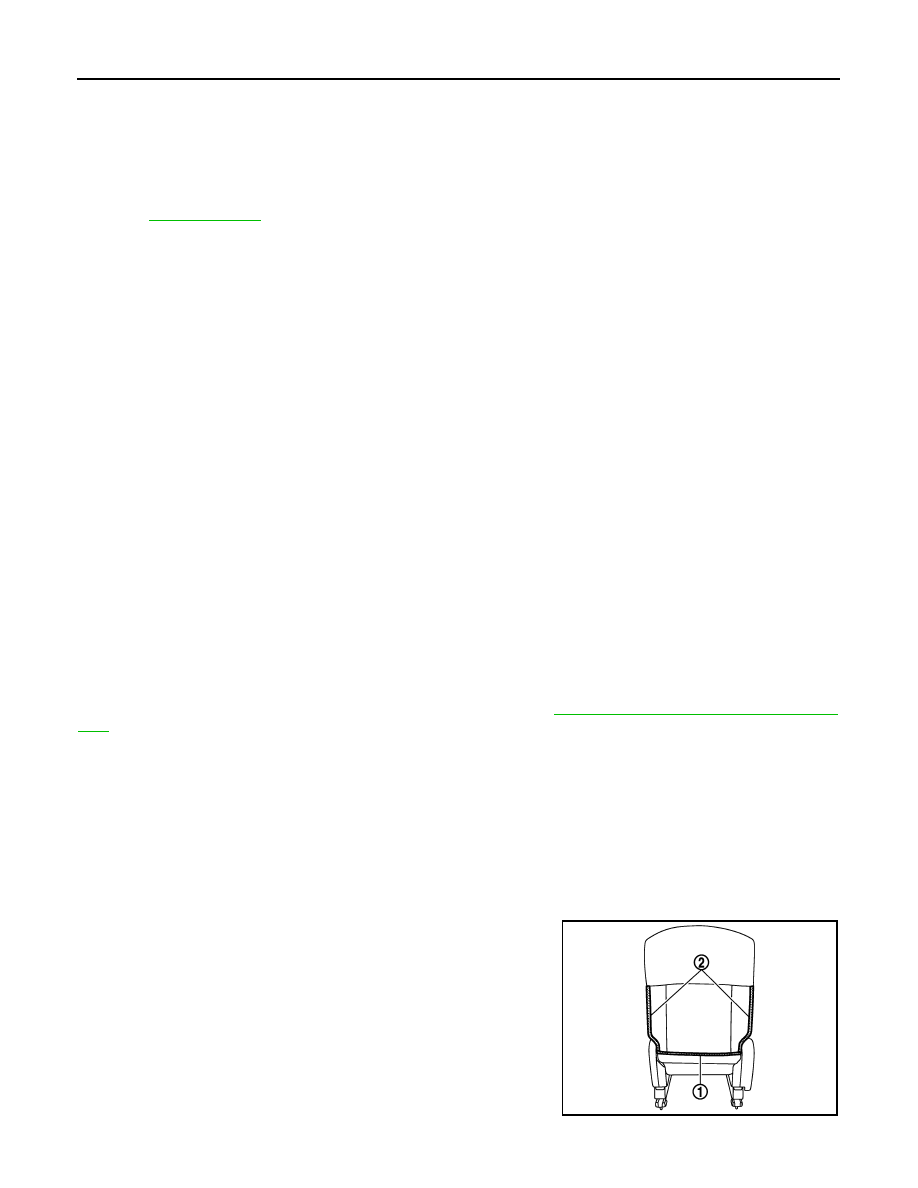

• Remove the seatback retainer (1), and then open the fastener

(2).

7.

Reclining device outer cover (rear)

8.

Reclining device outer cover (front) 9.

Seat cushion frame

10. Occupant detection system control unit 11.

TORX bolt

12. Reclining device inner cover (rear)

13. Reclining device inner cover (front)

14. Seat belt buckle

15. Seat cushion inner finisher

16. Seat cushion assembly

17. Seatback pad

18. Seatback trim

19. Headrest holder (locked)

20. Headrest holder (free)

21. Seatback frame

22. Seat cushion mat

23. TORX bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMJIA2934ZZ

FRONT SEAT

SE-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

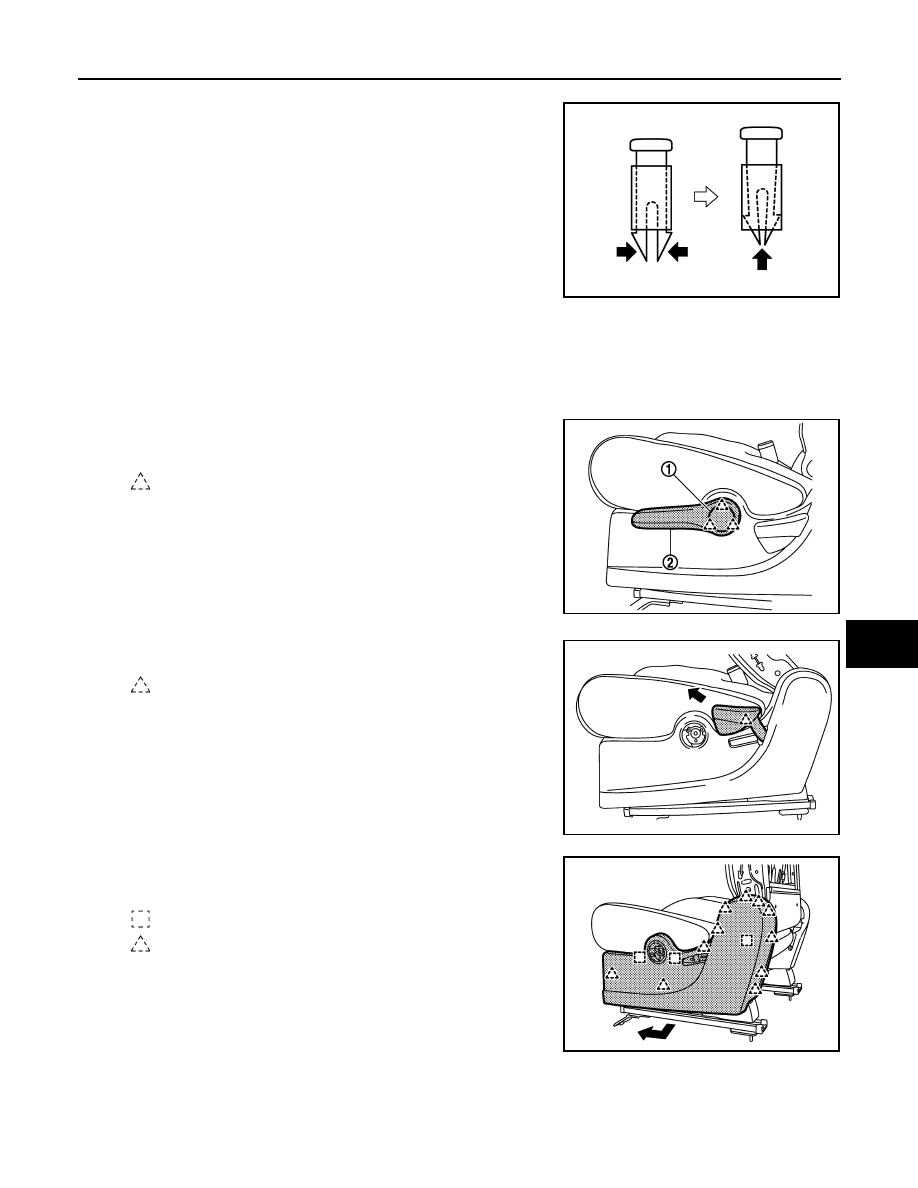

• Remove the seatback retainer from seatback inside.
• Remove the headrest holder.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

• Remove the side air bag module mounting nuts.
• Remove the seatback trim and seatback pad from the seatback frame.
• Remove the hog rings, and separate the seatback trim and seatback pad.

3.

Remove the seatback silencer.

4.

Remove the seat cushion outer finisher.
• Remove the pawls, and then lifter lever knob finisher (1).

(Driver's seat only)

• Remove the mounting screws, and remove the lifter lever (2).

(Driver's seat only)

• Pull out the reclining lever while holding and raising the pawl.

• Remove the metal clip and pawls, and then pull out seat cush-

ion outer finisher outside.

PIIB4084J

: Pawl

JMJIA3131ZZ

: Pawl

JMJIA2935ZZ

: Metal clip

: Pawl

JMJIA3132ZZ
