COIL SPRING

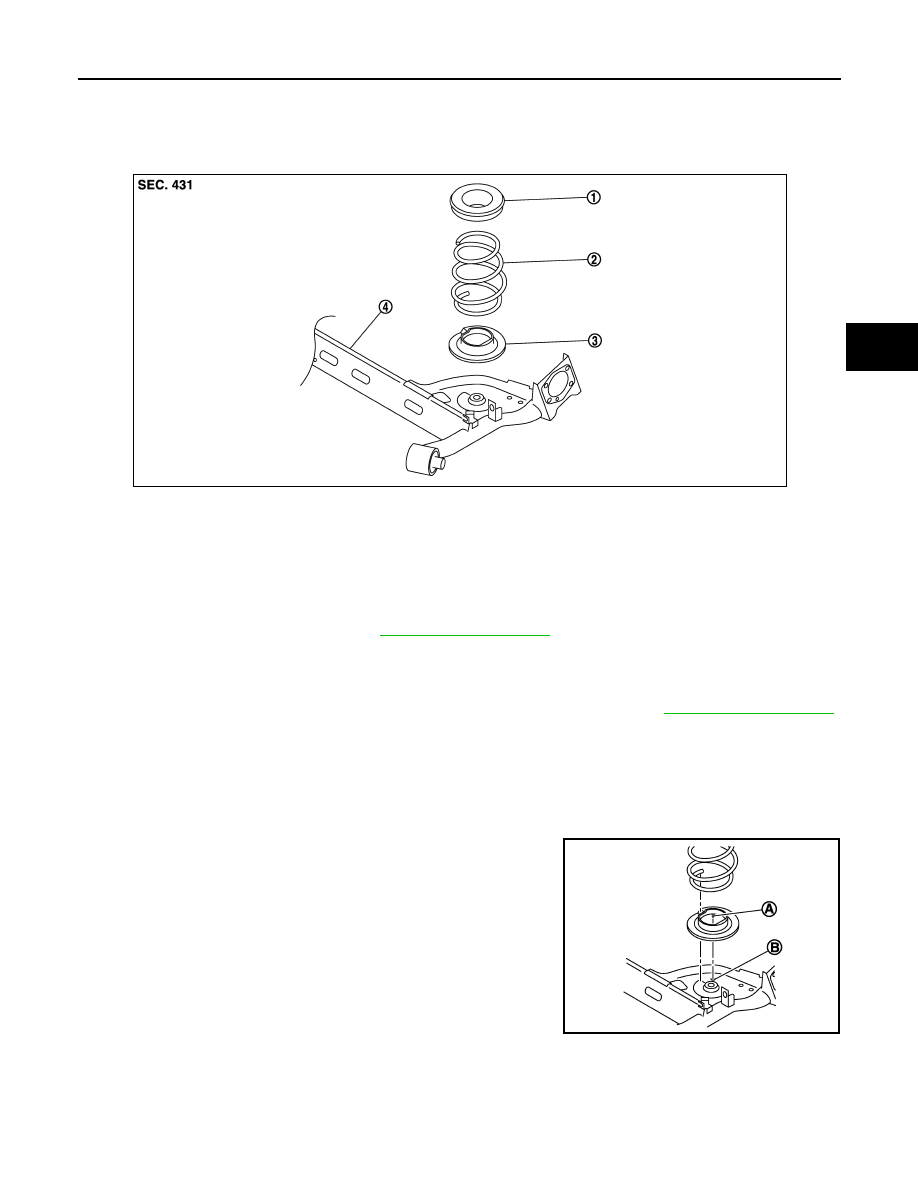

Exploded View

INFOID:0000000009948847

Removal and Installation

INFOID:0000000009948848

REMOVAL

1.

Remove tires with power tool. Refer to

WT-46, "Exploded View"

.

2.

Set jack under rear suspension beam.

CAUTION:

Check the stable condition when using a jack.

3.

Remove right and left rear shock absorber mounting bolts (lower side). Refer to

RSU-7, "Exploded View"

.

4.

Slowly lower jack, then remove upper rubber seat, coil spring and lower rubber seat from rear suspension
beam.

CAUTION:

Check the stable condition when using a jack.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install the lower rubber seat a projection (A) is attached as rear

suspension beam mounting hole (B).

• Match up lower rubber seat indentions and rear suspension beam

grooves and attach.

Inspection

INFOID:0000000009948849

INSPECTION AFTER REMOVAL

Check rubber seat and coil spring for deformation, crack, and damage. Replace it if necessary.

1.

Upper rubber seat

2.

Coil spring

3.

Lower rubber seat

4.

Rear suspension beam

JPEIB0162ZZ

JPEIB0177ZZ

RSU-10

< REMOVAL AND INSTALLATION >

COIL SPRING

INSPECTION AFTER INSTALLATION

1.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

2.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "Special Repair Requirement"

.

REAR SUSPENSION BEAM

RSU-11

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

REAR SUSPENSION BEAM

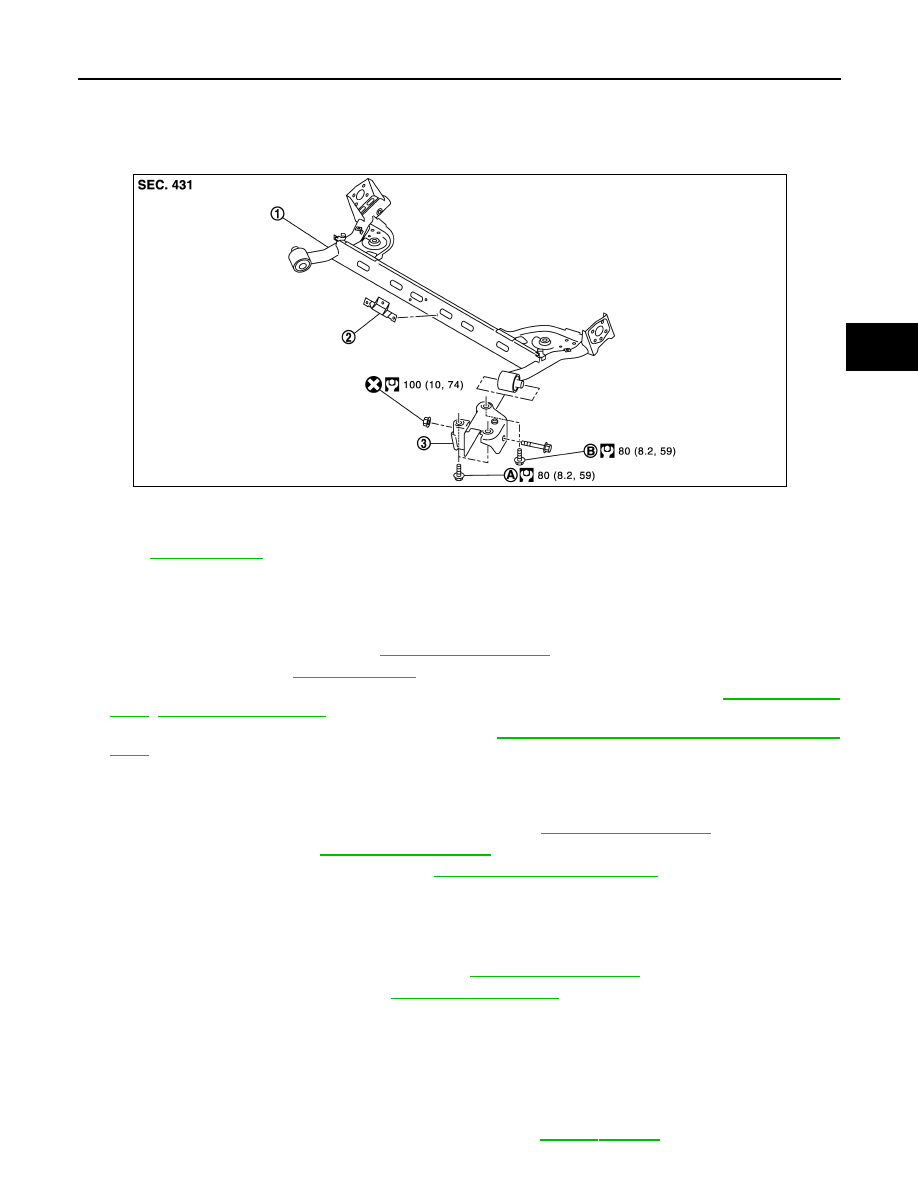

Exploded View

INFOID:0000000009948850

Removal and Installation

INFOID:0000000009948851

REMOVAL

1.

Remove tires with power tool. Refer to

WT-46, "Exploded View"

.

2.

Drain brake fluid. Refer to

BR-10, "Draining"

.

3.

Remove parking brake cable and brake drum from rear suspension beam. Refer to

PB-4, "Exploded

View"

,

BR-39, "Exploded View"

.

4.

Remove wheel sensor and sensor harness. Refer to

BRC-111, "REAR WHEEL SENSOR : Exploded

View"

.

5.

Set suitable jack under rear suspension beam.

CAUTION:

Check the stable condition when using a jack.

6.

Remove shock absorber mounting bolts (lower side). Refer to

RSU-7, "Exploded View"

.

7.

Remove coil springs. Refer to

RSU-9, "Exploded View"

.

8.

Separate brake hose and brake tube. Refer to

BR-22, "REAR : Exploded View"

.

9.

Remove suspension arm bracket mounting bolts.

10. Slowly lower jack, remove suspension arm bracket and rear suspension beam from vehicle body.

CAUTION:

Check the stable condition when using a jack.

11. Remove wheel hub and bearing assembly. Refer to

RAX-6, "Exploded View"

.

12. Remove drum brake assembly. Refer to

BR-39, "Exploded View"

.

13. Remove suspension arm bracket from rear suspension beam.

14. Remove brake tube protector from rear suspension beam.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension beam installation position (rubber bushing), under unladen condi-

tions with tires on level ground.

• Refill with new brake fluid and perform the air bleeding. Refer to

BR-10, "Refilling"

.

1.

Rear suspension beam

2.

Brake tube protector

3.

Rear suspension arm bracket

A.

Flange bolt

B.

Except flange bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0178GB

RSU-12

< REMOVAL AND INSTALLATION >

REAR SUSPENSION BEAM

Inspection

INFOID:0000000009948852

INSPECTION AFTER REMOVAL

Check rear suspension beam and rear suspension beam bracket for deformation, cracks or damage. Replace
the part if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-111, "REAR WHEEL SENSOR :

Exploded View"

.

2.

Adjust parking brake. Refer to

PB-3, "Inspection and Adjustment"

.

3.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

4.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "Special Repair Requirement"

.
