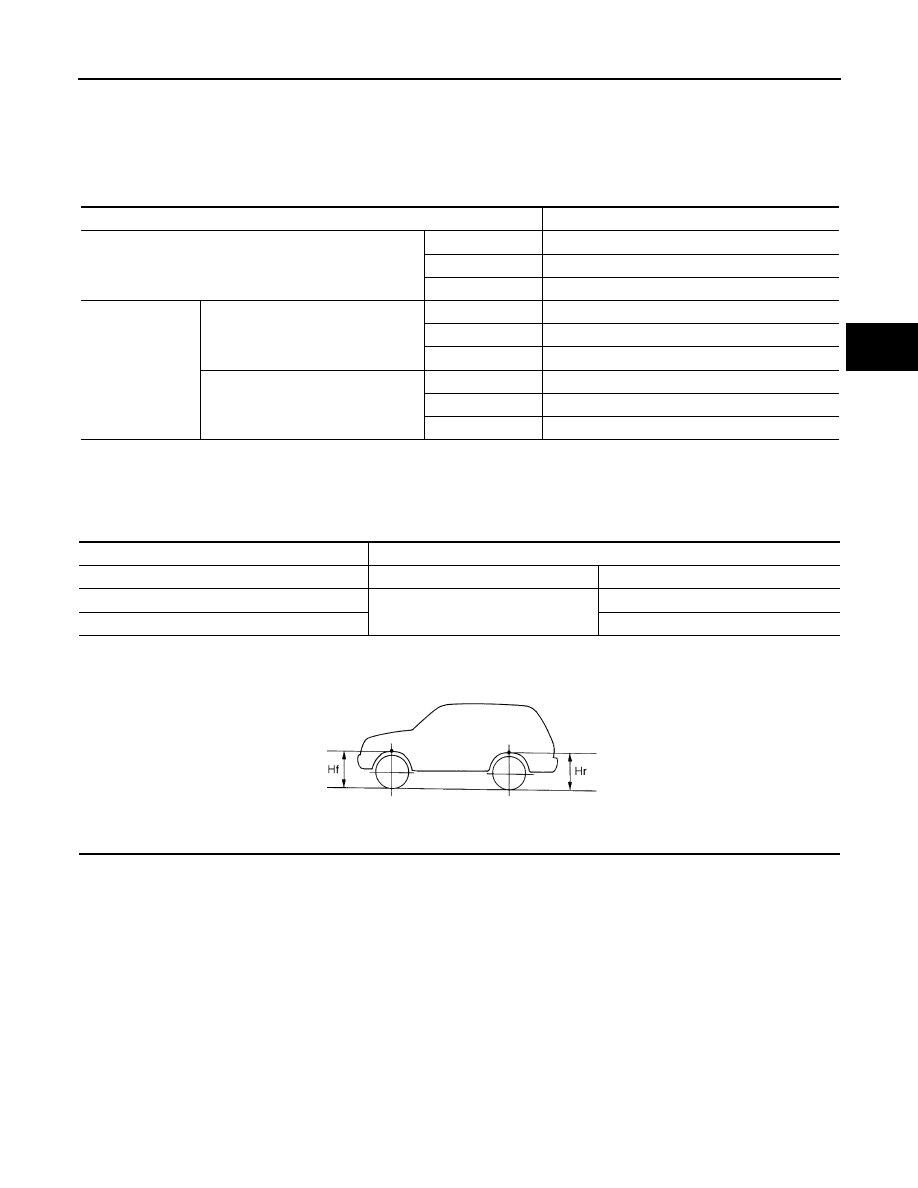

SERVICE DATA AND SPECIFICATIONS (SDS) RSU-13 < SERVICE DATA AND SPECIFICATIONS (SDS) C D F G H I J K L M A B RSU N O P SERVICE DATA AND SPECIFICATIONS (SDS) SERVICE DATA AND SPECIFICATIONS (SDS) Wheel Alignment INFOID:0000000009948853 Measure value under unladen* conditions. *: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions. Wheelarch Height INFOID:0000000009948854 Measure value under unladen* conditions. *: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions. Item Standard Camber Minimum − 2 ° 00 ′ ( − 2.01 ° ) Nominal − 1 ° 31 ′ ( − 1.51 ° ) Maximum − 1 ° 01 ′ ( − 1.01 ° ) Toe-in Total toe-in Minimum Out 1.0 mm (Out 0.039 in) Nominal In 3.0 mm (In 0.118 in) Maximum In 7.0 mm (In 0.275 in) Total toe-angle Minimum Out 0 ° 06 ′ (Out 0.10 ° ) Nominal In 0 ° 17 ′ (In 0.28 ° ) Maximum In 0 ° 39 ′ (In 0.65 ° ) Item Standard Tire size 195/60R15 195/55R16 Front (Hf) 679 mm (26.73 in) 684 mm (26.93 in) Rear (Hr) 683 mm (26.89 in) SFA746B |
