RAX-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

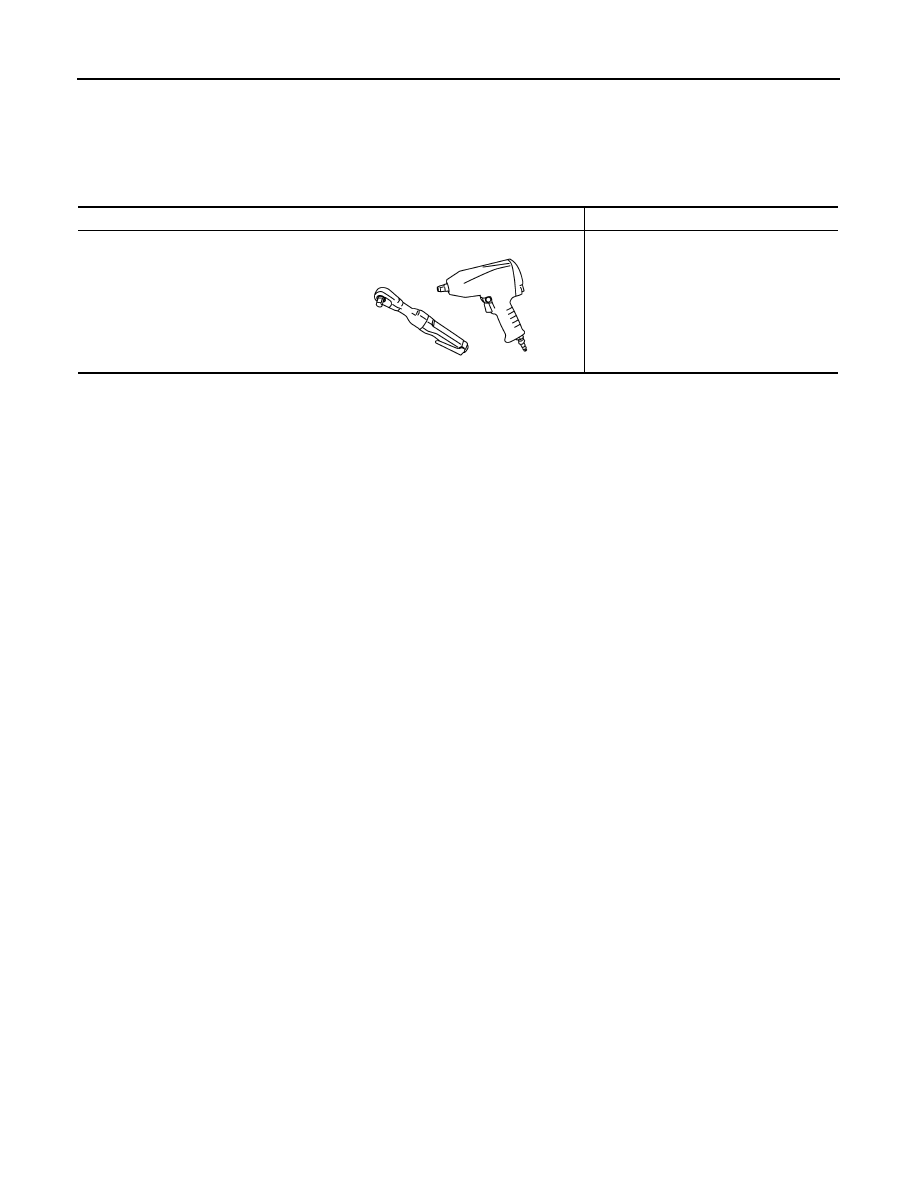

Commercial Service Tool

INFOID:0000000009948807

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

REAR WHEEL HUB

RAX-5

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

PERIODIC MAINTENANCE

REAR WHEEL HUB

Inspection

INFOID:0000000009948808

COMPONENT PART

Check the mounting conditions (looseness, back lash) of each component and component conditions (wear,
damage) are normal.

WHEEL HUB AND BEARING ASSEMBLY

Check the following items, and replace the part it necessary.
• Move wheel hub and bearing assembly in the axial direction by hand. Check there is no looseness of wheel

bearing.

• Rotate wheel hub and bearing assembly and check there is no unusual noise or other irregular conditions. If

there is any of irregular conditions, replace wheel hub and bearing assembly.

Axial end play

: Refer to

RAX-7, "Wheel Bearing"

.

RAX-6

< REMOVAL AND INSTALLATION >

REAR WHEEL HUB

REMOVAL AND INSTALLATION

REAR WHEEL HUB

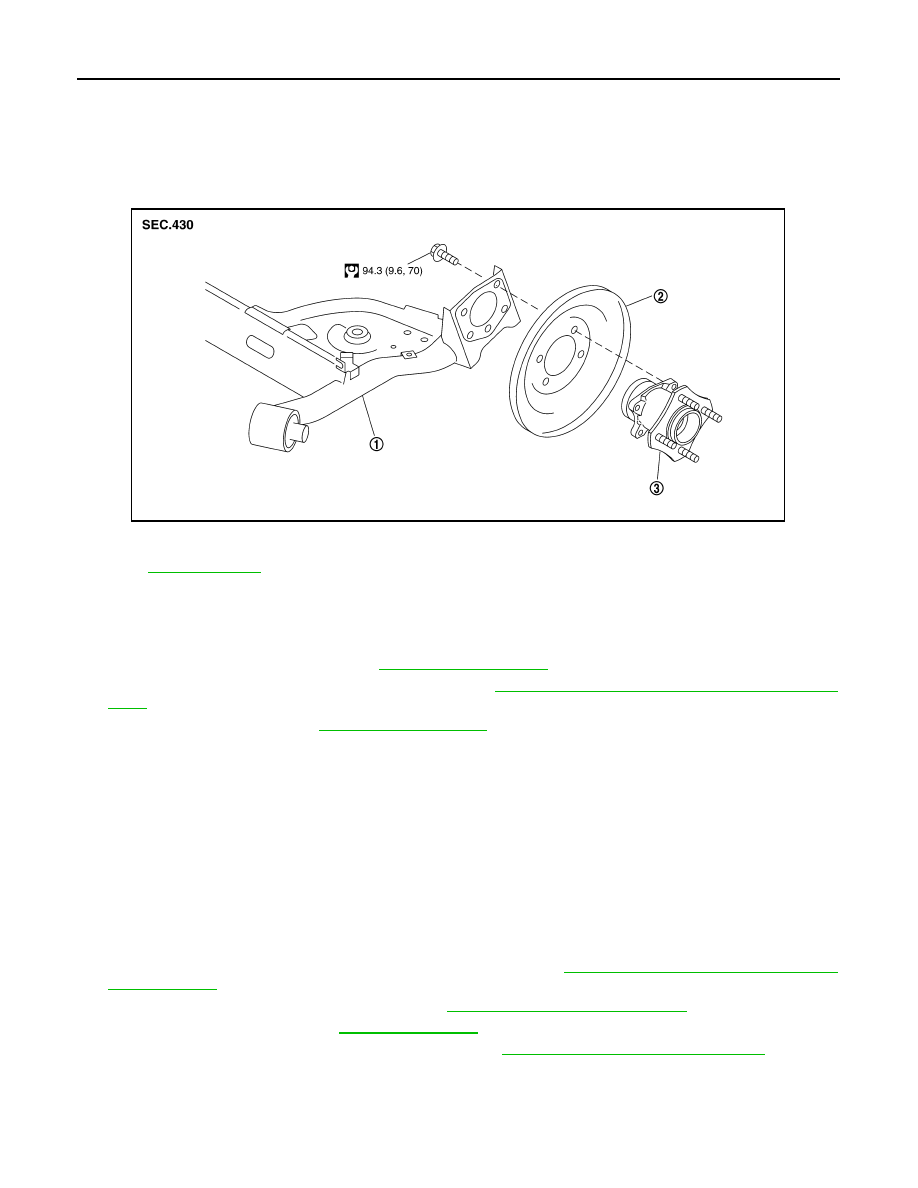

Exploded View

INFOID:0000000009948809

Removal and Installation

INFOID:0000000009948810

REMOVAL

1.

Remove tires with power tool. Refer to

WT-46, "Exploded View"

.

2.

Remove wheel sensor and sensor harness. Refer to

BRC-111, "REAR WHEEL SENSOR : Exploded

View"

.

3.

Remove brake drum. Refer to

BR-39, "Exploded View"

.

NOTE:
Keep back plate and brake assembly not falling down without removing them.

4.

Remove wheel hub and bearing assembly.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000009948811

INSPECTION AFTER REMOVAL

Check the wheel hub and bearing assembly for wear, cracks, and damage. Replace if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-111, "REAR WHEEL SENSOR :

Exploded View"

.

2.

Adjust parking brake operation (stroke). Refer to

PB-3, "Inspection and Adjustment"

.

3.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

4.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "Special Repair Requirement"

.

1.

Rear suspension beam

2.

Back plate

3.

Wheel hub and bearing assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

SDIA3423J

SERVICE DATA AND SPECIFICATIONS (SDS)

RAX-7

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000009948812

Item

Standard

Axial end play

0.05 mm (0.002 in) or less
