BCM (BODY CONTROL MODULE)

PWC-33

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

OPTI SEN (DTCT)

Bright outside of the vehicle

Close to 5 V

Dark outside of the vehicle

Close to 0 V

OPTI SEN (FILT)

Bright outside of the vehicle (Lighting switch AUTO)

Close to 5 V

Dark outside of the vehicle (Lighting switch AUTO)

Close to 1.50 V

OPTICAL SENSOR

NOTE:
The item is indicated, but not monitored.

Off

RAIN SENSOR

NOTE:
The item is indicated, but not monitored.

Off

REQ SW -DR

Driver door request switch is not pressed

Off

Driver door request switch is pressed

On

REQ SW -AS

Passenger door request switch is not pressed

Off

Passenger door request switch is pressed

On

REQ SW -RR

NOTE:
The item is indicated, but not monitored.

Off

REQ SW -RL

NOTE:
The item is indicated, but not monitored.

Off

REQ SW -BD/TR

Back door request switch is not pressed

Off

Back door request switch is pressed

On

PUSH SW

Push-button ignition switch (push switch) is not pressed

Off

Push-button ignition switch (push switch) is pressed

On

CLUCH SW

The clutch pedal is not depressed.

Off

The clutch pedal is depressed

On

BRAKE SW 1

The brake pedal is not depressed

Off

The brake pedal is depressed

On

BRAKE SW 2

The brake pedal is depressed when No. 9 fuse is blown

Off

The brake pedal is not depressed when No. 9 fuse is blown, or No. 9 fuse
is normal

On

DETE/CANCL SW

Selector lever in P position

Off

Selector lever in any position other than P

On

SFT PN/N SW

Selector lever in any position other than P and N

Off

Selector lever in P or N position

On

S/L -LOCK

NOTE:
The item is indicated, but not monitored.

Off

S/L -UNLOCK

NOTE:
The item is indicated, but not monitored.

Off

S/L RELAY-F/B

NOTE:
The item is indicated, but not monitored.

Off

UNLK SEN -DR

Driver door is locked

Off

Driver door is unlocked

On

PUSH SW -IPDM

Push-button ignition switch (push-switch) is not pressed

Off

Push-button ignition switch (push-switch) is pressed

On

IGN RLY1 -F/B

Ignition switch in OFF or ACC position

Off

Ignition switch in ON position

On

DETE SW -IPDM

Selector lever in any position other than P

Off

Selector lever in P position

On

SFT PN -IPDM

Selector lever in any position other than P and N

Off

Selector lever in P or N position

On

Monitor Item

Condition

Value/Status

PWC-34

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

SFT P -MET

Selector lever in any position other than P

Off

Selector lever in P position

On

SFT N -MET

Selector lever in any position other than N

Off

Selector lever in N position

On

ENGINE STATE

Engine stopped

Stop

While the engine stalls

Stall

At engine cranking

Crank

Engine running

Run

S/L LOCK-IPDM

NOTE:
The item is indicated, but not monitored.

Off

S/L UNLK-IPDM

NOTE:
The item is indicated, but not monitored.

Off

S/L RELAY-REQ

NOTE:
The item is indicated, but not monitored.

Off

VEH SPEED 1

While driving

Equivalent to speed-

ometer reading

VEH SPEED 2

While driving

Equivalent to speed-

ometer reading

DOOR STAT-DR

Driver door is locked

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Driver door is unlocked

UNLOCK

DOOR STAT-AS

Passenger door is locked

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Passenger door is unlocked

UNLOCK

ID OK FLAG

Driver side door is open after ignition switch is turned OFF
(Selector lever is in the P position except for M/T models)

Reset

Ignition switch ON

Set

PRMT ENG STRT

The engine start is prohibited

Reset

The engine start is permitted

Set

PRMT RKE STRT

NOTE:
The item is indicated, but not monitored.

Reset

RKE OPE COUN1

During the operation of the key

Operation frequency

of the key

RKE OPE COUN2

NOTE:
The item is indicated, but not monitored.

CONFRM ID ALL

The key ID that the key slot receives is not recognized by any key ID reg-
istered to BCM.

Yet

The key ID that the key slot receives is recognized by any key ID regis-
tered to BCM.

Done

CONFIRM ID4

The key ID that the key slot receives is not recognized by the fourth key ID
registered to BCM.

Yet

The key ID that the key slot receives is recognized by the fourth key ID reg-
istered to BCM.

Done

CONFIRM ID3

The key ID that the key slot receives is not recognized by the third key ID
registered to BCM.

Yet

The key ID that the key slot receives is recognized by the third key ID reg-
istered to BCM.

Done

Monitor Item

Condition

Value/Status

BCM (BODY CONTROL MODULE)

PWC-35

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

CONFIRM ID2

The key ID that the key slot receives is not recognized by the second key
ID registered to BCM.

Yet

The key ID that the key slot receives is recognized by the second key ID
registered to BCM.

Done

CONFIRM ID1

The key ID that the key slot receives is not recognized by the first key ID
registered to BCM.

Yet

The key ID that the key slot receives is recognized by the first key ID reg-
istered to BCM.

Done

NOT REGISTERED

BCM detects registered key ID, or BCM does not detect key ID.

ID OK

BCM detects non-registration key ID.

ID NG

TP 4

The ID of fourth key is not registered to BCM

Yet

The ID of fourth key is registered to BCM

Done

TP 3

The ID of third key is not registered to BCM

Yet

The ID of third key is registered to BCM

Done

TP 2

The ID of second key is not registered to BCM

Yet

The ID of second key is registered to BCM

Done

TP 1

The ID of first key is not registered to BCM

Yet

The ID of first key is registered to BCM

Done

AIR PRESS FL

Ignition switch ON (Only when the signal from the transmitter is received)

Air pressure of front

LH tire

AIR PRESS FR

Ignition switch ON (Only when the signal from the transmitter is received)

Air pressure of front

RH tire

AIR PRESS RR

Ignition switch ON (Only when the signal from the transmitter is received)

Air pressure of rear

RH tire

AIR PRESS RL

Ignition switch ON (Only when the signal from the transmitter is received)

Air pressure of rear

LH tire

ID REGST FL1

ID of front LH tire transmitter is registered

Done

ID of front LH tire transmitter is not registered

Yet

ID REGST FR1

ID of front RH tire transmitter is registered

Done

ID of front RH tire transmitter is not registered

Yet

ID REGST RR1

ID of rear RH tire transmitter is registered

Done

ID of rear RH tire transmitter is not registered

Yet

ID REGST RL1

ID of rear LH tire transmitter is registered

Done

ID of rear LH tire transmitter is not registered

Yet

WARNING LAMP

Tire pressure indicator OFF

Off

Tire pressure indicator ON

On

BUZZER

Tire pressure warning alarm is not sounding

Off

Tire pressure warning alarm is sounding

On

Monitor Item

Condition

Value/Status

PWC-36

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

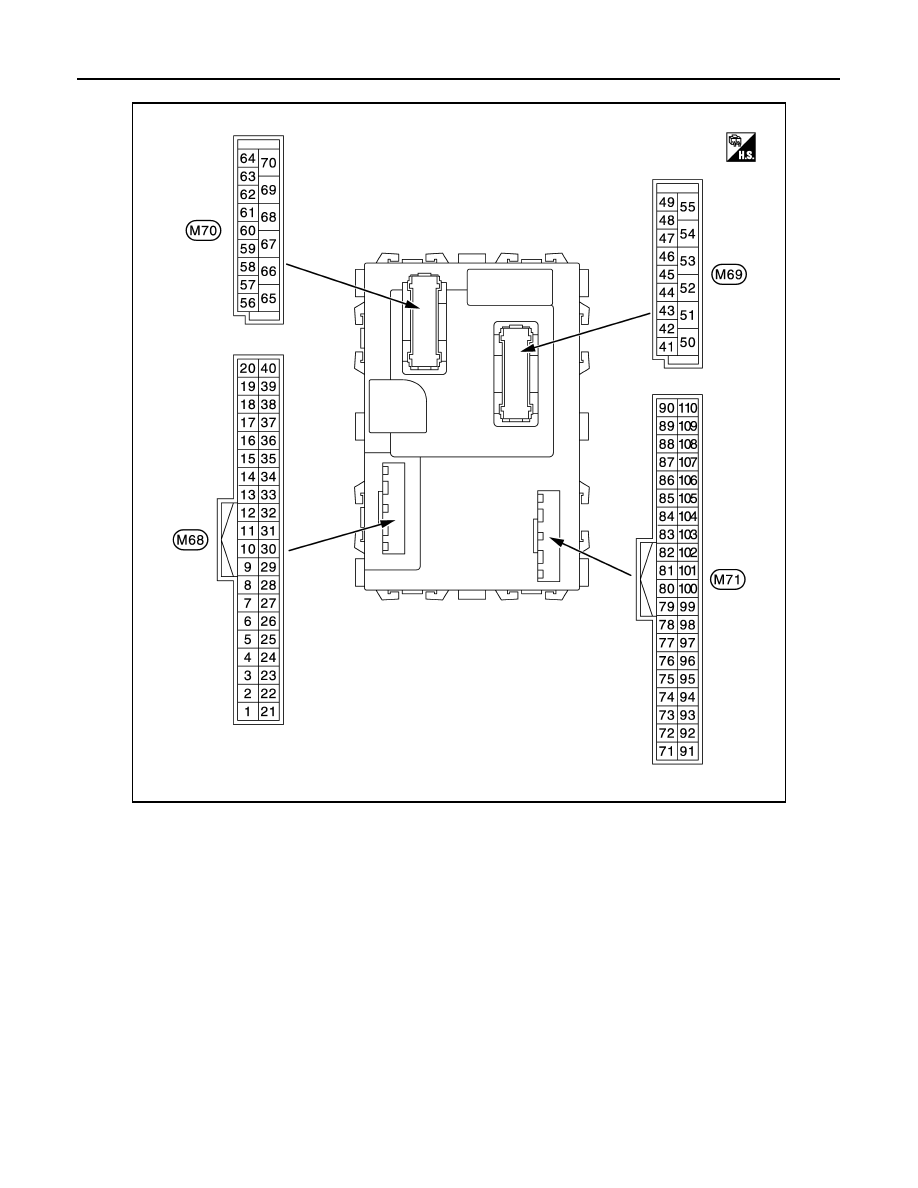

TERMINAL LAYOUT

NOTE:

Connector color

• M68, M70: Black
• M69, M71: White

PHYSICAL VALUES

JPMIA1438ZZ
