REAR LH

REAR LH : Description

INFOID:0000000009950874

Door glass moves UP/DOWN by receiving the signal from power window main switch or rear power window
switch LH.

REAR LH : Component Function Check

INFOID:0000000009950875

1.

CHECK REAR POWER WINDOW MOTOR LH OPERATION

Check rear power window motor LH operation with power window main switch or rear power window switch
LH.

Is the inspection result normal?

YES

>> Rear power window motor LH is OK.

NO

>> Refer to

PWC-25, "REAR LH : Diagnosis Procedure"

REAR LH : Diagnosis Procedure

INFOID:0000000009950876

1.

CHECK REAR POWER WINDOW MOTOR LH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect rear power window motor LH connector.

3.

Turn ignition switch ON.

4.

Check voltage between rear power window motor LH harness connector and ground.

Is the inspection result normal?

YES

>> Replace rear power window motor LH. Refer to

GW-25, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK REAR POWER WINDOW MOTOR LH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect rear power window switch LH connector.

3.

Check continuity between rear power window switch LH harness connector and rear power window motor
LH harness connector.

4.

Check continuity between rear power window switch LH connector and ground.

Is the inspection result normal?

(+)

(–)

Condition

Voltage (V)

(Approx.)

Rear power window motor LH

Connector

Terminal

D67

1

Ground

Rear power win-
dow switch LH

UP

Battery voltage

DOWN

0

2

UP

0

DOWN

Battery voltage

Rear power window switch LH

Rear power window motor LH

Continuity

Connector

Terminal

Connector

Terminal

D63

4

D67

2

Existed

5

1

Rear power window switch LH

Ground

Continuity

Connector

Terminal

D63

4

Not existed

5

PWC-26

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW MOTOR

YES

>> Replace rear power window switch LH. Refer to

PWC-112, "Removal and Installation"

.

NO

>> Repair or replace harness.

REAR RH

REAR RH : Description

INFOID:0000000009950877

Door glass moves UP/DOWN by receiving the signal from power window main switch or rear power window
switch RH.

REAR RH : Component Function Check

INFOID:0000000009950878

1.

 CHECK REAR POWER WINDOW MOTOR RH OPERATION

Check rear power window motor RH operation with power window main switch or rear power window switch
RH.

Is the inspection result normal?

YES

>> Rear power window motor RH is OK.

NO

>> Refer to

PWC-26, "REAR RH : Diagnosis Procedure"

.

REAR RH : Diagnosis Procedure

INFOID:0000000009950879

1.

CHECK REAR POWER WINDOW MOTOR RH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect rear power window motor RH connector.

3.

Turn ignition switch ON.

4.

Check voltage between rear power window motor RH harness connector and ground.

Is the inspection result normal?

YES

>> Replace rear power window motor RH. Refer to

GW-25, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK REAR POWER WINDOW MOTOR RH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect rear power window switch RH connector.

3.

Check continuity between rear power window switch RH harness connector and rear power window motor
RH harness connector.

4.

Check continuity between rear power window switch RH harness connector and ground.

Is the inspection result normal?

(+)

(–)

Condition

Voltage (V)

(Approx.)

Rear power window motor RH

Connector

Terminal

D47

1

Ground

Rear power win-
dow switch RH

UP

Battery voltage

DOWN

0

2

UP

0

DOWN

Battery voltage

Rear power window switch RH

Rear power window motor RH

Continuity

Connector

Terminal

Connector

Terminal

D43

4

D47

2

Existed

5

1

Rear power window switch RH

Ground

Continuity

Connector

Terminal

D43

4

Not existed

5

POWER WINDOW MOTOR

PWC-27

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

YES

>> Replace rear power window switch RH. Refer to

PWC-112, "Removal and Installation"

.

NO

>> Repair or replace harness.

PWC-28

< DTC/CIRCUIT DIAGNOSIS >

ENCODER CIRCUIT

ENCODER CIRCUIT

Description

INFOID:0000000009950880

Detects condition of the front power window motor (driver side) operation and transmits to power window main
switch as pulse signal.

Component Function Check

INFOID:0000000009950881

1.

CHECK ENCODER OPERATION

Check front driver side door glass perform AUTO open/close operation normally when power window main
switch.

Is the inspection result normal?

YES

>> Encoder operation is OK.

NO

>> Refer to

PWC-28, "Diagnosis Procedure"

Diagnosis Procedure

INFOID:0000000009950882

Encoder Circuit Check

1.

CHECK ENCODER OPERATION

1.

Turn ignition switch ON.

2.

Check signal between power window main switch harness connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 2.

2.

CHECK ENCORDER SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect power window main switch connector and front power window motor (driver side) connector.

3.

Check continuity between power window main switch harness connector and front power window motor
(driver side) harness connector.

4.

Check continuity between power window main switch harness connector and ground.

(+)

(–)

Signal

(Reference value)

 Power window main switch

Connector

Terminal

D5

9

Ground

Refer to following signal

13

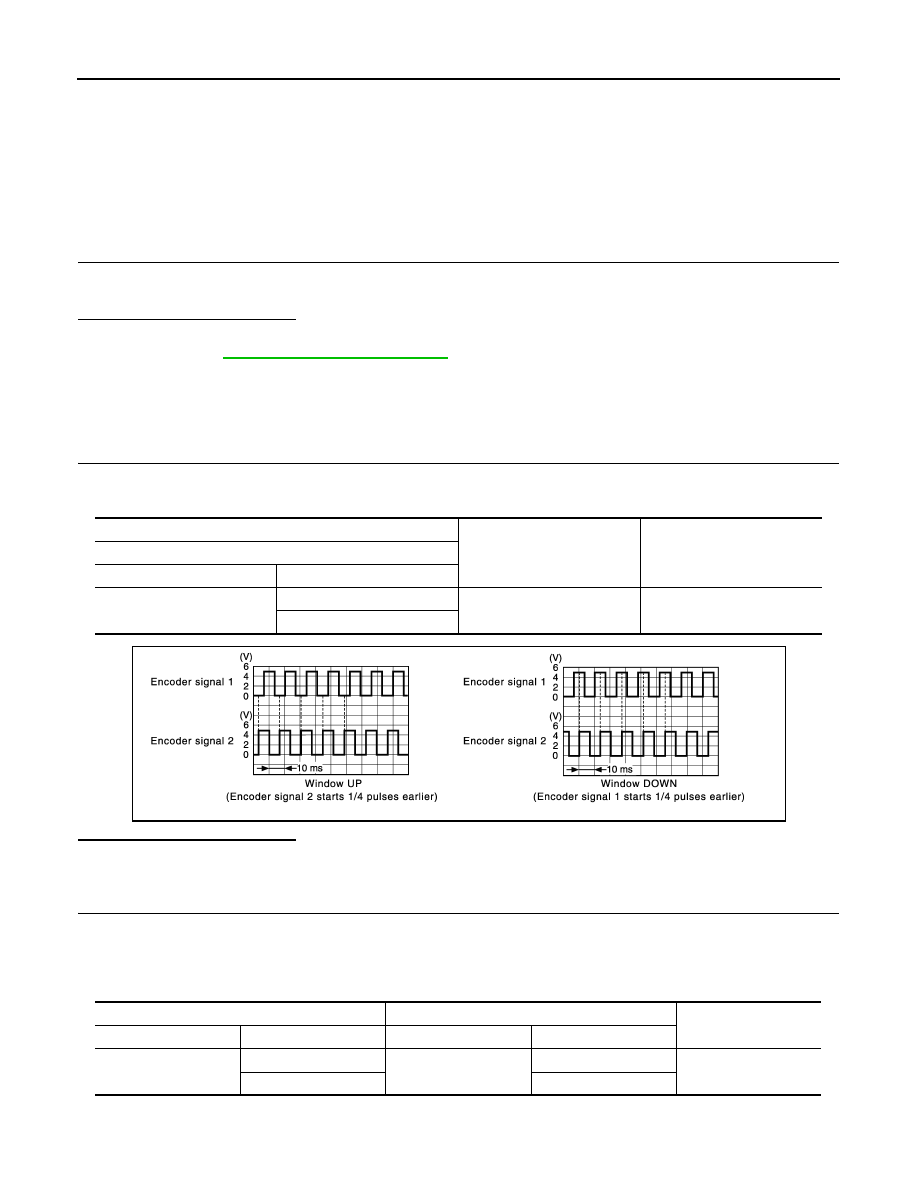

JMKIA5210GB

Power window main switch

Front power window motor (driver side)

Continuity

Connector

Terminal

Connector

Terminal

D5

9

D7

6

Existed

13

5
