PARKING BRAKE SYSTEM

PB-3

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PERIODIC MAINTENANCE

PARKING BRAKE SYSTEM

Inspection and Adjustment

INFOID:0000000009949249

INSPECTION

Lever Stroke

1.

Operate the parking brake lever with a force of 196 N (20 kg, 44 lb). Check that the lever stroke is within
the specified number of notches. (Check it by listening to the clicks of the ratchet.)

2.

When brake warning lamp turns ON, check that the lever stroke is within the specified number of notches.
(Check it by listening to the clicks of the ratchet.)

Inspect Components

• Check each component for installation condition such as looseness.
• Check the parking brake lever assembly for bend, damage and cracks. Replace if necessary.
• Check the cables and equalizer for wear, damage and cracks. Replace if necessary.
• Check the parking brake switch, and replace it if necessary. Refer to

BRC-79, "Component Inspection"

.

ADJUSTMENT

1.

Remove the console mask. Refer to

IP-23, "Exploded View"

.

2.

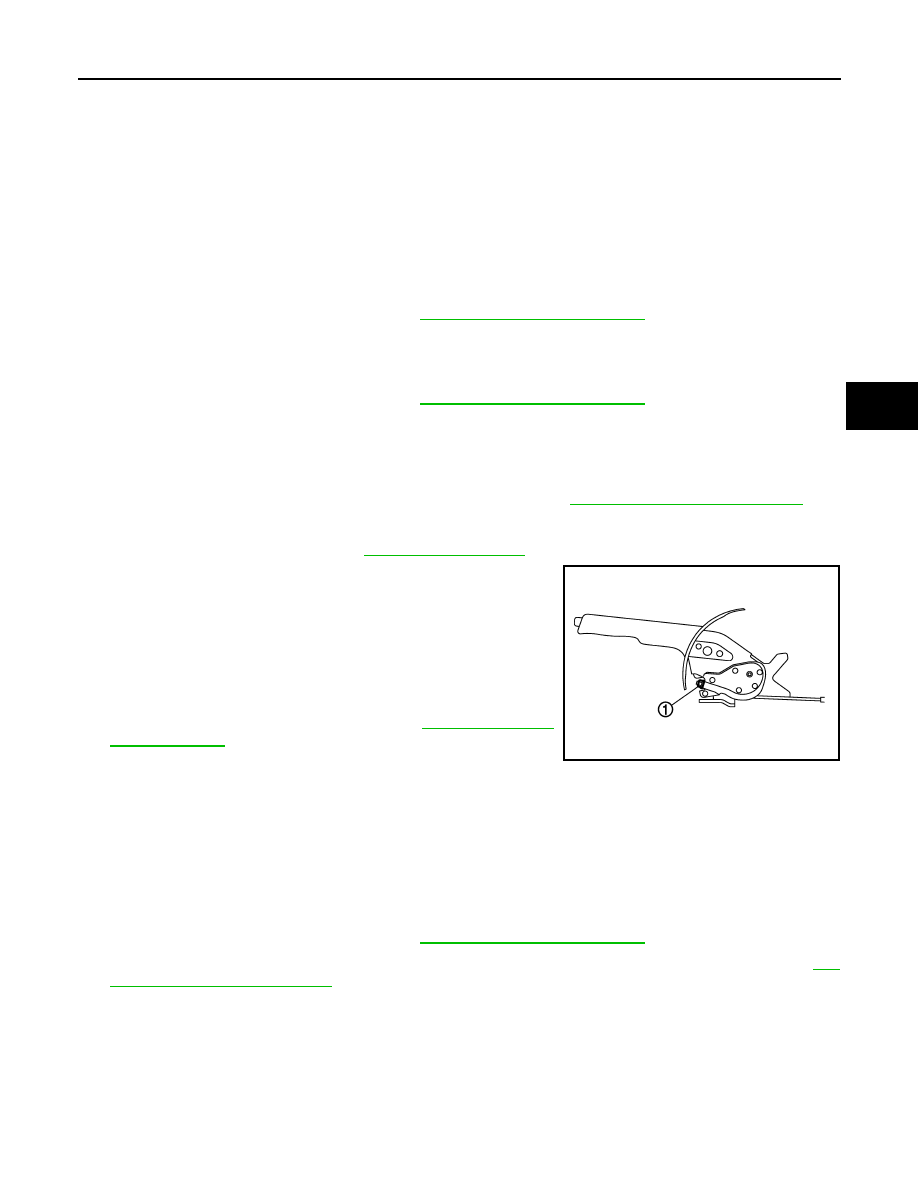

Pull parking brake lever until a socket wrench can be inserted to
adjusting nut (1).

3.

Release the parking brake lever by turning the adjusting nut with
a socket wrench and loosening the cable.

4.

Depress the brake pedal with a force of 196 N (20 kg, 44 lb)
about 10 times and adjust the brake shoe clearance.

CAUTION:

Make sure to securely depress the brake pedal.

5.

Check a drag of rear drum brake. Refer to

BR-41, "Inspection

and Adjustment"

.

6.

Adjust the cable with the following procedure.

a.

When replace parking brake cable, operate the parking brake lever with a force of 490 N (50 kg, 110 lb) for
10 strokes or more.

b.

Adjust the parking brake lever stroke by turning the adjusting nut with a deep socket wrench.

CAUTION:

Never reuse the adjusting nut if the nut is removed.

c.

Operate the parking brake lever with a force of 196 N (20 kg, 44lb). Check that the lever stroke is within
the specified number of notches. (Check it by listening to the clicks of the ratchet.)

d.

Rotate the brake drum with the parking brake lever released and check that there is no drag. Refer to

BR-

41, "Inspection and Adjustment"

.

Number of notches

: Refer to

PB-6, "Parking Brake Control"

.

Number of notches

: Refer to

PB-6, "Parking Brake Control"

.

Number of notches

: Refer to

PB-6, "Parking Brake Control"

.

JPFIB0049ZZ

PB-4

< REMOVAL AND INSTALLATION >

PARKING BRAKE CONTROL

REMOVAL AND INSTALLATION

PARKING BRAKE CONTROL

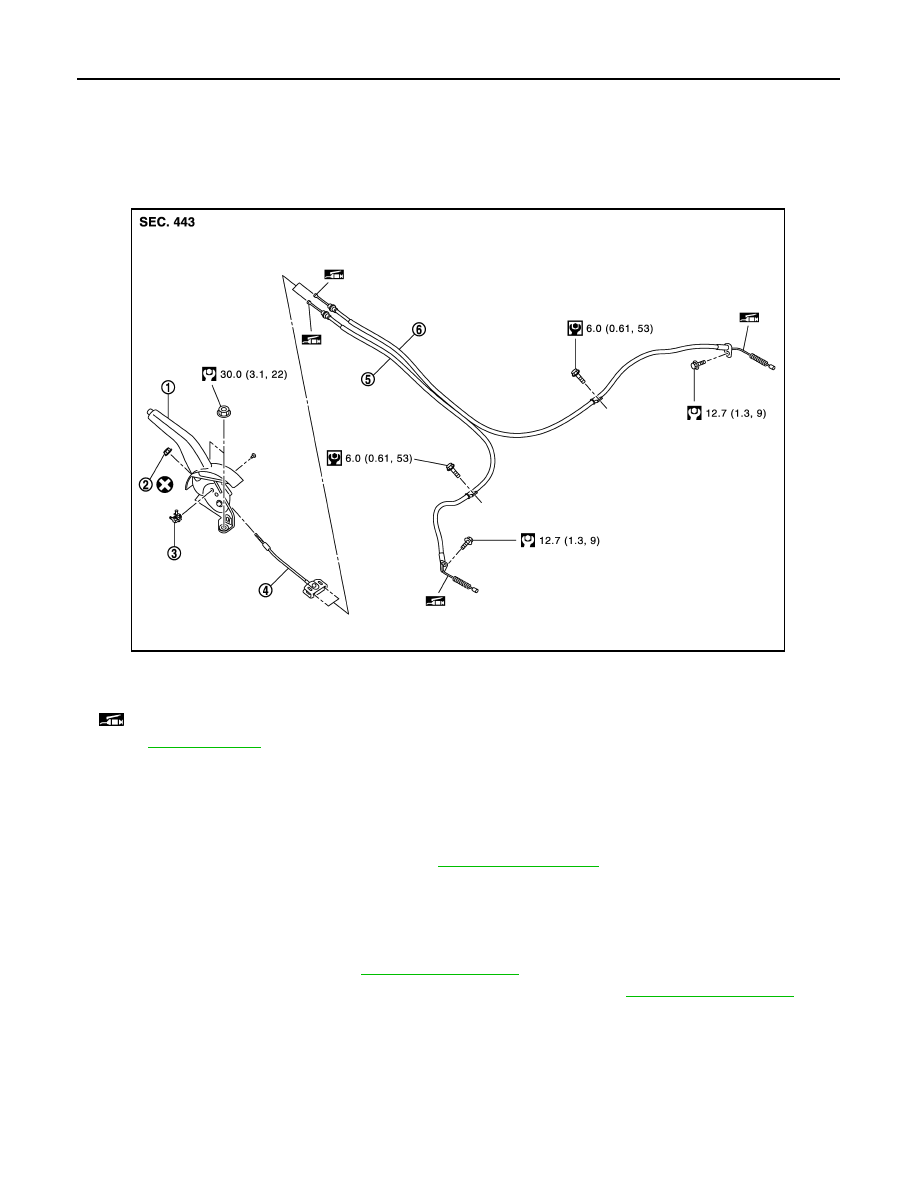

Exploded View

INFOID:0000000009949250

Removal and Installation

INFOID:0000000009949251

REMOVAL

1.

Remove rear tires with power tool.

2.

Remove the center console assembly. Refer to

IP-23, "Exploded View"

.

3.

Disconnect the parking brake switch harness connector.

4.

Remove adjusting nut and loosen front cable.

5.

Remove the parking brake lever assembly.

6.

Separate front cable from rear cable, and remove front cable.

7.

Remove the center muffler. Refer to

EX-5, "Exploded View"

.

8.

Remove brake shoe, and remove rear cable from operating lever. Refer to

BR-39, "Exploded View"

.

9.

Remove rear cable mounting bolts, pull out rear cable from vehicle.

INSTALLATION

Note the following, install in the reverse order of the removal.
• Never reuse adjusting nut.

1.

Parking brake lever assembly

2.

Adjusting nut

3.

Parking brake switch

4.

Front cable

5.

Rear cable (LH)

6.

Rear cable (RH)

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIB0070GB

PARKING BRAKE CONTROL

PB-5

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

Adjustment

INFOID:0000000009949252

ADJUSTMENT AFTER INSTALLATION

Adjust the parking brake lever stroke. Refer to

PB-3, "Inspection and Adjustment"

.

PB-6

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Parking Brake Control

INFOID:0000000009949253

Item

Standard

Number of notches [under force of 196 N (20 kg, 44 lb)]

10

−

 11 notches

Number of notches when brake warning lamp turns ON

1 notch
