< SYMPTOM DIAGNOSIS >

THE OIL PRESSURE WARNING LAMP DOES NOT TURN OFF

THE OIL PRESSURE WARNING LAMP DOES NOT TURN OFF

Description

INFOID:0000000009945739

The oil pressure warning lamp remains illuminated while the engine is running (normal oil pressure).

Diagnosis Procedure

INFOID:0000000009945740

1.

CHECK OIL PRESSURE WARNING LAMP

Perform auto active test. Refer to

PCS-10, "Diagnosis Description"

 (With I-KEY) or

PCS-41, "Diagnosis

Description"

 (Without I-KEY).

Is oil pressure warning lamp blinking?

YES

>> GO TO 2.

NO

>> GO TO 5.

2.

CHECK IPDM E/R OUTPUT VOLTAGE

1.

Turn ignition switch OFF.

2.

Disconnect the oil pressure switch connector.

3.

Turn ignition switch ON.

4.

Check voltage between the oil pressure switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK OIL PRESSURE SWITCH

Perform a unit check for the oil pressure switch. Refer to

MWI-45, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-34, "Removal and Installation"

 (With I-KEY) or

PCS-64,

"Removal and Installation"

 (Without I-KEY).

NO

>> Replace oil pressure switch.

4.

CHECK OIL PRESSURE SWITCH SIGNAL CIRCUIT

Check the oil pressure switch signal circuit. Refer to

MWI-45, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair harness or connector.

5.

CHECK COMBINATION METER INPUT SIGNAL

Connect CONSULT and perform an input signal check for the combination meter. Refer to

MWI-45, "Compo-

nent Function Check"

.

Is the inspection result normal?

YES

>> Replace combination meter.

NO

>> Replace IPDM E/R. Refer to

PCS-34, "Removal and Installation"

 (With I-KEY) or

PCS-64,

"Removal and Installation"

 (Without I-KEY).

Terminals

Voltage

(Approx.)

(+)

(

−

)

Oil pressure switch

Ground

Connector

Terminal

F63

1

12 V

MWI

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

MWI-89

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

Description

INFOID:0000000009945741

• The displayed ambient air temperature is higher than the actual temperature.
• The displayed ambient air temperature is lower than the actual temperature.
• Ambient air temperature is not indicated.

Diagnosis Procedure

INFOID:0000000009945742

NOTE:
Check that the symptom is not applicable to the normal operating condition before starting diagnosis. Refer to

MWI-90, "INFORMATION DISPLAY : Description"

.

1.

CHECK AMBIENT SENSOR SIGNAL CIRCUIT

Check the ambient sensor signal circuit. Refer to

HAC-33, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK A/C AUTO AMP. CONNECTION RECOGNITION SIGNAL CIRCUIT

Check the A/C auto amp. connection recognition signal circuit. Refer to

MWI-47, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK AMBIENT SENSOR

Perform the part check for the ambient sensor. Refer to

HAC-34, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-93, "Removal and Installation"

.

NO

>> Replace ambient sensor. Refer to

HAC-123, "Removal and Installation"

.

MWI-90

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

INFORMATION DISPLAY

INFORMATION DISPLAY : Description

INFOID:0000000009945745

AMBIENT AIR TEMPERATURE

The displayed ambient air temperature on the information display may differ from the actual temperature
because it is a corrected value calculated from the ambient sensor signal by the combination meter. Refer to

MWI-24, "INFORMATION DISPLAY : System Description"

 for details on the correction process.

POSSIBLE DRIVING DISTANCE

The calculated possible driving distance may differ from the actual distance to empty if the refueling amount is
approximately 15   (4 US gal, 3-1/4 Imp gal) or less. This is because the refuel control (moves the fuel gauge
needle quicker than normal judging that the driver is refueling the vehicle) is not performing.

MWI

PRECAUTIONS

MWI-91

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009945746

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

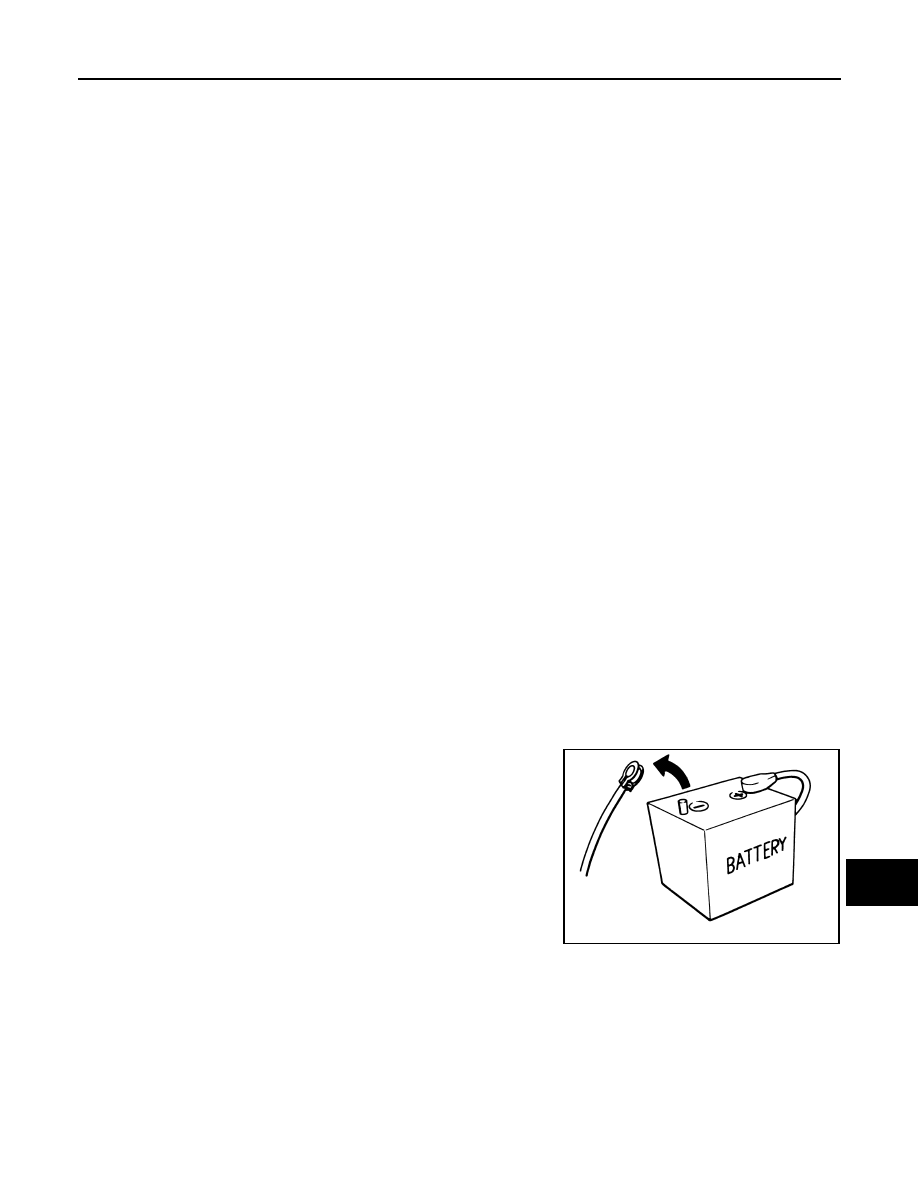

Precautions for Removing of Battery Terminal

INFOID:0000000010244947

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H
