MWI-92

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

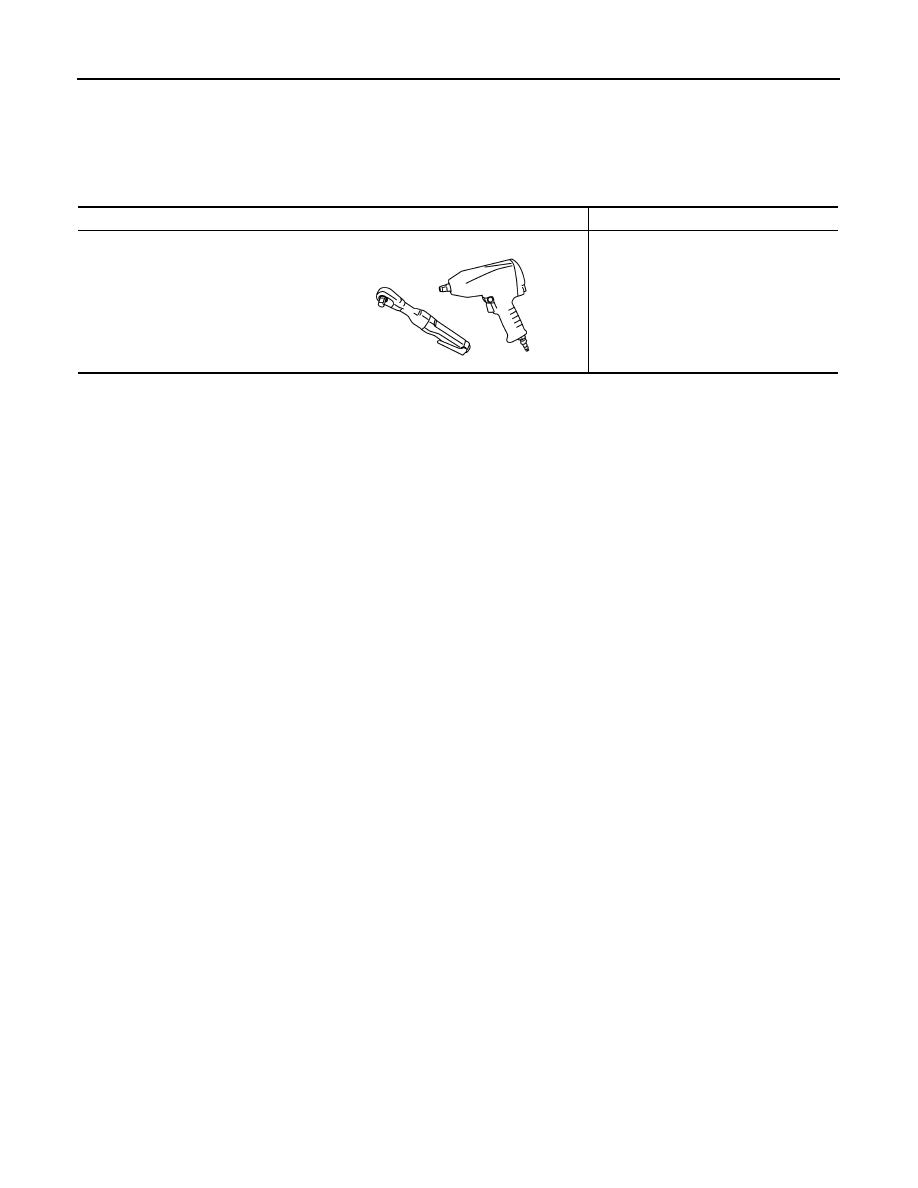

Commercial Service Tools

INFOID:0000000009945747

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0191E

MWI

COMBINATION METER

MWI-93

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

COMBINATION METER

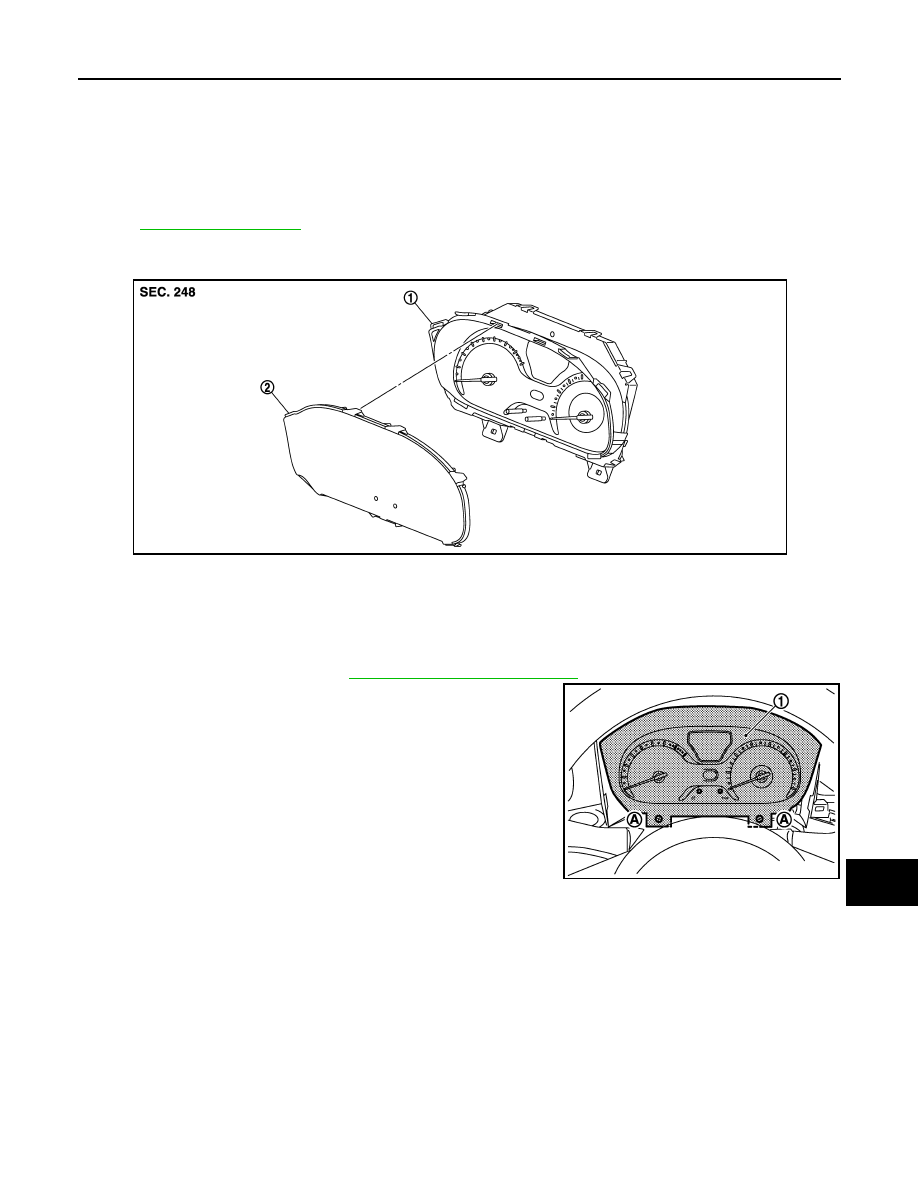

Exploded View

INFOID:0000000009945748

REMOVAL

Refer to

IP-13, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009945749

REMOVAL

1.

Remove the cluster lid A. Refer to

IP-14, "Removal and Installation"

.

2.

Remove screws (A) and connector, and then remove combina-
tion meter (1).

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000009945750

DISASSEMBLY

Disengage the tabs to separate front cover.

ASSEMBLY

Assemble in the reverse order of disassembly.

1.

Unified meter control unit

2.

Front cover

JPNIA1547ZZ

JPNIA1664ZZ

PB-2

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tool

INFOID:0000000009949248

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E
