MWI-8

< SYSTEM DESCRIPTION >

METER SYSTEM

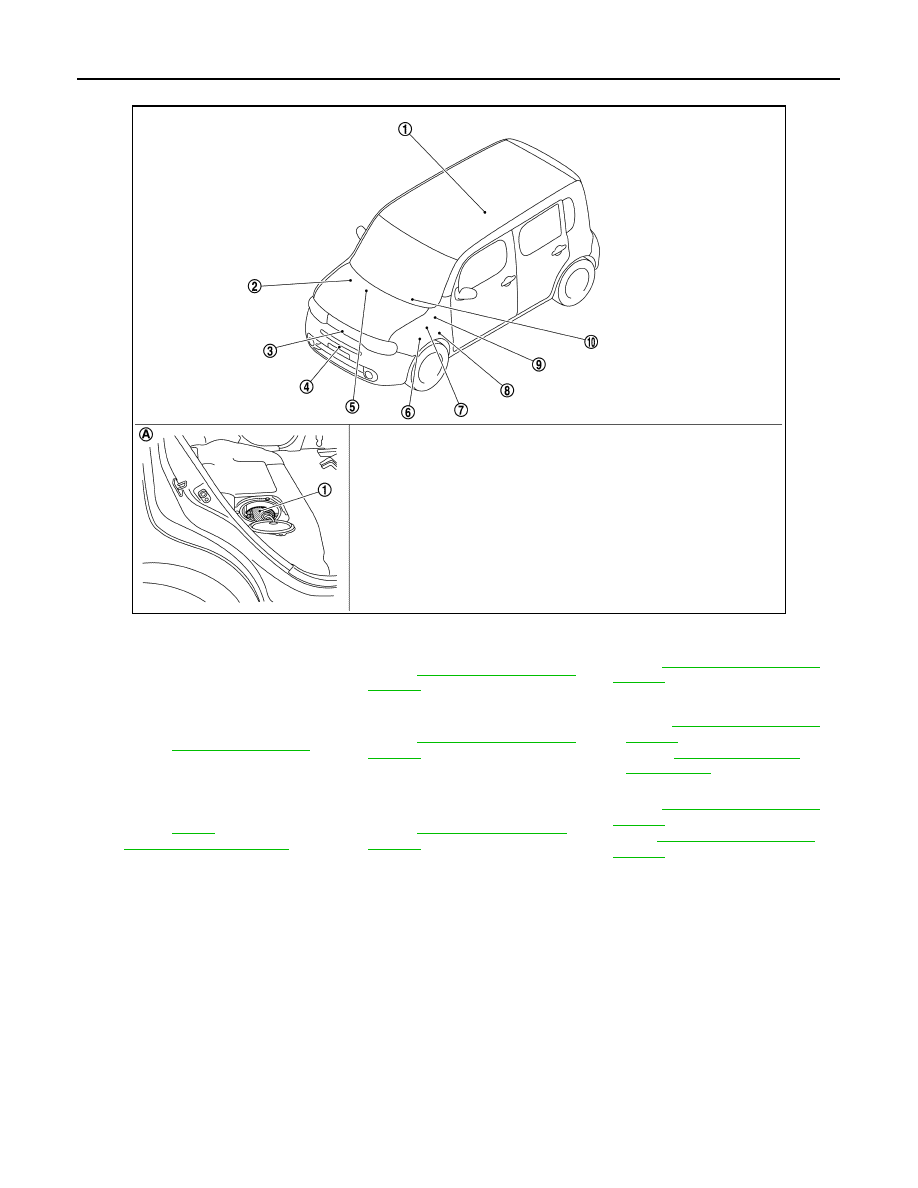

METER SYSTEM : Component Parts Location

INFOID:0000000009945648

JSNIA6649ZZ

1.

Fuel level sensor unit

2.

ABS actuator and electric unit (con-
trol unit)
Refer to

BRC-12, "Component Parts

Location"

.

3.

Ambient sensor
Refer to

HAC-24, "Component Parts

Location"

.

4.

Oil pressure switch
Refer to

EM-86, "Exploded View"

.

5.

A/C auto amp. (auto A/C models)
Refer to

HAC-24, "Component Parts

Location"

.

6.

IPDM E/R
• Refer  to

PCS-5, "Component Parts

Location"

 (with I-KEY).

• Refer to

PCS-36, "Component

Parts Location"

 (without I-KEY).

7.

ECM
Refer to

EC-36,

"Component Parts Location"

.

8.

TCM
Refer to

TM-71, "Component Parts

Location"

.

9.

BCM
Refer to

BCS-10, "Component Parts

Location"

 (With intelligent key sys-

tem) or

BCS-95, "Component Parts

Location"

 (Without intelligent key sys-

tem).

10. Combination meter

A.

Under of right side rear seat

MWI

METER SYSTEM

MWI-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

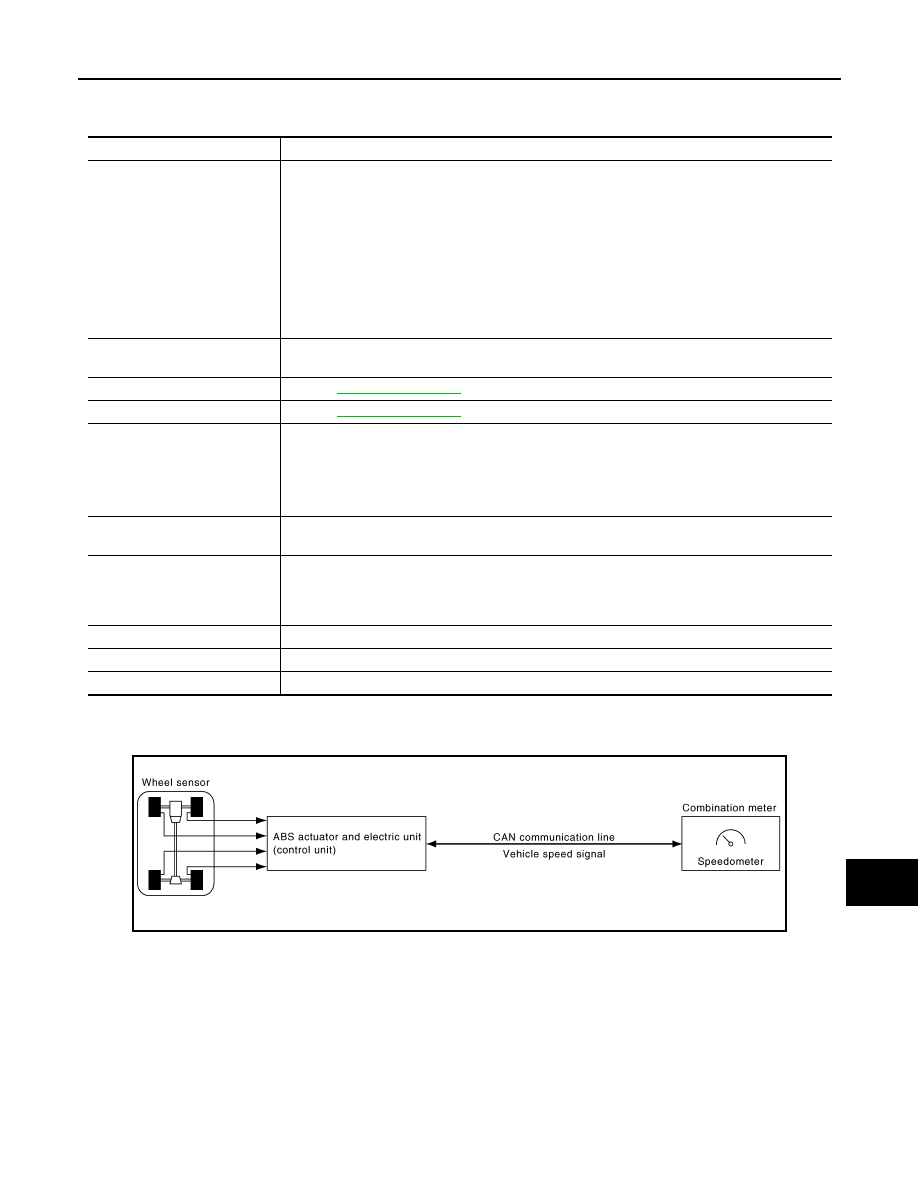

METER SYSTEM : Component Description

INFOID:0000000009945649

SPEEDOMETER

SPEEDOMETER : System Diagram

INFOID:0000000009945650

SPEEDOMETER : System Description

INFOID:0000000009945651

• The ABS actuator and electric unit (control unit) converts the rectangular wave signal provided by the wheel

sensor to a vehicle speed signal and transmits it to the combination meter via CAN communication.

• The combination meter indicates the vehicle speed to the speedometer according to the vehicle speed sig-

nal received via CAN communication.

Unit

Description

Combination meter

Controls the following with the signals received from each unit via CAN communication and the
signals from switches and sensors.

• Speedometer

• Tachometer

• Engine coolant temperature gauge

• Fuel gauge

• Warning lamps

• Indicator lamps

• Information display

• Meter illumination control

• Shift position indicator

• Odo/trip meter

• Meter effect function

IPDM E/R

IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure
switch signal to the combination meter via BCM via CAN communication.

Fuel level sensor unit

Refer to

MWI-42, "Description"

.

Oil pressure switch

Refer to

MWI-45, "Description"

.

ECM

Transmits the following signals to the combination meter via CAN communication.

• Engine speed signal

• Engine coolant temperature signal

• Fuel consumption monitor signal

• Engine status signal

• Fuel filler cap warning display signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

BCM

Transmits the following signals to the combination meter via CAN communication.

• Oil pressure switch signal

• Position light request signal

• Low tire pressure warning lamp signal

TCM

Transmits the shift position signal to the combination meter via CAN communication.

Ambient sensor

Transmits the ambient sensor signal to the combination meter.

A/C auto amp.

Transmits the A/C auto amp. connection recognition signal to the combination meter.

JSNIA0289GB

MWI-10

< SYSTEM DESCRIPTION >

METER SYSTEM

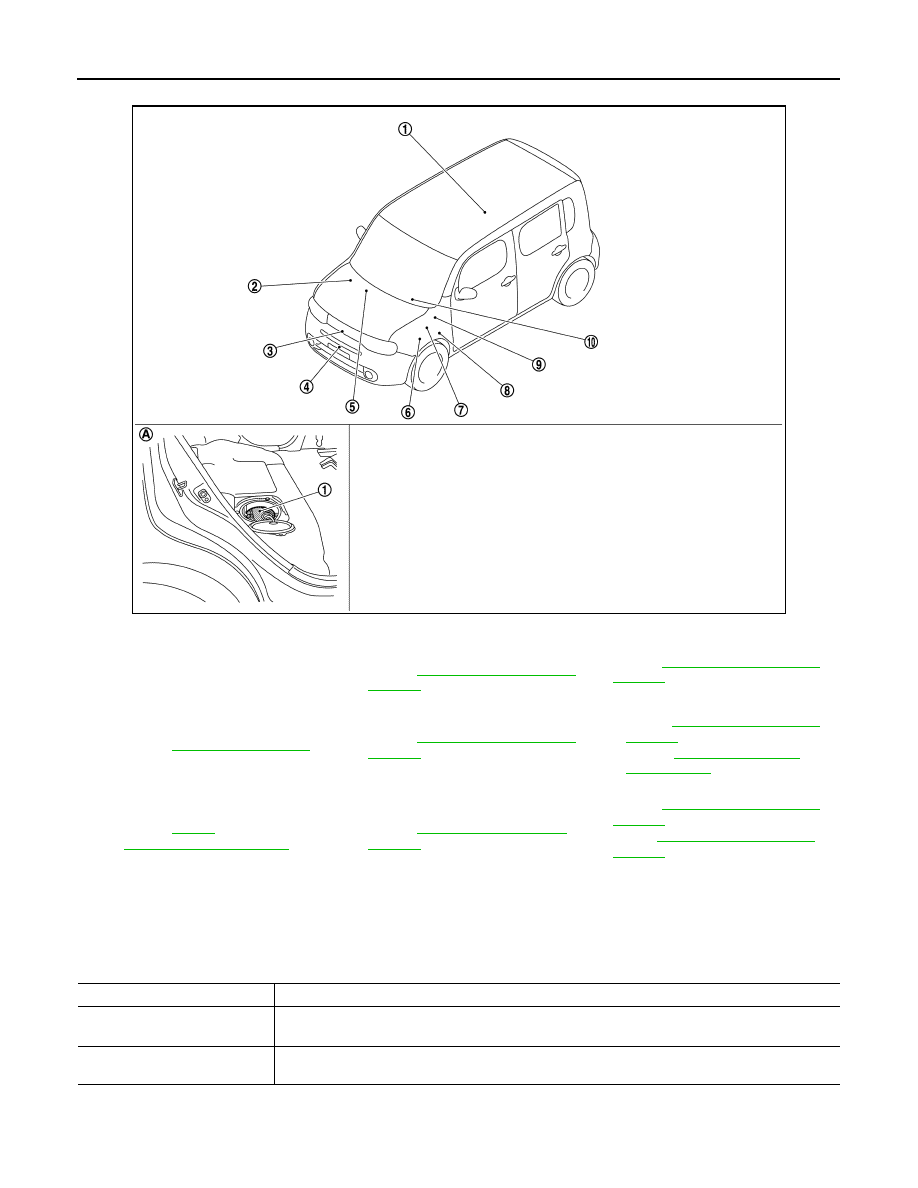

SPEEDOMETER : Component Parts Location

INFOID:0000000010235261

SPEEDOMETER : Component Description

INFOID:0000000009945653

TACHOMETER

JSNIA6649ZZ

1.

Fuel level sensor unit

2.

ABS actuator and electric unit (con-
trol unit)
Refer to

BRC-12, "Component Parts

Location"

.

3.

Ambient sensor
Refer to

HAC-24, "Component Parts

Location"

.

4.

Oil pressure switch
Refer to

EM-86, "Exploded View"

.

5.

A/C auto amp. (auto A/C models)
Refer to

HAC-24, "Component Parts

Location"

.

6.

IPDM E/R
• Refer  to

PCS-5, "Component Parts

Location"

 (with I-KEY).

• Refer to

PCS-36, "Component

Parts Location"

 (without I-KEY).

7.

ECM
Refer to

EC-36,

"Component Parts Location"

.

8.

TCM
Refer to

TM-71, "Component Parts

Location"

.

9.

BCM
Refer to

BCS-10, "Component Parts

Location"

 (With intelligent key sys-

tem) or

BCS-95, "Component Parts

Location"

 (Without intelligent key sys-

tem).

10. Combination meter

A.

Under of right side rear seat

Unit

Description

Combination meter

Indicates the vehicle speed to the speedometer according to the vehicle speed signal received from
ABS actuator and electric unit (control unit) via CAN communication.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

MWI

METER SYSTEM

MWI-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

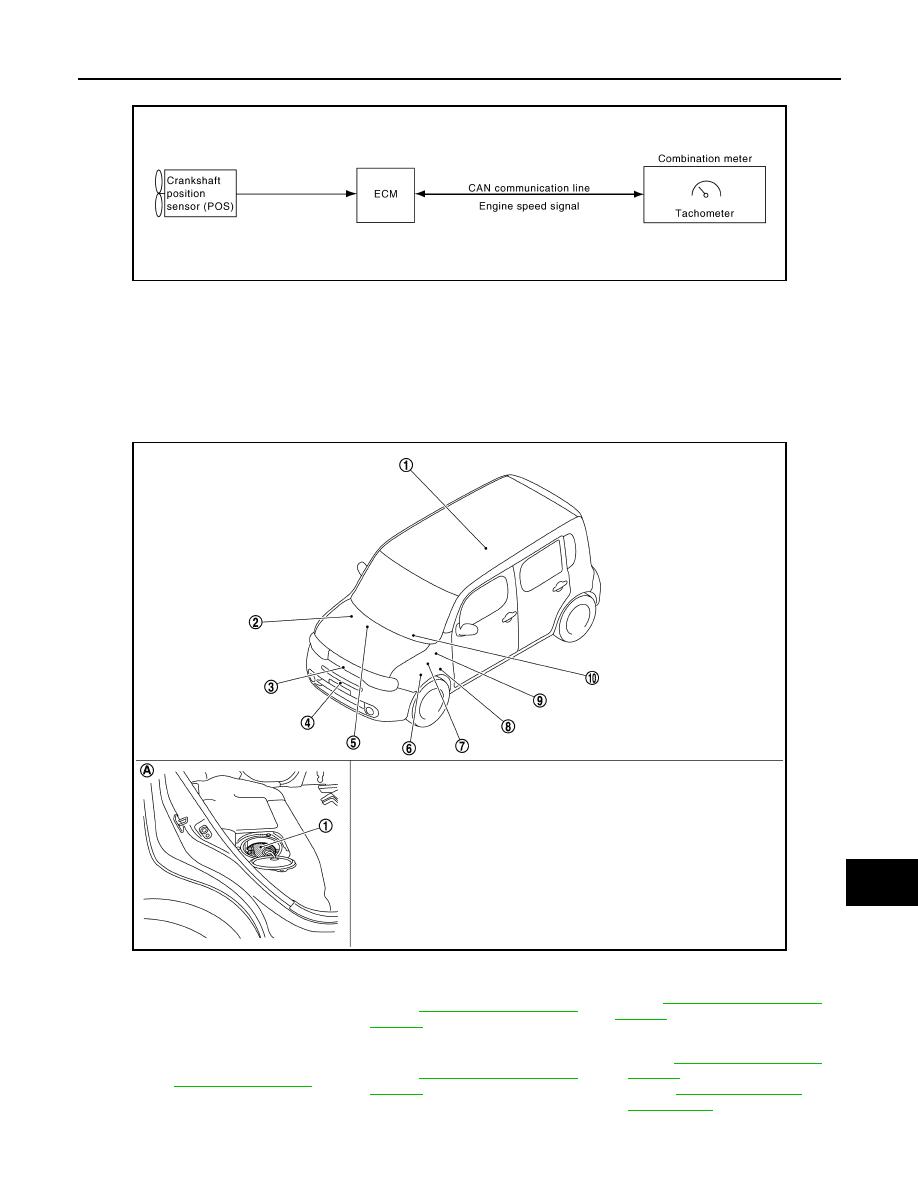

TACHOMETER : System Diagram

INFOID:0000000009945654

TACHOMETER : System Description

INFOID:0000000009945655

• ECM converts the pulse signal provided by the crankshaft position sensor to an engine speed signal and

transmits it to the combination meter via CAN communication.

• The combination meter indicates the engine speed to the tachometer according to the engine speed signal

received via CAN communication.

TACHOMETER : Component Parts Location

INFOID:0000000010235263

JSNIA0290GB

JSNIA6649ZZ

1.

Fuel level sensor unit

2.

ABS actuator and electric unit (con-
trol unit)
Refer to

BRC-12, "Component Parts

Location"

.

3.

Ambient sensor
Refer to

HAC-24, "Component Parts

Location"

.

4.

Oil pressure switch
Refer to

EM-86, "Exploded View"

.

5.

A/C auto amp. (auto A/C models)
Refer to

HAC-24, "Component Parts

Location"

.

6.

IPDM E/R
• Refer  to

PCS-5, "Component Parts

Location"

 (with I-KEY).

• Refer  to

PCS-36, "Component

Parts Location"

 (without I-KEY).
