DOOR MIRROR

MIR-3

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Wiring Diagram - MIRROR SYSTEM -

INFOID:0000000009946001

JCLWM3482GB

MIR-4

< DTC/CIRCUIT DIAGNOSIS >

DOOR MIRROR

Component Inspection

INFOID:0000000009946002

1.

CHECK DOOR MIRROR REMOTE CONTROL SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect door mirror remote control switch connector.

3.

Check door mirror remote control switch.

JRLWD0801GB

DOOR MIRROR

MIR-5

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

[Door mirror (driver side)]

[Door mirror (passenger side)]

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace door mirror remote control switch. Refer to

MIR-19, "Removal and Installation"

.

Door mirror remote control switch

Mirror switch condition

Continuity

Connector

Terminal

M7

13

6

RIGHT

Existed

12

5

13

5

LEFT

12

6

13

2

UP

12

6

13

6

DOWN

12

2

Door mirror remote control switch

Mirror switch condition

Continuity

Connector

Terminal

M7

13

7

RIGHT

Existed

12

4

13

4

LEFT

12

7

13

3

UP

12

7

13

7

DOWN

12

3

MIR-6

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SYMPTOM DIAGNOSIS

SQUEAK AND RATTLE TROUBLE DIAGNOSES

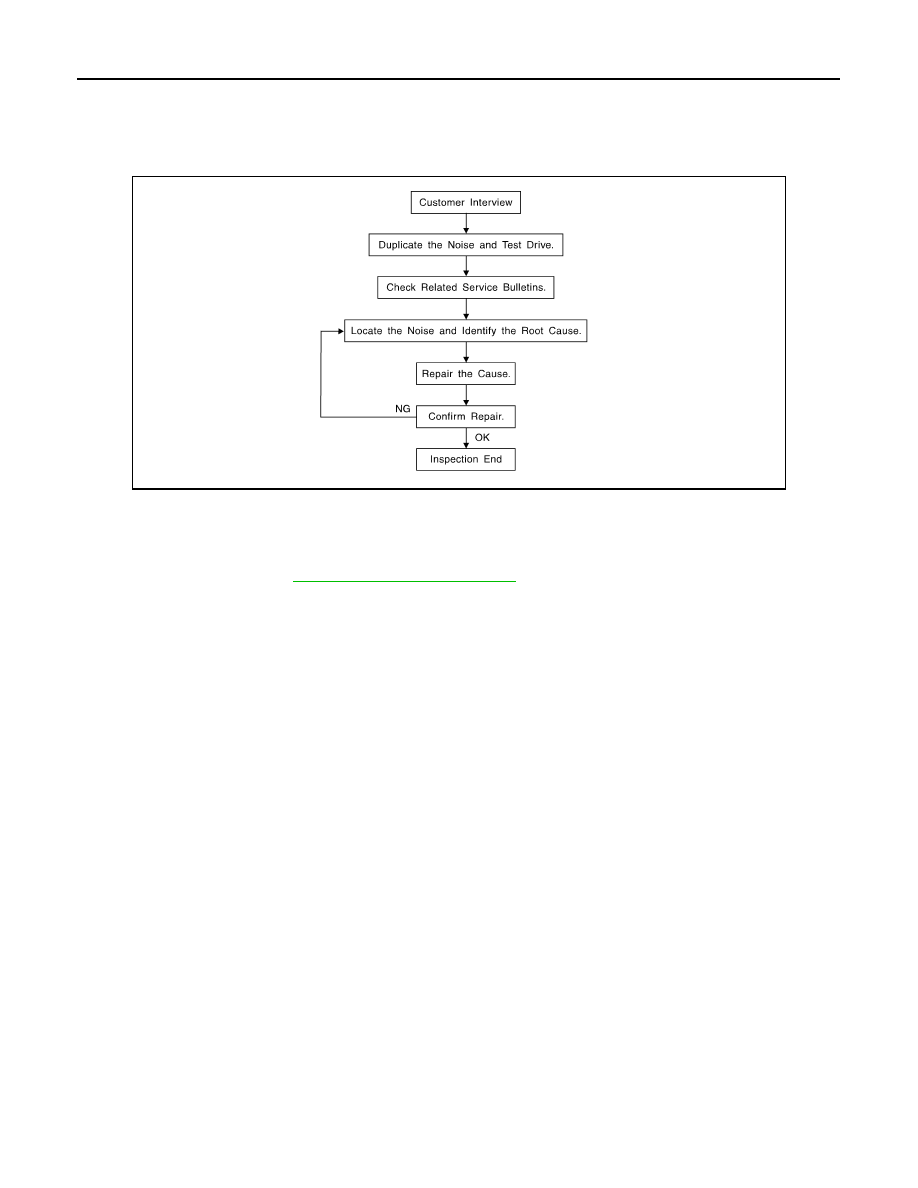

Work Flow

INFOID:0000000009946003

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any of
customer's comments; refer to

MIR-10, "Diagnostic Worksheet"

. This information is necessary to duplicate the

conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, perform a diagnosis and repair the noise that the customer is

concerned about. This can be accomplished by performing a cruise test on the vehicle with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

• Rattle – (Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

• Knock – (Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick – (Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz – (Like a bumblebee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending up on the person. A noise that a technician

may judge as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

SBT842
