PREPARATION

MA-3

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

PREPARATION

PREPARATION

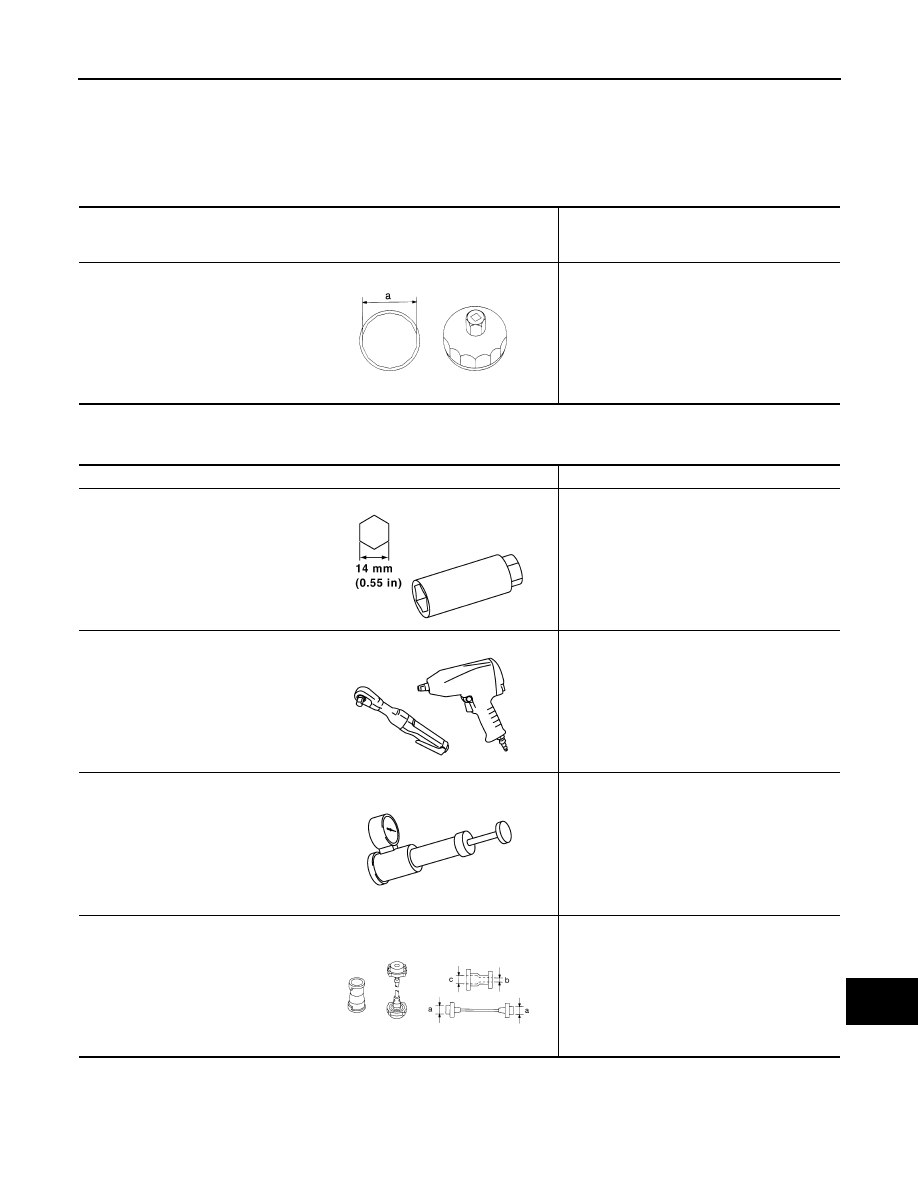

Special Service Tool

INFOID:0000000009949409

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009949410

Tool number
(Kent-Moore No.)
Tool name

Description

KV10115801
(J-38956)
Oil filter wrench

Removing and installing oil filter
a: 64.3 mm (2.531 in)

S-NT375

Tool name

Description

Spark plug wrench

Removing and installing spark plug

Power tool

Loosening nuts and bolts

Radiator cap tester

Checking radiator and radiator cap

Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

PBIC2982E

PBIC0190E

PBIC1982E

S-NT564

MA-4

< PERIODIC MAINTENANCE >

GENERAL MAINTENANCE

PERIODIC MAINTENANCE

GENERAL MAINTENANCE

Explanation of General Maintenance

INFOID:0000000009949411

General maintenance includes those items which should be checked during the normal day-to-day operation
of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can perform the
checks and inspections themselves or have their NISSAN dealers do them.

OUTSIDE THE VEHICLE

The maintenance items listed here should be performed from time to time, unless otherwise specified.

INSIDE THE VEHICLE

The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the vehicle,
etc.

Item

Reference page

Tires

Check the pressure with a gauge often and always prior to long distance trips.
Adjust the pressure in all tires, including the spare, to the pressure specified.
Check carefully for damage, cuts or excessive wear.

WT-54

Wheel nuts

When checking the tires, make sure no nuts are missing, and check for any loose
nuts. Tighten if necessary.

Tire rotation

Tires should be rotated every 5,000 miles (8,000 km).

MA-23

Tire Pressure Monitoring
System (TPMS) transmit-
ter components

Replace the TPMS transmitter grommet seal, valve core and cap when the tires
are replaced due to wear or age.

WT-48
WT-51

Wheel alignment and bal-
ance

If the vehicle should pull to either side while driving on a straight and level road,
or if you detect uneven or abnormal tire wear, there may be a need for wheel
alignment. If the steering wheel or seat vibrates at normal highway speeds,
wheel balancing may be needed.

FSU-7

RSU-6
MA-23

Windshield

Clean the windshield on a regular basis. Check the windshield at least every six
months for cracks or other damage. Repair as necessary.

Windshield wiper blades

Check for cracks or wear if they do not wipe properly.

Doors and engine hood

Check that all doors and the engine hood operate smoothly as well as the back
door, trunk lid and glass hatch. Also make sure that all latches lock securely. Lu-
bricate if necessary. Make sure that the secondary latch keeps the hood from
opening when the primary latch is released.
When driving in areas using road salt or other corrosive materials, check lubrica-
tion frequently.

MA-29

Lamps

Make sure that the headlamps, stop lamps, tail lamps, turn signal lamps, and oth-
er lamps are all operating properly and installed securely. Also check headlamp
aim. Clean the headlamps on a regular basis.

Item

Reference page

Warning lamps and
chimes

Make sure that all warning lamps and chimes are operating properly.

Windshield wiper and
washer

Check that the wipers and washer operate properly and that the wipers do not
streak.

Windshield defroster

Check that the air comes out of the defroster outlets properly and in sufficient
quantity when operating the heater or air conditioner.

Steering wheel

Check that it has the specified play. Check for changes in the steering condition,
such as excessive play, hard steering or strange noises.
 Free play: Less than 35 mm (1.38 in)

Seats

Check seat position controls such as seat adjusters, seatback recliner, etc. to
make sure they operate smoothly and that all latches lock securely in every posi-
tion. Check that the head restrains move up and down smoothly and that the locks
(if equipped) hold securely in all latched positions. Check that the latches lock se-
curely for folding-down rear seatbacks.

GENERAL MAINTENANCE

MA-5

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

UNDER THE HOOD AND VEHICLE

The maintenance items listed here should be checked periodically (e.g. each time you check the engine oil or refuel).

Seat belts

Check that all parts of the seat belt system (e.g. buckles, anchors, adjusters and
retractors) operate properly and smoothly and are installed securely. Check the
belt webbing for cuts, fraying, wear or damage.

MA-29

Accelerator pedal

Check the pedal for smooth operation and make sure the pedal does not catch or
require uneven effort. Keep the floor mats away from the pedal.

Brakes

Check that the brake does not pull the vehicle to one side when applied.

Brake pedal and booster

Check the pedal for smooth operation and make sure it has the proper distance
under it when depressed fully. Check the brake booster function. Be sure to keep
the floor mats away from the pedal.

BR-7

BR-13

Clutch pedal

Make sure the pedal operates smoothly and check that it has the proper free play.

CL-6

Parking brake

Check that the lever or the pedal has the proper travel and make sure that the ve-
hicle is held securely on a fairly steep hill when only the parking brake is applied.

PB-3

CVT P (Park) position
mechanism

On a fairly steep hill check that the vehicle is held securely with the selector lever
in the P (Park) position without applying any brakes.

Item

Reference page

Item

Reference page

Windshield washer fluid

Check that there is adequate fluid in the tank.

Engine coolant level

Check the coolant level when the engine is cold.

CO-8

Radiator and hoses

Check the front of the radiator and clean off any dirt, insects, leaves, etc., that
may have accumulated. Make sure the hoses have no cracks, deformation, de-
terioration or loose connections.

Brake and clutch fluid
levels

Make sure that the brake and clutch fluid levels are between the “MAX” and “MIN”
lines on the reservoir.

MA-25

MA-22

Battery

Check the fluid level in each cell. It should be between the “MAX” and “MIN” lines.
Vehicles operated in high temperatures or under severe conditions require fre-
quent checks of the battery fluid level.

PG-3

Engine drive belt

Make sure that no belt is frayed, worn, cracked or oily.

MA-12

Engine oil level

Check the level on the oil level gauge after parking the vehicle on a level spot and
turning off the engine.

LU-8

Exhaust system

Make sure there are no loose supports, cracks or holes. If the sound of the ex-
haust seems unusual or there is a smell of exhaust fumes, immediately locate
the trouble and correct it.

MA-20

Underbody

The underbody is frequently exposed to corrosive substances such as those
used on icy roads or to control dust. It is very important to remove these sub-
stances, otherwise rust will form on the floor pan, frame, fuel lines and around the
exhaust system. At the end of winter, the underbody should be thoroughly
flushed with plain water, being careful to clean those areas where mud and dirt
can easily accumulate.

Fluid leaks

Check under the vehicle for fuel, oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping from the air conditioner after use is
normal. If you should notice any leaks or gasoline fumes are evident, check for
the cause and correct it immediately.
