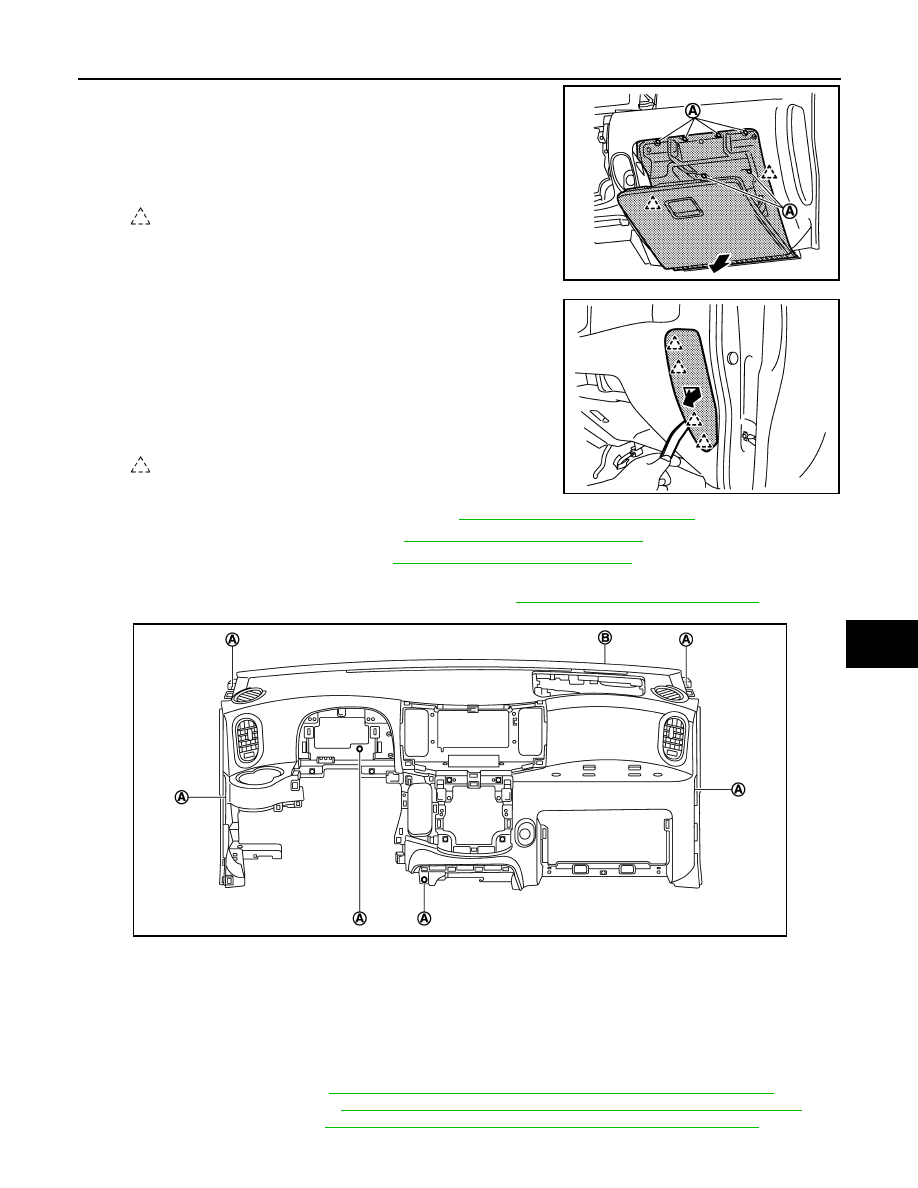

INSTRUMENT PANEL ASSEMBLY

IP-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

3.

Remove glove box cover assembly (upper side) fixing
screws (A).

4.

Pull back the glove box cover assembly while holding the
lower side and disengage the pawls.

CAUTION:

Never pull the glove box lid.

5.

Disconnect harness connectors.

32. Remove instrument side finisher RH.

1.

Insert remover tool between instrument side finisher RH and
instrument panel assembly to disengage the pawls as
shown in the figure.

2.

Pull back instrument side finisher RH.

CAUTION:

Disengage slowly so that pawls of instrument side finisher
RH are not damaged.

33. Remove front passenger air bag module. Refer to

SR-17, "Removal and Installation"

.

34. Remove front body side welt RH. Refer to

INT-16, "Removal and Installation"

.

35. Remove front pillar garnish RH. Refer to

INT-16, "Removal and Installation"

.

36. Remove instrument panel assembly.

1.

Disconnect power socket harness connector. Refer to

PWO-5, "Removal and Installation"

.

2.

Remove instrument panel assembly fixing screws (A) and bolts (B).

CAUTION:

Cover tool with a shop cloth to prevent windshield glass from being damaged.

3.

Remove instrument panel assembly from passenger door opening portion.

CAUTION:

• Cover select lever knob upper surface with a shop cloth to prevent it from being damaged.
• When removing instrument panel assembly, 2 workers are required to prevent it from drop-

ping.

37. Remove the following parts after removing the instrument panel assembly.

• Side ventilator grille: Refer to

VTL-8, "SIDE VENTILATOR GRILLE : Removal and Installation"

.

• Center ventilator duct: Refer to

VTL-9, "CENTER VENTILATOR DUCT : Removal and Installation"

.

• Side ventilator duct: Refer to

VTL-9, "SIDE VENTILATOR DUCT : Removal and Installation"

.

: Pawl

JMJIA3062ZZ

: Pawl

JMJIA3063ZZ

JMJIA3064ZZ

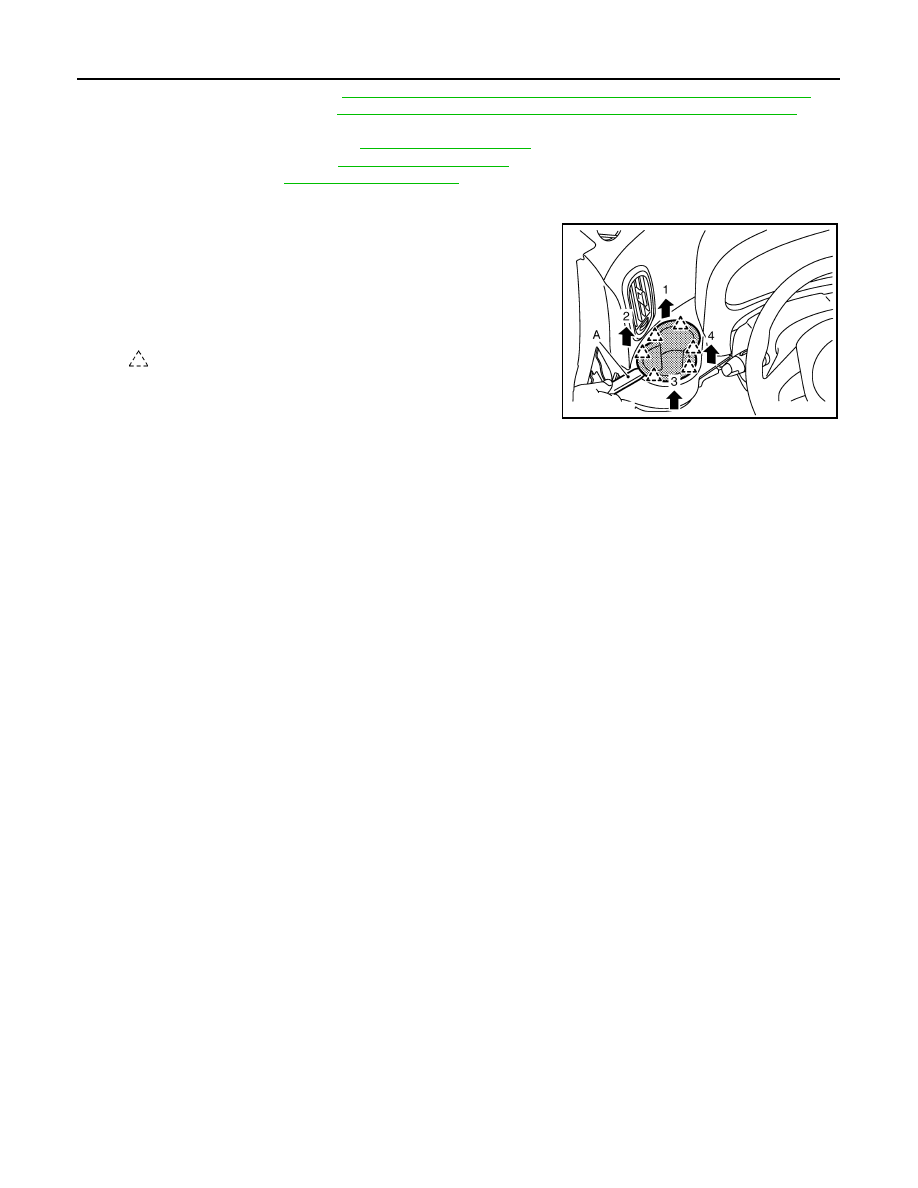

IP-22

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

• Front defroster nozzle: Refer to

VTL-9, "FRONT DEFROSTER NOZZLE : Removal and Installation"

.

• Side defroster nozzle: Refer to

VTL-10, "SIDE DEFROSTER NOZZLE : Removal and Installation"

.

• Antenna feeder
- Audio without navigation: Refer to

AV-71, "Harness Layout"

.

- Audio with navigation: Refer to

AV-144, "Feeder Layout"

.

• Power socket: Refer to

PWO-5, "Exploded View"

.

NOTE:
Removal of Cup Holder.
1.

Remove instrument lower panel LH.

2.

Disengage the cup holder front pawls from the back of the
instrument panel assembly, in order from 1-2 as shown in
the figure, and lift.

3.

Disengage the remaining clips, in order from 3-4 as shown
in the figure, using the remover tool (A).

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

• Never use the steering wheel mounting nut after removal, replace with the new nut.
• Never use the passenger air bag module mounting bolts after removal, replace with the new bolts.

: Pawl

JMJIA3065ZZ

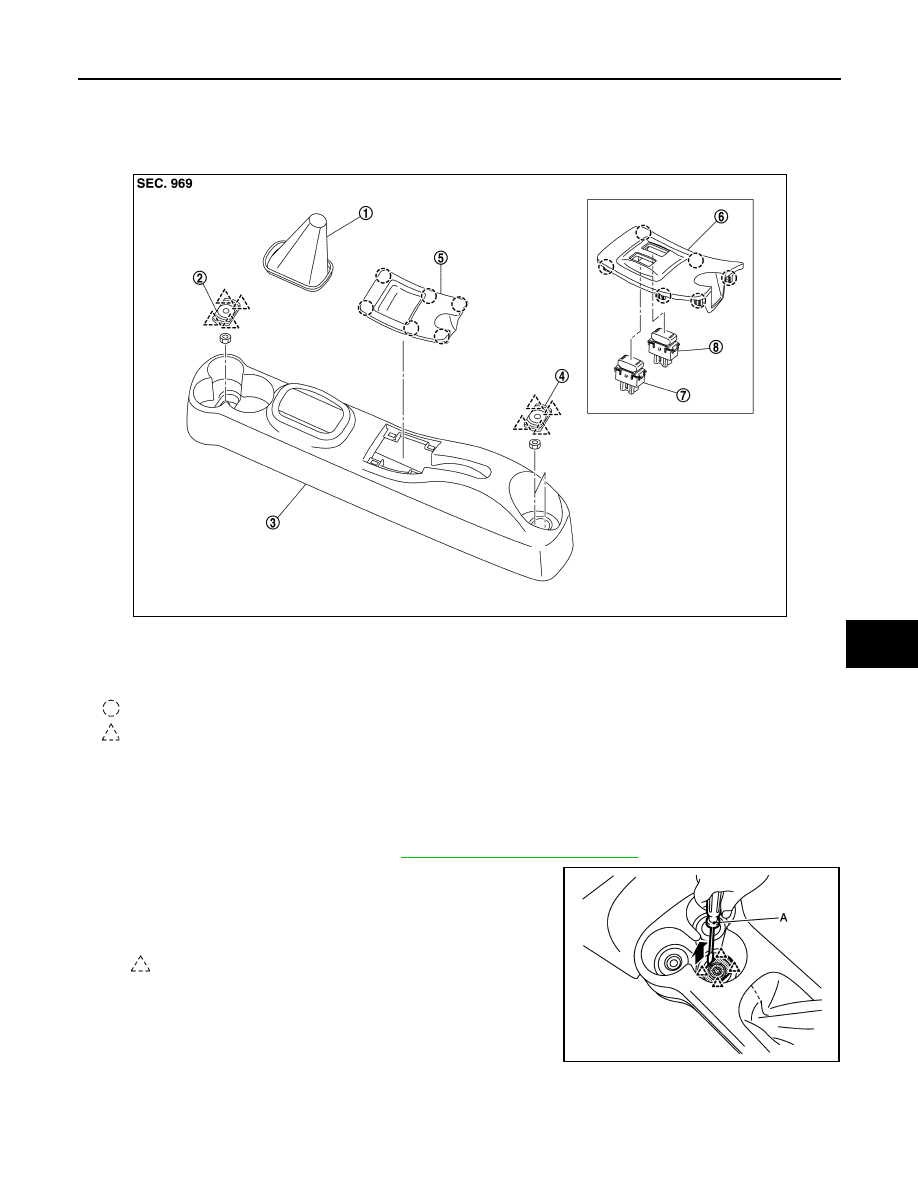

CENTER CONSOLE ASSEMBLY

IP-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CENTER CONSOLE ASSEMBLY

Exploded View

INFOID:0000000009949288

Removal and Installation

INFOID:0000000009949289

REMOVAL

1.

Put selector lever in “N” position (CVT models).

2.

Remove shift knob (MT models). Refer to

TM-19, "Removal and Installation"

.

3.

Remove front console cover.
1.

Remove front console cover with a flat-bladed screwdriver
(A) wrapped in a tape.

2.

Pull up front console cover.

4.

Remove mounting nut of center console front side.

1.

Console boot (MT models)

2.

Front console cover

3.

Center console assembly

4.

Rear console cover

5.

Console mask (without heated seat) 6.

Console mask (with heated seat)

7.

Heated seat switch LH

8.

Heated seat switch RH

: Clip

: Pawl

JMJIA5860ZZ

: Pawl

JMJIA3067ZZ

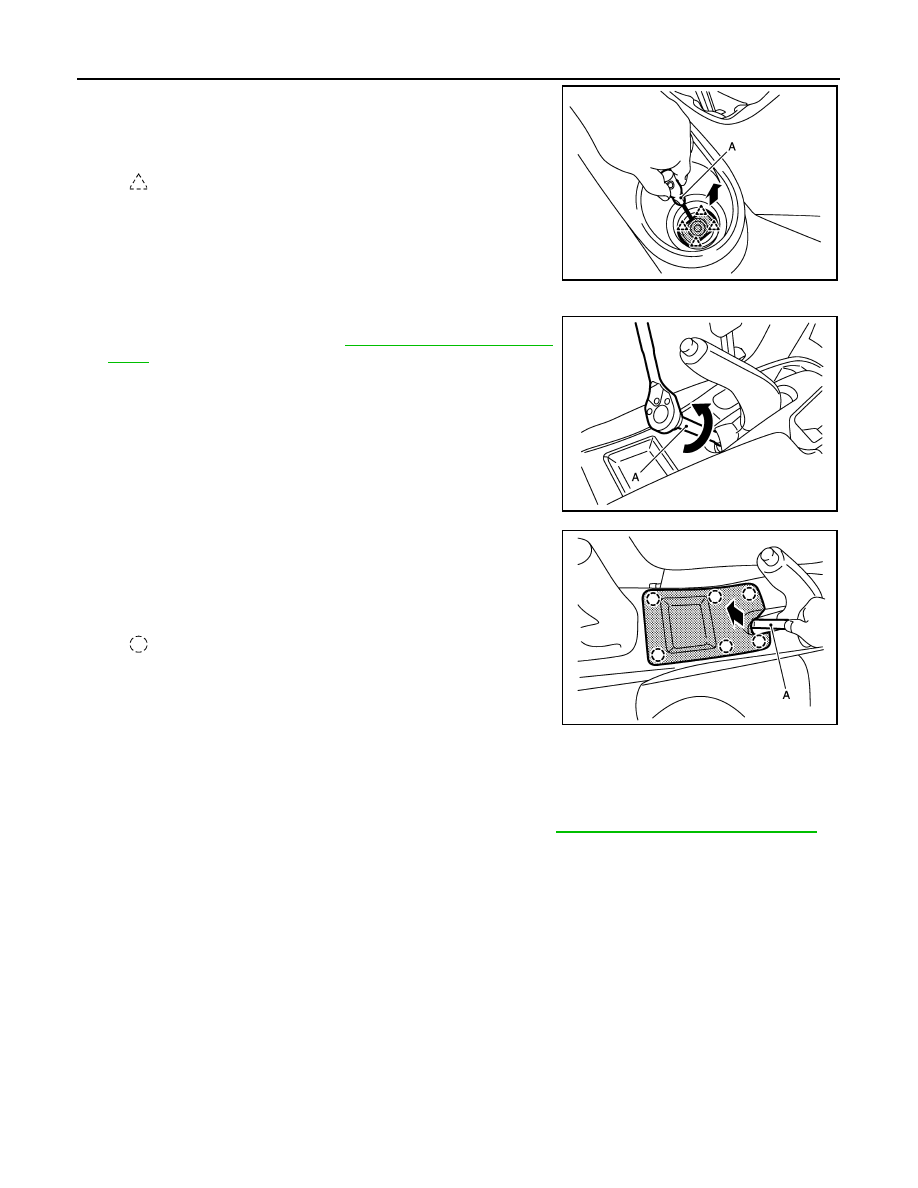

IP-24

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

5.

Remove rear console cover.
1.

Remove rear console cover with hook and pick tool (A) as
shown in the figure.

2.

Pull up rear console cover.

6.

Remove mounting nuts of center console rear side.

7.

Insert a deep-well socket wrench (A) to rotate adjusting nut to
loosen cable sufficiently. Refer to

PB-3, "Inspection and Adjust-

ment"

.

8.

Remove console mask.
1.

Pull upward to console mask fixing clips from center console
with remover tool (A).

2.

Disconnect seat heated switch harness connectors (models
with heated seat system).

9.

Lift up center console assembly back side, and then remove center console assembly.

NSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, adjust the parking brake lever stroke. Refer to

PB-3, "Inspection and Adjustment"

.

: Pawl

JMJIA3068ZZ

JMJIA3069ZZ

: Clip

JMJIA3070ZZ
