INSTRUMENT PANEL ASSEMBLY

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

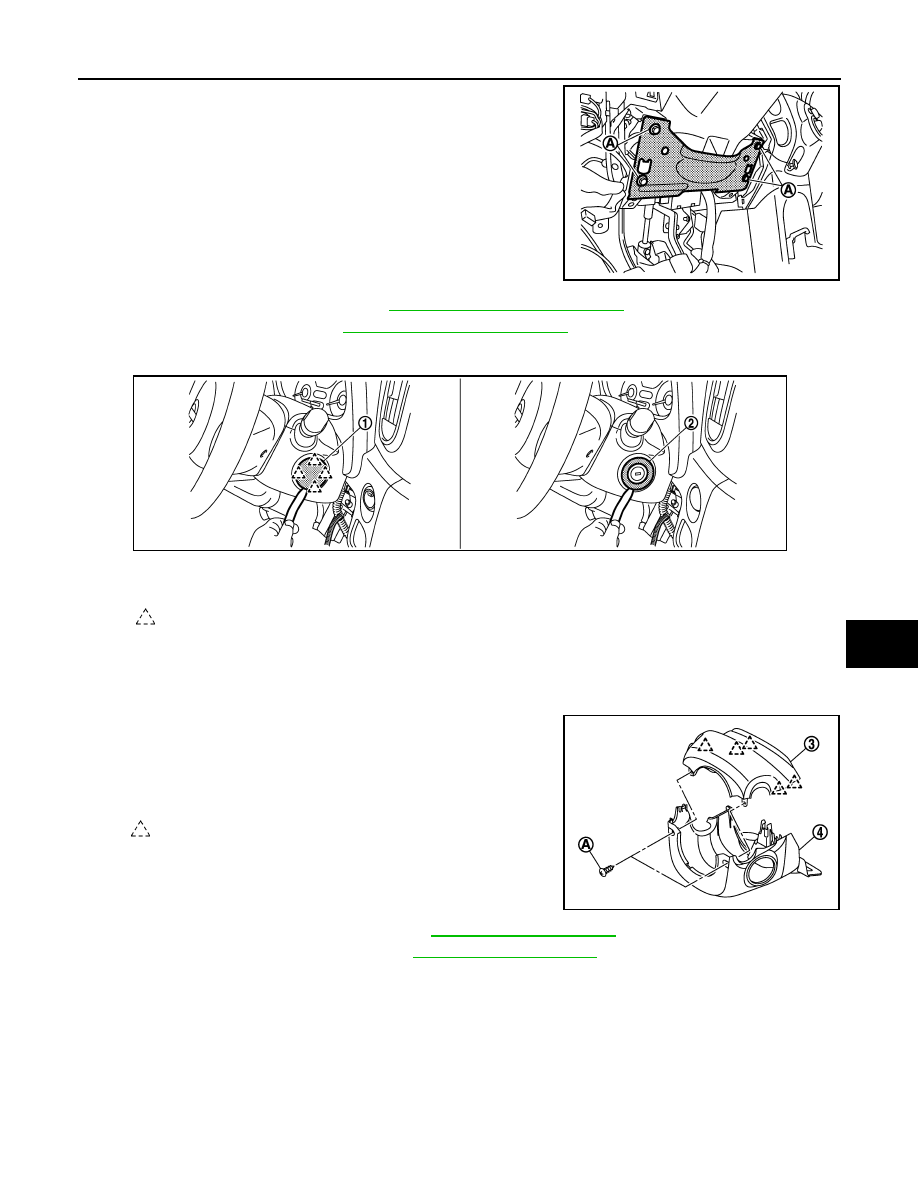

12. Remove knee protector.

1.

Remove fixing bolts (A).

2.

Pull back knee protector.

13. Remove driver air bag module. Refer to

SR-11, "Removal and Installation"

.

14. Remove steering wheel. Refer to

ST-9, "Removal and Installation"

.

15. Remove the steering column cover.

1.

Remove the steering lock escutcheon.

-

Without intelligent key system: Remove steering lock escutcheon (1) using remover tool (A).

-

With intelligent key system: Insert remover tool between steering lock escutcheon and steering col-
umn cover to disengage the pawls.

2.

Remove the steering column fixing screws (A).

3.

Pull up the steering column upper cover (3), and then disen-
gage the pawls.

4.

Pull down the steering column lower cover (4), and then
remove the steering column lower cover.

16. Remove lighting & turn signal switch. Refer to

EXL-197, "Exploded View"

.

17. Remove wiper and washer switch. Refer to

WW-151, "Exploded View"

.

JMJIA3048ZZ

1.

Steering lock escutcheon
(without Intelligent key system)

2.

Steering lock escutcheon
(with Intelligent key system)

: Pawl

JMJIA3049ZZ

: Pawl

JMJIA3050ZZ

IP-18

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

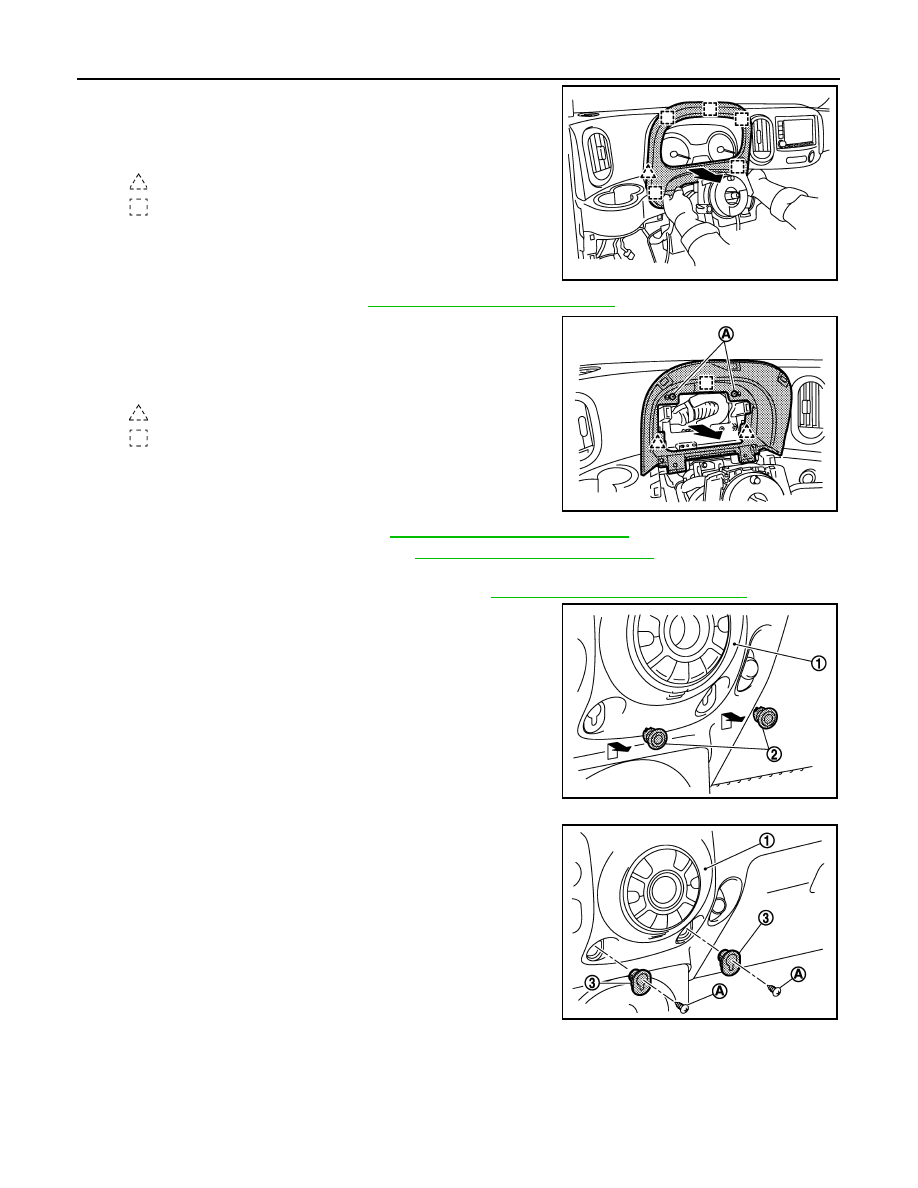

18. Remove cluster lid A (rear).

1.

Pull back cluster lid A (rear) while holding the lower side and
disengage the pawls and the metal clips under side.

2.

Remove the metal clips of cluster lid A (rear) upper side.

19. Remove combination meter. Refer to

MWI-93, "Removal and Installation"

.

20. Remove cluster lid A (front).

1.

Remove fixing screws (A).

2.

Pull back the cluster lid A (front), and then disengage the
pawls and metal clips.

21. Remove the body side welt LH. Refer to

INT-16, "Removal and Installation"

.

22. Remove the front pillar garnish LH. Refer to

INT-16, "Removal and Installation"

.

23. Remove A/C finisher.

1.

Intake door lever knob (with manual A/C). Refer to

HAC-203, "Removal and Installation"

.

2.

Pull up and back, and then remove hooks (2) from A/C fin-
isher (1).

3.

Remove fixing screws (A), and then remove hook cover (3)
from A/C finisher (1).

: Pawl

: Metal clip

JMJIA3051ZZ

: Pawl

: Metal clip

JMJIA3052ZZ

JMJIA3053ZZ

JMJIA3054ZZ

INSTRUMENT PANEL ASSEMBLY

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

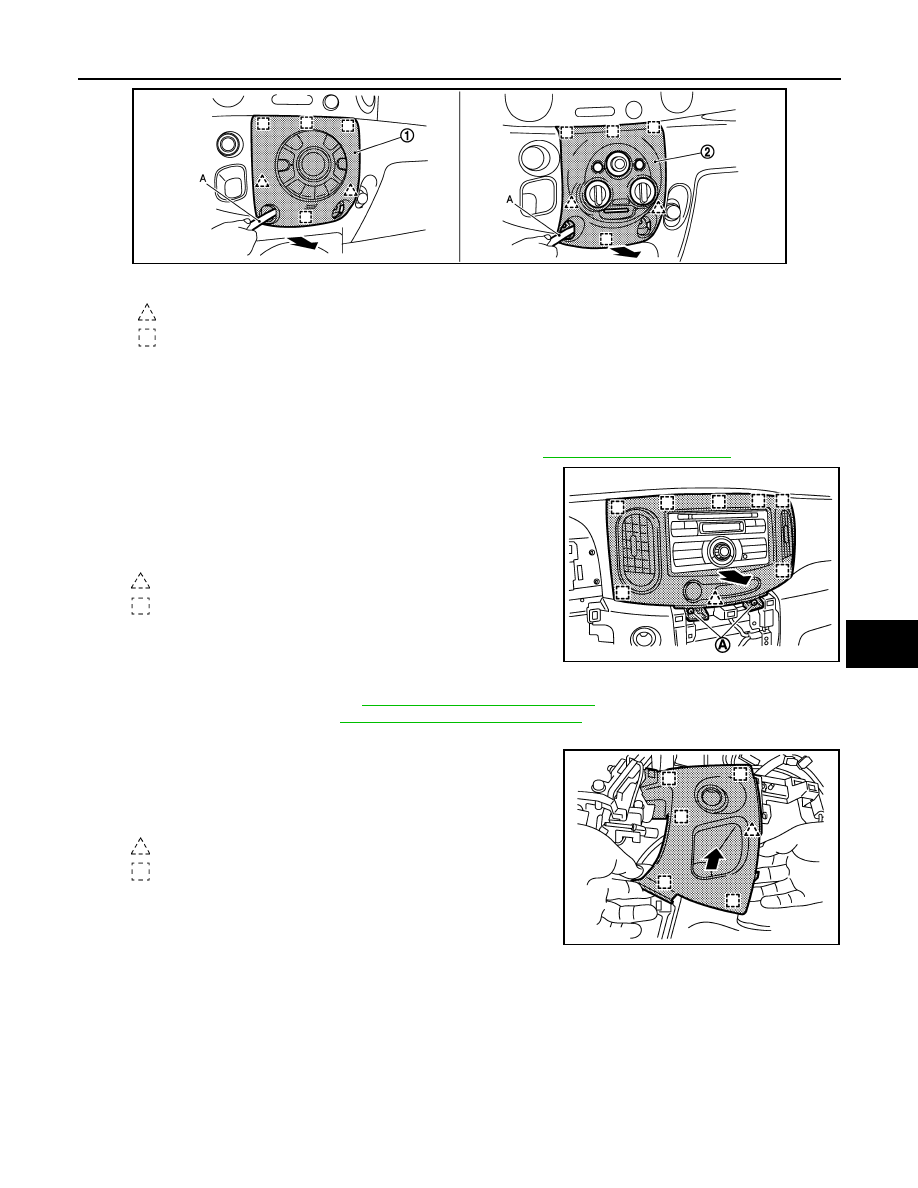

4.

Insert remover tool (A) through the hook cover mounting and disengage the pawls of the lower metal
clips of the A/C finisher (1 or 2) lower side.

5.

Pull back the A/C finisher and disengage the metal clips upper side.

6.

Disconnect harness connectors. (with Auto A/C)

24. Remove A/C control fixing screws (with Manual A/C). Refer to

HAC-203, "Exploded View"

.

25. Remove cluster lid C.

1.

Remove fixing screws (A).

2.

Pull back the cluster lid C while holding the lower side and
disengage the pawls and metal clips.

3.

Disconnect harness connectors.

26. Remove audio unit, NAVI control unit, or audio mask.

• Audio without navigation: Refer to

AV-61, "Removal and Installation"

.

• Audio with navigation: Refer to

AV-132, "Removal and Installation"

.

• Audio mask: Remove fixing screws, and then remove audio mask.

27. Remove switch panel finisher.

1.

Pull back the switch panel finisher while holding the lower
side and disengage the pawls and metal clips.

2.

Disconnect harness connectors.

JMJIA3055ZZ

1.

A/C finisher (Auto A/C)

2.

A/C finisher (Manual A/C)

: Pawl

: Metal clip

: Pawl

: Metal clip

JMJIA3056ZZ

: Pawl

: Metal clip

JMJIA3057ZZ

IP-20

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

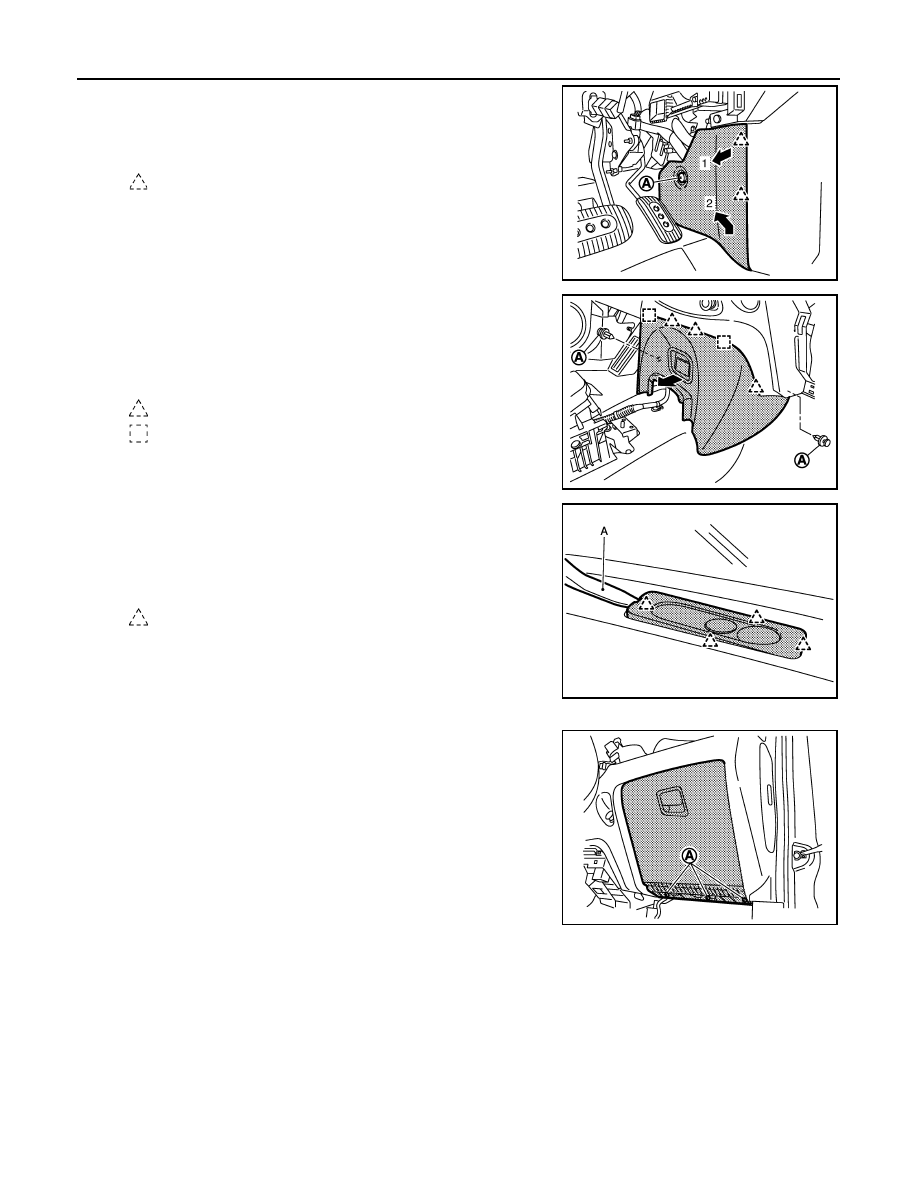

28. Remove instrument lower cover LH.

1.

Remove fixing clip (A).

2.

Disengage fixing pawls, and then remove instrument lower
cover LH as shown in the figure.

29. Remove instrument lower cover.

1.

Remove fixing clip (A).

2.

Pull back instrument lower cover, and disengage the pawls
and metal clips.

3.

Disconnect harness connectors.

30. Remove instrument mask.

1.

Insert remover tool (A) between instrument mask and instru-
ment panel assembly to disengage the pawls as shown in
the figure.

2.

Disconnect harness connectors.

31. Remove glove box cover assembly.

1.

Remove glove box cover assembly (lower side) fixing
screws (A).

2.

Open the glove box lid.

: Pawl

JMJIA3058ZZ

: Pawl

: Metal clip

JMJIA3059ZZ

: Pawl

JMJIA3060ZZ

JMJIA3061ZZ
