REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

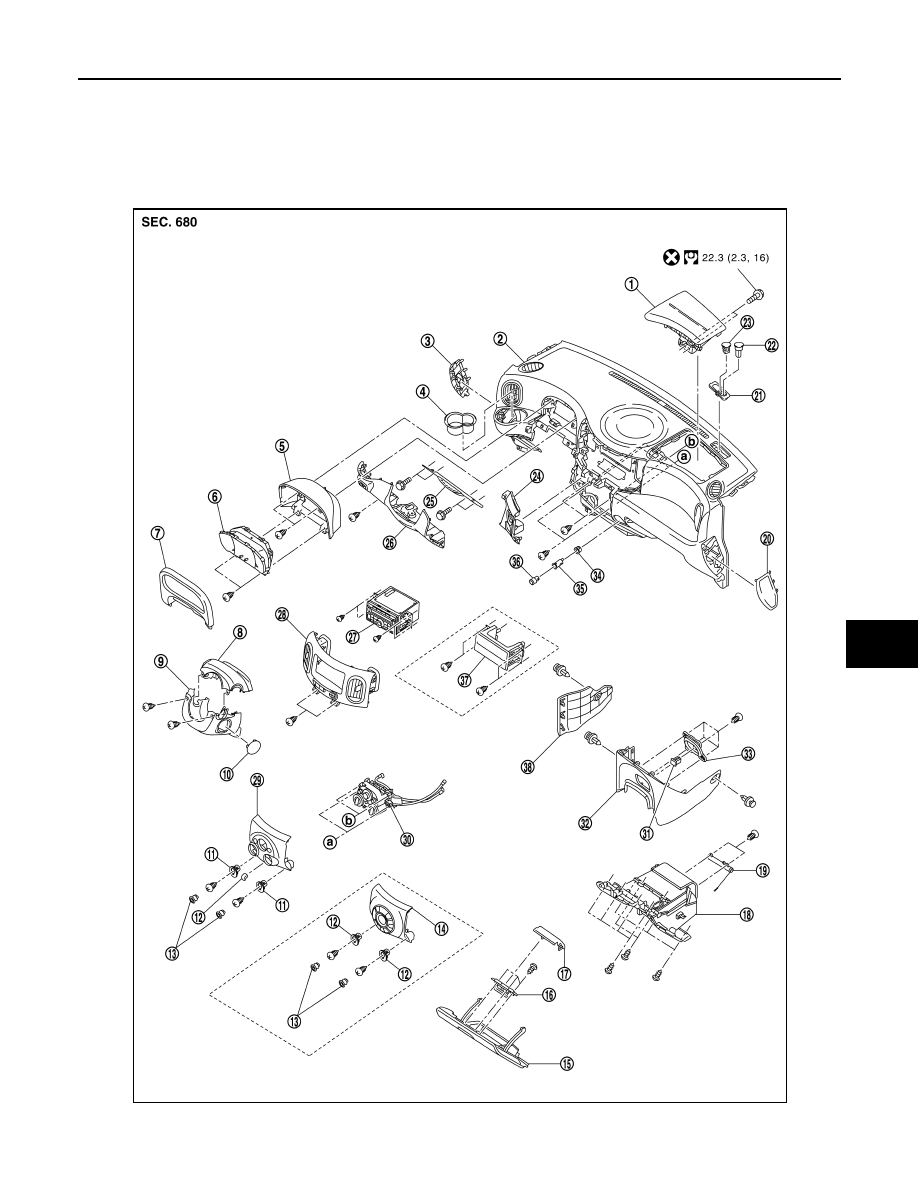

Exploded View

INFOID:0000000009949286

JSJIA0095GB

IP-14

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

Removal and Installation

INFOID:0000000009949287

WORK STEP

When removing instrument panel assembly, combination meter, audio unit (audio mask), cup holder, or center
console assembly take steps in the order shown by the numbers below.

1.

Front passenger air bag module

2.

Instrument panel assembly

3.

Instrument side finisher LH

4.

Cup holder

5.

Cluster lid A (front)

6.

Combination meter

7.

Cluster lid A (rear)

8.

Steering column upper cover

9.

Steering column lower cover

10. Steering lock escutcheon

11.

Hook cover

12. Knob

13. Hook

14. A/C finisher (auto A/C)

15. Glove box assembly

16. Glove box lock

17. Glove box lock cover

18. Glove box cover

19. Glove box damper

20. Instrument side finisher RH

21. Instrument mask

22. Optical sensor

23. Sunload sensor

24. Switch panel finisher

25. Knee protector

26. Instrument lower panel LH

27. Audio unit

28. Cluster lid C

29. A/C finisher (manual A/C)

30. A/C controller (manual A/C)

31. USB connector

32. Instrument lower cover

33. Instrument lower cover bracket

34. Ring

35. Inner socket

36. Power socket finisher

37. Audio mask

38. Instrument lower cover LH

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

PARTS

INSTRUMENT

PANEL

ASSEMBLY

COMBINATION

METER

AUDIO UNIT,

NAVI CONTROL

UNIT,

AUDIO MASK

CUP HOLDER

CENTER

CONSOLE

Shift knob (MT models)

[1]

[1]

Front console cover

[2]

[2]

Rear console cover

[3]

[3]

Console mask

[4]

[4]

Center console assembly

[5]

[5]

Instrument side finisher LH

[6]

[1]

Instrument lower panel LH

[7]

[2]

Knee protector

[8]

Cup holder

[3]

Driver air bag module

[9]

Steering wheel

[10]

Steering lock escutcheon

[11]

Steering column upper cover

[12]

[1]

Steering column lower cover

[13]

Lighting & turn signal switch

[14]

Wiper and washer switch

[15]

Cluster lid A (rear)

[16]

[2]

Combination meter

[17]

[3]

Cluster lid A (front)

[18]

Front body side welt LH

[19]

Front pillar garnish LH

[20]

A/C finisher

[21]

[1]

INSTRUMENT PANEL ASSEMBLY

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

[ ]: Number indicates step in removal procedure.

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or
more.

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

1.

Put selector lever in [N] position (CVT models).

2.

Remove shift knob (MT models). Refer to

TM-19, "Removal and Installation"

.

3.

Remove front console cover.

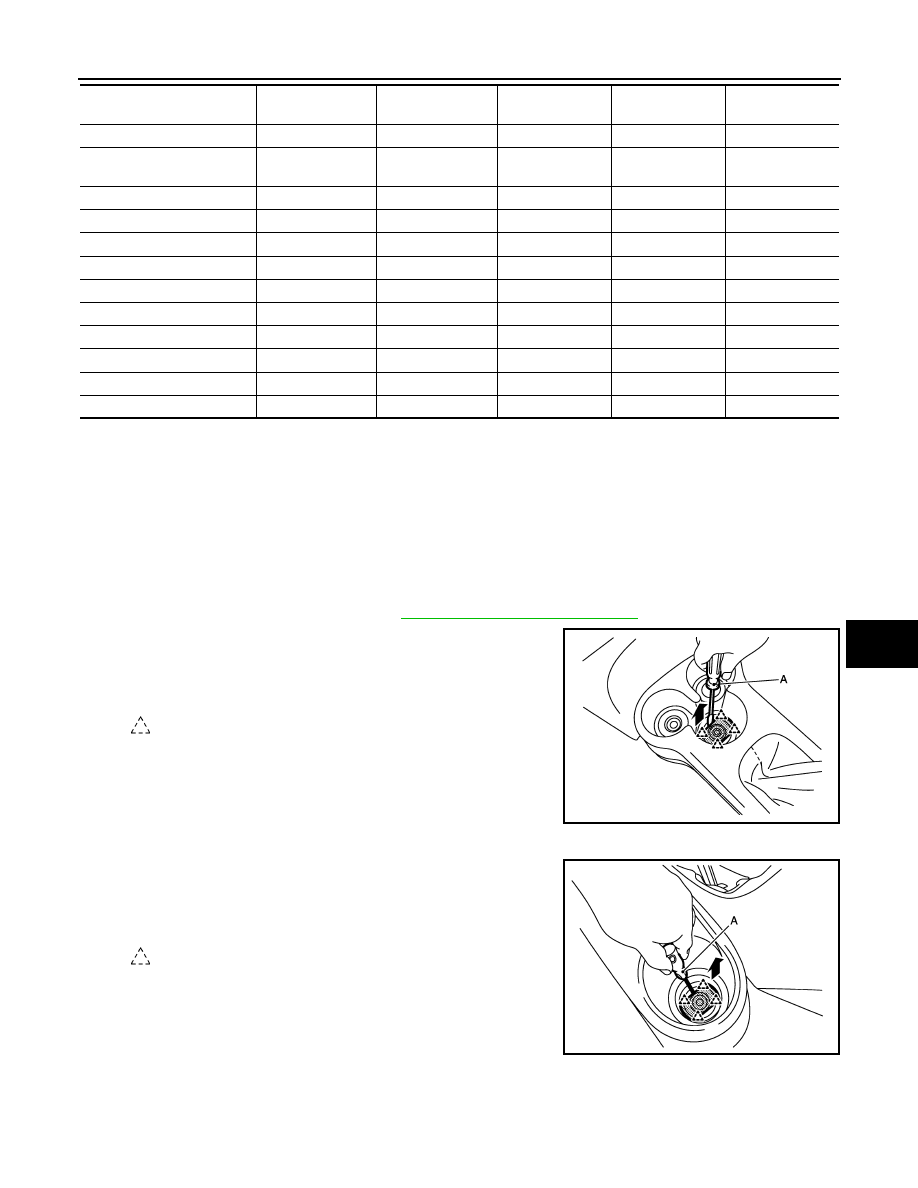

1.

Remove front console cover with a flat-bladed screwdriver
(A) wrapped in a tape.

2.

Pull up front console cover.

4.

Remove mounting nut of center console front side.

5.

Remove rear console cover.
1.

Remove rear console cover with hook and pick tool (A) as
shown in the figure.

2.

Pull up rear console cover.

6.

Remove mounting nuts of center console rear side.

A/C control fixing screws
 (manual A/C)

[22]

Cluster lid C

[23]

[2]

Audio unit, NAVI control unit,
audio mask

[24]

[3]

Switch panel finisher

[25]

Instrument lower cover LH

[26]

Instrument lower cover

[27]

Instrument mask

[28]

Glove box cover assembly

[29]

Instrument side finisher RH

[30]

Passenger air bag module

[31]

Front body side welt RH

[32]

Front pillar garnish RH

[33]

Instrument panel assembly

[34]

: Pawl

JMJIA3067ZZ

: Pawl

JMJIA3068ZZ

IP-16

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

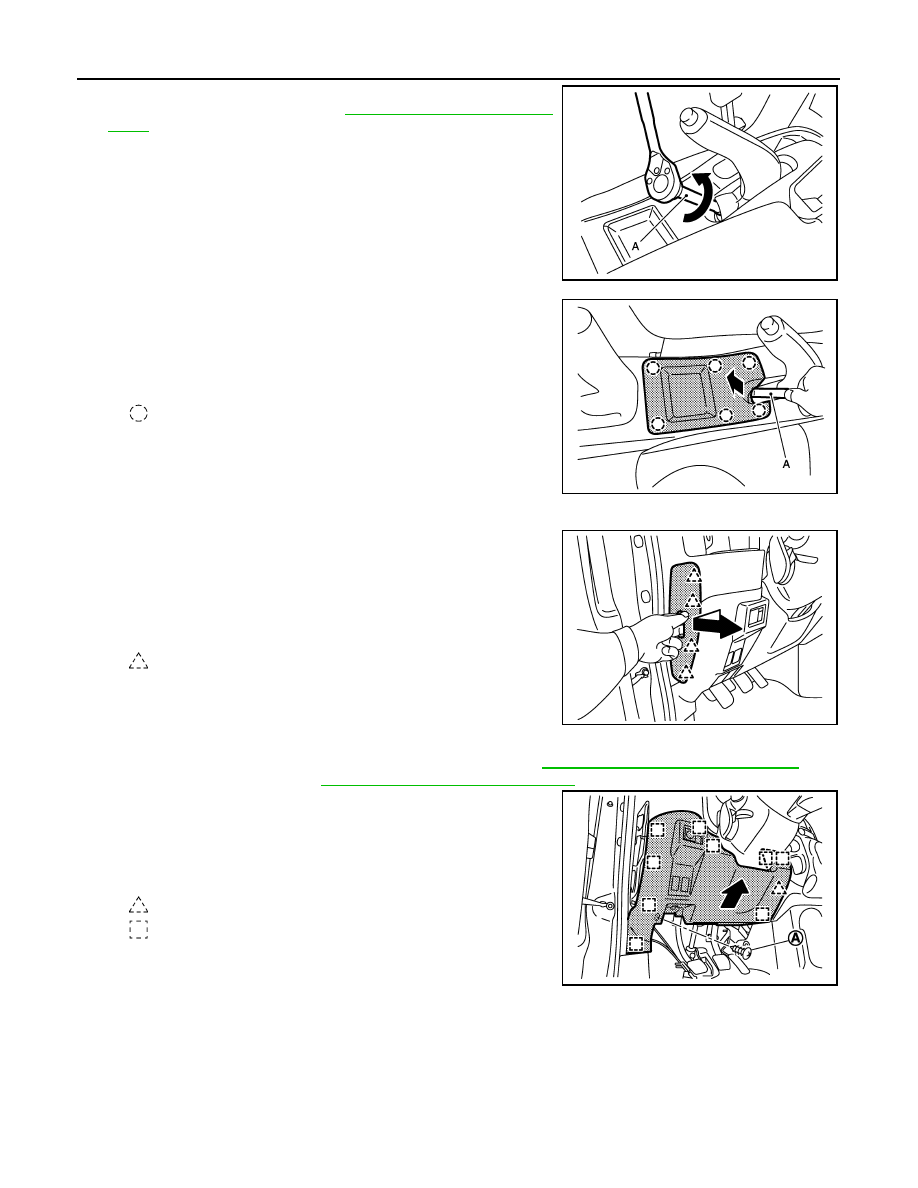

7.

Insert a deep-well socket wrench (A) to rotate adjusting nut to
loosen cable sufficiently. Refer to

PB-3, "Inspection and Adjust-

ment"

.

8.

Remove console mask.
1.

Pull upward to release console mask fixing clips from center
console with remover tool (A).

2.

Disconnect seat heated switch harness connectors. (with
seat heater)

9.

Lift up center console assembly back side, and then remove center console assembly.

10. Remove instrument side finisher LH.

Insert finger into instrument side finisher LH hole. Disengage the
pawls while pulling in lateral direction, and pull back.

CAUTION:

Disengage slowly so that pawls of instrument side finisher
LH are not damaged.

11. Remove instrument lower panel LH.

1.

Remove hood opener and fuel lid opener lever. Refer to

DLK-210, "Removal and Installation"

 (with

Intelligent Key System) or

DLK-363, "Removal and Installation"

 (without Intelligent Key System).

2.

Remove fixing screw (A).

3.

Pull back instrument lower panel LH.

4.

Disconnect harness connectors, harness clip.

5.

Release data link connector (pawls) then remove it from
instrument lower panel LH.

JMJIA3069ZZ

: Clip

JMJIA3070ZZ

: Pawl

JMJIA3046ZZ

: Pawl

: Metal clip

JMJIA3047ZZ
