HEADLINING

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

HEADLINING

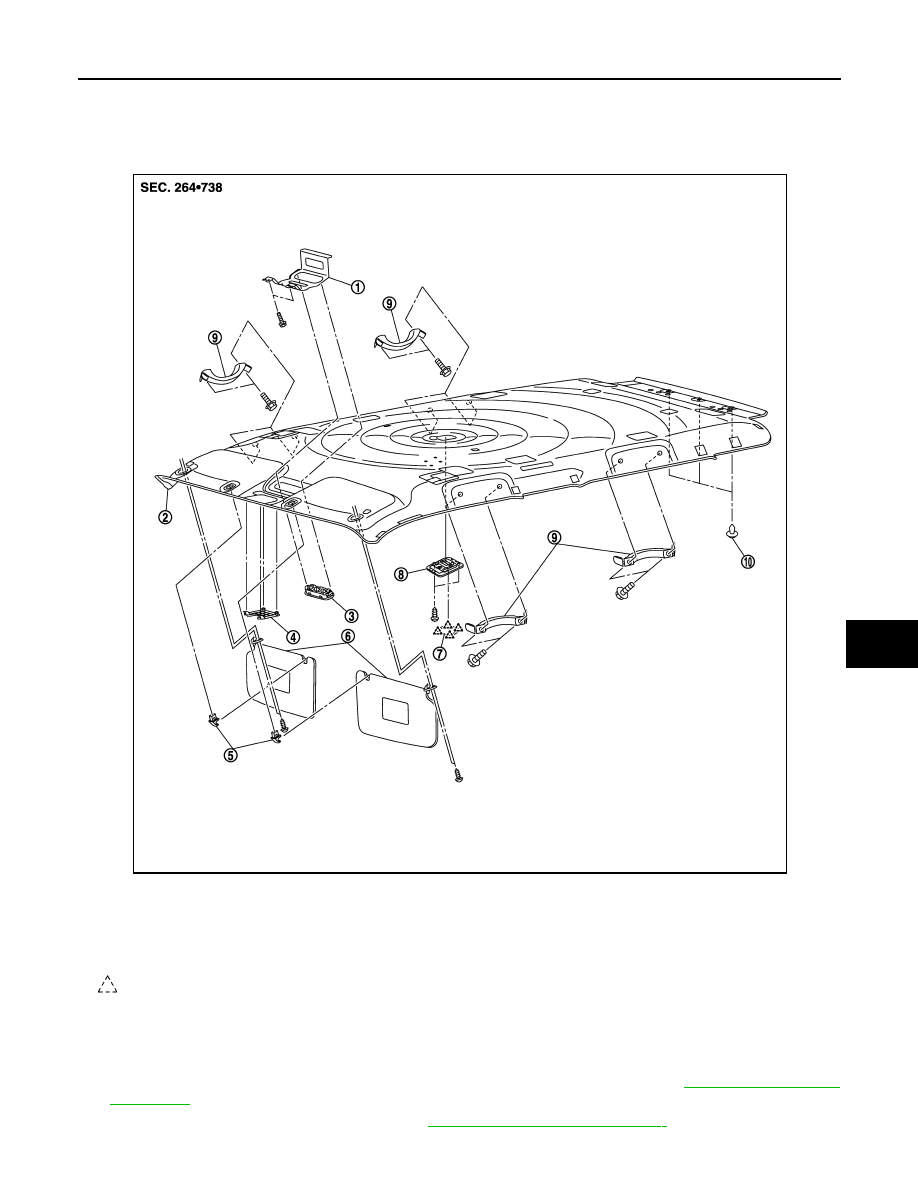

Exploded View

INFOID:0000000009949272

Removal and Installation

INFOID:0000000009949273

REMOVAL

1.

Remove front body side welt (LH/RH) and rear body side welt (LH/RH). Refer to

INT-16, "Removal and

Installation"

.

2.

Remove front pillar garnish (LH/RH). Refer to

INT-16, "Removal and Installation"

.

1.

Map lamp bracket

2.

Headlining assembly

3.

Map lamp assembly

4.

Inside mirror cover

5.

Sunvisor holder (LH/RH)

6.

Sunvisor assembly (LH/RH)

7.

Room lamp lens

8.

Room lamp assembly

9.

Assist grip

10.

Headlining clip

: Pawl

JMJIA3031ZZ

INT-22

< REMOVAL AND INSTALLATION >

HEADLINING

3.

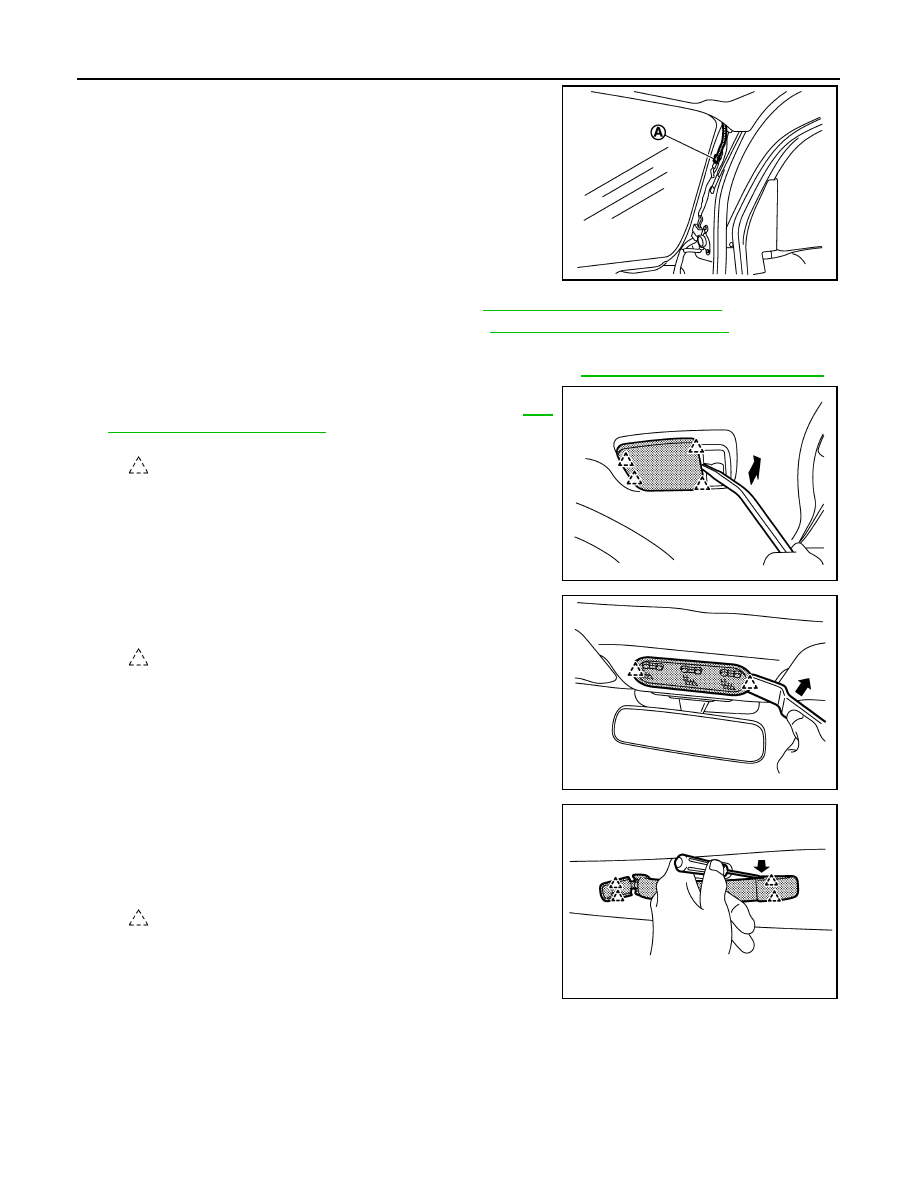

Disconnect microphone harness connector (A).

4.

Remove center pillar upper garnish (LH/RH). Refer to

INT-16, "Removal and Installation"

.

5.

Remove luggage side upper finisher (LH/RH). Refer to

INT-24, "Removal and Installation"

.

6.

Remove sunvisor assembly mounting screws, and then remove sunvisor assembly (LH/RH).

7.

Remove inside mirror cover and then remove inside mirror. Refer to

MIR-15, "Removal and Installation"

.

8.

Disengage room lamp lens fixing pawls with a remover tool, the
mounting screws and then remove the room lamp. Refer to

INL-

109, "Removal and Installation"

.

9.

Disengage the map lamp fixing pawls with a remover tool and
then remove the map lamp.

10. Remove the assist grips.

• Insert a small minus driver as shown by the arrow in the figure

to disengage the fixing pawls.

• Remove the mounting bolts.
• Pull out the assist grip to remove.

11. Rotate the sunvisor holder (LH/RH) at approximately 90 degrees and then pull it down to remove.

12. Remove the headlining clip located at the rear side with a remover tool.

JMJIA2892ZZ

: Pawl

JMJIA2896ZZ

: Pawl

JMJIA2906ZZ

: Pawl

JMJIA2895ZZ

HEADLINING

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

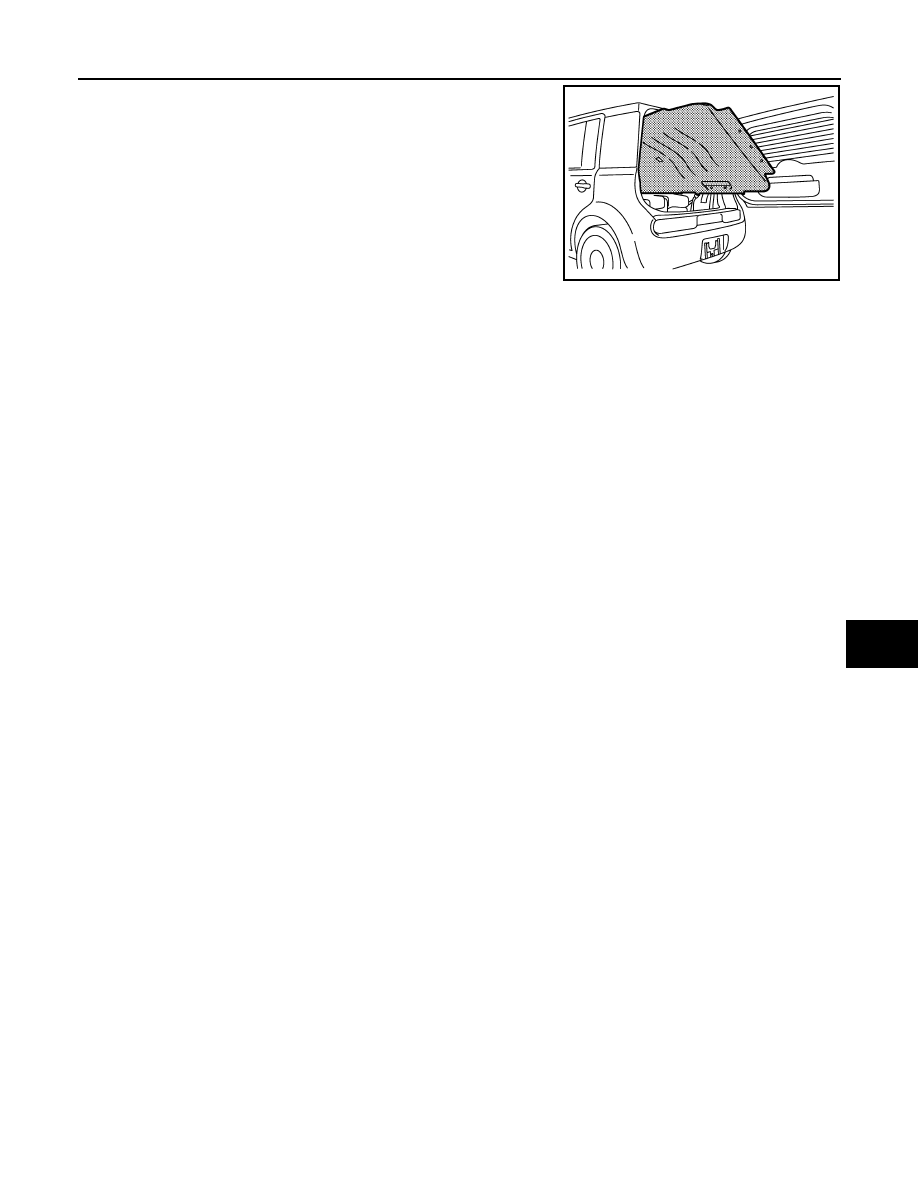

13. Remove the headlining assembly through the back door.

CAUTION:

• When removing headlining, 2 workers are required. (1 for

the front and rear of headlining)

• Cover center console finisher upper surface with a shop

cloth to prevent it from being damaged.

• Never bend headlining when removing.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never bend headlining when installing.
• When installing, start by installing both sunvisor holders and headlining clips in order to keep the

headlining in position.

JMJIA3032ZZ

INT-24

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

LUGGAGE FLOOR TRIM

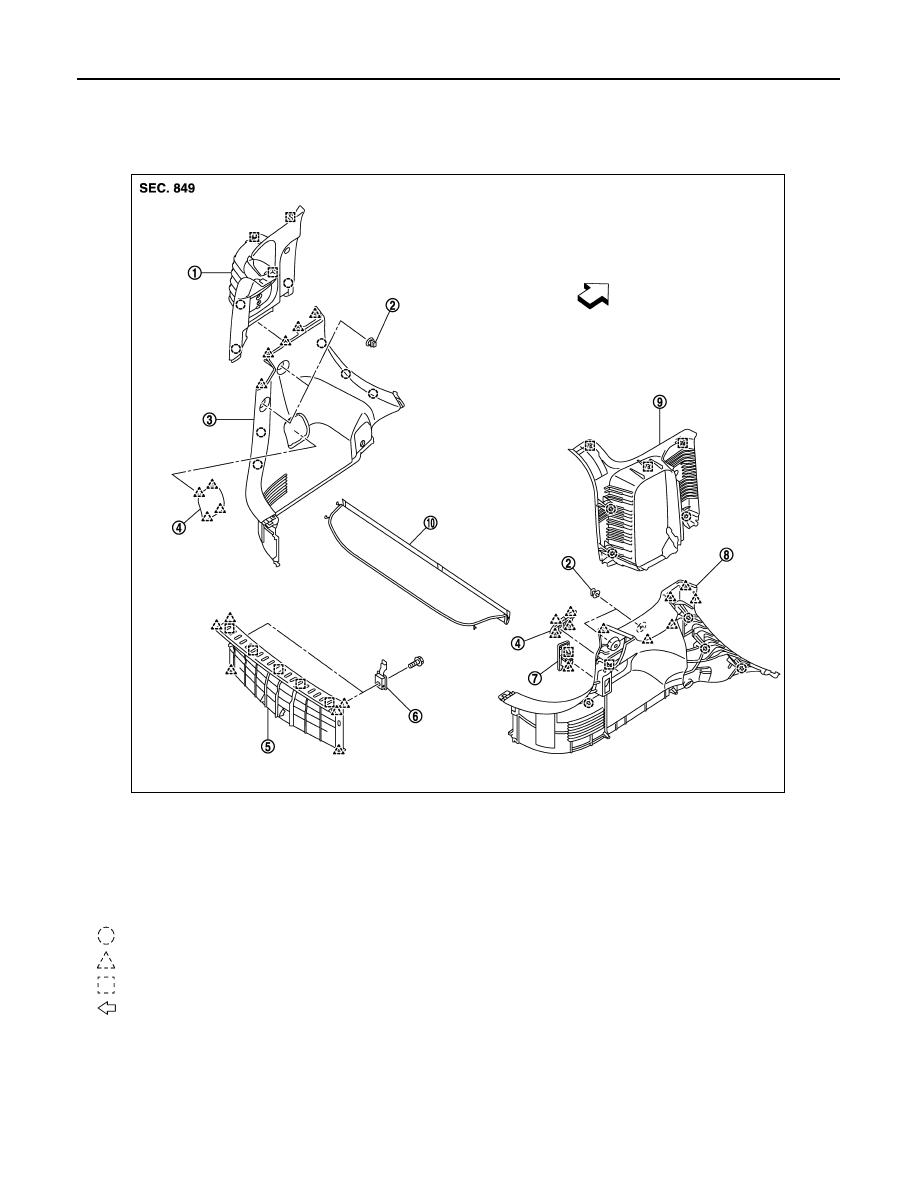

Exploded View

INFOID:0000000009949274

Removal and Installation

INFOID:0000000009949275

REMOVAL

LUGGAGE REAR PLATE

1.

Fully open back door.

1.

Luggage side upper finisher LH

2.

Luggage side lower finisher clip (LH/
RH)

3.

Luggage side lower finisher LH

4.

Luggage side lower finisher lid (LH/
RH)

5.

Luggage rear plate

6.

Rope hook

7.

Luggage room lamp

8.

Luggage side lower finisher RH

9.

Luggage side upper finisher RH

10. Tonneau cover

: Clip

: Pawl

: Metal clip

: Vehicle front

JMJIA3536ZZ
