LUGGAGE FLOOR TRIM

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

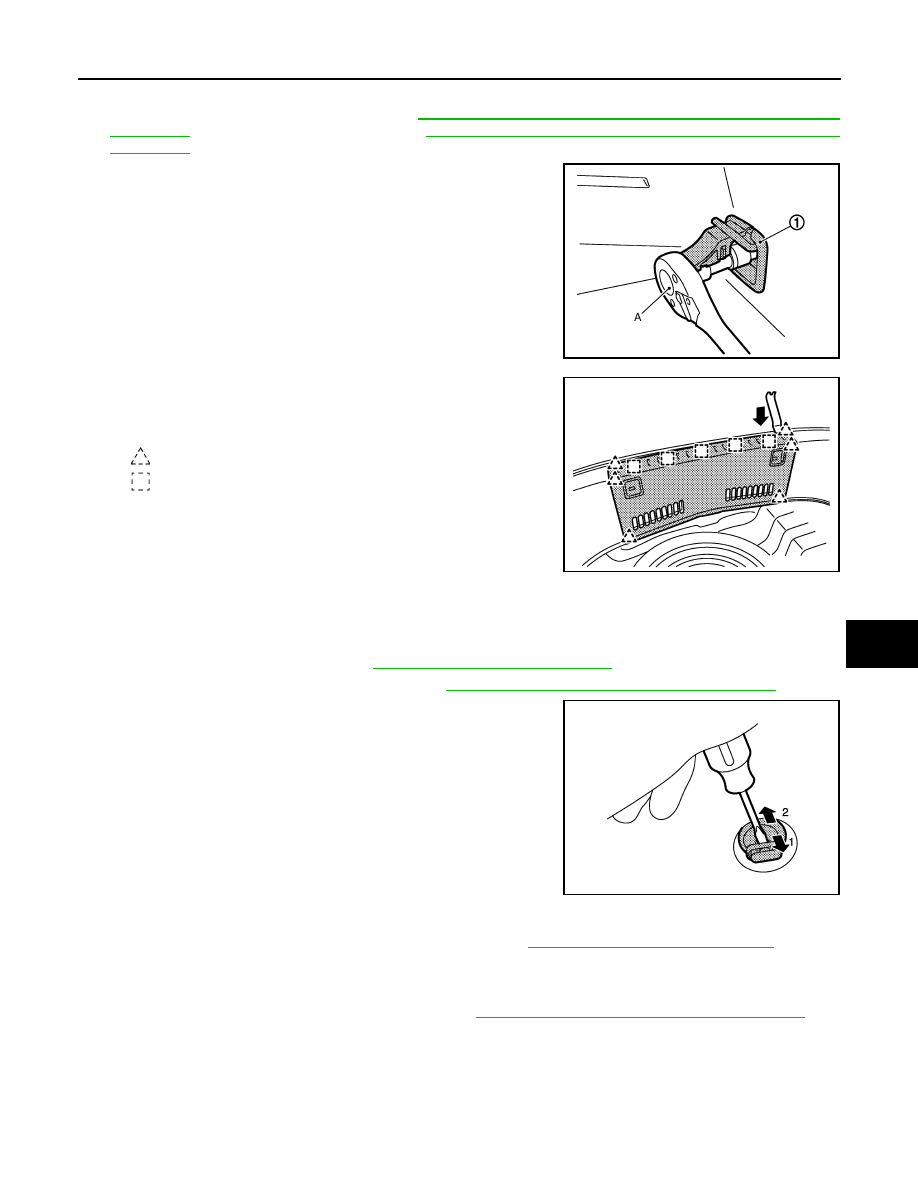

2.

Remove tonneau cover.

3.

Remove back door weather-strip. Refer to

DLK-209, "BACK DOOR WEATHER-STRIP : Removal and

Installation"

 (with Intelligent Key System) or

DLK-362, "BACK DOOR WEATHER-STRIP : Removal and

Installation"

 (without Intelligent Key System).

4.

Remove rope hook (1) mounting bolt with a socket wrench (A)
and then remove rope hook.

5.

Insert a remover tool between luggage rear plate and back door
panel to disengage the fixing pawls and metal clips, and then
remove luggage rear plate.

LUGGAGE SIDE LOWER FINISHER

1.

Remove luggage rear plate.

2.

Recline rear seatback and then slide rear seat cushion and seatback toward vehicle front.

3.

Remove rear body side welt. Refer to

INT-16, "Removal and Installation"

.

4.

Remove rear seatbelt floor anchor bolt. Refer to

SB-13, "SEAT BELT BUCKLE : Exploded View"

.

5.

Remove luggage clip.
• Insert a small minus driver into the hole of luggage clip.
• Slide the minus driver to unlock the clip.
• Remove luggage clip.

6.

Pull out carefully luggage side lower finisher to disengage clips, pawls and metal clips.

7.

Disconnect luggage room lamp harness connector. Refer to

INL-110, "Removal and Installation"

.

LUGGAGE SIDE UPPER FINISHER

1.

Remove luggage side lower finisher.

2.

Remove rear seatbelt shoulder anchor bolt. Refer to

SB-13, "SEAT BELT BUCKLE : Exploded View"

.

JMJIA0617ZZ

: Pawl

: Metal clip

JMJIA2897ZZ

JMJIA2898ZZ

INT-26

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

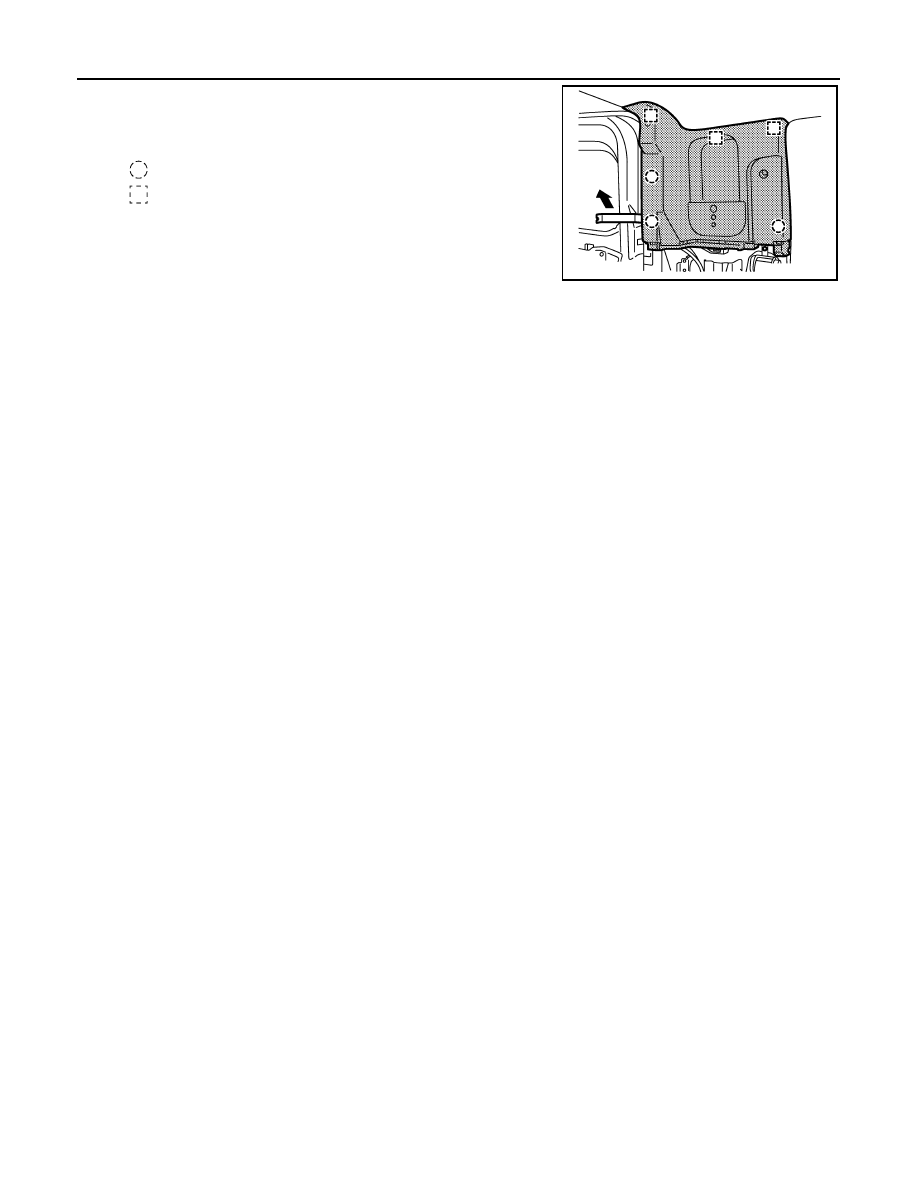

3.

Insert a remover tool between luggage side upper finisher and
body panel to disengage clips, pawls and metal clips and then
remove luggage side upper finisher.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing, check that clips, pawls and metal clips are securely fitted into panel holes on body,
and then press them in.

: Clip

: Metal clip

JMJIA3034ZZ

BACK DOOR TRIM

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

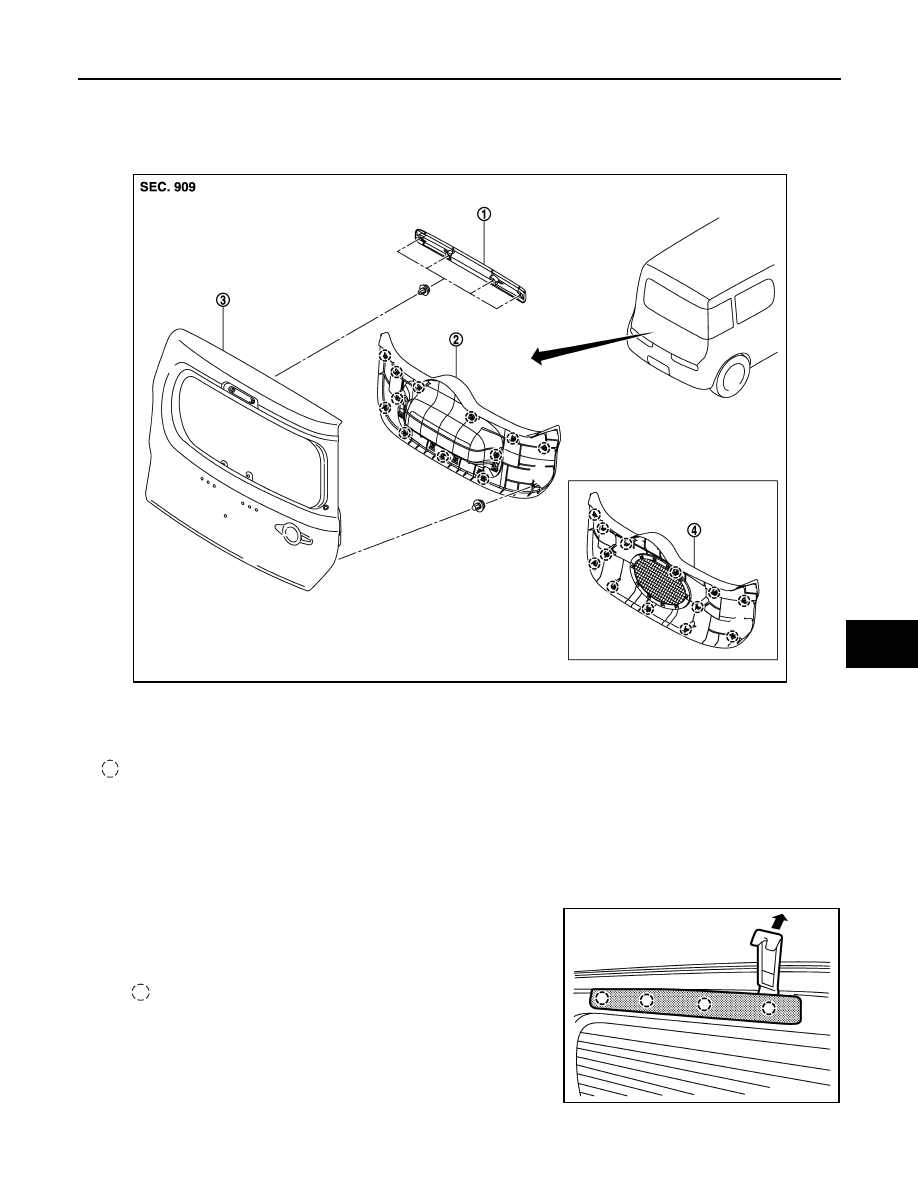

BACK DOOR TRIM

Exploded View

INFOID:0000000009949276

Removal and Installation

INFOID:0000000009949277

REMOVAL

BACK DOOR FINISHER UPPER

1.

Fully open back door

2.

Insert a remover tool between back door panel and back door
finisher upper to disengage the fixing clips and then remove
back door finisher upper.

BACK DOOR FINISHER LOWER

1.

Back door finisher upper

2.

Back door finisher lower

3.

Back door panel

4.

Back door finisher lower
(with Woofer)

: Clip

JMJIA3036ZZ

: Clip

JMJIA2900ZZ

INT-28

< REMOVAL AND INSTALLATION >

BACK DOOR TRIM

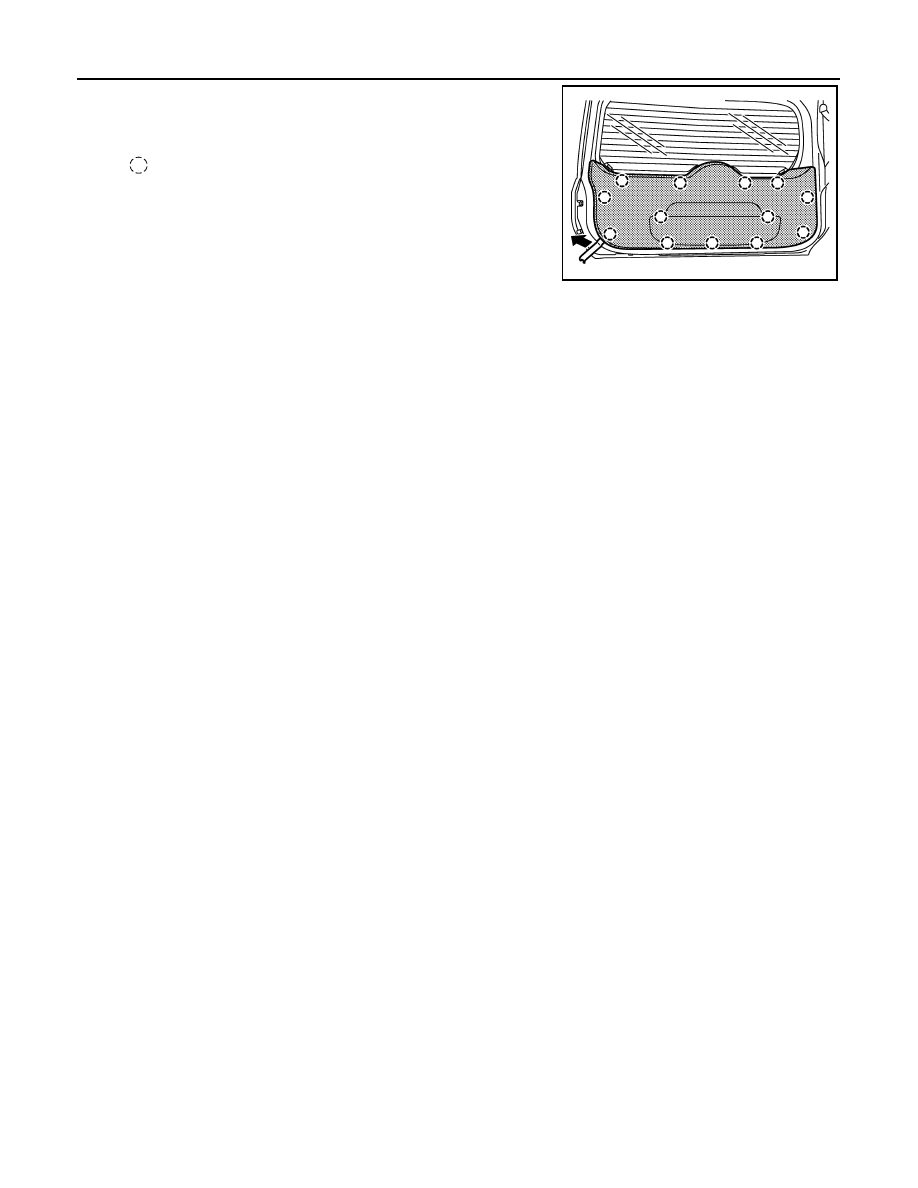

Insert a remover tool between back door panel and back door fin-
isher lower to disengage the fixing clips and then remove back door
finisher lower.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing, check that clips are securely fitted in panel holes on body, and then press them in.

: Clip

JMJIA2900ZZ

JMJIA3035ZZ
