Nissan Cube. Manual - part 626





FRONT DOOR FINISHER

INT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

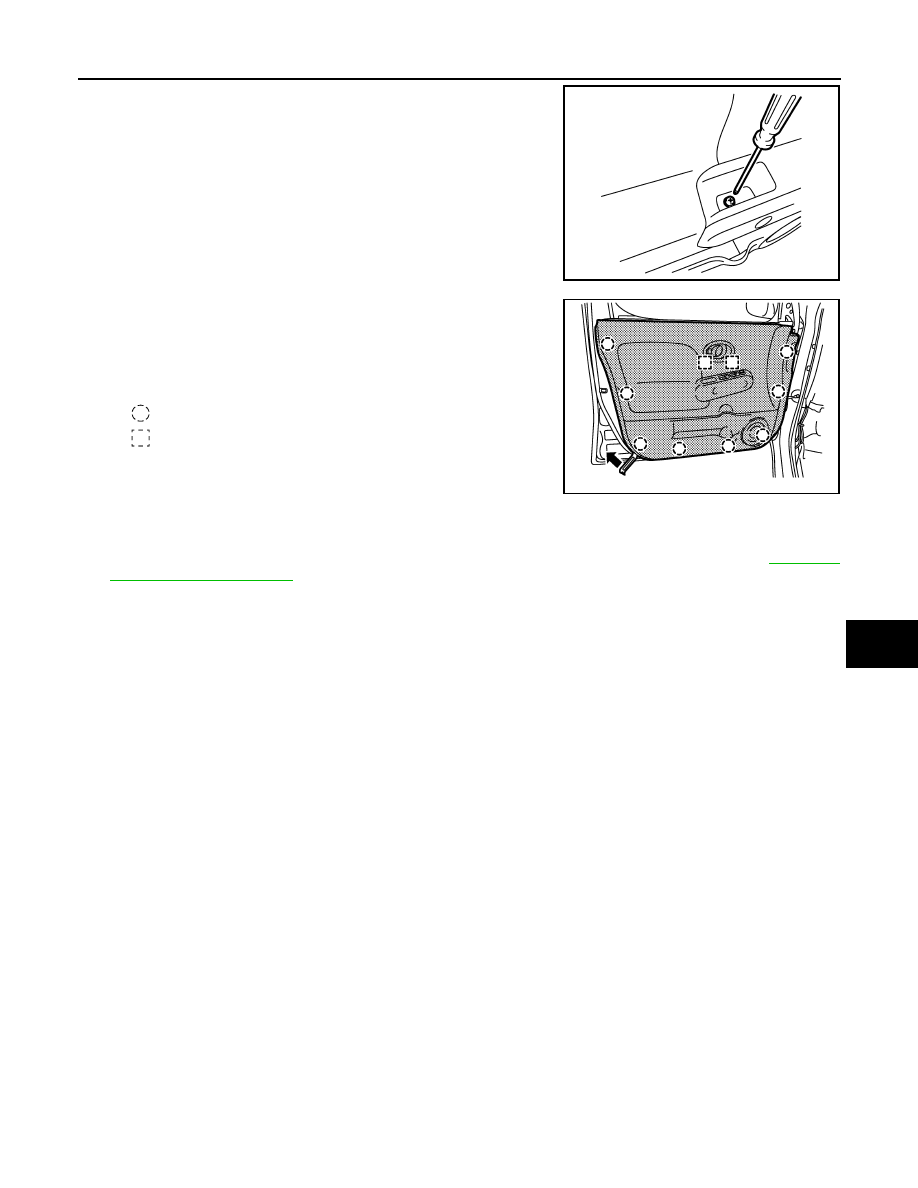

3.

Remove power window main switch finisher mounting screw.

4.

Insert remover tool between front door panel and front door fin-
isher to disengage the fixing clips and metal clips.

CAUTION:

Insert remover tool into part shown in the figure.
(Between clips and door panel).

5.

Disconnect power window main switch harness connector.

6.

Remove front door finisher from front door panel.

7.

Remove power window main switch finisher after removing front door finisher. Refer to

PWC-112,

"Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing front door finisher, check that clips and metal clips are securely fitted in door panel
hole on body, and then press them in.

JMJIA3024ZZ

: Clip

: Metal clip

JMJIA3025ZZ

INT-14

< REMOVAL AND INSTALLATION >

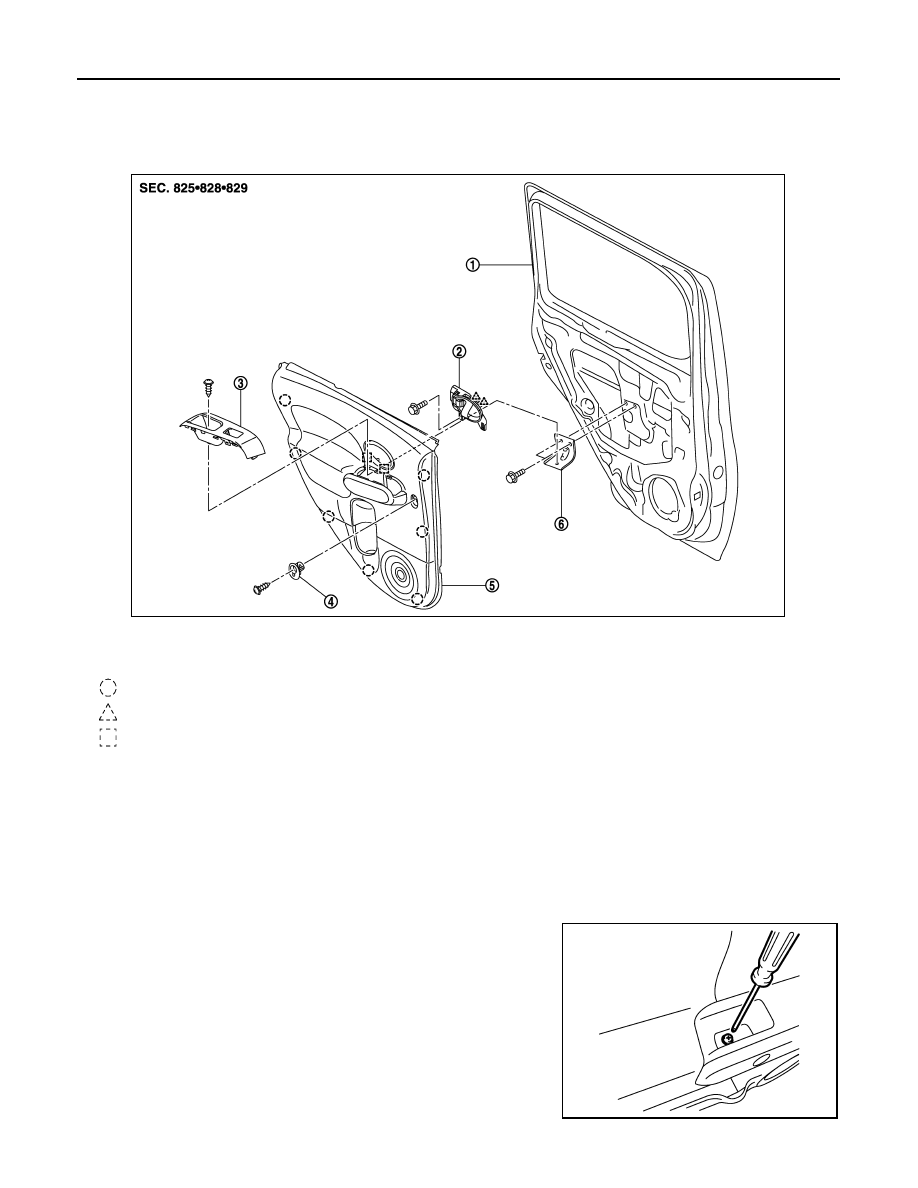

REAR DOOR FINISHER

REAR DOOR FINISHER

Exploded View

INFOID:0000000009949266

Removal and Installation

INFOID:0000000009949267

CAUTION:

• Wrap the tips of flat-bladed screwdriver with shop cloth before removal.
• When removing, always use a remover tool that is made of plastic.

REMOVAL

1.

Fully open door window.

2.

Remove power window switch finisher mounting screw.

1.

Rear door panel

2.

Rear door inside handle

3.

Power window switch finisher

4.

Hook cover

5.

Rear door finisher

6.

Power window switch finisher bracket

: Clip

: Pawl

: Metal clip

JMJIA3023ZZ

JMJIA3024ZZ

REAR DOOR FINISHER

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

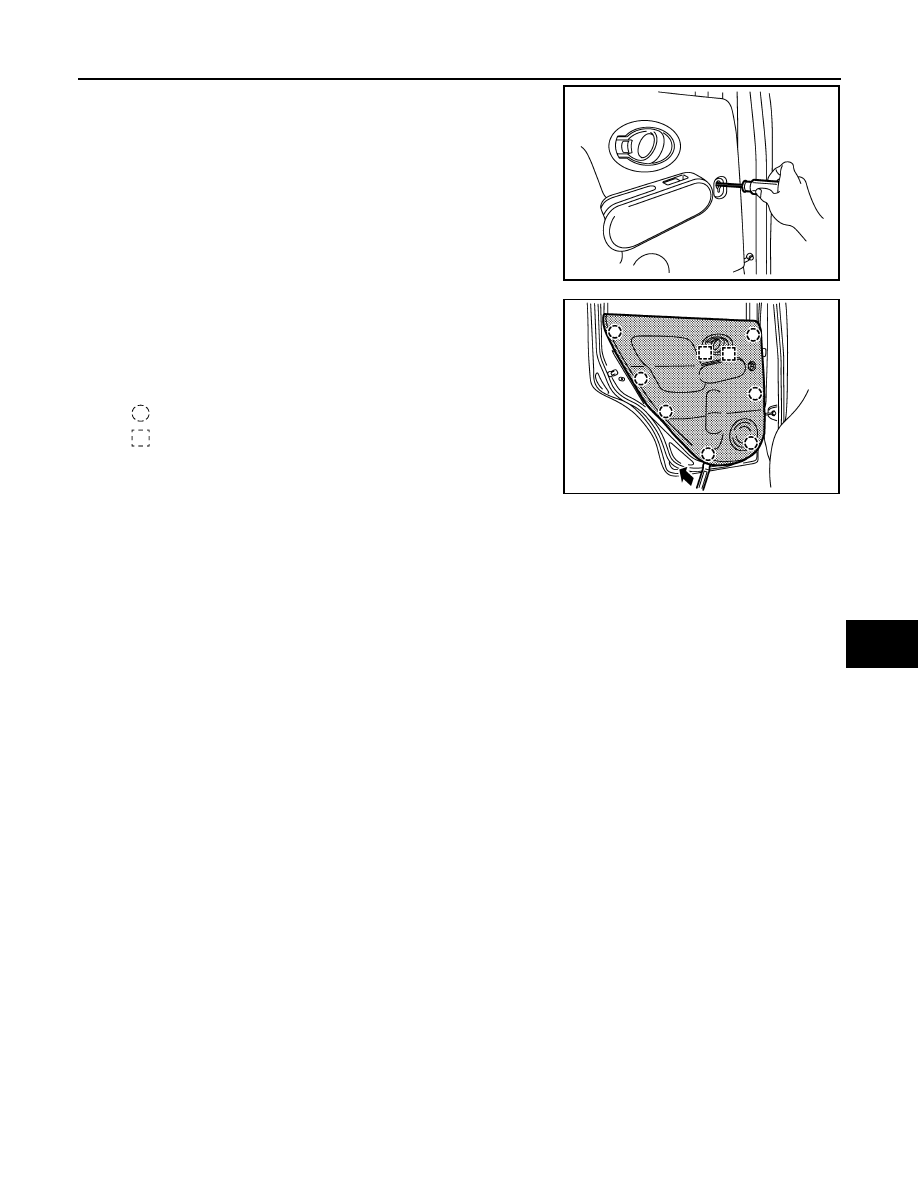

3.

Remove hook cover mounting screw.

4.

Insert remover tool between rear door panel and rear door fin-
isher to disengage the fixing clips and metal clips.

CAUTION:

Insert remover tool into part shown in the figure.
(Between clips and door panel).

5.

Disconnect power window switch harness connector.

6.

Remove rear door finisher.

7.

Remove power window switch finisher after removing rear door finisher.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips and metal clips are securely fitted in holes on body, and
then press them in.

JMJIA3026ZZ

: Clip

: Metal clip

JMJIA3027ZZ

INT-16

< REMOVAL AND INSTALLATION >

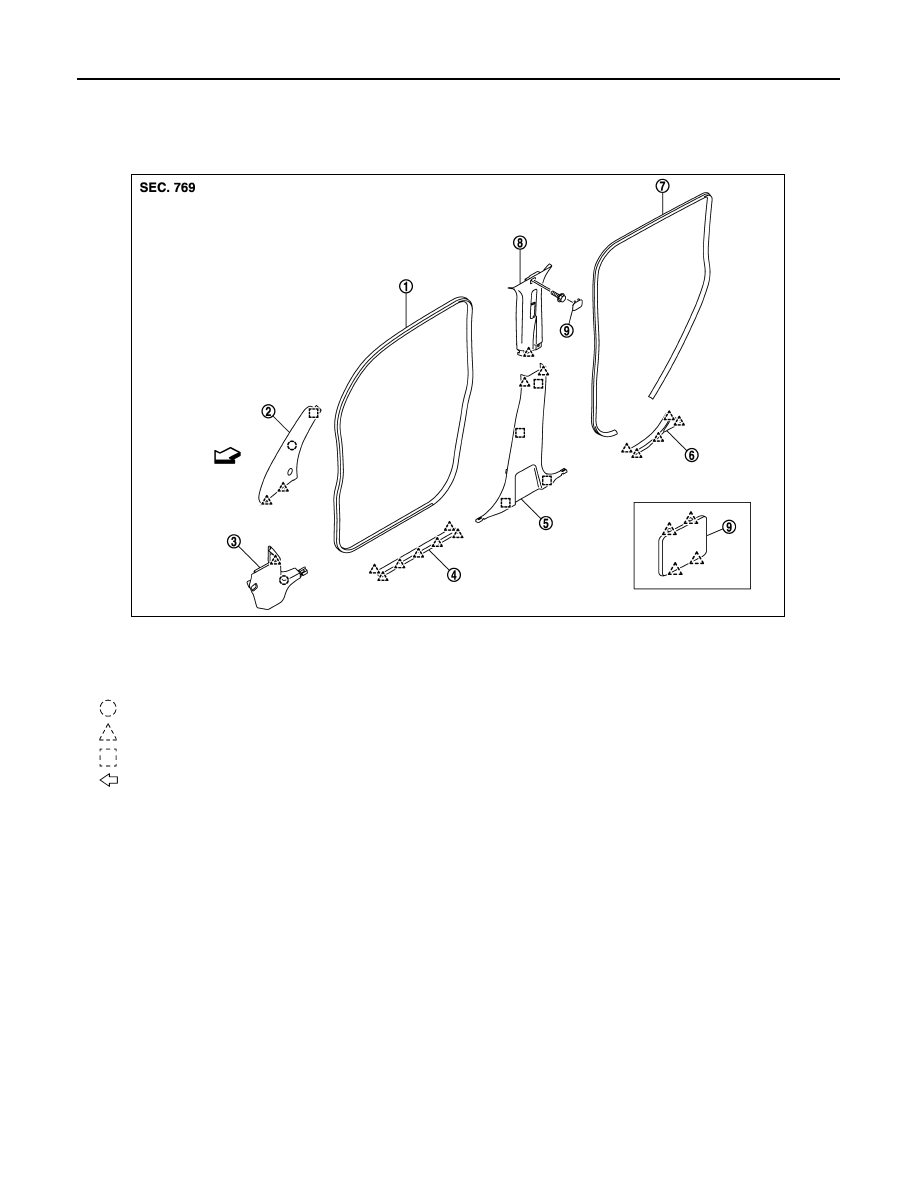

BODY SIDE TRIM

BODY SIDE TRIM

Exploded View

INFOID:0000000009949268

Removal and Installation

INFOID:0000000009949269

CAUTION:

• Wrap the tips of flat-bladed screwdriver with a shop cloth before removing metal clips from gar-

nishes.

• When removing, always use a remover tool that is made of plastic.
• Never damage the body.

REMOVAL

FRONT PILLAR GARNISH

1.

Release front pillar portion of body side welt.

1.

Front body side welt

2.

Front pillar garnish

3.

Dash side finisher

4.

Front kicking plate inner

5.

Center pillar lower garnish

6.

Rear kicking plate inner

7.

Rear body side welt

8.

Center pillar upper garnish

9.

Bolt cover

: Clip

: Pawl

: Metal clip

: Vehicle front

JMJIA3029ZZ
