INL-28

< DTC/CIRCUIT DIAGNOSIS >

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

Description

INFOID:0000000009950938

Provides the power supply and the ground to control the push-button ignition switch illumination.

Component Function Check

INFOID:0000000009950939

1.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION OPERATION

CONSULT ACTIVE TEST

1.

Turn the ignition switch ON.

2.

Select “ENGINE SW ILLUMI” of BCM (INTELLIGENT KEY) active test item.

3.

With operating the test items, check that the push-button ignition switch illumination turns ON/OFF.

Does the push-button ignition switch illumination turn ON/OFF?

YES

>> Push-button ignition switch illumination circuit is normal.

NO

>> Refer to

INL-28, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009950940

1.

CHECK ILLUMINATION CONTROL SWITCHING OPERATION

1.

Turn the ignition switch ON.

2.

With operating the lighting switch, check that the push-button ignition switch illumination turns ON/OFF.

Does the push-button ignition switch illumination turn ON/OFF?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION GROUND CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect BCM connector and the push-button ignition switch connector.

3.

Check continuity between BCM harness connector and the push-button ignition switch harness connector.

Does the continuity exist?

YES

>> Replace BCM.

NO

>> Repair the harness or the connector.

3.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY OUTPUT

CONSULT ACTIVE TEST

1.

Turn the ignition switch ON.

2.

Select “ENGINE SW ILLUMI” of BCM (INTELLIGENT KEY) active test item.

3.

With operating the test item, check voltage between BCM harness connector and ground.

On

: Push-button ignition switch illumination ON

Off

: Push-button ignition switch illumination OFF

Condition

Push-button ignition switch illumination

• Ignition switch ON
• Lighting switch 1ST

ON

• Ignition switch OFF
• Lighting switch OFF
• Driver door LOCK

OFF

BCM

Push-button ignition switch

Continuity

Connector

Terminal

Connector

Terminal

M71

92

M101

6

Existed

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT

INL-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Is the measurement value normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect BCM connector and the push-button ignition switch connector.

3.

Check continuity between BCM harness connector and the push-button ignition switch harness connector.

Does the continuity exist?

YES

>> Replace the push-button ignition switch.

NO

>> Repair the harness or the connector.

5.

CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY SHORT CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect BCM connector and the push-button ignition switch connector.

3.

Check continuity between BCM harness connector and ground.

Does the continuity exist?

YES

>> Repair the harness or the connector.

NO

>> Replace BCM.

Terminals

Test item

Voltage

(Approx.)

(+)

(–)

BCM

Ground

ENGINE SW

ILLUMI

Connector

Terminal

M71

90

ON

12 V

OFF

0 V

BCM

Push-button ignition switch

Continuity

Connector

Terminal

Connector

Terminal

M71

90

M101

5

Existed

BCM

Ground

Continuity

Connector

Terminal

M71

90

Not existed

INL-30

< DTC/CIRCUIT DIAGNOSIS >

INTERIOR ROOM LAMP CONTROL SYSTEM

INTERIOR ROOM LAMP CONTROL SYSTEM

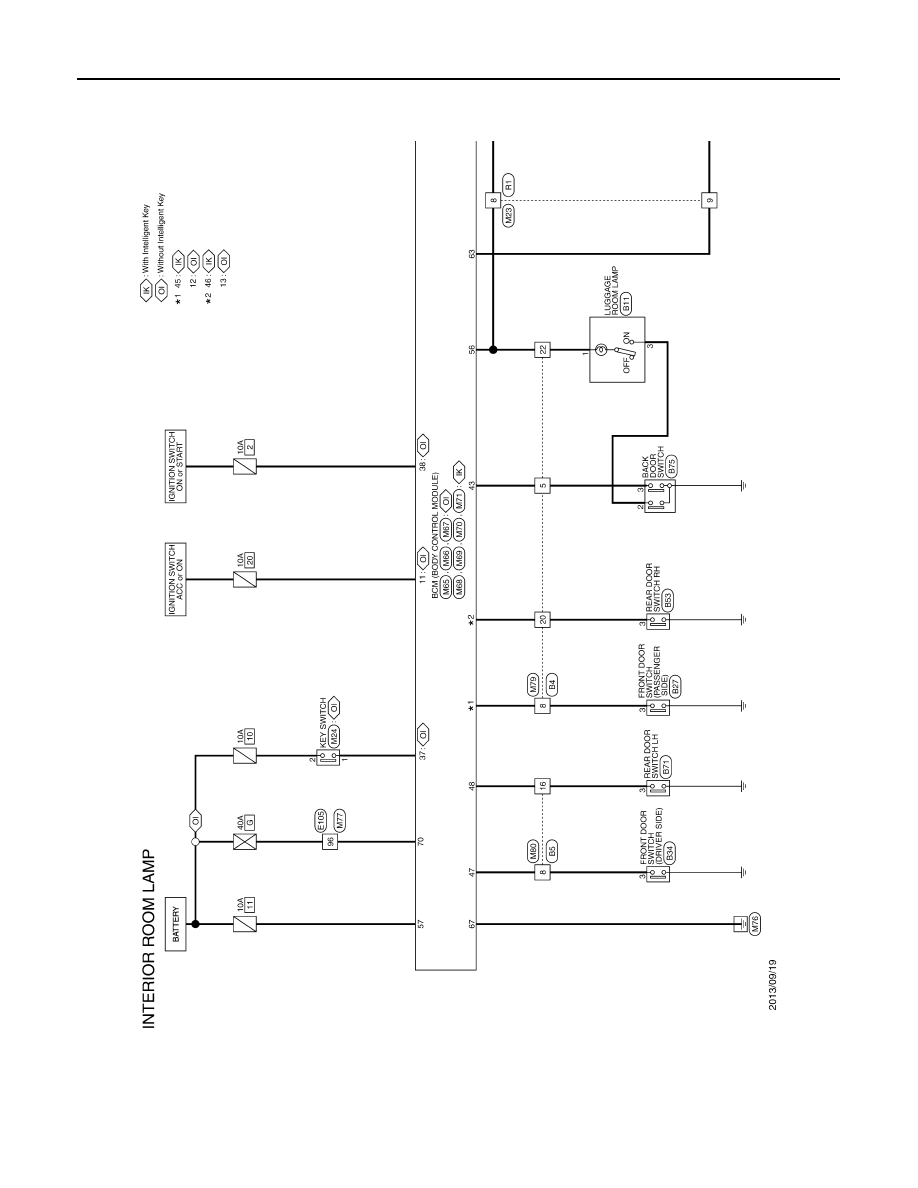

Wiring Diagram - INTERIOR ROOM LAMP -

INFOID:0000000009950941

JRLWD0668GB

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-31

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

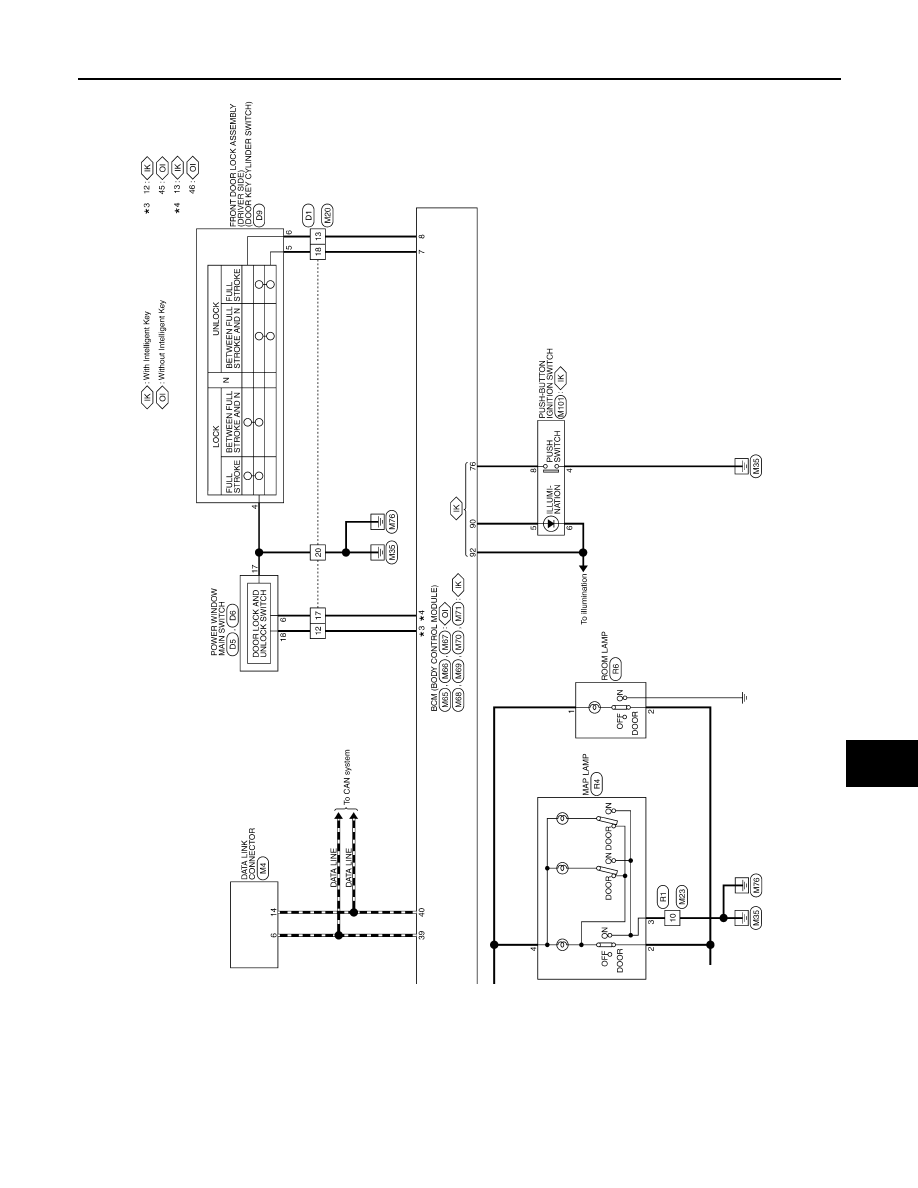

JRLWD0669GB
