Nissan Cube. Manual - part 527





REAR DOOR GLASS

GW-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR DOOR GLASS

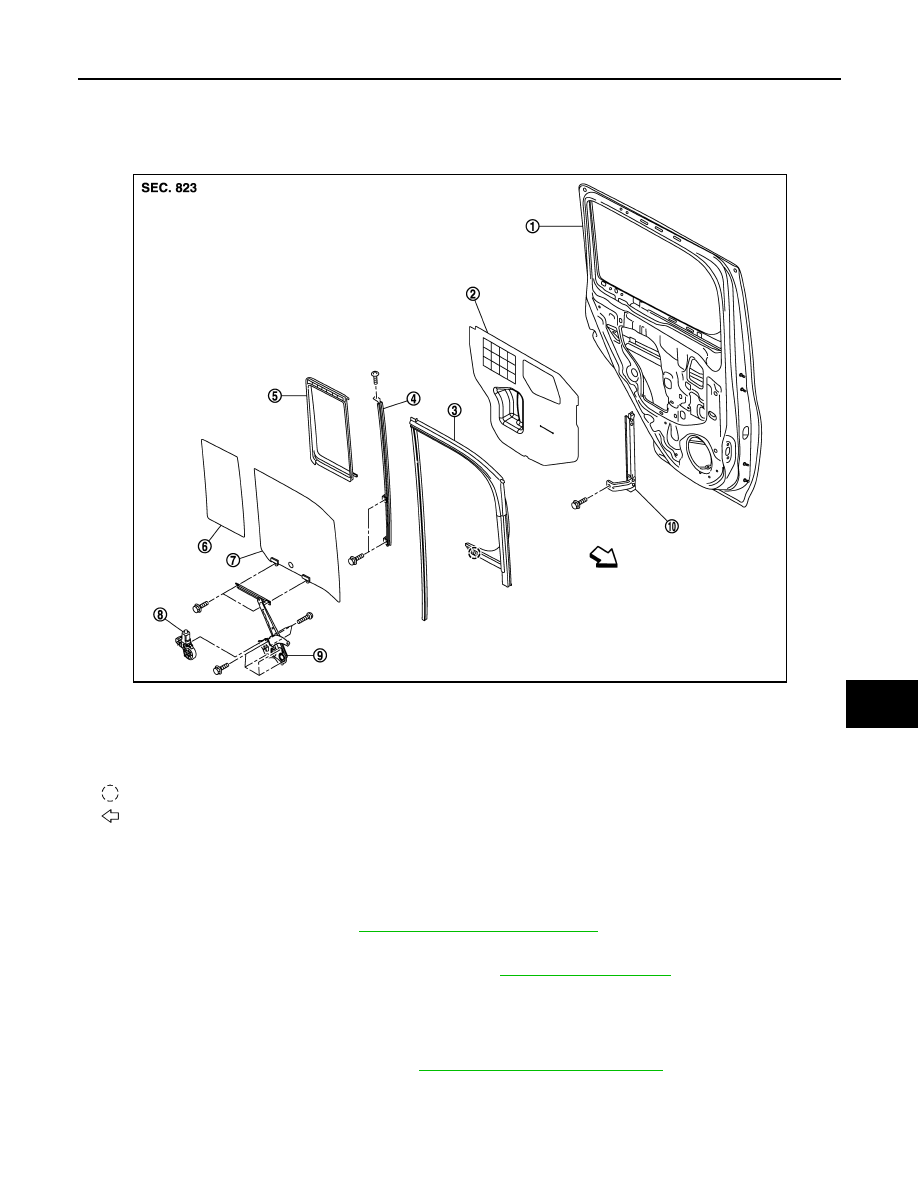

Exploded View

INFOID:0000000009949316

Removal and Installation

INFOID:0000000009949317

REMOVAL

1.

Remove rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Fully open rear door glass.

3.

Remove power window switch finisher bracket. Refer to

INT-14, "Exploded View"

.

4.

Remove rear door speaker harness connector and rear sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

5.

Remove rear door outside molding. Refer to

EXT-26, "Removal and Installation"

.

6.

Remove partition sash mounting bolts and screw.

7.

Remove partition sash.
• Remove rear door glass run from partition sash.

1.

Rear door panel

2.

Rear door sealing screen

3.

Rear door glass run

4.

Partition sash

5.

Partition weather-strip

6.

Partition glass

7.

Rear door glass

8.

Power window motor

9.

Regulator assembly

10. Rear door sash

: Clip

: Vehicle front

JMKIA3944ZZ

GW-24

< REMOVAL AND INSTALLATION >

REAR DOOR GLASS

• Slightly pull straight down partition sash.
• From the upper side, slop partition sash toward vehicle front and then remove.

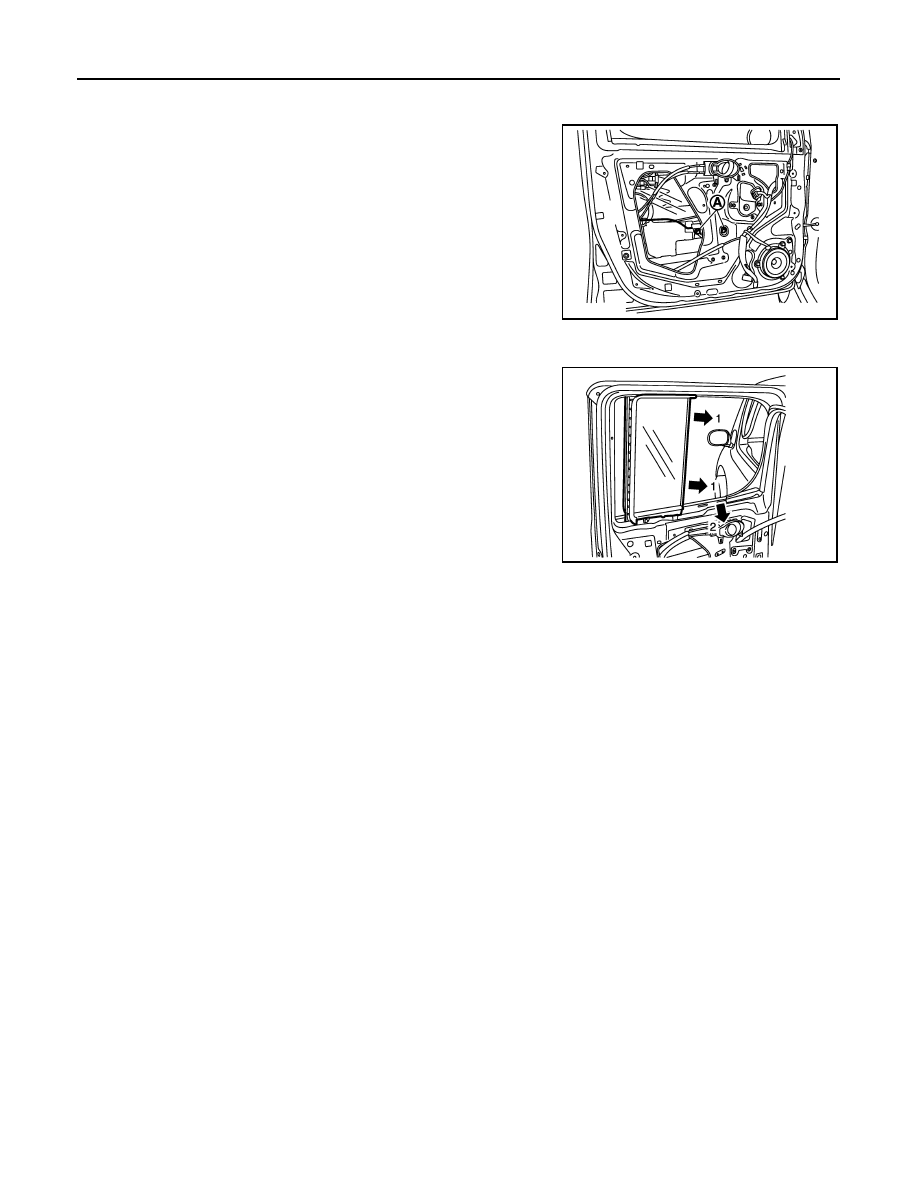

8.

Operate the power window switch to raise/lower the door win-
dow until the glass mounting bolts can be seen.

9.

Remove the glass mounting bolts (A).

10. Remove rear door glass from the rear door panel.

11. Remove partition glass.

• Slide partition glass toward the arrow 1.
• Pull partition toward the direction of arrow 2 to remove.
• Remove partition weather-strip after removing the partition

glass.

12. Remove rear door glass run fixing clip and remove rear door glass run.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000009949318

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and carrier plate
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

JMKIA3948ZZ

JMKIA3949ZZ

REAR REGULATOR

GW-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR REGULATOR

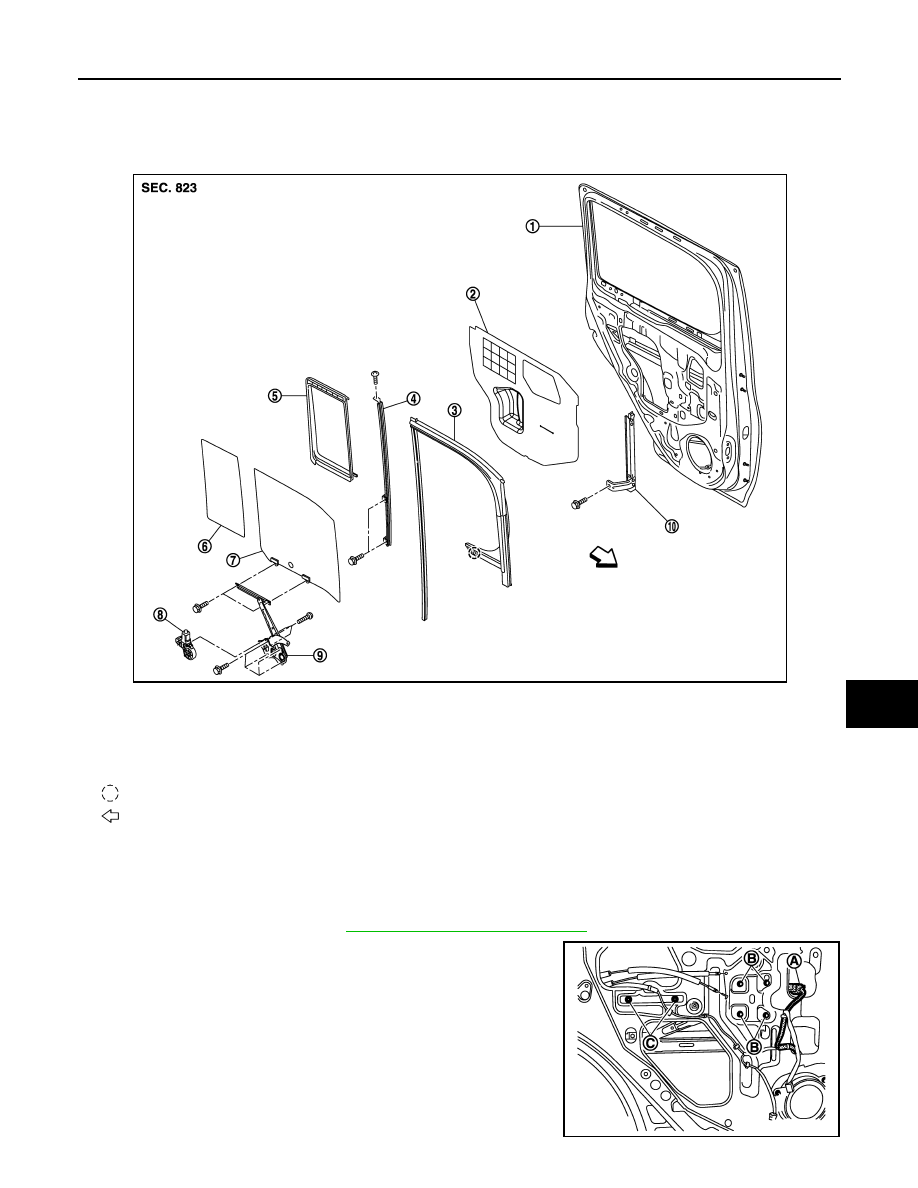

Exploded View

INFOID:0000000009949319

Removal and Installation

INFOID:0000000009949320

REMOVAL

1.

Remove rear door glass. Refer to

GW-23, "Removal and Installation"

.

2.

Disconnect power window motor harness connector (A).

3.

Remove the regulator assembly mounting bolts (C), nuts (B) and
remove regulator assembly from door panel.

1.

Rear door panel

2.

Rear door sealing screen

3.

Rear door glass run

4.

Partition sash

5.

Partition weather-strip

6.

Partition glass

7.

Rear door glass

8.

Power window motor

9.

Regulator assembly

10. Rear door sash

: Clip

: Vehicle front

JMKIA3944ZZ

JMKIA3945ZZ

GW-26

< REMOVAL AND INSTALLATION >

REAR REGULATOR

4.

Remove rear door sash mounting bolts and then remove rear door lower sash.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000009949321

DISASSEMBLY

Remove power window motor from regulator assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.

Inspection and Adjustment

INFOID:0000000009949322

Inspection after Removal

Check the regulator assembly for the following items. Replace or grease it if a malfunction is detected.
• Wire wear
• Regulator deformation

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and carrier plate
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.
