SIDE WINDOW GLASS
GW-15
< REMOVAL AND INSTALLATION >
C
D
E
F
G
H
I
J
L
M
A
B
GW
N
O
P
Removal and Installation
INFOID:0000000009949304
CAUTION:
Replace the side window glass assembly with a new part after removal as it cannot be reused.
REMOVAL
1.
Remove luggage side upper finisher RH. Refer to
INT-24, "Removal and Installation"
2.
Apply protective tape around the side window to protect the painted surface from damage.
3.

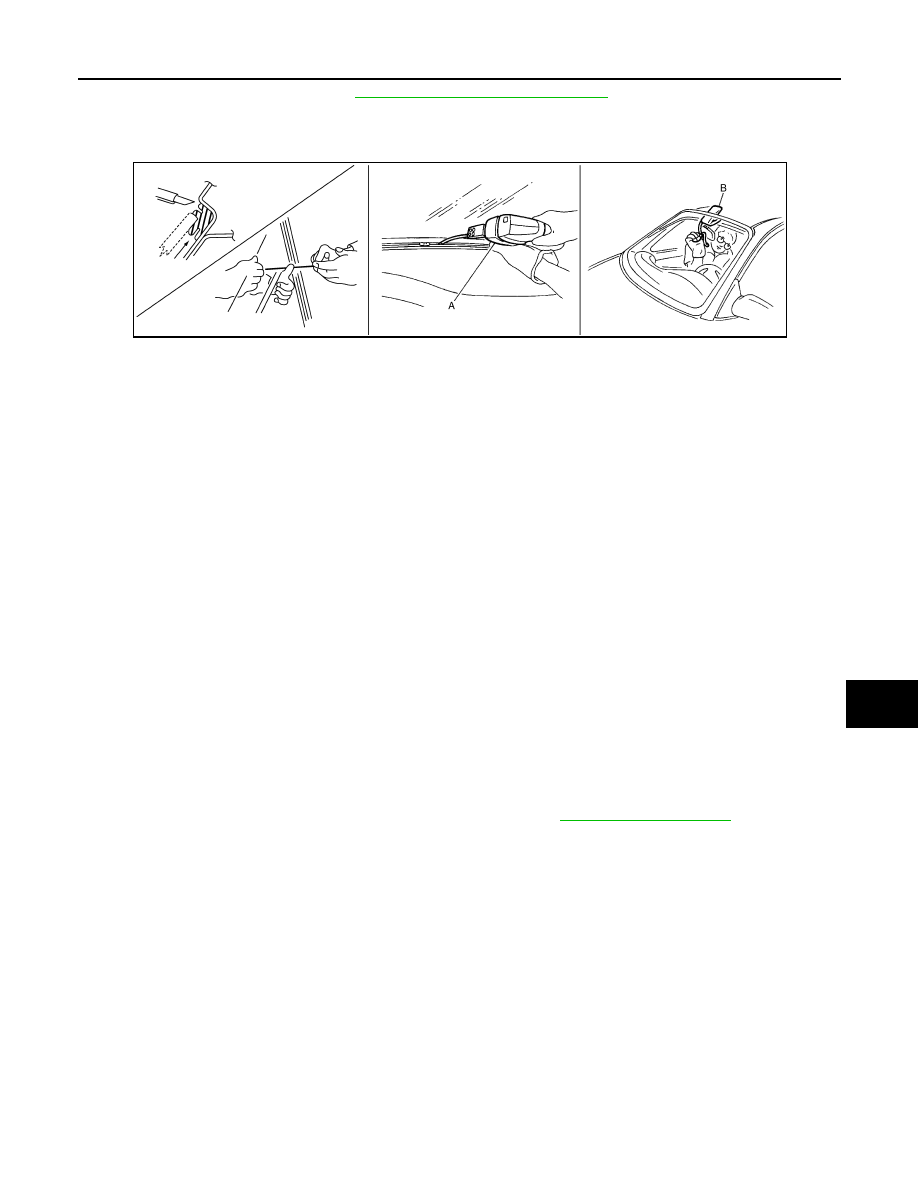

Remove the side window glass using piano wire or power cutting tool and an inflatable pump bag.
WARNING:
Always wear safety glasses and heavy gloves to help prevent injuries.
CAUTION:
Never set or stand the glass on its edge. Small chips may develop into cracks.
INSTALLATION
• Use a Genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions pro-
vided with it.
• Open a door window while the urethane adhesive is curing. This prevents the glass from being forced out by
passenger room air pressure when all door windows are closed.
• Inform the customer that the vehicle should remain stationary until the urethane adhesive is completely
cured (approximately 24 hours). Curing time varies with temperature and humidity.
WARNING:
• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never let
them come in contact with the skin and eyes.
• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.
Move immediately to an area with fresh air if affected by vapor inhalation.
• Driving the vehicle before the urethane adhesive is completely cured may affect the performance of
the side window in an accident.
CAUTION:
• Never use an adhesive that is past its usable term. Shelf life of this product is limited to six months
after the date of manufacture. Adhere carefully to the expiration or manufacture date printed on the
box.
• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Never leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for 24 hours or more or until the urethane adhesive is completely
cured. Curing time varies depending on temperature and humidity. The curing time increases under
lower temperature and lower humidity.
Inspection
INFOID:0000000009949305
REPAIRING WATER LEAKAGE FOR SIDE WINDOW GLASS
Leakage can be repaired without removing the side window glass.
Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.
This can be done by applying water to the side window glass area while pushing glass outward.
Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

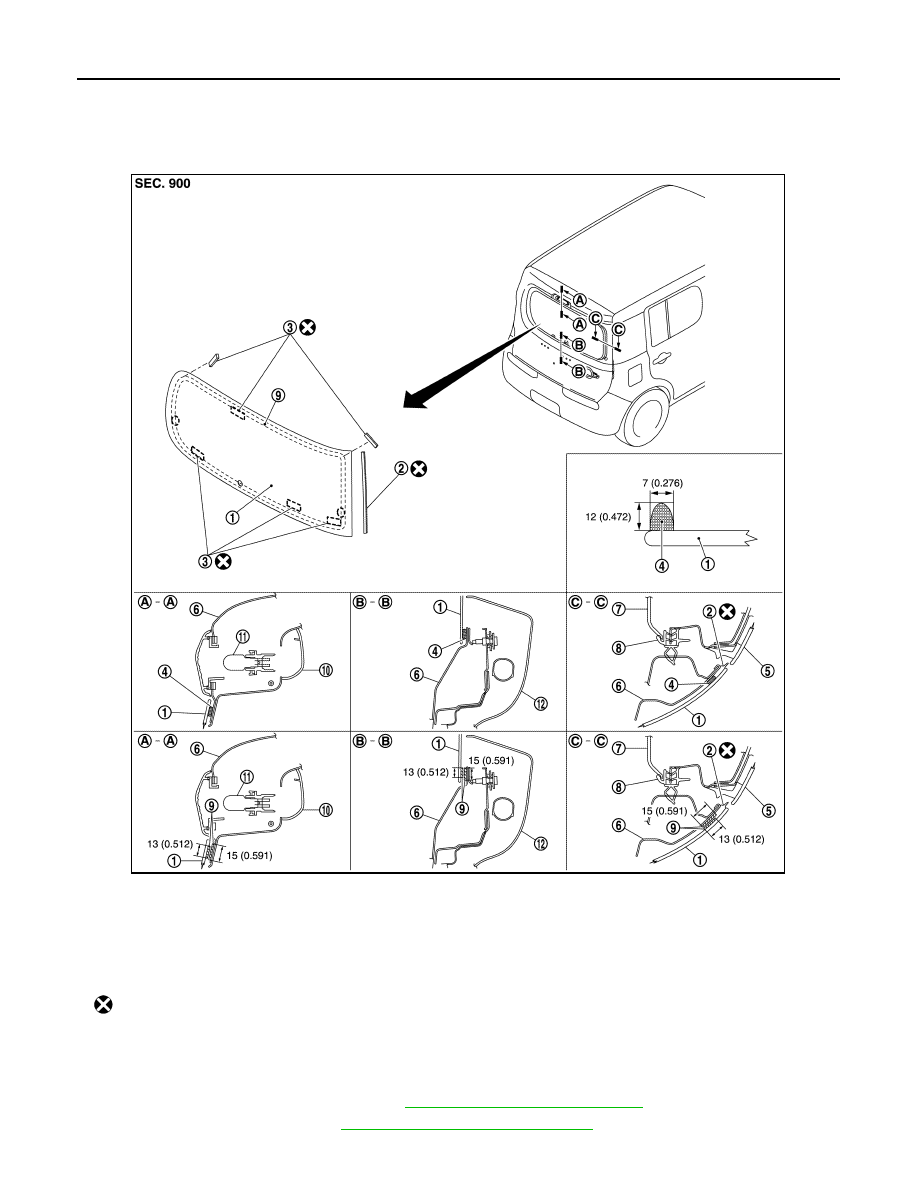

10.
Primer
11.
Spacer
: Clip
Unit
: mm (in)
: Always replace after every disassembly.
