FRONT DOOR GLASS

GW-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

5.

Operate the power window switch to raise/lower the door win-
dow until the glass mounting bolts can be seen.

6.

Remove the glass mounting bolts (A).

7.

Hold securely the front door glass and pull it out of the sash to
remove the door glass as shown in the figure.

8.

Remove front door outside molding. Refer to

EXT-26, "Removal and Installation"

.

9.

Remove the front door glass run fixing clips and then remove the front door glass run from door panel.

10. Remove lower sash (rear).

• Remove lower sash (rear) mounting bolt.
• Reach the bottom part of lower sash and then pull it toward vehicle front.
• Hold the upper part of lower sash and then pull it up to remove.

11. Remove lower sash (front).

• Remove lower sash (front) mounting bolt.
• Reach the bottom part of lower sash and then pull it toward rear of vehicle.
• Hold the upper part of lower sash and then pull it up to remove.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000009949311

SYSTEM INITIALIZATION

Initialize the system if any of the following work has been done.
• Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery

cable, etc.

• Removal and installation of the regulator assembly.
• Removal and installation of the motor from the regulator assembly.
• Removal and installation of the harness connector of the power window switch.
• Removal and installation of the door glass.
• Removal and installation of the front door glass run.
• Disconnection and connection of the minus terminal of the battery.

 Initialization

Follow the steps below after installing each component to the vehicle.

1.

Disconnect the minus terminal of battery or disconnect power window switch harness connector tempo-
rarily. Then reconnect after at least 1 minute.

2.

Turn ignition switch ON.

3.

Operate power window switch to fully open the window.

4.

Draw fully the power window switch in the up direction (auto close position) and hold. Continue holding
the switch even when window is completely closed and then release after more than 3 seconds.

JMKIA3946ZZ

JMKIA3947ZZ

GW-20

< REMOVAL AND INSTALLATION >

FRONT DOOR GLASS

5.

Inspect the anti-pinch system function.
NOTE:
Initialization may be cancelled with continuous opening and closing operation. In this case, initialize the
system.

INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM

1.

Fully open the door glass.

2.

Place a wooden piece (wooden hammer handle, etc.) at near fully closed position.

3.

Perform fully closing operation with auto up switch.

• Check that the glass reverses without pinching the wooden piece, is lowered approximately 150 mm (5.906

in) or for more than 3 seconds and then stops.

• The glass should not be raised with power window main switch operated while it is reversing or lowering.

CAUTION:

• Be careful not to be pinched.
• Check that the auto up function is normal before the inspection following the system initialization.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

FRONT REGULATOR

GW-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

FRONT REGULATOR

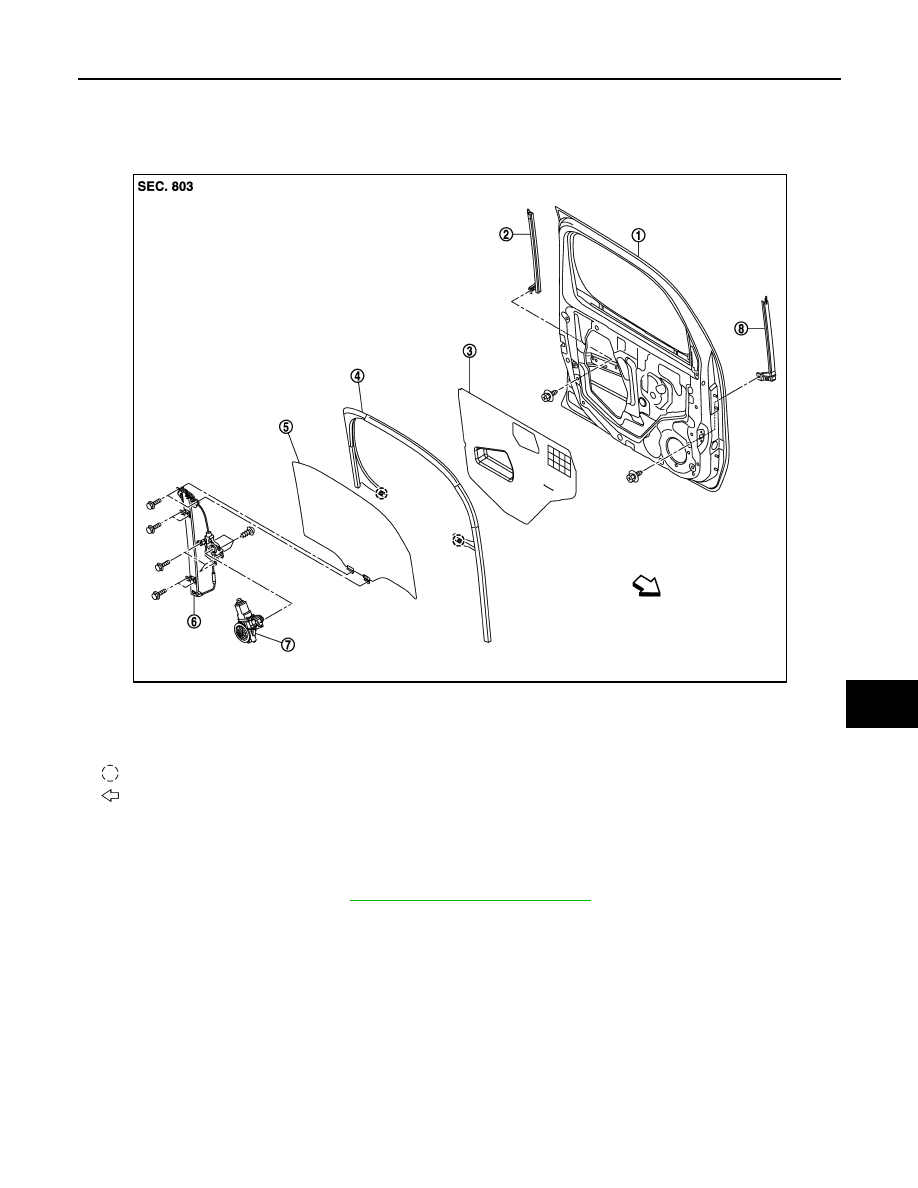

Exploded View

INFOID:0000000009949312

Removal and Installation

INFOID:0000000009949313

REMOVAL

1.

Remove front door glass. Refer to

GW-18, "Removal and Installation"

.

2.

Remove power window motor harness connector and harness clips from regulator assembly.

3.

Remove regulator assembly mounting bolts.

4.

Remove regulator assembly from front door panel.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000009949314

DISASSEMBLY

Remove the power window motor from the regulator assembly.

ASSEMBLY

1.    Front door panel

2.

Lower sash (rear)

3.

Front door sealing screen

4.

Front door glass run

5.

Front door glass

6.

Regulator assembly

7.

Power window motor

8.

Lower sash (front)

: Clip

: Vehicle front

JMKIA3943ZZ

GW-22

< REMOVAL AND INSTALLATION >

FRONT REGULATOR

Assemble in the reverse order of disassembly.

Inspection and Adjustment

INFOID:0000000009949315

Inspection after Removal

Check the regulator assembly for the following items. Replace or grease it if a malfunction is detected.
• Wire wear
• Regulator deformation

SYSTEM INITIALIZATION

Initialize the system if any of the following work has been done.
• Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery

cable, etc.

• Removal and installation of the regulator assembly.
• Removal and installation of the motor from the regulator assembly.
• Removal and installation of the harness connector of the power window switch.
• Removal and installation of the door glass.
• Removal and installation of the front door glass run.
• Disconnection and connection of the minus terminal of battery.

Initialization

Follow the steps below after installing each component to the vehicle.

1.

Disconnect the minus terminal of battery or disconnect power window switch harness connector tempo-
rarily. Then reconnect after at least 1 minute.

2.

Turn ignition switch ON.

3.

Operate power window switch to fully open the window.

4.

Draw fully the power window switch in the up direction (auto close position) and hold. Continue holding
the switch even when window is completely closed and then release after more than 3 seconds.

5.

Inspect the anti-pinch system function.
NOTE:
Initialization may be cancelled with continuous opening and closing operation. In this case, initialize the
system.

INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM

1.

Fully open the door glass.

2.

Place a wooden piece (wooden hammer handle, etc.) at near fully closed position.

3.

Perform fully closing operation with auto up switch.

• Check that the glass reverses without pinching the wooden piece, is lowered approximately 150 mm (5.906

in) or for more than 3 seconds and then stops.

• The glass should not be raised with power window main switch operated while it is reversing or lowering.

CAUTION:

• Be careful not to be pinched.
• Check that the auto up function is normal before the inspection following the system initialization.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.
