Nissan Cube. Manual - part 505

FSU-14

< REMOVAL AND INSTALLATION >

TRANSVERSE LINK

3.

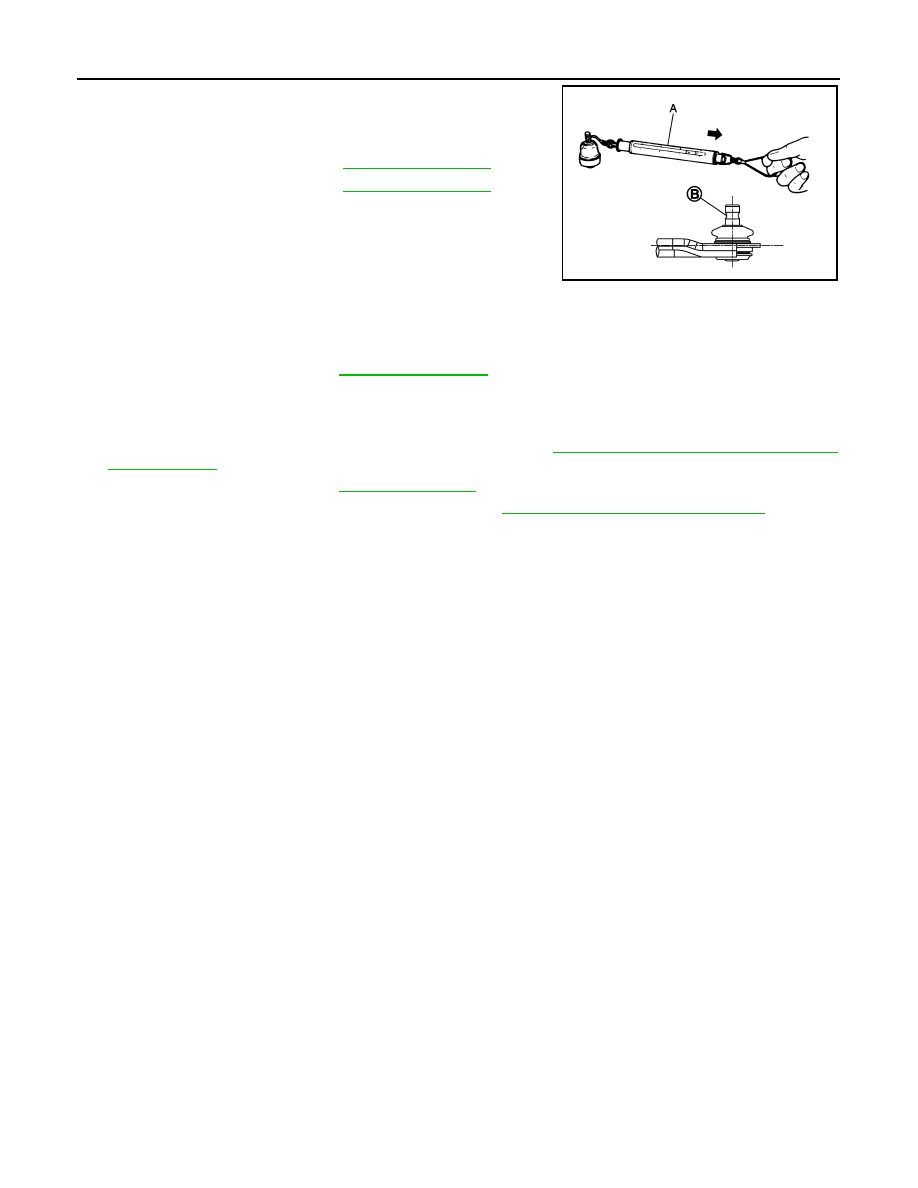

Hook a spring balance (A) at cutout on ball stud (B). Confirm
spring balance measurement value is within specifications when
ball stud begins moving.

-

If swing torque exceeds standard range, replace transverse link
assembly.

Axial End Play

1.

Move ball stud at least ten times by hand to check for smooth movement.

2.

Move tip of ball stud in axial direction to check for looseness.

-

If axial end play exceeds the standard value, replace transverse link assembly.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connector. Refer to

BRC-110, "FRONT WHEEL SENSOR :

Exploded View"

.

2.

Check wheel alignment. Refer to

FSU-7, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "Special Repair Requirement"

.

Swing torque

: Refer to

FSU-19, "Ball Joint"

.

Measurement on
spring balance

: Refer to

FSU-19, "Ball Joint"

.

JPEIA0138ZZ

Axial end play

: Refer to

FSU-19, "Ball Joint"

.

FRONT STABILIZER

FSU-15

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

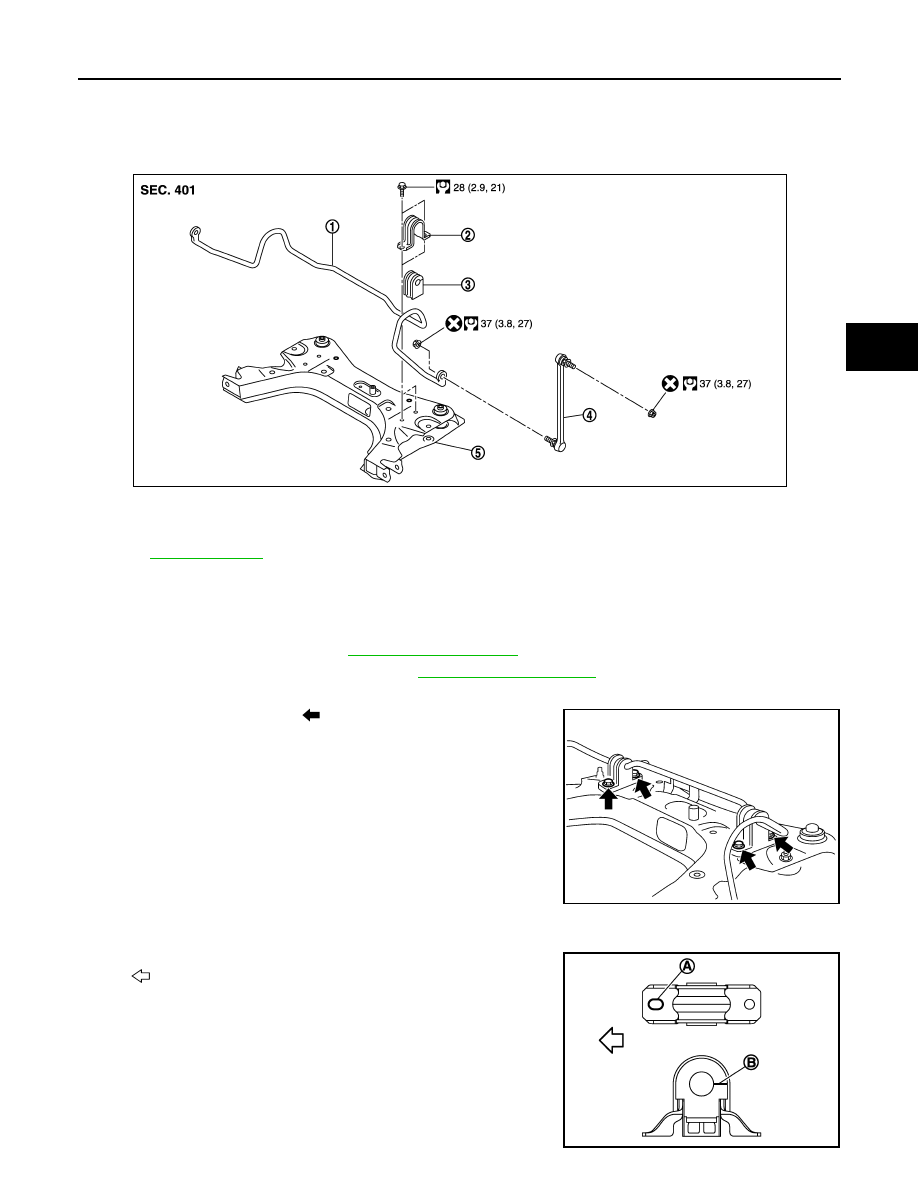

FRONT STABILIZER

Exploded View

INFOID:0000000009948829

Removal and Installation

INFOID:0000000009948830

REMOVAL

1.

Remove tires power tool. Refer to

WT-46, "Exploded View"

.

2.

Remove front suspension member. Refer to

FSU-17, "Exploded View"

.

3.

Remove stabilizer connecting rod.

4.

Remove mounting bolts (

) of stabilizer clamp, and then

remove stabilizer clamp and stabilizer bushing from front sus-
pension member.

5.

Remove stabilizer bar.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install stabilizer clamp that a linear hole (A) becomes vehicle front

side (

).

• Install stabilizer bushing that slit (B) becomes vehicle rear side.

1.

Stabilizer bar

2.

Stabilizer clamp

3.

Stabilizer bushing

4.

Stabilizer connecting rod

5.

Front suspension member



Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIA0180GB

WEIA0182E

JPEIA0188ZZ

FSU-16

< REMOVAL AND INSTALLATION >

FRONT STABILIZER

• Tighten the mounting nut to the specified torque while holding a hexagonal part of stabilizer connecting rod

side.

• Perform final tightening of bolts and nuts at the vehicle installation position (rubber bushing), under unladen

conditions with tires on level ground.

Inspection

INFOID:0000000009948831

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp for deformation, cracks
or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connector. Refer to

BRC-110, "FRONT WHEEL SENSOR :

Exploded View"

.

2.

Check wheel alignment. Refer to

FSU-7, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "Special Repair Requirement"

.

FRONT SUSPENSION MEMBER

FSU-17

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

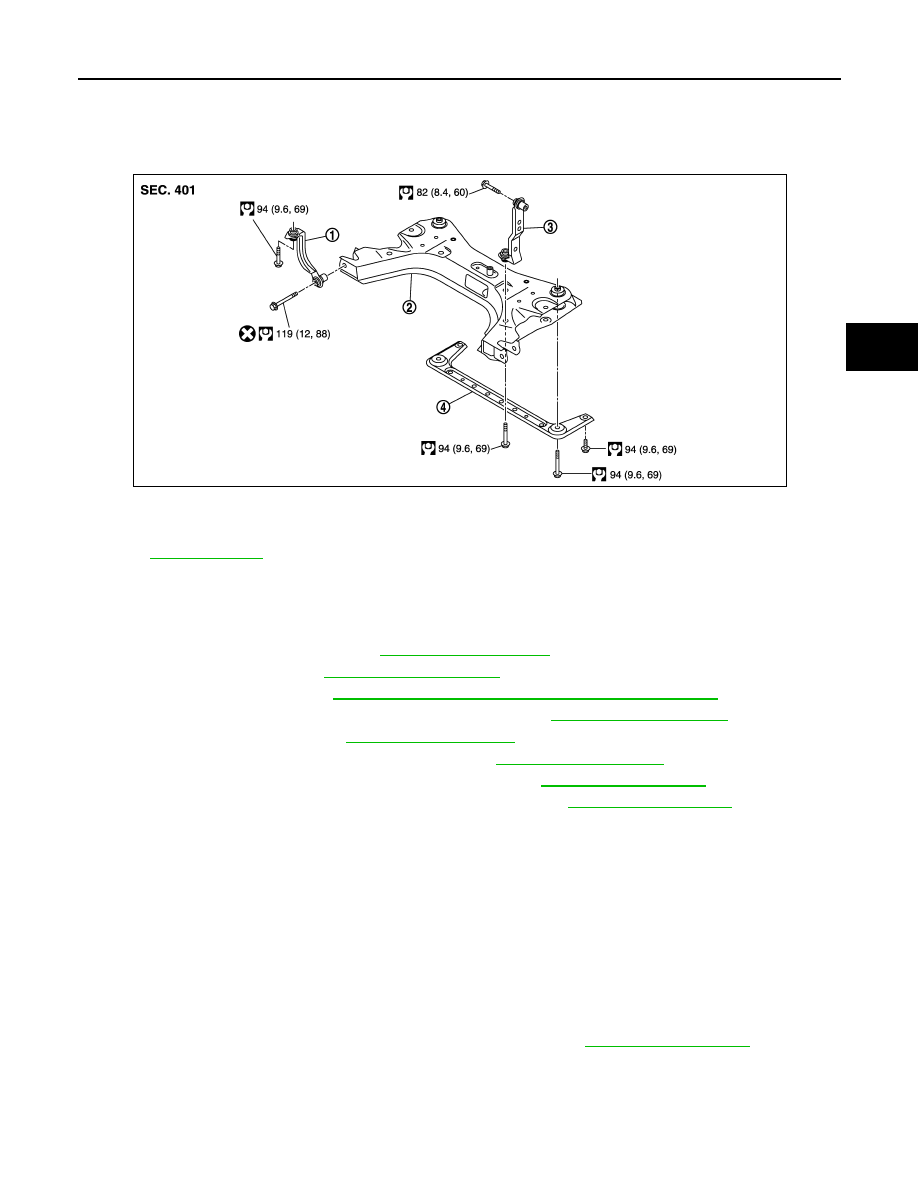

FRONT SUSPENSION MEMBER

Exploded View

INFOID:0000000009948832

Removal and Installation

INFOID:0000000009948833

REMOVAL

1.

Remove tires with power tool. Refer to

WT-46, "Exploded View"

.

2.

Remove under cover. Refer to

EXT-22, "Exploded View"

.

3.

Remove wheel sensor. Refer to

BRC-110, "FRONT WHEEL SENSOR : Exploded View"

.

4.

Remove stabilizer connecting rod from strut assembly. Refer to

FSU-15, "Exploded View"

.

5.

Remove rear torque rod. Refer to

EM-74, "Exploded View"

.

6.

Remove transverse link from steering knuckle. Refer to

FAX-9, "Exploded View"

.

7.

Remove steering outer socket from steering knuckle. Refer to

ST-14, "Exploded View"

.

8.

Remove intermediate shaft from steering gear assembly. Refer to

ST-11, "Exploded View"

.

9.

Set suitable jack under front suspension member.

CAUTION:

Check the stable condition when using a jack.

10. Remove member stay rear mounting bolts.
11. Remove upper link mounting bolts (right side: vehicle body side, left side: suspension member side), and

suspension member mounting bolts.

12. Gradually lower the jack to remove front suspension member from vehicle body.

CAUTION:

Check the stable condition when using a jack.

13. Remove upper link (left side) from vehicle body.
14. Remove upper link (right side), transverse links, stabilizer assembly from suspension member.

15. Remove steering gear assembly from suspension member. Refer to

ST-14, "Exploded View"

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of bolts and nuts, under unladen conditions with tires on level ground.

1.

Upper link (right side)

2.

Front suspension member

3.

Upper link (left side)

4.

Member stay

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIA0181GB
