FRONT SUSPENSION MEMBER

Inspection

INFOID:0000000009948834

INSPECTION AFTER DISASSEMBLY

Check front suspension member for cracks, wear or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connector. Refer to

BRC-110, "FRONT WHEEL SENSOR :

Exploded View"

.

2.

Check wheel alignment. Refer to

FSU-7, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "Special Repair Requirement"

.

SERVICE DATA AND SPECIFICATIONS (SDS)

FSU-19

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Alignment

INFOID:0000000009948835

Measure value under unladen* conditions.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Ball Joint

INFOID:0000000009948836

Item

Standard

Camber
Degree minute (Decimal degree)

Minimum

−

0

°

 55

′

 (

−

0.92

°

)

Nominal

−

0

°

 10

′

 (

−

0.17

°

)

Maximum

0

°

 35

′

 (0.58

°

)

Left and right difference

0

°

 45

′

 (0.75

°

)

Caster
Degree minute (Decimal degree)

Minimum

3

°

 55

′

 (3.92

°

)

Nominal

4

°

 40

′

 (4.67

°

)

Maximum

5

°

 25

′

 (5.41

°

)

Left and right difference

0

°

 45

′

 (0.75

°

)

Kingpin inclination
Degree minute (Decimal degree)

Minimum

9

°

 10

′

 (9.17

°

)

Nominal

9

°

 55

′

 (9.92

°

)

Maximum

10

°

 40

′

 (10.66

°

)

Toe-in

Total toe-in
Distance

Minimum

Out 1.0 mm (Out 0.03 in)

Nominal

In 1.0 mm (In 0.04 in)

Maximum

In 3.0 mm (In 0.11 in)

Total toe-angle
Degree minute (Decimal degree)

Minimum

Out 0

°

 06

′

 (Out 0.10

°

)

Nominal

In 0

°

 06

′

 (In 0.10

°

)

Maximum

In 0

°

 17

′

 (In 0.28

°

)

Item

Standard

Swing torque

0.5 – 4.9 N·m (0.05 – 0.5 kg-m, 5 – 43 in-lb)

Measurement on spring balance

15.4 – 150.8 N (1.6 – 15.4 kg, 3.6 – 33.9 lb)

Axial end play

0 mm (0 in)

FSU-20

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

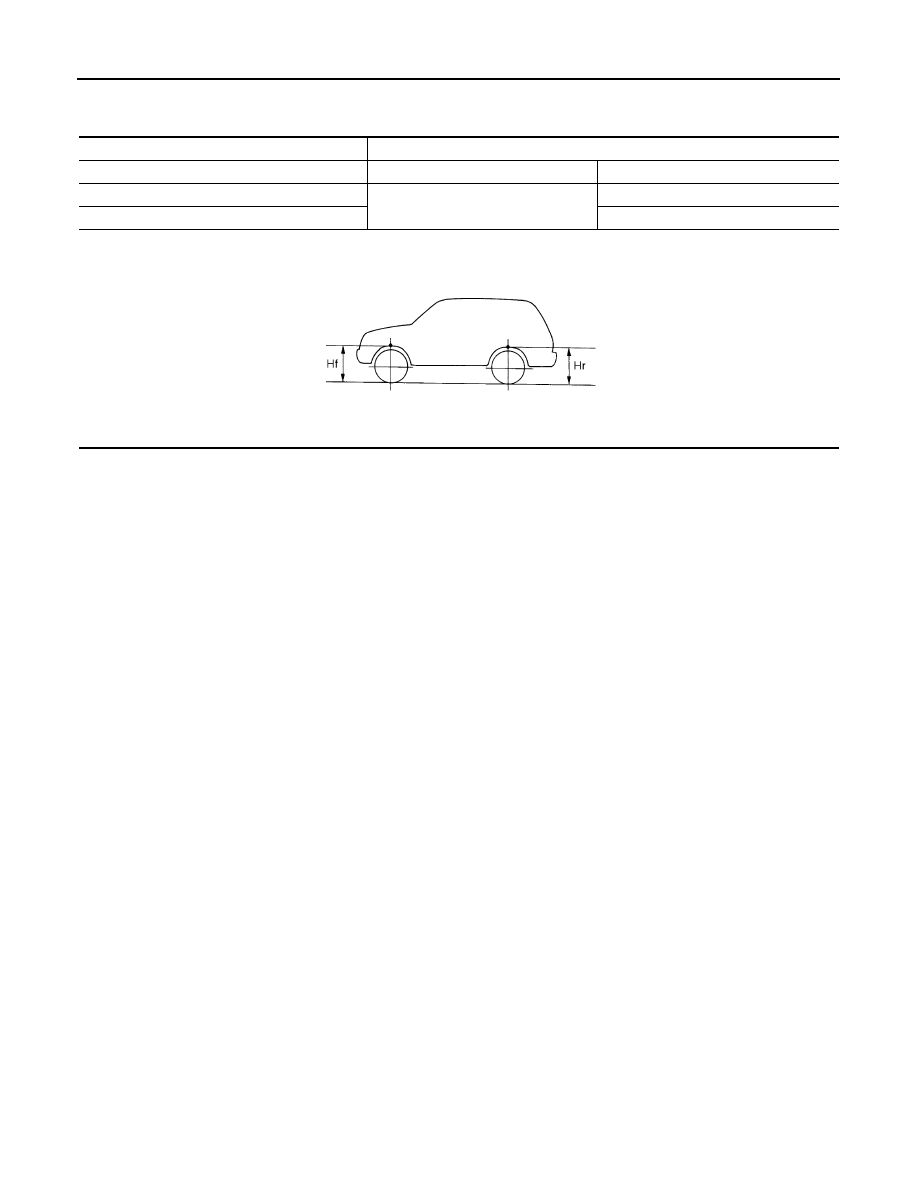

Wheelarch Height

INFOID:0000000009948837

Measure value under unladen* conditions.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Item

Standard

Tire size

195/60R15

195/55R16

Front (Hf)

679 mm (26.73 in)

684 mm (26.93 in)

Rear (Hr)

683 mm (26.89 in)

SFA746B

A
B

D

E

F

G

H

I

J

K

L

M

N

P

O

C

QUICK REFERENCE INDEX
